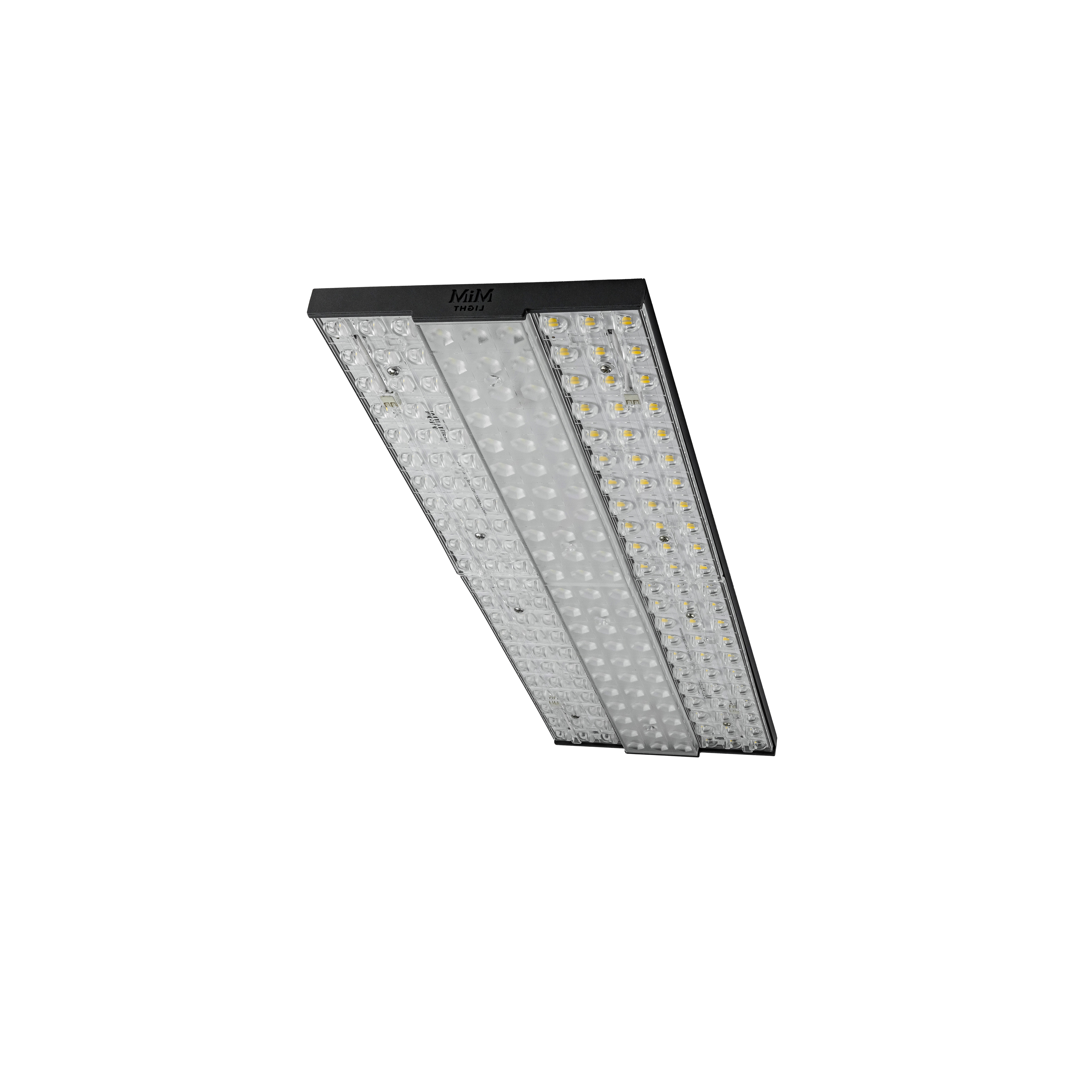

Linear Track Light | LM-VSS6-3V

The Triple Linear Track Light by LED Market / MiM Light is a state-of-the-art linear lighting solution specifically engineered for 3-phase track systems. Designed for modern retail environments and high-end supermarkets, it delivers a massive 150 lm/W luminous efficacy, setting a new benchmark for energy efficiency in commercial track lighting.

With its 580mm sleek profile and specialized lens technology (including asymmetrical options), it provides perfectly uniform illumination for long aisles and product displays. This luminaire is the ideal choice for projects seeking to combine industrial-grade power with the flexibility of track mounting.

Key Features:

• Market-Leading Efficiency: 150 lm/W ensures the lowest possible energy costs for large-scale retail projects.

• Track Flexibility: Tool-free installation into universal 3-phase track rails for easy repositioning.

• Advanced Optical Control: A wide variety of SYM and ASYM lenses to eliminate shadows and highlight products on shelves.

• Consistent Color Quality: SDCM Step 3 (MacAdam) guarantees perfect color consistency across the entire installation.

• Durability: Built with a high-efficiency driver (94%) and a robust housing backed by a 5-year warranty.

Technical Specifications:

• Power: 65W

• Lumen Output: 9670 lm – 9685 lm

• System Efficacy: Up to 150 lm/W

• Lens Options: SYM 30°, 60°, 90°, 110° | ASYM ZT25, Z2T25, 60x125°

• CCT: 3000K / 4000K / 5700K

• SDCM: Step 3 (MacAdam)

• Driver Efficiency: 94%

• Input Voltage: 200-265VAC

• Glare Rating: UGR < 19

• Length: 580mm

• Housing Color: White / Black

• Warranty: 5 Years

• CRI: Ra > 97

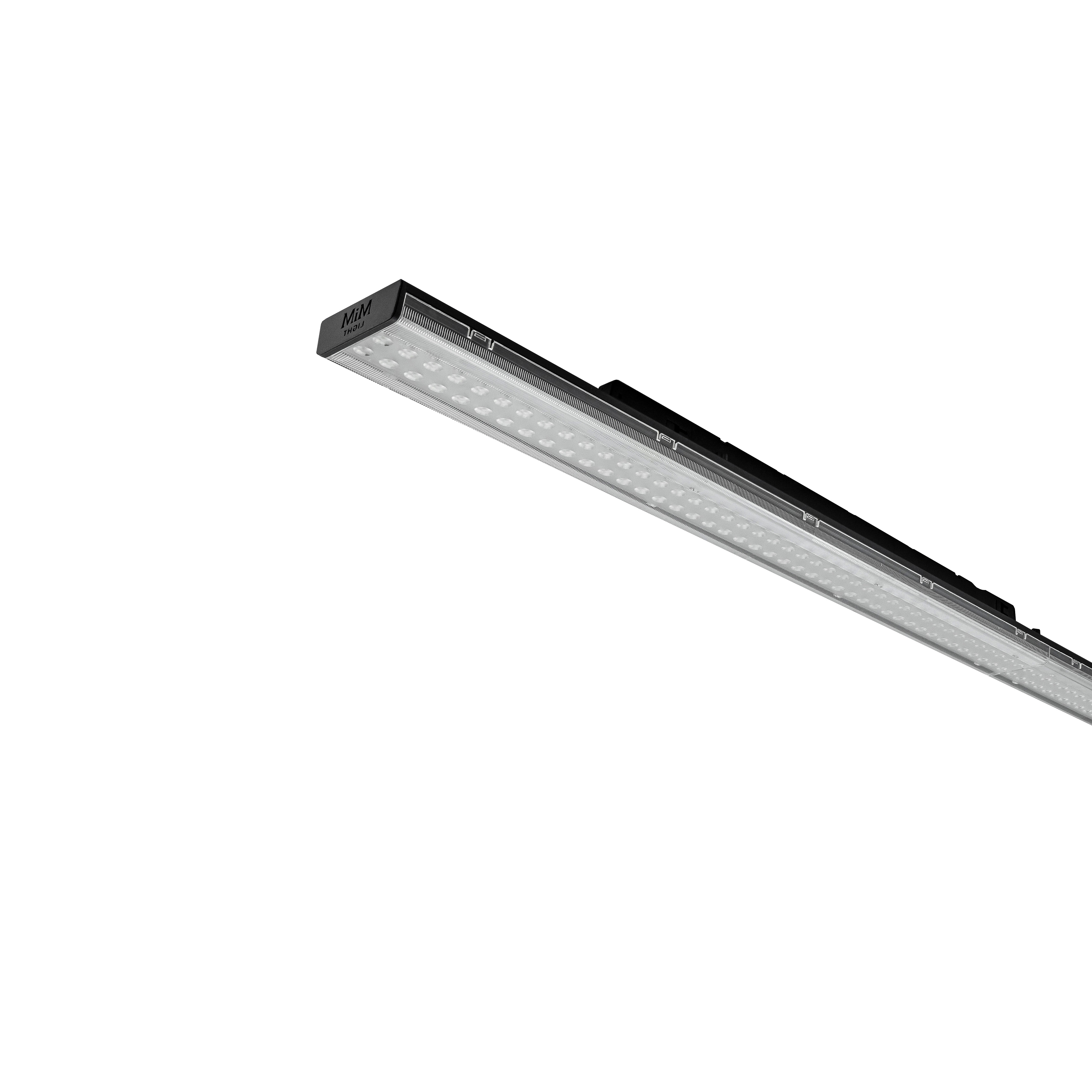

The LM-DK2X is a cutting-edge linear track luminaire designed specifically for retail efficiency and visual excellence. Unlike standard track lights, this model combines a market-leading efficacy of 170 lm/W with an exceptional Color Rendering Index (CRI 97), ensuring that merchandise colors appear vibrant and true-to-life while minimizing energy consumption.

Engineered with specialized optics, including Double Asymmetric (2x25°) and Asymmetric (15°) lenses, it is the ultimate solution for supermarket aisle lighting. It directs light precisely onto shelves without wasting energy on the floor, while the UGR<19 rating ensures a glare-free shopping experience.

Key Features:

• Extreme Efficiency: Up to 170 lm/W delivers massive energy savings for large-scale retail projects.

• Premium Color Quality: CRI 97 renders colors perfectly, ideal for fresh food, fashion, and colorful packaging.

• Specialized Retail Optics: Double Asymmetric (2x25) lenses perfectly illuminate shelves on both sides of an aisle from a single fixture.

• Visual Comfort: Engineered for UGR<19, preventing eye strain for customers and staff.

• Flexible Sizing: Available in 600mm, 1200mm, and 1800mm to suit various ceiling layouts.

Technical Specifications:

• Power Options: 30W / 54W / 70W

• Lumen Output: 4944 lm – 11725 lm

• System Efficacy: Up to 170 lm/W

• CRI: Ra > 97 (Ultra-High Color Rendering)

• Glare Rating: UGR < 19

• Lens Options: Asymmetric 15° | Double Asymmetric 2x25° | 60° | 90°

• CCT: 3000K / 4000K / 5700K

• SDCM: Step 3 (MacAdam)

• Driver Efficiency: 94%

• Input Voltage: 3-Lines 200-265VAC

• Housing Color: White / Black

• Lengths: 600mm / 1200mm / 1800mm

• Warranty: 5 Years

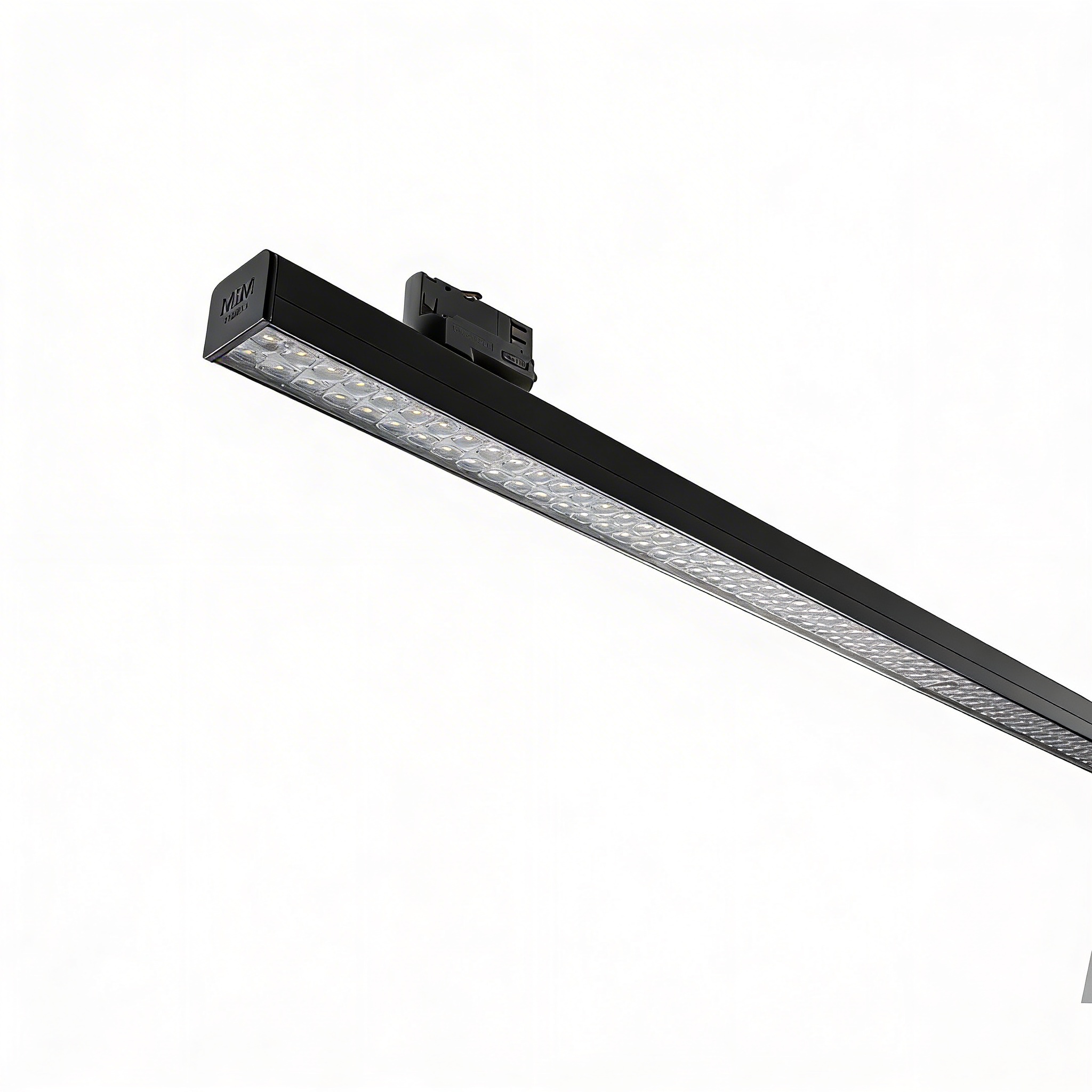

The LM-LEDLN-9V is a robust and ultra-efficient linear track luminaire engineered for demanding retail and industrial applications. It distinguishes itself with a market-leading 7-Year Warranty, proving its exceptional durability and component quality.

Combining an impressive efficacy of 170 lm/W with a high CRI of 92, it offers the perfect balance between energy saving and light quality. With a wide range of optical lenses—including specialized Double Asymmetric (Z2T25) and Asymmetric (ZT25) beams—it is the ultimate solution for illuminating supermarket aisles, high racks, and large commercial spaces with precision and visual comfort (UGR<19).

Key Features:

• Unbeatable Durability: Backed by an industry-leading 7-Year Warranty, ensuring peace of mind for long-term projects.

• Extreme Efficiency: Delivers up to 170 lm/W, drastically reducing operational costs.

• Advanced Lens Optics: Features specialized beam angles (SYM & ASYM) to perfectly target light onto shelves or floors.

• Visual Comfort & Quality: High color rendering (CRI >92) combined with low glare (UGR<19) for a superior shopping experience.

• Flexible Scalability: Available in three lengths (up to 1690mm) and three power levels (up to 80W) to suit any ceiling height.

Technical Specifications:

• Power Options: 28W / 55W / 80W

• Lumen Output: 4582 lm – 12588 lm

• System Efficacy: Up to 170 lm/W

• CRI: Ra > 92

• Lens Options: SYM 30°, 60°, 90°, 110° | ASYM ZT25, Z2T25, 60x25°

• Glare Rating: UGR < 19

• CCT: 3000K / 4000K / 5700K

• SDCM: Step 3 (MacAdam)

• Driver Efficiency: 94%

• Input Voltage: 3-Lines 200-265VAC

• Lengths: 570mm / 1130mm / 1690mm

• Housing Color: Black / White

• Warranty: 7 Years

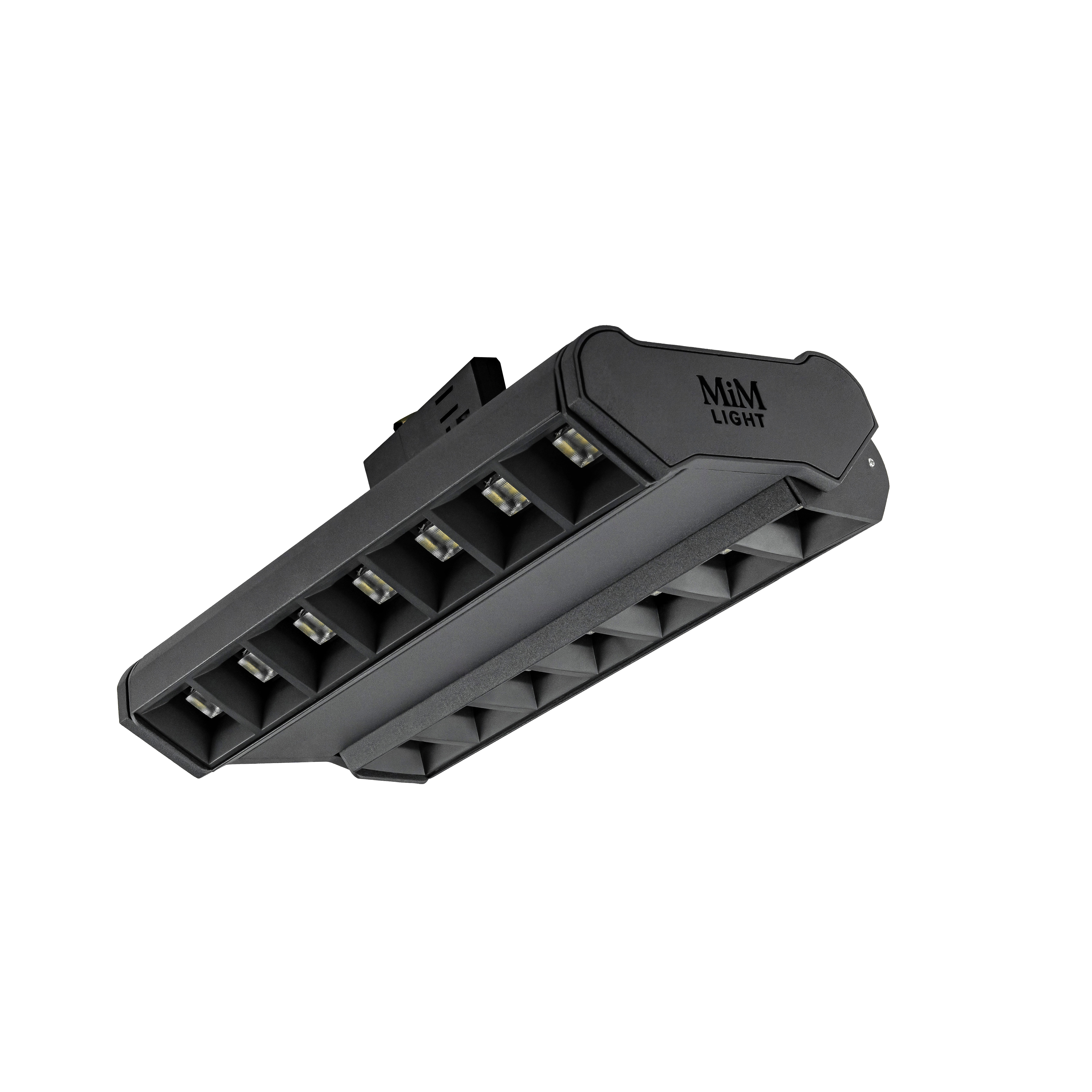

The Linear Tracklight designed by LED Market / MiM Light is a high-performance linear LED luminaire designed specifically for 3-phase track systems.

Unlike standard linear lights, this model features a tiltable (rotatable) housing, allowing users to direct the light beam exactly where it is needed. This mechanical flexibility makes it the perfect solution for illuminating shelves, aisle centers, or specific product displays in supermarkets and showrooms.

Key Features:

• Flexible Orientation: The tiltable light head allows for precise alignment of the beam direction, ensuring light hits the target perfectly.

• Glare-Free: UGR<19 thanks to deep-recessed LEDs ensures high visual comfort.

• Efficient: High luminous efficacy (up to 138 lm/W) for energy savings in commercial spaces.

• Premium Light Quality: High Color Rendering Index (CRI >92) to showcase products in their true colors.

• Easy Installation: Tool-free installation into standard 3-phase tracks.

Technical Specifications:

• Power Options: 32W / 60W

• Lumen Output: 3880 lm – 8110 lm

• Efficiency: Up to 138 lm/W

• Beam Angles (Lens Options): 15° / 35° / 50° / 80°

• CCT Options: 3000K / 4000K / 5700K

• CRI: Ra > 92

• SDCM: Step 3 (MacAdam)

• Driver Efficiency: 94%

• Input Voltage: 200-265VAC (3-Line Connection)

• Dimensions (Length): 300mm / 600mm

• Housing Color: Black / White

• Warranty: 5 Years

• Glare Rating: UGR < 19

Application: Ideal for supermarkets (aisle & shelf lighting), retail stores, showrooms, and galleries where directional linear light is required.

The Triple Linear Track Light by LED Market / MiM Light is a state-of-the-art linear lighting solution specifically engineered for 3-phase track systems. Designed for modern retail environments and high-end supermarkets, it delivers a massive 150 lm/W luminous efficacy, setting a new benchmark for energy efficiency in commercial track lighting.

With its 580mm sleek profile and specialized lens technology (including asymmetrical options), it provides perfectly uniform illumination for long aisles and product displays. This luminaire is the ideal choice for projects seeking to combine industrial-grade power with the flexibility of track mounting.

Key Features:

• Market-Leading Efficiency: 150 lm/W ensures the lowest possible energy costs for large-scale retail projects.

• Track Flexibility: Tool-free installation into universal 3-phase track rails for easy repositioning.

• Advanced Optical Control: A wide variety of SYM and ASYM lenses to eliminate shadows and highlight products on shelves.

• Consistent Color Quality: SDCM Step 3 (MacAdam) guarantees perfect color consistency across the entire installation.

• Durability: Built with a high-efficiency driver (94%) and a robust housing backed by a 5-year warranty.

Technical Specifications:

• Power: 65W

• Lumen Output: 9670 lm – 9685 lm

• System Efficacy: Up to 150 lm/W

• Lens Options: SYM 30°, 60°, 90°, 110° | ASYM ZT25, Z2T25, 60x125°

• CCT: 3000K / 4000K / 5700K

• SDCM: Step 3 (MacAdam)

• Driver Efficiency: 94%

• Input Voltage: 200-265VAC

• Glare Rating: UGR < 19

• Length: 580mm

• Housing Color: White / Black

• Warranty: 5 Years

• CRI: Ra > 97

The LM-DK2X is a cutting-edge linear track luminaire designed specifically for retail efficiency and visual excellence. Unlike standard track lights, this model combines a market-leading efficacy of 170 lm/W with an exceptional Color Rendering Index (CRI 97), ensuring that merchandise colors appear vibrant and true-to-life while minimizing energy consumption.

Engineered with specialized optics, including Double Asymmetric (2x25°) and Asymmetric (15°) lenses, it is the ultimate solution for supermarket aisle lighting. It directs light precisely onto shelves without wasting energy on the floor, while the UGR<19 rating ensures a glare-free shopping experience.

Key Features:

• Extreme Efficiency: Up to 170 lm/W delivers massive energy savings for large-scale retail projects.

• Premium Color Quality: CRI 97 renders colors perfectly, ideal for fresh food, fashion, and colorful packaging.

• Specialized Retail Optics: Double Asymmetric (2x25) lenses perfectly illuminate shelves on both sides of an aisle from a single fixture.

• Visual Comfort: Engineered for UGR<19, preventing eye strain for customers and staff.

• Flexible Sizing: Available in 600mm, 1200mm, and 1800mm to suit various ceiling layouts.

Technical Specifications:

• Power Options: 30W / 54W / 70W

• Lumen Output: 4944 lm – 11725 lm

• System Efficacy: Up to 170 lm/W

• CRI: Ra > 97 (Ultra-High Color Rendering)

• Glare Rating: UGR < 19

• Lens Options: Asymmetric 15° | Double Asymmetric 2x25° | 60° | 90°

• CCT: 3000K / 4000K / 5700K

• SDCM: Step 3 (MacAdam)

• Driver Efficiency: 94%

• Input Voltage: 3-Lines 200-265VAC

• Housing Color: White / Black

• Lengths: 600mm / 1200mm / 1800mm

• Warranty: 5 Years

The LM-LEDLN-9V is a robust and ultra-efficient linear track luminaire engineered for demanding retail and industrial applications. It distinguishes itself with a market-leading 7-Year Warranty, proving its exceptional durability and component quality.

Combining an impressive efficacy of 170 lm/W with a high CRI of 92, it offers the perfect balance between energy saving and light quality. With a wide range of optical lenses—including specialized Double Asymmetric (Z2T25) and Asymmetric (ZT25) beams—it is the ultimate solution for illuminating supermarket aisles, high racks, and large commercial spaces with precision and visual comfort (UGR<19).

Key Features:

• Unbeatable Durability: Backed by an industry-leading 7-Year Warranty, ensuring peace of mind for long-term projects.

• Extreme Efficiency: Delivers up to 170 lm/W, drastically reducing operational costs.

• Advanced Lens Optics: Features specialized beam angles (SYM & ASYM) to perfectly target light onto shelves or floors.

• Visual Comfort & Quality: High color rendering (CRI >92) combined with low glare (UGR<19) for a superior shopping experience.

• Flexible Scalability: Available in three lengths (up to 1690mm) and three power levels (up to 80W) to suit any ceiling height.

Technical Specifications:

• Power Options: 28W / 55W / 80W

• Lumen Output: 4582 lm – 12588 lm

• System Efficacy: Up to 170 lm/W

• CRI: Ra > 92

• Lens Options: SYM 30°, 60°, 90°, 110° | ASYM ZT25, Z2T25, 60x25°

• Glare Rating: UGR < 19

• CCT: 3000K / 4000K / 5700K

• SDCM: Step 3 (MacAdam)

• Driver Efficiency: 94%

• Input Voltage: 3-Lines 200-265VAC

• Lengths: 570mm / 1130mm / 1690mm

• Housing Color: Black / White

• Warranty: 7 Years
