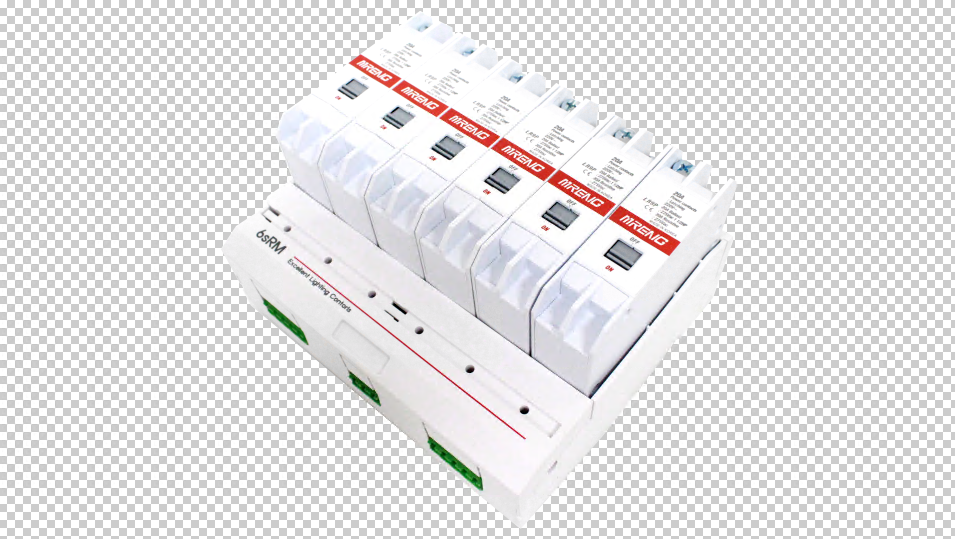

6sRM is the RELAY ON / OFF Control Module. It performs the function
for Relay’s ON / OFF Control & display the operation status. It connects
through ETLC Communication with SCU and through the ETLC
Protocol, it performs the schedule, ON / OFF operation, ON / OFF status
display, Relay Group Control and Sunset / Sunrise Control. It stores the
Operation Log of the Relay & Data for RUN-TIME.

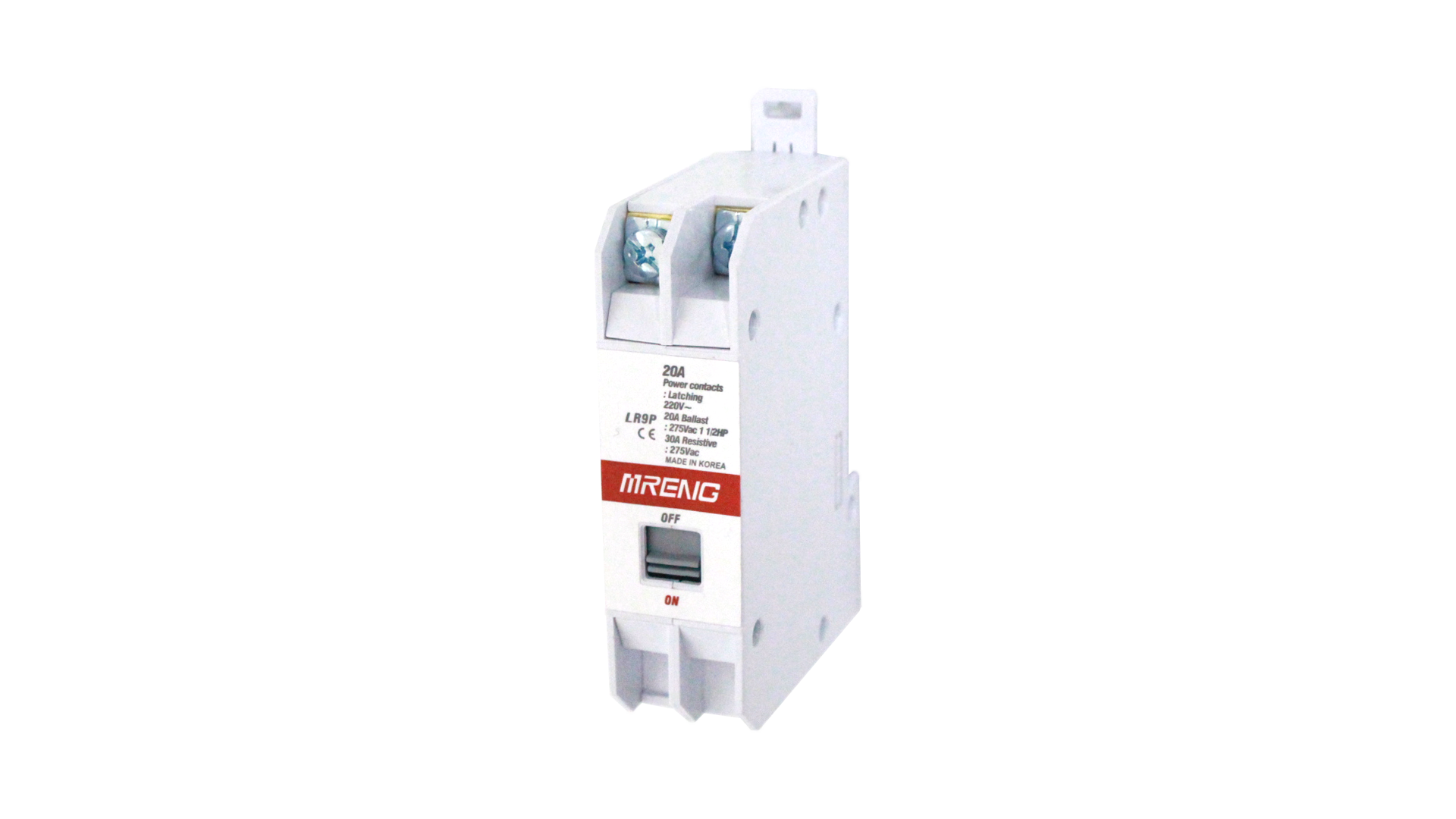

The LR-9P Relay is the Magnetic Latching type Relay that can be mounted
with Plug-In type inside at ELC Relay Module. The1EA of the auxiliary
contact point and display the feedback status. The LR-9P is able to open and
shut by applying the half-waved rectified 24 VAC (MACtype) and it is able to
apply the Max. usable capacity that is shown at specifications about resistive
load, ballast and tungsten filament. It has the manual Override switch to ON /
OFF the Relay when emergency.

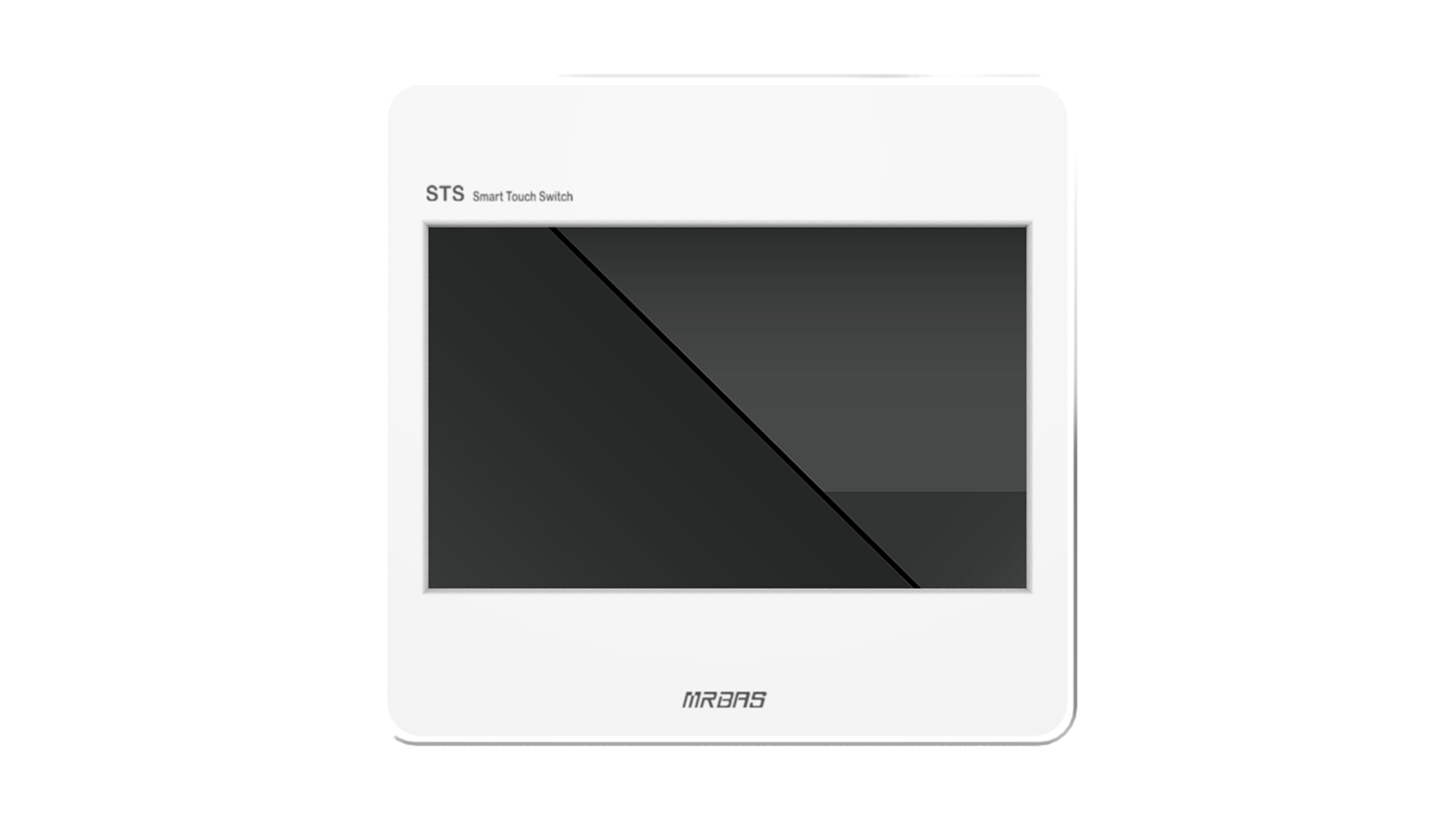

The Smart Touch Switch is the product that is able to install at existing switch box and
it is the multi-function switch ever made in the country. The screen is configured for TFT LCD
display screen that is similar to Smart-Phone. Also, it is able for pressure-sensitive touch and
even the ON / OFF lighting can be worked by gloved hands.

Also,at the existing switch, the customer can set the wanted shape and name Plate at the name of
the corresponding area. By creating and using the wanted shape of the Icon and backscreen, it can
easily ON/ OFF the corresponding area.

Also, The screen of switch is normally used for a screen-saver and it is used for building
a guidance system by displaying the various contents at the screen. It can display the company
name, department name and announcement. Resident can use this switch for work and
understand the information through the screen of switch

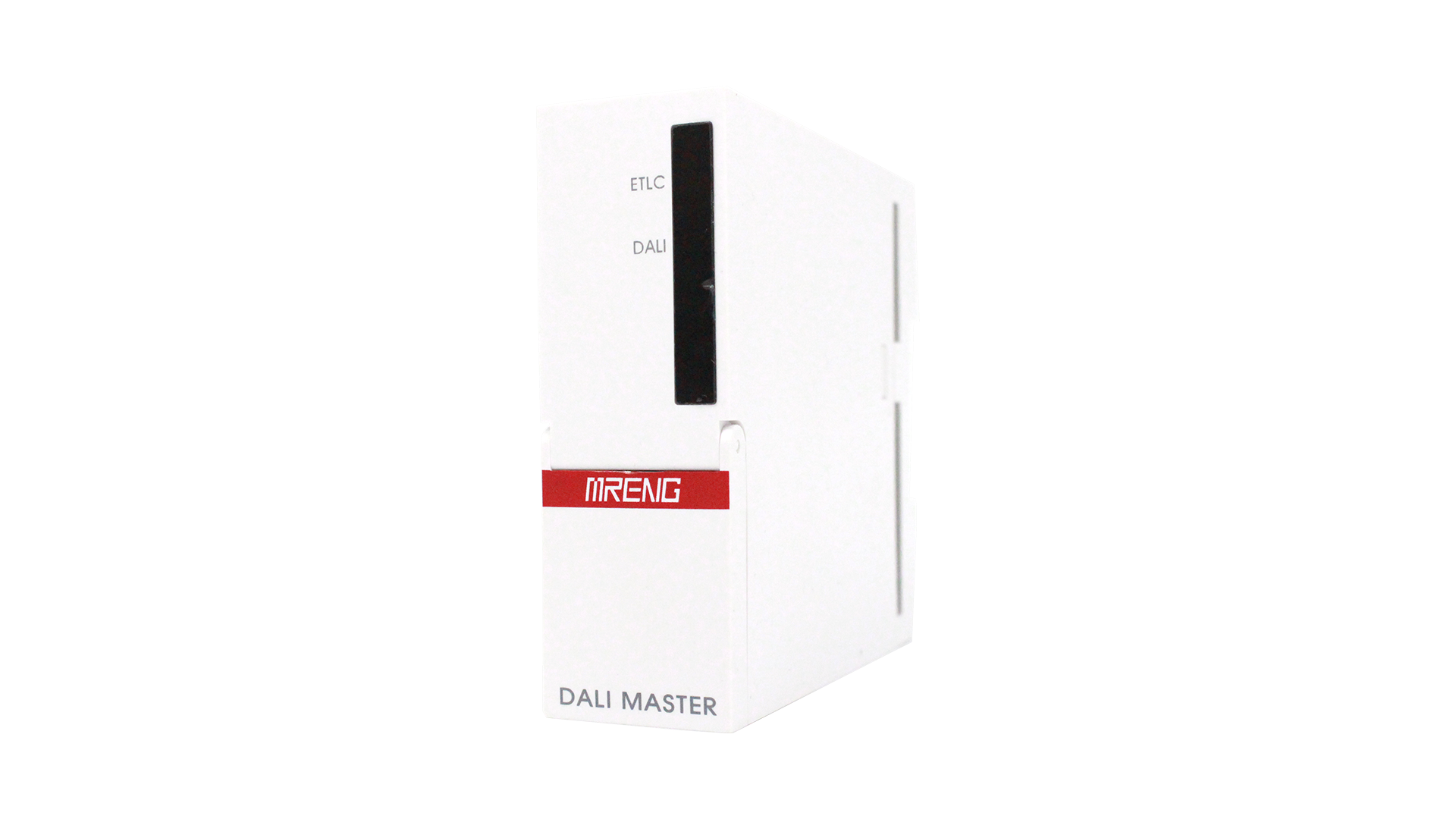

The DALI Master performs the role of converter that interface with the
product (DALI Module) for using the DALI Protocol that is connected to ETLC
Communication network.

From this single DALI Master, connect the DALI Sensor or 64 EA of DALI
Module, to control the Dimming and several Scene,Pattern,Schedule and ON /
OFF by LED Lighting.

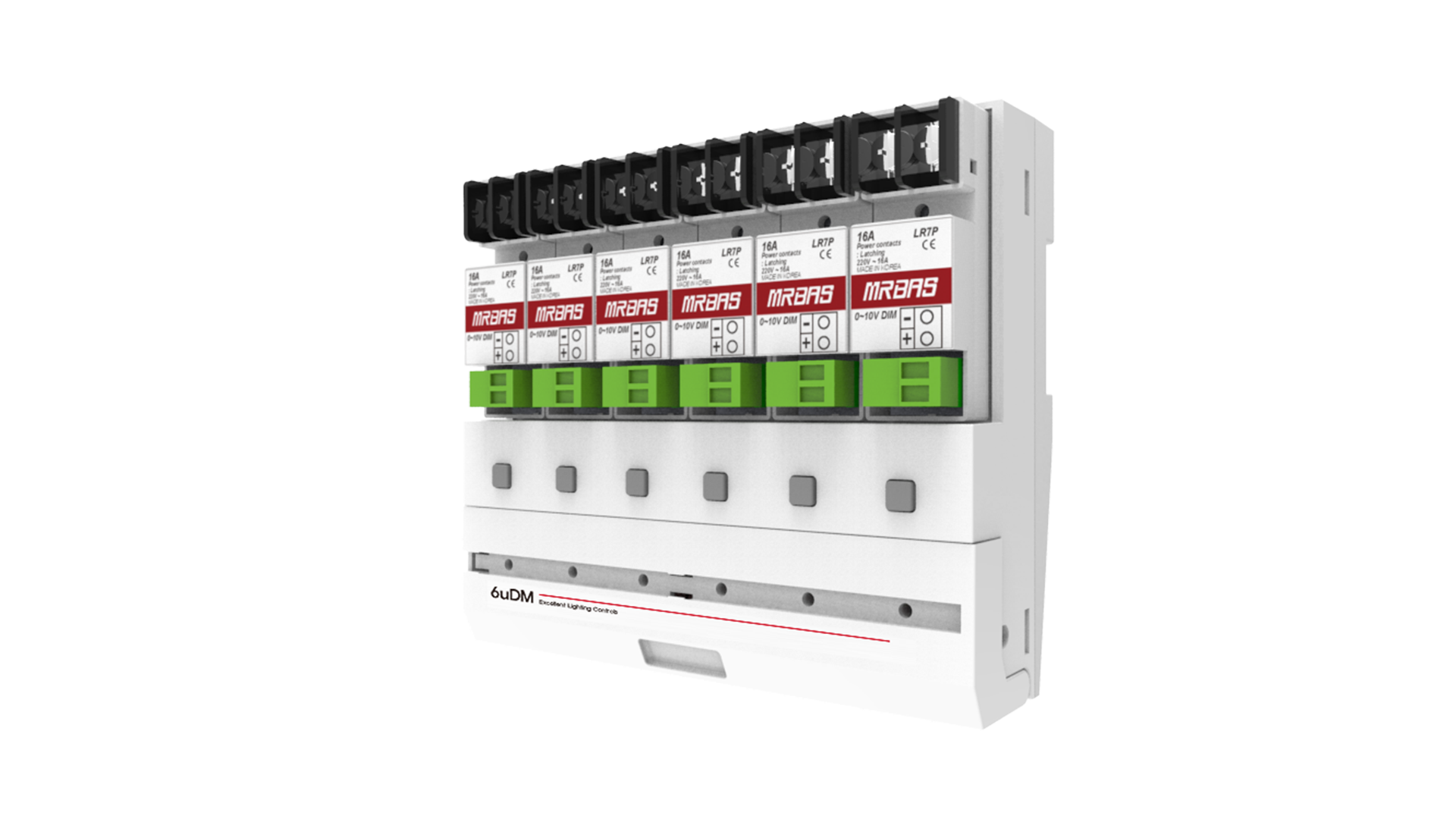

This control module is capable of simultaneously outputting 6 EA of latching relays and 0-10V dimming control.

IF necessary, it is a universal type control module that can use the same output terminal for ON / OFF relay control and 0-10V dimming output and has the following functions below.

It includes six detachable 20A latching relays.

This control module is connected to the ELC Network and is equipped with a Mod bus communication port, making it easy to integrate with other systems.

Each control panel has a stand-alone feature, ensuring continuous on-site control even in the event of central monitoring panel failure.
