SwitchBee Developed smart and revolutionary smart modules. The functionality of these modules is configurable.Thus every channel of the module can be set by the app to function as ON/Off, A dimmer, 3 way switch, Scenario, Timed Delay switch, Shutter/Blinds controller.
We call it “One Module Fits all”.

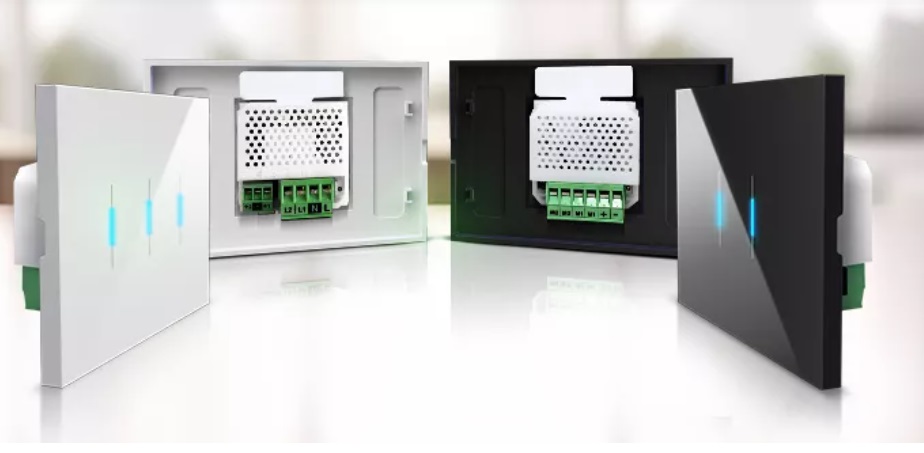

These modules are installed with decorative face plates and can replace any switching system. And allow a quick installation of a smart home. Without the need of prior preparation , and without any change in the existing home infrastructure.
These Modules can be installed in the switching board as well.
The module has a current sensor that protects the switch from overload. It also measures the current consumption of the switch. In shutter mode, the current sensor detects the stopping of the shutter when it fully opens or closes. This allows for precise control of the shutter based on percentages through scenarios and the App.
The module does not require threading a zero line or changing the electrical infrastructure.
The configurable options are:
Standard switch= On/Off- Simple turn 'on or off' of lighting or electrical appliance
Scenario Switch - The ability to group multiple smart devices and control them together
Dimmer Switch - The ability to dim a dimmable light
Two Way Switch- The ability to set up a two way switch (more than one per light) without wiring
Timed Switch - The ability to set activation time (From 1 second to 7 hours)
Shutter / Curtain / Louvers - The ability to set the opening percentage of the shutter and the louvers
Additional advanced functions
Lock mode
This will disable the physical switch, however the switch will still operate from the application. It is also possible to create a scenario that can lock a group of switches. You are also able to create a timer that will operate the lock scenario.
Proximity sensor
This will turn on background lighting in the switch when your hand nears the panel.
Sensitivity
This allows you to set the sensitivity of the touch sensor.
Double scenario
Use one switch to control two separate scenarios.
Response time
Change the length of time needed to touch the switch until it operates. Useful when you want to prevent accidental touches from triggering the switch. For example, a delayed press on a scenario to turn off multiple switches.
Colour
Change the on/off display color of the switch
Advanced button
By clicking this button in the application you can see the following data:
RSSI-EU // Signal strength from the central unit to the switch. Signal over 100 is excellent reception. Signal 80-100 ok. Lower than 80 is bad.
RSSI-AP // Signal strength from the switch to the central unit. Signal over 100 is excellent reception. Signal 80-100 ok. Lower than 80 is bad.
CURRENT // The current passing through the switch. Measured by the current sensor.
VERSION // Software version of the switch.
