EASY-PROTECT Inline - a leakproof connection

The EASY-PROTECT IPX8 gel boxes provide the proven 221 series WAGO COMPACT Splicing Connectors with ideal protection against moisture and water ingress.
The EASY-PROTECT gel box, which was developed in cooperation with WAGO, is the ideal all-round system solution for protecting the splicing connector in demanding installation applications.
This combination integrates the market leader's expertise in electrical interconnections with reliable gels from BBC Cellpack to deliver a unique system.

Moisture in connection boxes is a well-known problem, especially in the transitional periods in spring and autumn, because condensation can hardly be avoided by rapid temperature changes. Under certain circumstances, this can quickly lead to a short circuit, which often only becomes noticeable when a protective device (miniature circuit breaker or RCD) is triggered. BBC Cellpack has a solution for this: the EASY-PROTECT gel box.

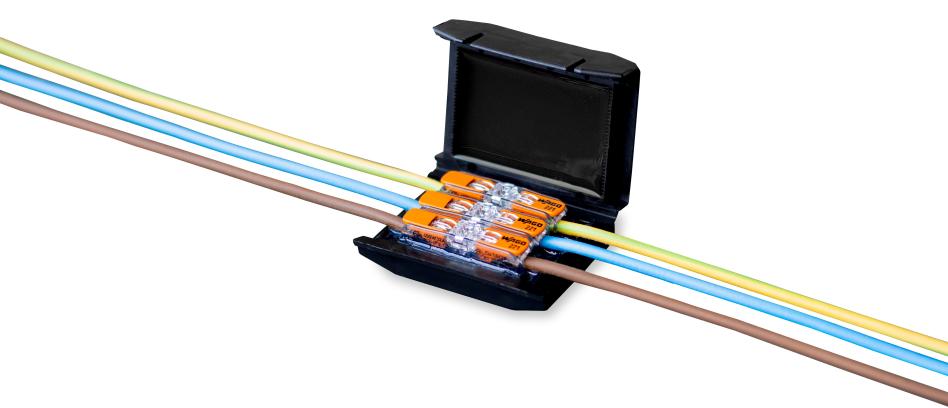

This gel-filled box provides the connection terminal, which is placed in the gel box, with moisture protection according to IPX8. This means that the terminal is sealed in such a way that no water can enter.

SAFE TO USE

• Protects the splicing connector against moisture and water ingress according to IPX8
• VDE type-tested system according to EN 60998-2 for approval in conjunction with WAGO COMPACT Splicing Connectors 221
• Rigid, silicone-free and label-free gel
• UV-resistant housing
• Safe conductor handling due to actuating insertion
• Housing off ers good mechanical resistance

The rugged housing design and the insulating BBC Cellpack Gel protects the splicing connector from external infl uences. The housing's unique design securely holds the connector in position at all times. The conductor entry point also ensures that the connector cannot be pulled out of the gel box.

EASY TO USE

• Easy application thanks to the re-accessible housing
• Space-saving handling thanks to compact housing design
• Housing variants also allow configuration of a gel box with several connectors

The box is easy to install without tools. It is all-time possible to open the box again to check the cable connections. The housing is the smallest available on the market and allows an easy use in all areas with limited space. Thanks to the different housing sizes it is possible to install several clamps in a box, which enables additional space in the branch box.

 READY TO USE

• Fast application and direct commissioning
• Ready to use and immediately operational
• Saves time, since gel mass does not require mixing or processing
• Gel-fi lled box can be stored indefinitely
• Matching WAGO COMPACT Splicing Connectors 221 included in delivery for immediate use
• Easy assembly

The pre-filled gel box is ready for immediate use and can be operated right away after the easy assembly. The correct number of splicing connectors suitable for the housing size is already included in the delivery, which facilitates product assembly as well as correct and quick application.

FLEXIBLE TO USE

• Can be used in all industrial sectors due to silicone free gel
• Indoor and Outdoor use
• Can be used in the extra-low-voltage range without an additional housing
• Can be used in the low-voltage range with additional housing (double insulation / observe protection class II)

Connections with up to five conductors per phase can be implemented thanks to the six different housing sizes and the flexible combination with 221 series WAGO COMPACT Splicing Connectors. EASY-PROTECT offers flexibility and can be used in a wide range of areas, e.g. in the automotive sector and outdoor applications.

NOTE: The splicing connectors are used with the gel boxes in connection boxes to ensure the double insulation of the installation, in low-voltage applications. EASY-PROTECT can also be deployed for low-voltage tasks, such as SELV  applications without an additional connection box.
