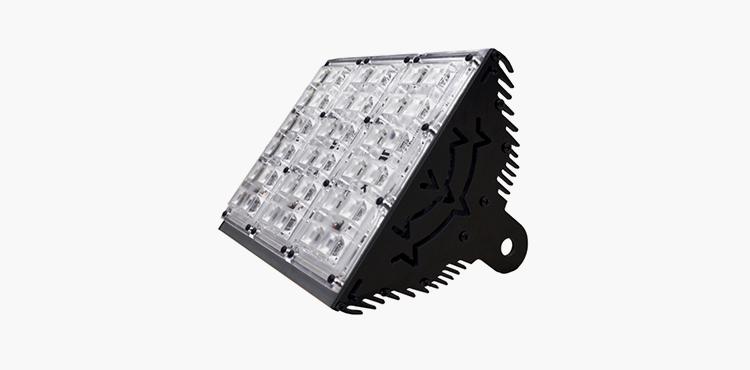

DRACO_EVO is the latest generation of led floodlight from EuLux. With it, EuLux has put a combined effort on both mechanics and electronics in order to have maximum performance with the lowest impact to the wind (an important detail on lighthouse tower or in complexes sports venues). In particular with DRACO_EVO it’s possible to replace traditional headlights with the same surface area and same brightness but with a savings of about 78%.

CONSTRUCTIONS FEATURES

• Body: totally in aluminum with low copper content. The Draco-Evo is structured for an ideal dissipation of the LED modules and ideal dissipation of the power and control electronics;
• Painting: with epoxy powders resistant to UV rays and atmospheric agents;
• Mounting: the projector is equipped with an elegant and effective bracket mounting system that allows continuous adjustment of vertical aiming over a 360° angle;
• Optical group: ROTO, TF, AS;
• Optic: PMMA/(PC), impact resistant IK08 with IP67 seals;
• Mounting bracket: galvanized steel or iron; for wall, ceiling, pole and Torrefaro mounting;
• Screws and small parts: stainless steel, silicone seals;
• Operating temperature: -40°C ~ +55°C;
• Applications: GALERIES, LIGHT TOWERS, EXTERNAL LIGHTING and areas where IP66 protection degree is required;
• Colors availabe: light grey;
• Certification: ENEC14 LICENCE REF NO. SE/18013-2;

ELECTRICAL AND OPTICAL FEATURES

• LED efficiency: 185-202lm/W;
• Isolation class: I, II;
• Power supply: 170~265VAC, 47 ~ 63 Hz;
• Driver LED: MTBF > 80.000 h; efficiency 91%, PFC>0,98; IP67; Surge Protection > 6kV, PROTECTIONS: SCP / OVP/OTP; TDH < 18%;
• Color temperature: 5000K (choice: 4000K, 3000K) (color deviation maintained: 5-STEP MAC ADAM);
• CRI (color rendering): 80; chromaticity scheme: 3-STEP MAC ADAM;
• LED Life: L80B10 > 100.000h; L70 > 140.000h (TM-21) to 25°C
• Photobiological Risk: compliant with CEI EN 62471: 2009 Group 0 (RG = 0) Compliant with IEC / TR 62778: 2014 Risk Group 1 (RG = 1).

AVAILABLE OPTIONS

OpLUCO: electronic control system for self-adjustment of led lighting

OpCE1: Emergency Lighting Power kit

OpGRID: protection grid for DRACO lights

OpINLUX: provision for flow regulator and/or remote control PITECO

OpRAYBOX: additional surge arrester 20kA mounted in the device
