Heavy Power Co., Ltd.

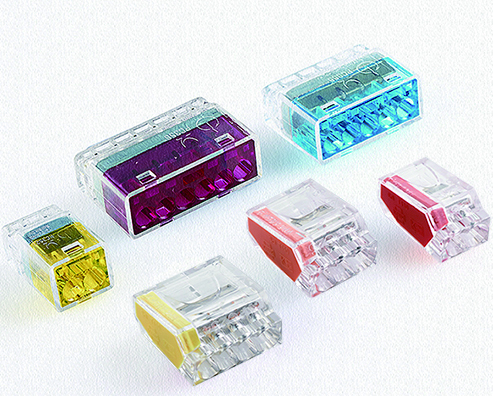

Push-in connectors

Push-in connectors

Heavy Power Co., Ltd.

Anbieter-Profil Alle Produkte

Anbieter kontaktieren

Beschreibung

Accept solid, stranded and flexible wires
Color-coded for quick and easy identification
Certified by VDE,ENEC, CE and UL
RoHS and Reach compliant
Excellent for use in building distribution and junction boxes.
Customized package is available for jar or color box

Polyamide 66 (PA66) , Polycarbonate (PC)
UL 94V-2 or UL 94V-0 flame-retardant housing
GWT: GWT 850, WT960 material.
Working Temperature : T85 to T110
Contact inserts : tinned copper or steel plate with copper strip
Size : from 0.5mm2 to 4 mm2 (for solid, stranded , flexible wires)

Mehr von uns

Mehr Produkte von Heavy Power Co., Ltd.

Terminal blocks

Providing multiple options of terminal blocks for OEM and DIY market.
Recessed screws and tubular contacts provide added safety and help prevent short circuits.
Certified by VDE, CE and UL
RoHS and Reach compliant
Excellent quality management systems of terminal blocks.
Pre-cutting is available upon request
Customized package is available for shrink package or other special package

Polyamide 66 UL 94V-2 or UL 94V-0 flame-retardant housing, Polypropylene (PP) material.
GWT : GWT750 , GWT 850, GWT960 material.
Working Temperature : T85 to T110
Contact inserts : Brass / Steel / Steel with Brass strip
Easy-cutting design suitable to reduce labor cost
Wire protector up to 10.0mm2 for flexible or stranded wires.
Size : from 1.5mm2 to 25 mm2

close-end connectors

Resistant to vibration
Certified by UL , CSA, CQC
RoHS and Reach compliant
Crimp tools are available upon request
Two types of sleeve to choose from aluminum or tinned copper

Polyamide 66 (PA66)
UL 94V-2 or UL 94V-0 flame-retardant housing
GWT: GWT750, GWT 850 material.
Working Temperature : T105 to T150
Contact inserts : aluminum or tinned copper
Size : from AWG 10 to 22 AWG (0.5mm2 to 6.0mm2)

wire connectors

Flame Retardant thermoplastic shell provides excellent electrical insulation
Certified by UL,CSA,CQC
RoHS and Reach compliant
Square wire spring provides more securely gripping on conductors
Threaded, funnel entry guides wires into the connectors easily

Tough thermoplastic UL 94V-2 flame-retardant shell rated for 105℃
Zinc-plated square-wire spring.
High Temp screw-on Wire connectors up to 150℃
Grounding wire connectors for model # P99
Size : from AWG 10AWG to 22 AWG (0.5mm2 to 6.0mm2)
