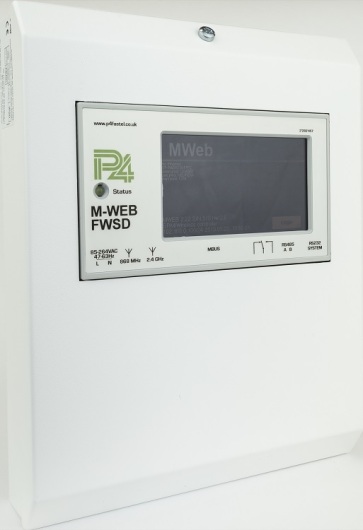

The M-Web FWSD is a central supervision unit with an embedded web server which continuously scans the whole installation sending control data to the connected devices and gathering information about their status.

The M-WEB FWSD can monitor and control up to 7,875 wired and/or 3,585 wireless emergency lighting luminaires and signs, significantly reducing infrastructure and installation costs for the end user.

It is configured to carry out a weekly functional test and a quarterly full duration test. The M-WEB FWSD stores test results for up to four years, allowing the end user immediate access to test reports to ensure and prove emergency lighting compliance. The testing day and time for individual emergency lighting luminaires and signs can be set to suit user requirements.

The system output is displayed as pages on a web browser via any LAN using TCP-IP protocol or connection may be made to a BMS interface via the RS232 or RS485 ports. A GSM option for remote access is also available.

In addition, the web server software now offers a further layer of security to prevent unauthorised access and the ability to use a dynamic IP address, as an alternative to the standard static IP address.
