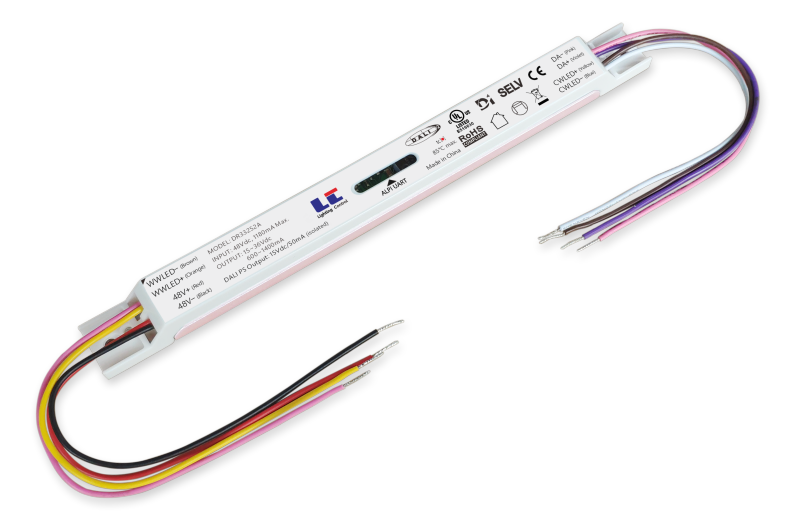

DALI-LED-Konvertertreiber
It can measure power and internal temperature.
・Can convert 0－10V dimming signal or digital dimming commands
into DALI broadcast command.
・2 CHs 0-10V dimming signals or digital dimming commands
are buffered output.
・0-10V output interfaces are designed to sink or source current up
to 25mA.
・Digital command or 0-10V signal dimming method can be selected
through ESI.
・DALI 2-wire sensor (highest priority) and ESI sensor supported.
・The data can be read by ESI or DALI port.
・DiiA/Zhaga connectivity extensions DT49, DT50, DT51, DT52.
・Selection of the desired device type via operating mode;
0x00: IEC 62386-102 standard mode.
0x80: manufacturer specific mode, DT6, DT8 Tc, DT17
supported (default).
・Translate DALI dimming commands to 2 CHs analog 0-10V output
(ChA: Intensity, ChB: CCT).
・The AC load relay can be switched off when dimming off.
・AC load relay will switch off AC output when dimming level is set
to 0.
・Zero-crossing switching function for AC load relay.
・DC signal relay will short-circuit DALI interface and physically
disconnect 0-10V output interfaces in case of power loss.
・Built-in DALI PSU, 15V, 55mA (programable to 200mA)
・Built-in ESI PSU, 15V, 50mA.
・AC output: 8A Max., 1385VA Max.
・Over current protection when load connects to Switched, and the
failure information is recorded in NVM
・DALI / 0-10V and ESI interfaces are both compliant with SELV.
・Communication protocol compatible with Enlighted Sensor
Interface [ESI] Definition Rev 4.8 .
