Touch Dimmer Switch for LED Aluminum Profile TD002-TM

Beschreibung

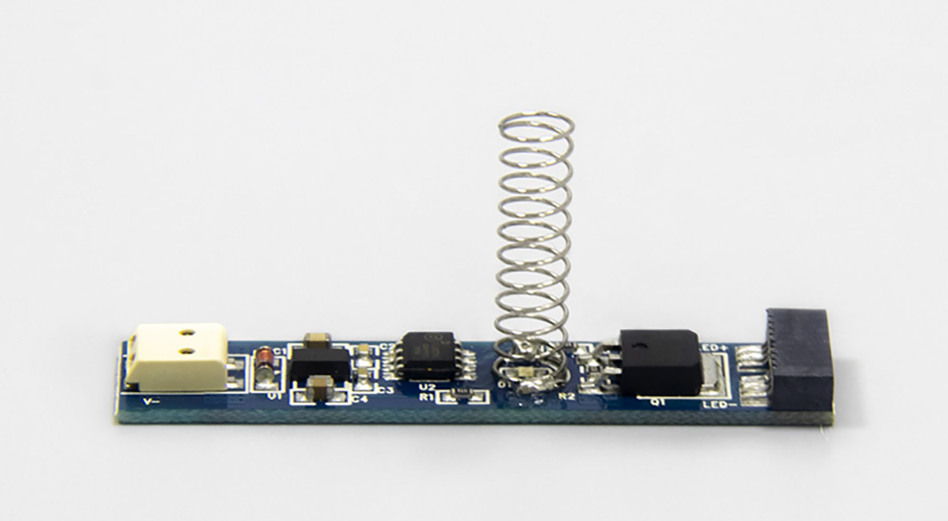

Touch Dimmer Switch for LED Aluminum Profile TD002-TM

This Touch Switch can be installed in the led aluminum profile. Simply touch the PC Cover above the spring of the touch switch can turn the led strip light on or off, or hold for dimming.
No soldering needed with quick connector for wires and led strip.




  • Touch switch ON/OFF with dimming function.
  • Input Voltage: 12V-24VDC.
  • Output Voltage: 12V-24VDC.
  • Input Current: 3A.
  • Input Wire: 26~20AWG.
  • Connecting LED Strip Thickness: 0.4~0.6mm.
  • Connecting LED Strip Width: 8~10mm.
  • Height of spring: 20mm.
  • Load around 36W for 12V, or 72W for 24V.
  • Dimension: 52.5*11mm.
