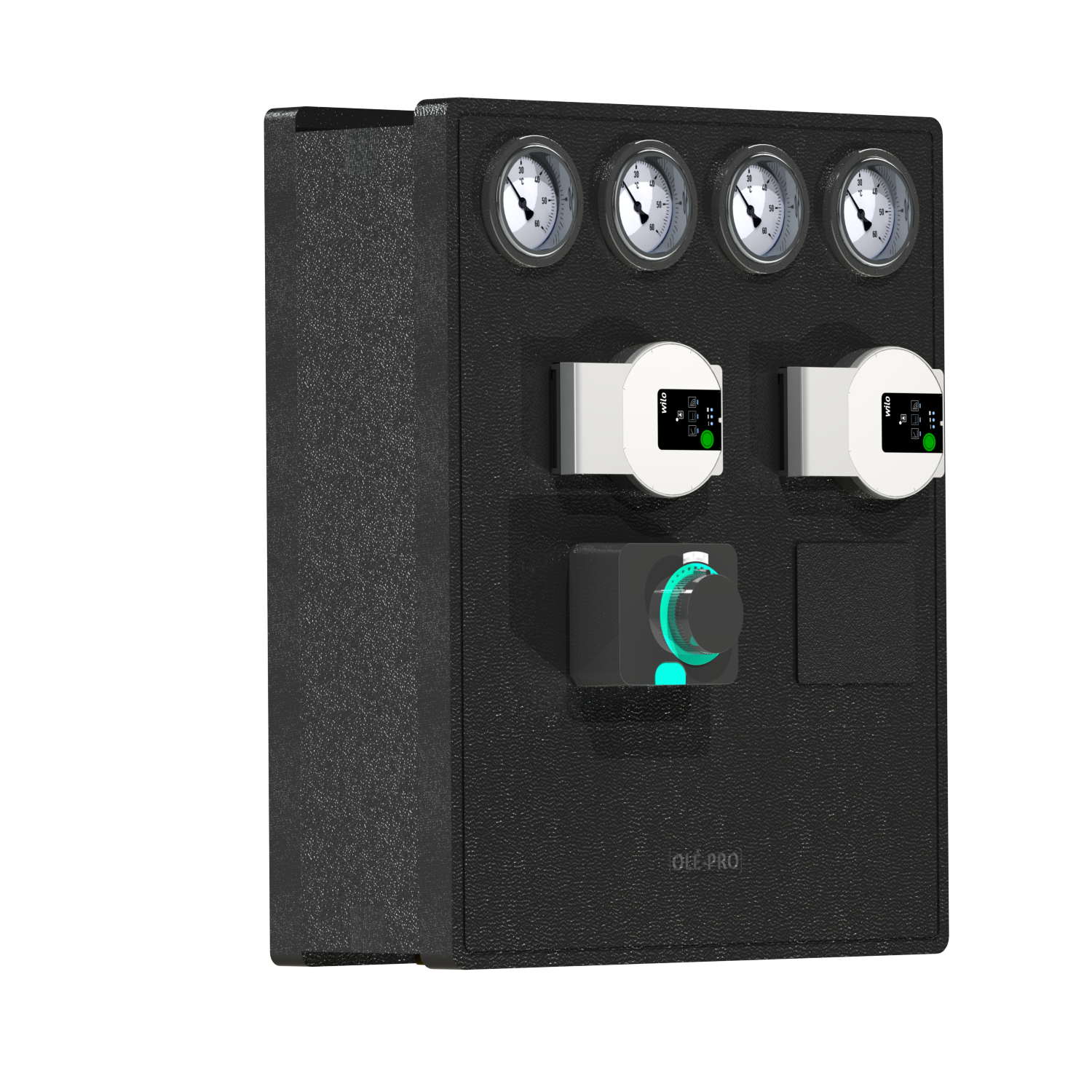

The OLE-BOX ZB Dn20 distribution blocks are a cutting-edge solution designed to serve two heating circuits with maximum efficiency and flexibility. Available in versions with or without a hydraulic separator, these blocks empower you to customize your heating system for optimal performance and adaptability.

Engineered with precision and innovation, the OLE-BOX ZB Dn20 stands out for its compact design, versatile configurations, and robust construction. Whether you're upgrading an existing system or planning a new installation, this advanced distribution block ensures seamless operation, reduced installation effort, and long-term reliability. Choose OLE-BOX ZB Dn20 to bring efficiency and modern engineering to your heating system.

Features:

• Housing made of EPP insulation material, 26 mm thick, with a density of 40 g/L.
• Can be installed next to or below the boiler.
• 3 heating circuit configurations.
• 5 control options for mixing circuits.
• Ultra-compact dimensions: the width of the OLE-BOX ZB Dn20 for 2 circuits is 396 mm.

Technical Specifications:

• Maximum heat transfer medium flow rate: 2.2 m³/h.
• Maximum flow rate per circuit: 2.0 m³/h.
• Maximum operating pressure: 6 bar.
• Maximum operating temperature: 105°C.
• Connection to the boiler: 3/4" male thread.
• Connection to circuits: 1" union nut.

Configuration (without hydraulic separator):

• Distribution manifold with union nuts.
• Union nuts 1" x 3/4" (2 pcs.) for boiler connection.
• Insulated housing made of 26 mm thick EPP.
• Wall mounting kit.
• Circuits – according to the model.

Configuration (with hydraulic separator):

• Distribution manifold with hydraulic separator and union nuts.
• Shut-off valves with thermometers and union nuts 1" x 3/4" female thread (2 pcs.) for boiler connection.
• Insulated housing made of 26 mm thick EPP.
• Wall mounting kit.
• Circuits – according to the model.

The OLE-BOX ZB Dn20 is a compact, versatile, and efficient solution for distributing the heat transfer medium in heating systems.

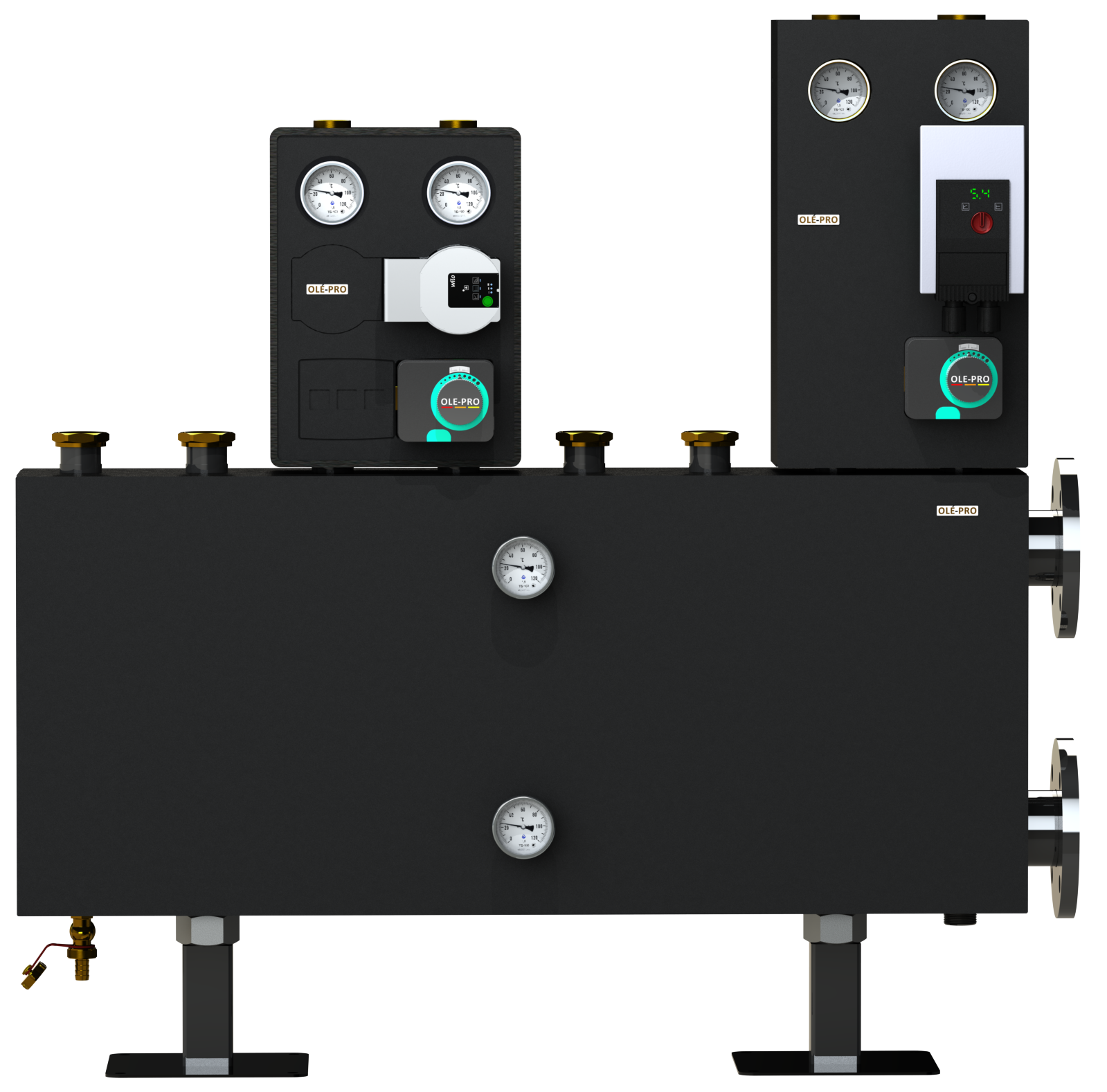

The OКС-К-13-2-F-NO-і-125 distribution manifold is our innovative, state-of-the-art solution for efficient distribution of the heat transfer medium in heating systems. With its advanced design, including flange connections and a center-to-center distance of 125 mm, it sets a new standard for reliability, performance, and ease of installation.

This collector is not just a functional component—it’s a game-changer for medium and high-capacity heating systems, ensuring seamless integration and superior efficiency. Whether you’re upgrading an existing system or building a new one, the OКС-К-13-2-F-NO-і-125 distribution manifold delivers unmatched versatility and durability, backed by cutting-edge engineering.

Features:

• Maximum heat transfer medium flow rate: 12.8 m³/h.
• Connection on the boiler side: Flanges Dn50 Pn10.
• Connection on the consumer side: Flat connection with 1 ½" union nut.
• Collector diameter (Dn): 125 mm.
• Power capacity: Up to 293 kW.
• Number of consumer circuits: 3.

Technical Specifications:

• Operating pressure: 3 bar.
• Test pressure: 6 bar.
• Connection on the boiler/hydraulic separator side: Flanges Pn10.
• Connection on the consumer side (depending on the model): Flat connection with 1 ½" union nut.
• Center-to-center distance on the consumer side: 125 mm.
• This distance allows for the installation of threaded pump groups Dn25 and Dn32.

Configuration:

• Adjustable supports with height adjustment of +/- 100 mm.
• ½" coupling and ½" drain valve.
• ½" couplings with thermometers (2 pcs.).
• ½" couplings with ½" male thread plugs (2 pcs.).
• 1" male thread nozzle for expansion tank connection.
• Insulation: EPP with a density of 40 g/L.

The OКС-К-13-2-F-NO-і-125 distribution manifold is a reliable and versatile solution for medium and high-capacity heating systems, ensuring optimal performance and ease of installation.

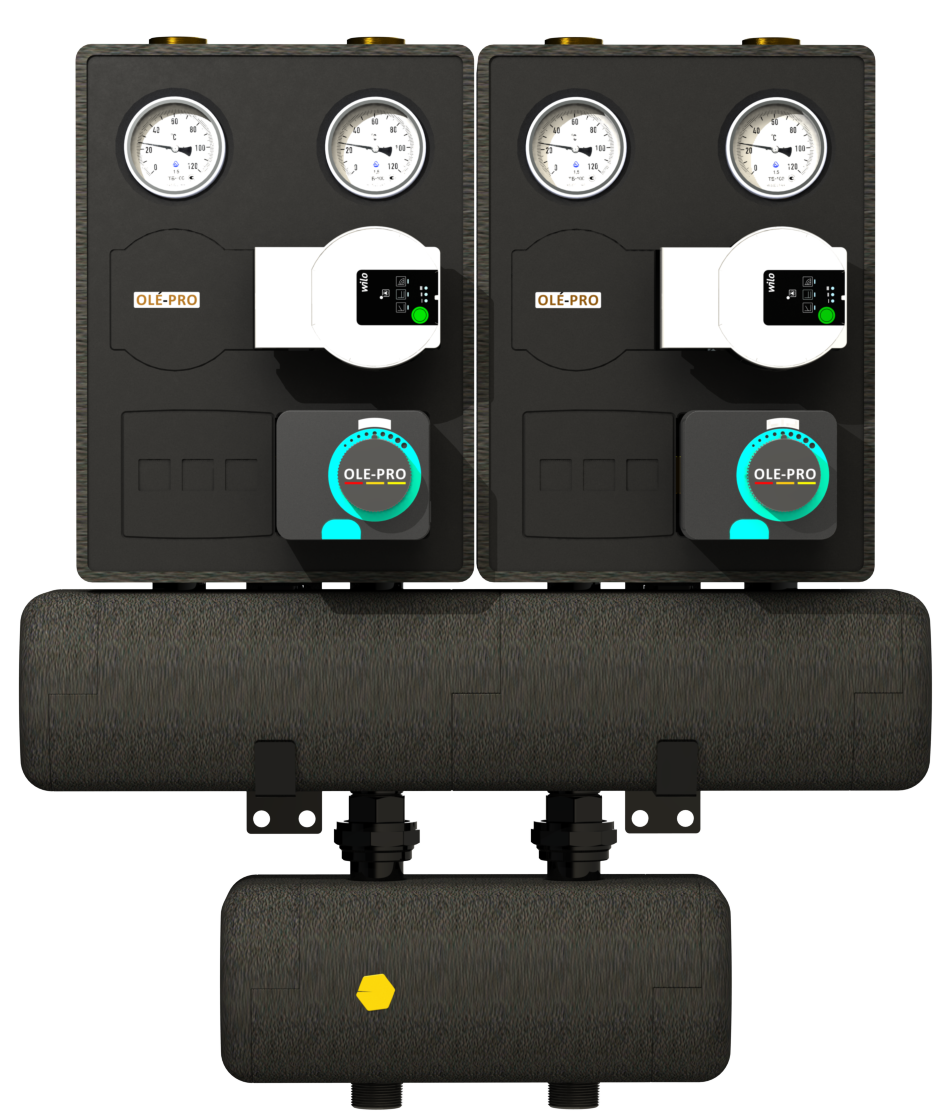

The ОКС-К-3-2-NO-і distribution manifold is a state-of-the-art solution for heating systems, designed to handle capacities of up to 67 kW. Featuring a sleek, all-new design, this manifold combines compact dimensions with exceptional performance, making it an ideal choice for modern, space-conscious installations.

Key Features:

• Innovative and Compact Design: The ОКС-К-3-2-NO-і introduces a new level of efficiency and space optimization, ensuring easy installation and seamless integration into any system.
• Thermal Insulation: High-quality EPP insulation (50 g/L) reduces heat loss, maximizing system efficiency and energy savings.
• Durable Construction: Manufactured from 3 mm thick steel, this manifold is built to withstand high operating pressures and temperatures, ensuring long-term reliability.
• Versatile Connections:
  • G 1 ½ F for pump groups.
  • G 1 M for boiler connections.
• Optimized Center Distance: The 125 mm center-to-center spacing allows for flexible connection to pump groups and boilers, ensuring compatibility with various system layouts.

Technical Specifications:

• Maximum working temperature: 100°C.
• Maximum working pressure: 6 bar.
• Center distance: 125 mm.
• Material: High-grade steel (3 mm thick).

Why Choose ОКС-К-3-2-NO-і?

The ОКС-К-3-2-NO-і manifold is the perfect blend of modern design and practical functionality. Its compact size makes it a standout choice for installations where space is at a premium, while its robust construction and advanced features ensure reliable performance in any heating system.

Whether you’re upgrading or starting fresh, the ОКС-К-3-2-NO-і offers unparalleled efficiency, flexibility, and durability, setting a new standard for heating system components.

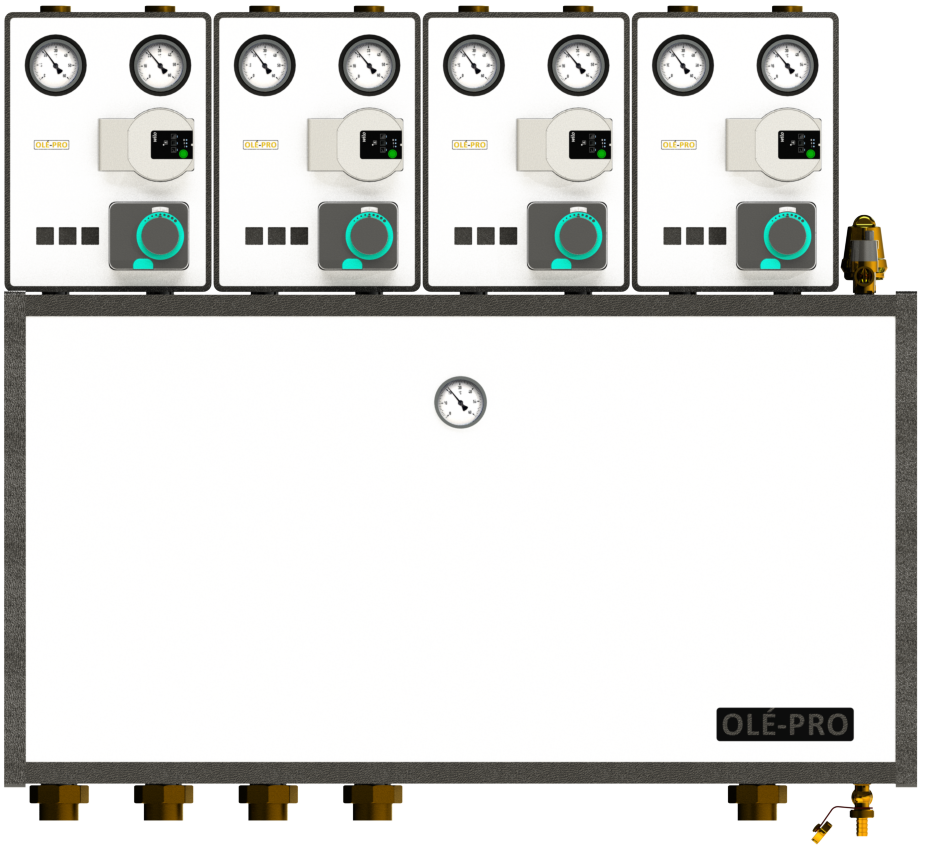

The UNI-Tank is a game-changing solution that redefines heating system efficiency and functionality. Combining three critical components into one compact design, the UNI-Tank sets a new standard in modern heating and cooling systems.

Three Systems in One:

• Buffer tank with a volume of 60 liters, tailored to meet the demands of any installation.
• Manifold for 2–3 pump groups, providing exceptional flexibility and scalability.
• Hydraulic separator with a built-in deaerator, ensuring optimal performance and system reliability.

Why Choose UNI-Tank?

• Revolutionary Design: The UNI-Tank is not just a product; it's a statement of innovation. Its sleek, space-saving design integrates multiple functionalities, reducing installation time and costs while maximizing efficiency.
• Unmatched Flexibility: With the ability to connect two heat sources (e.g., a heat pump and a boiler), the UNI-Tank adapts effortlessly to hybrid systems, making it a perfect fit for modern energy solutions.
• Precision Engineering: Every detail of the UNI-Tank is crafted for excellence, from the 125 mm center-to-center spacing on connection pipes to the high-quality materials used in its construction.
• Energy Efficiency Redefined: Advanced thermal insulation options—28 mm EPP or reinforced 10 mm rubber + 28 mm EPP—ensure minimal heat loss, saving energy and reducing operational costs.

Complete Set for Your Convenience:

• Wall mounting kit for hassle-free installation.
• Insulation (rubber + EPP, 26 mm, 40 g/L) for superior thermal performance.
• Thermometer for precise system monitoring.

Technical Brilliance:

• Supports 2–3 pump groups for versatile system configurations.
• 125 mm center-to-center spacing for seamless integration with heat sources and consumer circuits.
• 1" ZR connection for expansion tanks, simplifying system setup.

The UNI-Tank is more than just a heating component—it's the cornerstone of a modern, efficient, and sustainable heating system. With its cutting-edge design, unparalleled functionality, and robust construction, the UNI-Tank is the product of choice for professionals who demand nothing but the best.

Choose UNI-Tank. Choose Excellence.

The UNI-Tank is a game-changing solution that redefines heating system efficiency and functionality. Combining three critical components into one compact design, the UNI-Tank sets a new standard in modern heating and cooling systems.

Three Systems in One:

• Buffer tank with a volume of 200 liters, tailored to meet the demands of any installation.
• Manifold for 2–3 pump groups, providing exceptional flexibility and scalability.
• Hydraulic separator with a built-in deaerator, ensuring optimal performance and system reliability.

Why Choose UNI-Tank?

• Revolutionary Design: The UNI-Tank is not just a product; it's a statement of innovation. Its sleek, space-saving design integrates multiple functionalities, reducing installation time and costs while maximizing efficiency.
• Unmatched Flexibility: With the ability to connect two heat sources (e.g., a heat pump and a boiler), the UNI-Tank adapts effortlessly to hybrid systems, making it a perfect fit for modern energy solutions.
• Precision Engineering: Every detail of the UNI-Tank is crafted for excellence, from the 125 mm center-to-center spacing on connection pipes to the high-quality materials used in its construction.
• Energy Efficiency Redefined: Advanced thermal insulation options—28 mm EPP or reinforced 10 mm rubber + 28 mm EPP—ensure minimal heat loss, saving energy and reducing operational costs.

Complete Set for Your Convenience:

• Wall mounting kit for hassle-free installation.
• Insulation (rubber + EPP, 26 mm, 40 g/L) for superior thermal performance.
• Thermometer for precise system monitoring.

Technical Brilliance:

• Supports 2–3 pump groups for versatile system configurations.
• 125 mm center-to-center spacing for seamless integration with heat sources and consumer circuits.
• 1" ZR connection for expansion tanks, simplifying system setup.

The UNI-Tank is more than just a heating component—it's the cornerstone of a modern, efficient, and sustainable heating system. With its cutting-edge design, unparalleled functionality, and robust construction, the UNI-Tank is the product of choice for professionals who demand nothing but the best.

Choose UNI-Tank. Choose Excellence.
