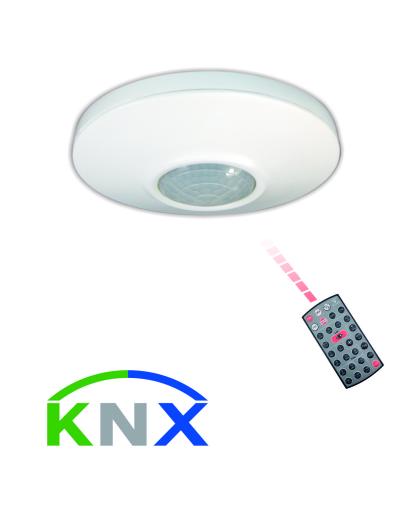

The KNX presence detector OS-384iT-HB-KNX is integrated PIR motion sensor and light level sensors, which can be mounted up to 10 meters height, solely designed for incorporating with KNX Home and Building Control System to enhance lighting management and HVAC automation control.

• Rated voltage: 21-30VDC (supplied via KNX system)
• Standby current: Approx. 10mA
• Easy management of control parameters (Lux, Time, Meter, STBY & STBY% ) and function settings via ETS or IR remote control.
• Mountable up to 10 meters high ceiling
• Detection angle: 360°
• Detection range: 16 meters diameter
• Operating temperature: -20°C to +45°C
• 4 outputs for lighting & HVAC control in KNX system
• IR remote control for quick setting ( for optional purchase)
• One unit can handle 3 kinds of installation requirements: Ceiling flush mount with clips, flush mount with in-wall junction box and ceiling surface mount.
