BS Bodensteckdosen Systemtechnik GmbH

socket pillar/power bollard EST12

Beschreibung

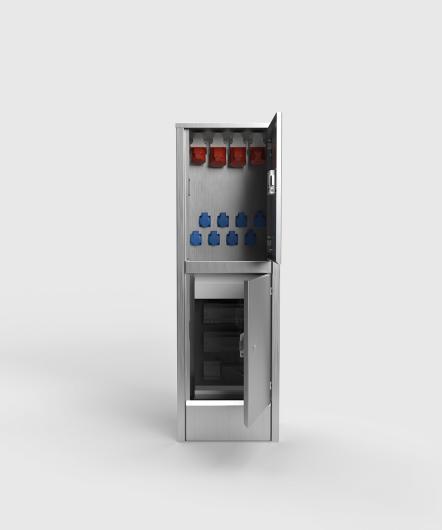

Socket pillar/power bollard EST25 made of brushed stainless steel for outdoor use. The sockets are protected with FI/LS and completely wired. The power bollard has two doors, each of them can be closed with a profile half cylinder.Thanks to the cable outlet, the door of the power bollard can be locked even when in use. The protection class of the electrical units is IP44. Further assembly variants on request.

Equipment EST25-1:
• 8 x socket
• 2 x CEE 5/16A 400V/6h
• 2 x CEE 5/32A 400V/6h
Fuse:
• 4 x LS, B16, 1-pol
• 2 x LS, C16, 3-pol
• 2 x LS, C32, 3-pol
• 2 x FI, 40A, 0,03A, 4-pol

Equipment EST25-2:
• 4 x socket
• 1 x CEE 5/16A 400V/6h
• 1 x CEE 5/32A 400V/6h
• 1 x CEE 5/63A 400V/6h
Fuse:
• 2 x LS, B16, 1-pol
• 1 x LS, C16, 3-pol
• 1 x LS, C32, 3-pol
• 1 x LS, C63, 3-pol
• 2 x FI, 40A, 0,03A, 4-pol

Equipment EST25-3:
• 4 x socket
• 2 x CEE 5/16A 400V/6h
• 2 x CEE 5/32A 400V/6h
• 1 x CEE 5/63A 400V/6h
Fuse:
• 2 x LS, B16, 1-pol
• 2 x LS, C16, 3-pol
• 2 x LS, C32, 3-pol
• 1 x LS, C63, 3-pol
• 2 x FI, 40A, 0,03A, 4-pol
• 1 x FI, 63A, 0,03A, 4-pol

Connection:
• 1 x main line branch clamp Pollmann HLAK 25-5

Dimensions: 425 x 1310 x 285 mm (B x H x T)

Supply line: 1 x below, 200 x 150 mm

Protection: IP44

Weight: 41 kg
