BS Bodensteckdosen Systemtechnik GmbH

floor socket 8902B

Beschreibung

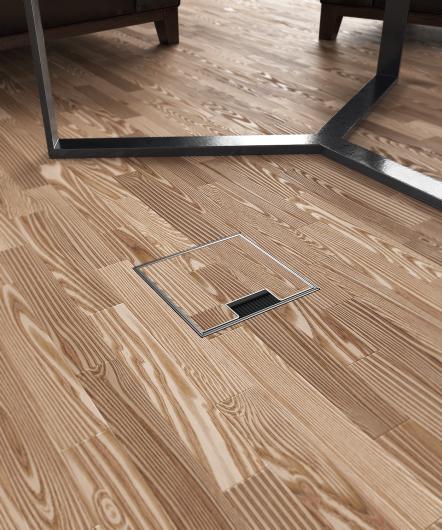

Height-adjustable floor socket 8902B with 2 slots. The box, frame and lid are made of stainless steel. Floor coverings such as carpet, parquet, laminate, etc. with a thickness of 15 mm can be inserted into the removable hinged lid. The lid closes even with standard straight or angled plugs inserted. The cable outlet in the lid can be ordered in two versions: either with two cutouts or with a brush that protects against coarse dirt. Further assembly variants on request.

Equipment 8902BB:
• 2 x socket

Equipment 8902BB1:
• 1 x socket • 1 x RJ45 double

Equipment 8902BB2:
• 1 x socket • 1 x aerial

Equipment 8902BB3:
• 2 x socket • 2 x RJ45 single

Dimensions: 155 x 90 x 155 mm (B x H x T)

Floor installation depth: 90–120 mm

Height adj: 30 mm

Covering insert: 15 mm

Protection: IP20

Supply line: 2 x lateral, 2 x back, 2 x below, each Ø 26 mm
