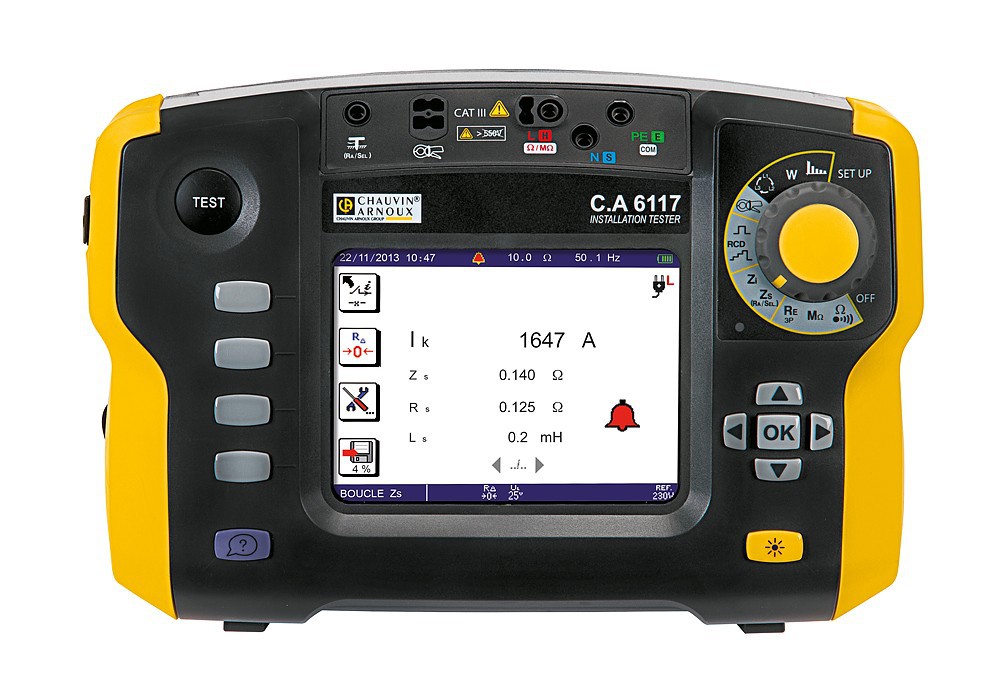

The C.A 6117 is an ALL-IN-ONE instrument for testing electrical installations in compliance with the national and international standards (IEC 60364-6, NF C 15-100, VDE 100, FD C 16-600, etc). It combines design, ergonomics, simplicity, performance, rapidity and accuracy.

Suitable for all neutral systems (TT, TN, IT), it is ideal for all sectors: industry, tertiary and residential.


Ergonomics

The rugged, compact C.A 6117 is specially designed for quick and effective familiarization. On its large LCD graphical colour display with backlighting, users can view all the crucial results at a glance.

A rotary switch on the instrument’s front panel gives direct access to all the functions. A large number of visual symbols and audio signals help with quick interpretation of the results in accordance with the standards. The on-line contextual help menus can guide the user step by step, if needed. The storage capacity can save up to 1,000 tests. The C.A 6117 also has a USB output for data transfer.


Measurements

The high-performance C.A 6117 offers excellent measurement stability, even in disturbed industrial environments. All the measurements needed to test an electrical installation are available: continuity, resistance, insulation, earth and selective earth, loop impedances, type A and AC RCDs. The C.A 6117 can also be used to measure voltage, frequency, current via a clamp, active power, harmonics and phase rotation.

The C.A 6117 is also fitted with type-B RCD testing, built-in fuse table and voltage drop feature.

Designed and manufactured in France, the C.A 6117 was developed in compliance with eco-design procedures.

Analysis of the results

The measurements made with the C.A 6117 can be processed by the DataView® multi-product expert processing software. DataView® automatically recognizes the instrument when it is connected to the PC and opens the corresponding menu. By means of a tree structure, it offers users direct access to the data recorded in the instrument, its configuration, etc.

It is equipped with multiple predefined report templates which comply with the standards' requirements.
Users can also create their own templates, as required.

Delivered as standard, the ICT software offers the following functions for quick, simplified analysis of the recorded measurements: recovery of the data, configuration of the instrument, customization of measurement campaigns with transfer into the instrument and generation of reports.


Accessories

Delivered in a bag with a large number of accessories, a wrist strap and a 4-point harness are also available as standard features for "hands-free" use.

Earth clamps unlike any others...

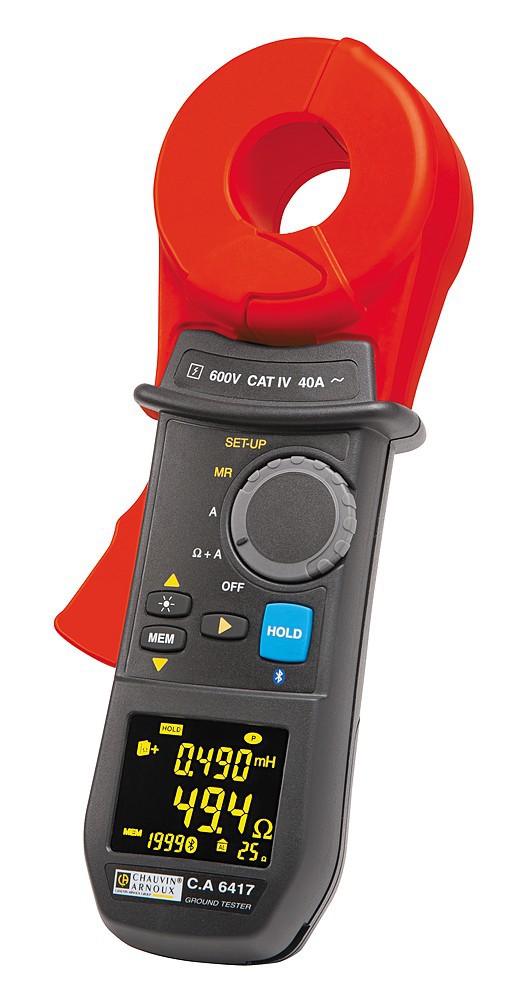

The C.A 6417 earth clamps, delivered in a carrying case, are ideal for quick earth-loop resistance measurements. 600V CAT IV, they display the earth voltage with a dangerous voltage alarm and provide additional safety during measurement.
They are particularly easy to use thanks to ergonomic innovations such as a force compensation system to keep the clamp open without any effort and an OLED display, offering visibility over an angle of 180° whatever the lighting conditions.
The automatic PRE-HOLD function when the clamp is opened and the automatic jaw calibration function at power-up help to optimize processing of the measurements provided by the clamps.

On the same screen, they offer simultaneous display of:

• the impedance and leakage current (Ω+A),
• the earth voltage,
• the breakdown of the resistive and inductive parts of the ground impedance,

They also allow users to display the impedance transposed to a frequency close to the network frequency, thus reducing measurement errors when low values are involved.

Equipped with Bluetooth communication, the C.A 6417 clamp can be used with the GTC and/or DATAVIEW® PC software to view the values in real time, recover the measurements and create standard or customized measurement reports. There is also an ANDROID application for tablets & smartphones for viewing real-time graphs, GPS geolocation of the measurements and email distribution of the measurements with graphs, comments and photos.

Additional specifications:

• Large measurement range: 1,500 Ω / 500 µH / 40A
• Alarms on Ω, A and V
• Automatic Pre-Hold mode when the clamp is opened
• 2,000 storage locations
• Real-time clock for time/date-stamping of measurements
• Automatic calibration of jaw opening distance at start-up
• Buzzer and automatic power-off
• Bluetooth communication interface
• GTC data transfer software

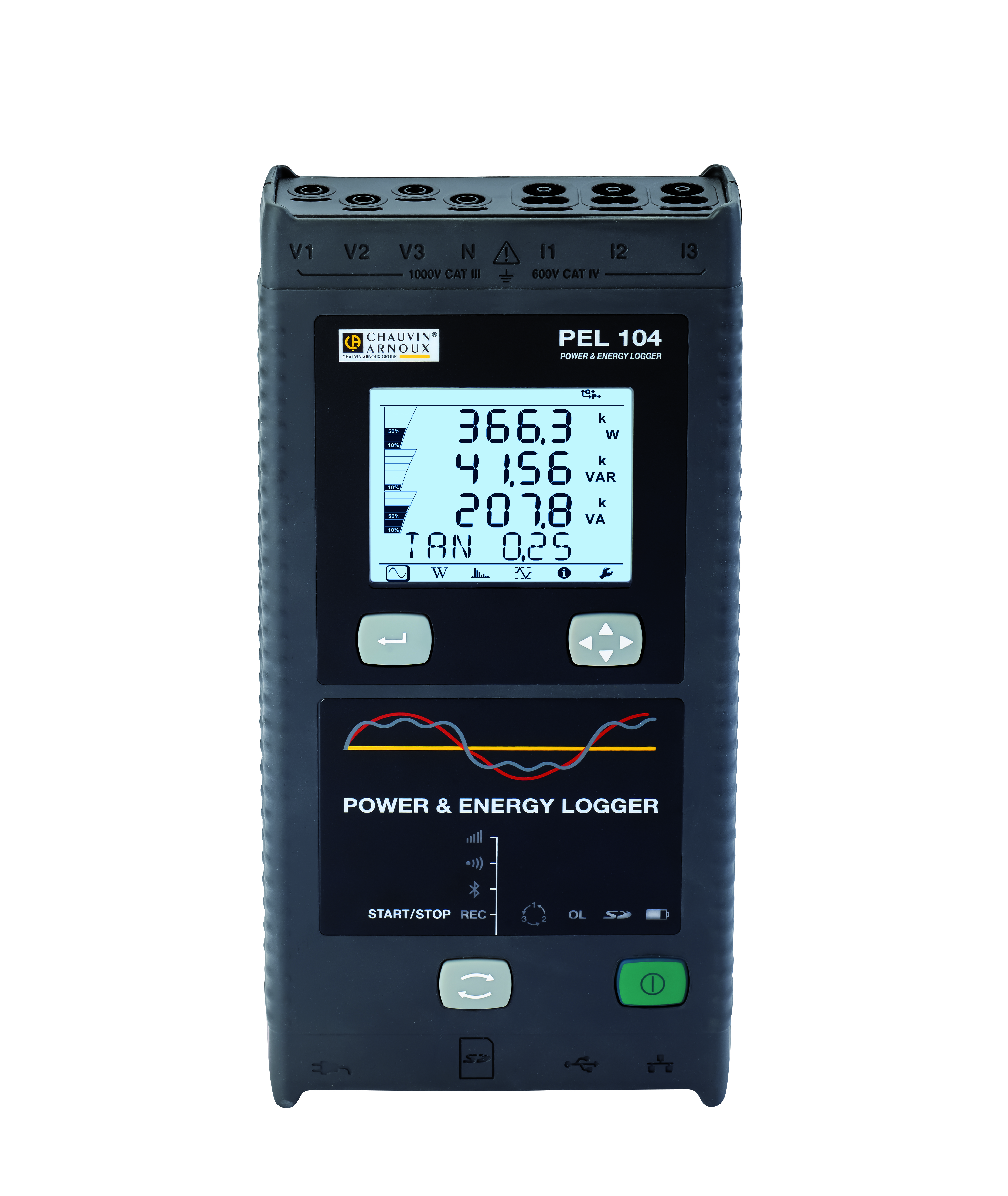

The PEL104 power logger measures and records all the useful data for energy consumption diagnostics. The PEL104 can be used without cutting off the mains power supply.

Ergonomics
Portable, rugged and compact, its magnetized casing makes it easy to set up, including in an electrical cabinet. The PEL104 is a logger equipped with 3 voltage channels and 3 current channels. No more battery problems, as the logger self-powers directly via the phase by means of the accessory included.
The backlit LCD screen equipped with a triple digital display is particularly easy to read.
The PEL 104 is equipped with an SD card capable of storing several years' data, an ideal function for measurement campaigns.

Measurements
Suitable for all types of electrical networks, the PEL104 automatically recognizes the sensors connected. It measures voltage up 1,000 VAC/VDC and current up to 10 kAAC / 5 kADC. Its wide measurement ranges enable it to record power values up to 10 GW/Gvar/GVA, and energy up to 4 EWh/EVAh/Evarh.
It is equipped with an Alarm mode. The user can define limits and a list of events is recorded.

Ultra-communicating
The PEL104 is equipped with multiple communication modes: USB, Ethernet, Bluetooth, Wifi and GPRS.
The new GPRS mode allows users to insert a SIM card in the PEL for remote connection via a GSM link. Because measurement campaigns often stretch over several days or weeks, it is important to check that the PEL is functioning correctly during this period.
With all these modes, it is possible to monitor the measurements in real time and recover the measurement data remotely anywhere in the world.
When an alarm is triggered, users can automatically receive an email alert.

ANDROID
In the field, the dedicated ANDROID application can be used to check that the PEL is operating correctly and to modify its configuration.

Software
The PEL Transfer software can be used to analyse the data recorded with the PEL100 models. On the basis of the power measurement campaigns performed, the software automatically decomposes the losses detected.
New: the software directly calculates the cost of the power consumed and gives the result in the local currency selected.
The DATAVIEW software platform can be used to generate reports. Users can set alarm thresholds on the various measurements made in order to obtain a customized measurement report.

Additional specifications:

• 5 measurements per second, simultaneously on each phase
• Active, apparent and reactive power values
• Phase: cos phi, tan PHI, PF
• Harmonics/THD
• IP54

The C.A 1110 luxmeter (light meter) measures the illuminance of all light sources (LED, Fluo. etc.) up to 200,000 lux in compliance with Class C of the NF C 42-710 standard.
With the MAP function, you can produce a map of a surface or room in order to check that the illuminance is uniform.
Because it is magnetic, the sensor can be fixed to the product for one-handed use or for easy transport, but it is also possible to use it remotely to avoid shading by the operator.
The C.A 1110 also offers Min, Max, Average and Hold functions, as well as allowing spot or programmable recording.
The Data Logger Transfer software is available for free download to view the recorded data, configure the C.A 1110, benefit from remote display and generate automatic reports.

Additional specifications:

• Measurement range: 0.1 lx to 200,000 lx (lux)
• Intrinsic uncertainty without compensation:
• ± 3% of the reading on incandescent sources (default)
• ± 6%  of the reading on LEDs (3,000 K to 6,000 K)
• ± 9% of the reading on fluorescent sources
• Min, Max, Average, MAP and Hold functions, lx or fc / Backlighting
• Recording up to 1 million points
• USB or Bluetooth interfaces
• IP50 casing
• Casing dimensions: 150 x 72 x 32 mm / Sensor: 67 x 64 x 35 mm
• Weight: 345 g with batteries
• Compatible with the Multifix accessory
• Shockproof protective sheath available as an accessory

Advantages of the C.A 1954

• exceptional 9-hour battery life with standard Ni-MH rechargeable batteries or alkaline batteries
• connectivity with current clamps and environmental measurement products: all the necessary measurements simultaneously (current, influencing quantities, dew point for identifying areas at risk from mould, etc.)
• voice annotations to record your comments directly on the image
• the possibility of renaming the images and thermograms by site
• recording and storage in memory of the configurations for each application

Description

Designed and developed for simplified use, the C.A 1954 is ideal for all applications in the building, electrical maintenance and mechanical maintenance for:

• thermal audits
• fault detection: thermal bridges, seepage, presence of humidity
• electrical maintenance: detection of faulty contacts, unbalance, etc.
• mechanical maintenance: detection of wear points, motor overheating, lubrication problems, etc.

It has been specially designed to be simple to use:

• comfortable grip, with direct access to the functions with just one hand
• the C.A 1954 is perfectly balanced and does not move even when stood on a table or bench
• display on a wide 2.8-inch screen with automatic brightness adjustment
• the field of view (38°x28°) is focus-free, which means that the image remains sharp whatever the distance
• contextual help guides users to limit the risk of errors
• the C.A 1954 allows you to record voice comments directly on the image
• the slide-down protective lens cover is built into the instrument, so you cannot lose it and it does not get in the way.

The C.A 1954 is a communicating camera which can recover the necessary measurements (current, temperature, humidity, dew point, etc.) simultaneously via Bluetooth from current clamps and environmental measurement products.

Software

CAmReport, the software for analysing the thermograms, can be used for detailed analysis with several Tools:

• cursors (automatic display of the temperature at the point selected)
• thermal profile (automatic display of the Min/Max/Avg temperatures of the line)
• a square or circle for area analysis
• results tables quickly and automatically display all the data/analytical tools on the thermogram
• polygons and polylines for closer analysis of certain areas in the thermogram
• emissivity table provided as standard which can be enhanced by the user
• CAmReport can also be used for automatic report generation according to various available templates. These reports can then be exported in Word or pdf format. This makes them simpler to print and archive.

Additional specifications:

• UFPA microbolometer-type 160 x 120 detector, 8 ~14 μm
• NETD: 0.08 °C
• IFOV (spatial resolution) 4.4 mrad
• Temperature range: -20°C to +250°C
• Display modes: thermal image or real image with automatic parallax compensation. Image merging available with the PC software
• Measuring tools: 1 manual cursor + 1 automatic detection cursor + Min-Max-Avg on adjustable area + temperature profile + isotherm with recovery of dew point via Bluetooth
• Adjustable settings: emissivity, environmental temperature, distance, relative humidity
• Memory: on 2 GB micro SD card (approx. 4,000 images) - exchangeable up to 32 GB
• IP 54 ingress protection
• Weight / Dimensions: 700 g with rechargeable batteries / 225x125x83
