Elbi Electric & Lighting Srl

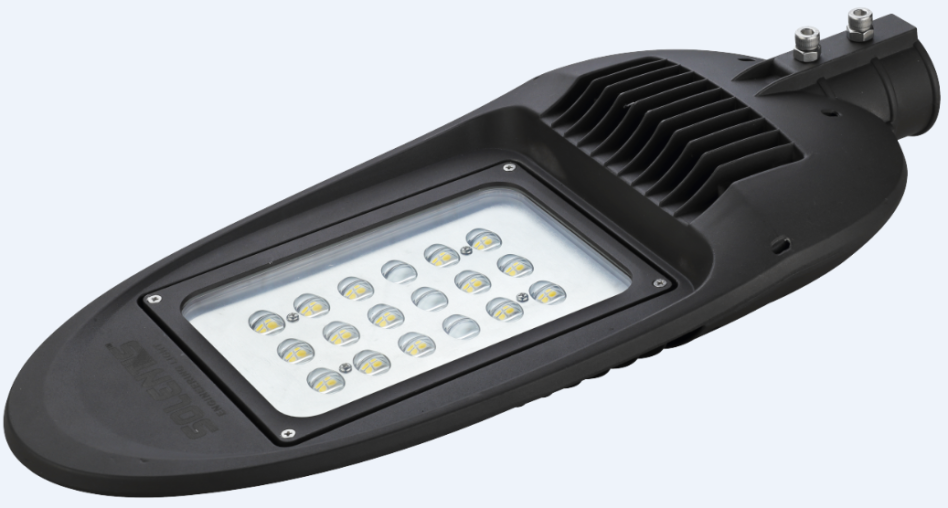

COVER

Beschreibung

Key advantages of COVER:

  • Cost effective and efficient lighting solution
  • 3 size to offer the most accurate solution
  • Wide range of colour temperature
  • Wide range of operating temperature
  • Side-entry mounting for pole O/ 32 to 60mm / 1" to 2"
  • housing optimized for heat dissipation
  • Ready for Smart city connectivity with MEMA socket
  • IP 66 tightness level
  • Surge protection 4 to 6KV (+10Kv optional)



Product Feature :

  • Input Voltage : AC90-305V
  • Input Frequency: 50/60Hz
  • Housing Material: ADC 12 Die-casting Aluminium
  • Glass Cover
  • High Transparency Type II PC Lens
  • Power driver option : Sosen&Meanwell
  • LED Chip Option : Bridglux 3030 / Philips 3030
  • Warranty : 3 years / 5 years
  • Luminous Efficiency : 100LM/W & 110LM/W
  • IK Rating and IP Rating : IK07 IP65
  • Color Temperature : 2700-6500K
  • Rendering Index : RA>70
  • Power factor : >0.95
  • Lighting Surge: 30-80W: 4KV / 100-250W: 6KV
  • Overload Protection
  • Short circuit protection
  • High voltage resistance 1750V
  • DALI, 0-10V Dimmable,PMW,TRAIC
  • -35°C - +55°C Ambient Temperature
  • Life time : 50000h
  • BeamAngle : 150°
  • From 30W to 250W
