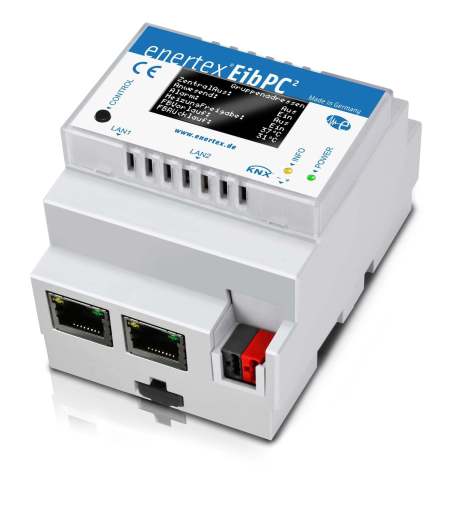

Enertex® EibPC²
The perfect smarthome control center for a smart future: EibPC². The new hardware platform with an ARM CPU for industrial applications, fast and low power DDR RAM and 8 GB flash memory guarantees performance and reliability for many years.

Simple logics or complex control flows – with the EibPC² it is easy to solve both tasks. If the built-in functions do not fit your ideas, you can freely create programs.

Keep the overview with our modern web-based visualization.

The integrated bus interface obviates the need for a dedicated power supply. The power consumption is typ. 1.8 W. With a modern KNX power supply as the Enertex® KNX PowerSupply 960² you can both supply EibPC² and all your KNX devices. The EibPC² can also be used as KNX interface (ETS) for programming your KNX devices. The integrated display shows important information.

Upgrading to EibPC² is easy: you can use your legacy programs without having to change anything.
Proven security features such as encrypted web server and VPN functionality, are of course available in the EibPC², too.

EibStudio V4
Our completely new designed, parametrization and visualization tool EibStudio V4 manages your existing EibPC or new EibPC² installation.

The modern user interface and graphical assistants support your development of control logic and web-visualization, help to reduce bugs and increase your productivity, without creating artificial walls. The project management centralizes all information and makes it easy to manage multiple different projects and hardware setups.

EibStudio V4 is available free of-charge for Windows, OSX and Linux.

Logic machine and visualization for the KNX bus Compatibility:
Projects created for the successful Enertex® EibPC (V1) can be used without modification Hardware:
DIN rail mount, 4 SU
Powerfull ARM processor for industrial applications, fast and low power DDR RAM and 8 GB flash memory
The integrated OLED display shows device parameters (e.g., IP-Address) and user-defined status information
Powered by integrated bus interface
Power consumption 1.8 W (typical workload) KNX-based features: up to 65.000 configurable functions
Scenes, timers, schedules, logic machine, presence simulation, logging of KNX bus traffic, long-term recording, export telegrams in plain text on FTP server, device watchdog Web-based features:
Integrated real-time webserver, encrypted remote-access, VPN-server, visualization of device status
and bus telegrams, TCP/IP and UDP communication, e-mail, etc. Software: Enertex® EibStudio V4
Modern parametrization and visualization tool for Windows, OSX, Linux
Visual editor for logic and web visualization
Visual debugger, group monitor
Text-based development still supported

More than 1200 pre-built functions (Macros):
Implement typical tasks: heating and cooling, shading, etc.
