Enertex® EibPC²
The perfect smarthome control center for a smart future: EibPC². The new hardware platform with an ARM CPU for industrial applications, fast and low power DDR RAM and 8 GB flash memory guarantees performance and reliability for many years.

Simple logics or complex control flows – with the EibPC² it is easy to solve both tasks. If the built-in functions do not fit your ideas, you can freely create programs.

Keep the overview with our modern web-based visualization.

The integrated bus interface obviates the need for a dedicated power supply. The power consumption is typ. 1.8 W. With a modern KNX power supply as the Enertex® KNX PowerSupply 960² you can both supply EibPC² and all your KNX devices. The EibPC² can also be used as KNX interface (ETS) for programming your KNX devices. The integrated display shows important information.

Upgrading to EibPC² is easy: you can use your legacy programs without having to change anything.
Proven security features such as encrypted web server and VPN functionality, are of course available in the EibPC², too.

EibStudio V4
Our completely new designed, parametrization and visualization tool EibStudio V4 manages your existing EibPC or new EibPC² installation.

The modern user interface and graphical assistants support your development of control logic and web-visualization, help to reduce bugs and increase your productivity, without creating artificial walls. The project management centralizes all information and makes it easy to manage multiple different projects and hardware setups.

EibStudio V4 is available free of-charge for Windows, OSX and Linux.

Logic machine and visualization for the KNX bus Compatibility:
Projects created for the successful Enertex® EibPC (V1) can be used without modification Hardware:
DIN rail mount, 4 SU
Powerfull ARM processor for industrial applications, fast and low power DDR RAM and 8 GB flash memory
The integrated OLED display shows device parameters (e.g., IP-Address) and user-defined status information
Powered by integrated bus interface
Power consumption 1.8 W (typical workload) KNX-based features: up to 65.000 configurable functions
Scenes, timers, schedules, logic machine, presence simulation, logging of KNX bus traffic, long-term recording, export telegrams in plain text on FTP server, device watchdog Web-based features:
Integrated real-time webserver, encrypted remote-access, VPN-server, visualization of device status
and bus telegrams, TCP/IP and UDP communication, e-mail, etc. Software: Enertex® EibStudio V4
Modern parametrization and visualization tool for Windows, OSX, Linux
Visual editor for logic and web visualization
Visual debugger, group monitor
Text-based development still supported

More than 1200 pre-built functions (Macros):
Implement typical tasks: heating and cooling, shading, etc.

The power supply unit LED PowerSupply 160 for DIN rail mount (4 SU) supplies your LED lamps with a DC voltage of 24 V DC and a rated power of 160 W. The output voltage can be increased in 0.5 V increments up to 28.5 V with a rotary switch to compensate line losses. Three LEDs signal operation and partial or full load operation.

The maximum efficiency is 94.5 %, with an efficiency of over 91 % achieved in all load operations above 25 %. Thus, the efficiency tops the requirements of the "80Plus Gold" certificate. The standby power consumption is typ. 0.1 W. The power supplies can be installed in parallel for the operation of higher loads. The devices detect the parallel connection and distribute the load symmetrically among each other.

The use of high-quality components increases the lifetime of the device and also reduces the typical humming noises, that come along with dimming of LEDs.

The DIN rail device also fulfills all requirements of the lamp standards according to IEC 61347-1 and 61347-2-13. Therefore it is suitable for supplying all dimmable and non-dimmable lamps: LED illuminants, halogen lamps, fluorescent lamps and other conventional lamps.

In addition, the device has a integrated short-circuit protection, overload protection and over-temperature protection. All protective functions are self-healing, i.e. when the fault condition is removed, the power supply restarts and provides the output power again.

The Enertex LED PowerSupply 160 is by means of its unique features the perfect solution for the LED supply in your distribution panel.

Voltage input: 230 V AC (50 Hz) Voltage variants: 12 V, 24 V, 48 V Rated output power: 160 W (temperature derating for continuous full load operation) Ultra compact design: Only 4 SU wide DIN rail housing Very high efficiency of up to 94.5 % Low standby consumption of max. 0.3 W Parallel operation of up to 3 devices possible (load is automatically distributed equally among each other) Protection functions: Short-circuit protection, overload protection and overtemperature protection Fulfills all requirements for lamps and LED lamps according to IEC 61347-1 and 61347-2-13 LEDs: power, normal load, max. load Active PFC function

The MeTa KNX room controller is a touch sensor with mechanical switches. The electronic labels display the action to be performed. Each rocker switch has two mechanical switches for actuation. It can be configured for individual switches or as an rocker switch for a functional group (e.g. for dimming). Each rocker can be allocated four times. The rocker switch at the device's bottom allows to switch through these four freely configurable menu layers. The labels can be changed dynamically for each level by group addresses via the KNX bus, for example to change the label language. When used as a single switch, the feedback of a status group address can be displayed. On the displays' left and right edges there are status displays for 1-bit objects. The displays' brightness can be controlled automatically through the built-in RGBW light sensor or parameterized fix. The device is supplied via the included bus coupler and there is no need for an additional power supply. For mounting a standard flush-mounted box is required (all variants). An external binary input allows the coupling of a conventional switch to the KNX bus.

High quality anodized aluminum housing Fits into any standard flush-mounted box Contains bus coupling unit Built-in RGBW light sensor Menu switch Binary input e.g. for use with conventional switches Socket for supplying the device via the KNX bus (no additional power supply necessary)

The KNX IP Secure Router (2 SU) is the central component of KNX systems in order to make sure, that IP communication scales up to the maximum possible security. The device authenticates and encrypts KNX and IP telegrams. An potential IP attack, e.g. from outside (Internet) or inside (Intranet) does not see the real contents of KNX-IP telegrams. Telegram rate limitation, max. telegram lengths up to 248 bytes and bus performance up to 49 telegrams per second optimize the use of logics and visualizations. The OLED display simplifies the diagnosis. The topology error detection and the temporary filter deactivation facilitate commissioning diagnostics

KNX IP Secure Routing, KNX IP Secure Tunnelling Maximum performance: + Routing: 49 telegrams per second + Tunnelling: 49 telegrams per second Up to eight encrypted or unencrypted KNX UDP and TCP tunnel connections Integrated PLED display shows important device parameters Powered directly from KNX bus DIN rail mount (2 SU) Repeater, line, area or world coupler telegram rate limitation, tel gram length with upto 248 Bytes (TP) block device programming over TP  Support of UDP connections with longer reponse time (1..8 s) Routing Counter 7: old and new Standard can be alternated by software Temporally disabling filtering function for commissioning diagnostics  Detection of errors of topology  Up to 62 group address filter Buffered real-time clock and SNTP server Parameterization and diagnostics functions with telnet interface Display the bus voltage in OLED and Telnet

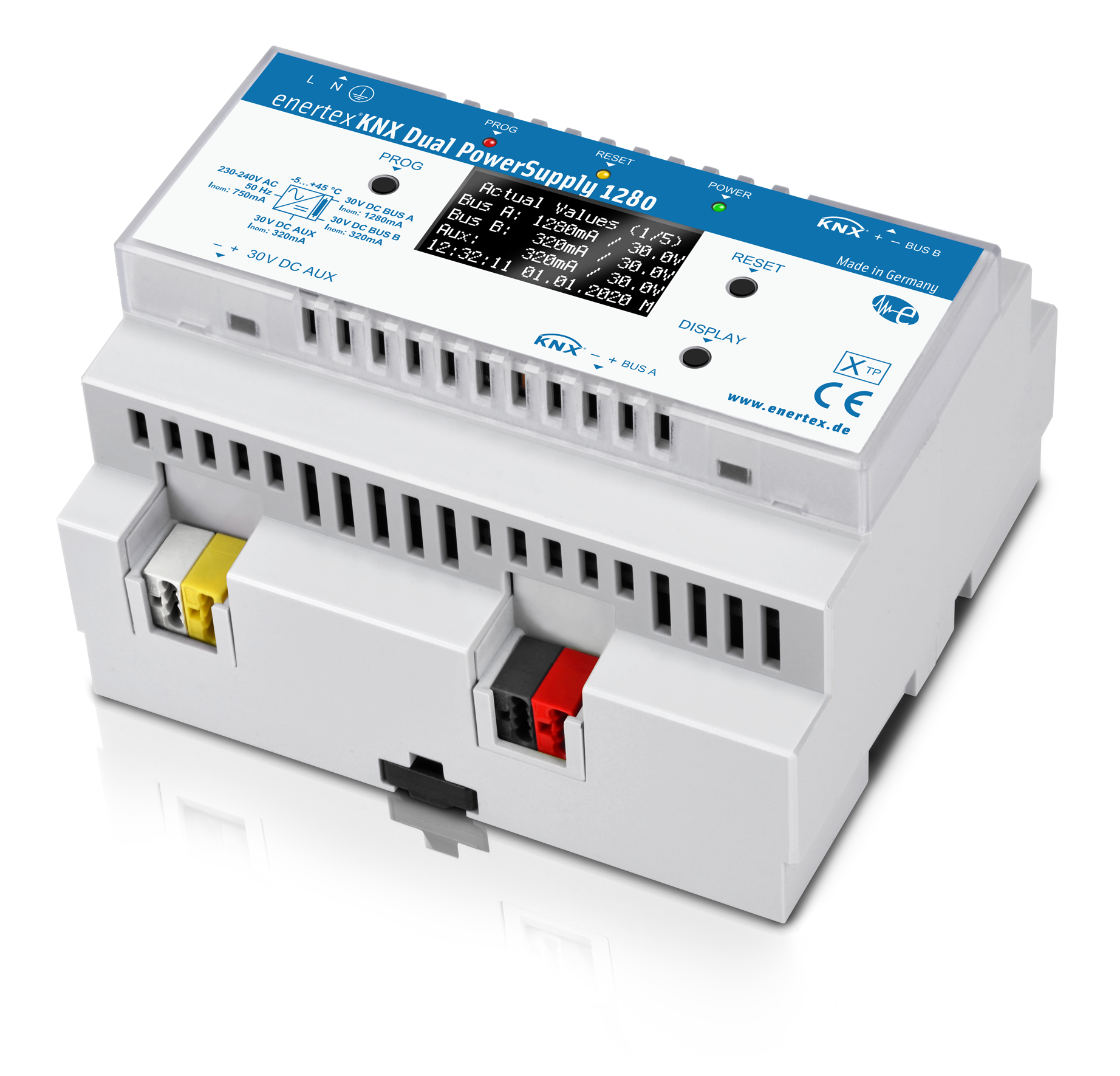

The Enertex® KNX DUAL PowerSupply 1280 (6 SU) provides with a single device two separately operating KNX power supplies with 1280 mA and 320 mA and a third 30V auxiliary power supply with 320 mA (100% overload capable). The device allows a compact realization of a powerful inner line in combination with another physically and topologically separated second outer line. The additional unchoked 30 V auxiliary voltage output provides a DC supply for further devices or, using a further external KNX choke, a third KNX line (320 mA).
Each of the three outputs has its own current limiter, which protects against short circuit and overload. The limitation is selective, so that if one output or KNX line is short-circuited, the other two outputs or lines can continue to operate normally.
The device also has measuring and diagnostic functions. Measured values and device parameters are shown on the OLED display of the device, e.g. current, voltage, peak current with time stamp for both KNX and auxiliary voltage outputs. Commissioning, maintenance and analysis of the KNX installation is thus significantly simplified.
Further measurement and diagnostic data is made available via group objects at the bus, including the internal housing temperature, telegram rate, energy meter and the latest bus voltage failure, the latest bus voltage recovery and the latest remote reset with time stamp.
Communication via group addresses is carried out with standard KNX protocol unencrypted or encrypted with KNX Data Secure. With the help of two KNX group addresses, a separate bus reset can be carried out for the main line and secondary line.
In addition, the KNX DUAL PowerSupply 1280 has an integrated real-time clock with a power reserve of approx. 36 hours and can be parameterised as a KNX clock. A comprehensive time switch application with 64 switching times for max. 64 group addresses, including extensive logic functions, holiday calendar and astro function is integrated. The time switches can directly address KNX group addresses for switching, dimming, blinds, scene, colour RGB, colour HSV and heating controller's operating mode.
