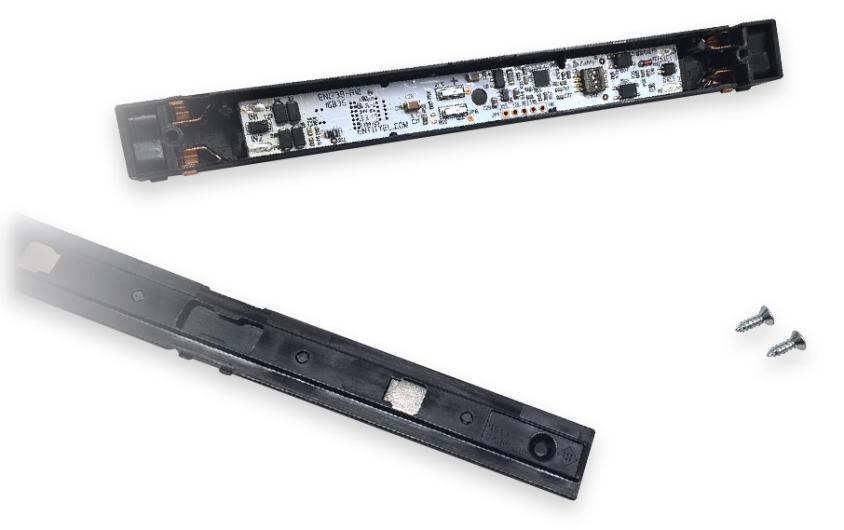

Entity has developed a complete range of 24-48V drivers - MICRODRIVER48 – ideal for the A.A.G. Stucchi’s low voltage tracks Micro, revolutionary system which stands out for the miniaturized dimensions and infinite design possibilities.
The range includes DALI-2, on/off, Bluetooth, tunable white DT8 versions, with one or two constant current or constant voltage outputs.

MAIN SPECIFICATIONS
• Output operating range 1V – 43V
• Not polarized input
• Protection against mains voltage spikes
• Protection against overheating
• Protection against overloads
• Circuit for hot insertion (hot-swap)
• Precision of the output current +/- 1,5%
• Flicker free
• DALI input protected up to 60V
• Dimming from 0% to 100%

Led modules, different dimensions and specs.

DC/DC converter PWM con uscita in corrente costante | PWM DC/DC converter with one constant current output.

Input 24Vdc (PWM dimmable)
Output 350mA-500mA-700mA-1050mA-1200mA
Output channels 1
Output range 2Vdc-22,8Vdc
Control inputs -
Dimming 0%-100%
Frequency up to 5KhZ
Highlights protections against: voltage spikes - input polarity
reversal
Accessories connectors on the back
Dimensions 33,25*13,9*9,5mm

Entity presents CASAMBI VOICE, an innovative interface which allows the control of DALI fixtures both from CASAMBI App (Bluetooth) and through vocal commands given to AMAZON ALEXA / GOOGLE HOME assistants (Wi-Fi).

The two systems, CASAMBI and AMAZON ALEXA / GOOGLE HOME, are interdependent, they communicate and update each other.
In a global and increasingly competitive market, where the majority of innovations happen at a software level, CASAMBI VOICE represents an authentic revolution, unique of its kind.

The device, completely designed and engineered by Entity, is ahead of its time and raises the level of remote control possibilities to unthinkable standards.

A NEW TECHNOLOGY AT YOUR HAND... AND VOICE, an absolute novelty for the lighting sector, covered by patent.

THE DEVICE IS AVAILABLE IN TWO VERSIONS:
1) installed into the adapter for MULTISYSTEM and EVOLUTION low voltage tracks produced by A.A.G. Stucchi, leading company in the design and manufacturing of tracks which distinguish themselves for the exclusive design (EN1812 CASAMBI VOICE)

2) installed into a plastic box developed by Entity, ideal for independent uses (EN1728 CASAMBI VOICE).

Entity has developed a complete range of 24-48V drivers - MICRODRIVER48 – ideal for the A.A.G. Stucchi’s low voltage tracks Micro, revolutionary system which stands out for the miniaturized dimensions and infinite design possibilities.
The range includes DALI-2, on/off, Bluetooth, tunable white DT8 versions, with one or two constant current or constant voltage outputs.

MAIN SPECIFICATIONS
• Output operating range 1V – 43V
• Not polarized input
• Protection against mains voltage spikes
• Protection against overheating
• Protection against overloads
• Circuit for hot insertion (hot-swap)
• Precision of the output current +/- 1,5%
• Flicker free
• DALI input protected up to 60V
• Dimming from 0% to 100%

Led modules, different dimensions and specs.

DC/DC converter PWM con uscita in corrente costante | PWM DC/DC converter with one constant current output.

Input 24Vdc (PWM dimmable)
Output 350mA-500mA-700mA-1050mA-1200mA
Output channels 1
Output range 2Vdc-22,8Vdc
Control inputs -
Dimming 0%-100%
Frequency up to 5KhZ
Highlights protections against: voltage spikes - input polarity
reversal
Accessories connectors on the back
Dimensions 33,25*13,9*9,5mm
