Entity Elettronica S.r.l.

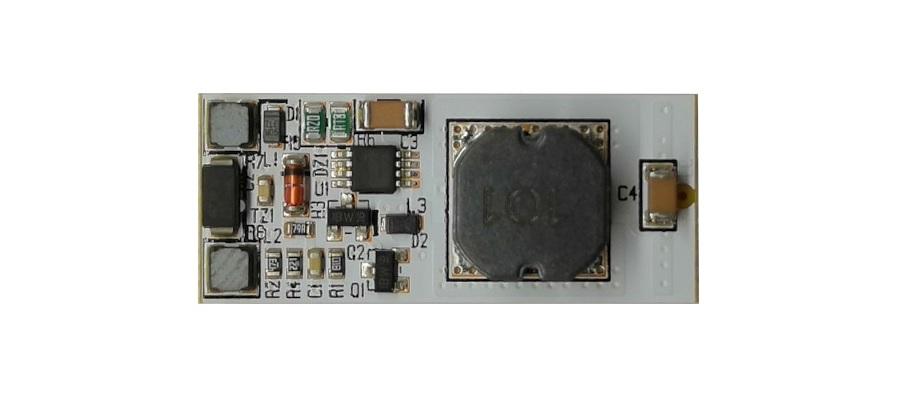

EN1798 PWM 1,2A WITH CONNECTORS
Beschreibung
DC/DC converter PWM con uscita in corrente costante | PWM DC/DC converter with one constant current output.
Input 24Vdc (PWM dimmable)
Output 350mA-500mA-700mA-1050mA-1200mA
Output channels 1
Output range 2Vdc-22,8Vdc
Control inputs -
Dimming 0%-100%
Frequency up to 5KhZ
Highlights protections against: voltage spikes - input polarity
reversal
Accessories connectors on the back
Dimensions 33,25*13,9*9,5mm
