IP40 FLUSH MOUNTING CONSUMER UNITS Modular capacity from 4 to 54 modules DIN EN50022

FAEG IP40 consumer unit enclosures are made of self-extinguishing shockproof polystyrene (box) and ABS, and feature a polycarbonate transparent door. Made of UV-resistant material they maintain color over time.

Enclosure: Polystirene/ABS
Door: PC (polycarbonate)
UV protection
Enclosure colour: White /orange
Door colour: transparent smocked
Degree of protection: IP40
Impact test: IK07
Glow Wire Test: 650 °C
Ball Pressure Test: 75°C
Operating temperature range: -5°C + 60°C
Nominal operating voltage: 400V
Standard: CEI EN 60670-1 / CEI EN 60670-24

Messeneuheit

IP65 SURFACE MOUNTING CONSUMER UNITS Modular capacity from 4 to 54 modules DIN EN50022

FAEG IP65 consumer unit enclosures are made of self-extinguishing shockproof ABS, and feature a polycarbonate transparent door. Made of UV-resistant material, they are suitable for both indoor and outdoor use.

Enclosure: ABS
Door: PC (polycarbonate)
UV protection
Enclosure colour: RAL 7035
Door colour: transparent
Degree of protection: IP65
Impact test: IK08
Glow Wire Test: 650 °C
Ball Pressure Test: 75°C
Operating temperature range: -15°C + 60°C
Nominal operating voltage: 400V
Max operating voltage: 1000V AC / 1500V DC (CEI EN 62208) • Insulation: Class II
Standard: CEI EN 60670-1 / CEI EN 60670-24

Messeneuheit

MATRIOSKA the transformer shell!

Matrioska is a very robust and ergonomic shell, which mounted on the FG23207 FAEG adapter, can accommodate many types of plugs 2P+E or schuko, transforming it into an industrial IP44 CEE plug 250V 6h 2P+E. The assembling and disassembling system is safe and very quick and also allow to frequent reuse, guaranteeing IP44 watertight thanks to its special co-molded gasket. The P40 / CEE 2P + E code FG23207 IP20 adapter complies with the CEI EN 50250 standard and is normally available in the catalog for standard use. The MATRIOSKA shell code FG23208 is to be used exclusively on this adapter. The MATRIOSKA shell is supplied with the adapter in the kit code FG23209. There are many applications, among them the possibility of using electric tools with civil plug in industrial CEE sockets without replacing the plug. It allows the use of the adapter FG23207, in indoor and outdoor environments where the degree of protection IP44 is necessary, such as on construction sites, on campsites and industrial areas in general. Patent Pending

Material: self-extinguishing technopolymers
Colour: Grey RAL 7035 and blue
Degree of protection: IP44 with mounted Matrioska shell
Standard: CEI EN 50250

FLUSH MOUNTING 3, 4 and 7 MODULE BOX FOR HOLLOW WALLS

The FAEG flush mounting module boxes for hollow walls are made of self-extinguishing shockproof polystyrene with metal inserts for the screws.

Material: Polystyrene
Colour: Blue
Metal insert for screws
Degree of protection: IP00 / IP20
Impact test: IK07
Glow Wire Test: 850 °C
Operating temperature range: -15°C + 60°C
Standard: CEI EN 60670-1

Messeneuheit

IP40 FLUSH MOUNTING CONSUMER UNITS Modular capacity from 4 to 54 modules DIN EN50022

FAEG IP40 consumer unit enclosures are made of self-extinguishing shockproof polystyrene (box) and ABS, and feature a polycarbonate transparent door. Made of UV-resistant material they maintain color over time.

Enclosure: Polystirene/ABS
Door: PC (polycarbonate)
UV protection
Enclosure colour: White /orange
Door colour: transparent smocked
Degree of protection: IP40
Impact test: IK07
Glow Wire Test: 650 °C
Ball Pressure Test: 75°C
Operating temperature range: -5°C + 60°C
Nominal operating voltage: 400V
Standard: CEI EN 60670-1 / CEI EN 60670-24

Messeneuheit

IP65 SURFACE MOUNTING CONSUMER UNITS Modular capacity from 4 to 54 modules DIN EN50022

FAEG IP65 consumer unit enclosures are made of self-extinguishing shockproof ABS, and feature a polycarbonate transparent door. Made of UV-resistant material, they are suitable for both indoor and outdoor use.

Enclosure: ABS
Door: PC (polycarbonate)
UV protection
Enclosure colour: RAL 7035
Door colour: transparent
Degree of protection: IP65
Impact test: IK08
Glow Wire Test: 650 °C
Ball Pressure Test: 75°C
Operating temperature range: -15°C + 60°C
Nominal operating voltage: 400V
Max operating voltage: 1000V AC / 1500V DC (CEI EN 62208) • Insulation: Class II
Standard: CEI EN 60670-1 / CEI EN 60670-24

Messeneuheit

MATRIOSKA the transformer shell!

Matrioska is a very robust and ergonomic shell, which mounted on the FG23207 FAEG adapter, can accommodate many types of plugs 2P+E or schuko, transforming it into an industrial IP44 CEE plug 250V 6h 2P+E. The assembling and disassembling system is safe and very quick and also allow to frequent reuse, guaranteeing IP44 watertight thanks to its special co-molded gasket. The P40 / CEE 2P + E code FG23207 IP20 adapter complies with the CEI EN 50250 standard and is normally available in the catalog for standard use. The MATRIOSKA shell code FG23208 is to be used exclusively on this adapter. The MATRIOSKA shell is supplied with the adapter in the kit code FG23209. There are many applications, among them the possibility of using electric tools with civil plug in industrial CEE sockets without replacing the plug. It allows the use of the adapter FG23207, in indoor and outdoor environments where the degree of protection IP44 is necessary, such as on construction sites, on campsites and industrial areas in general. Patent Pending

Material: self-extinguishing technopolymers
Colour: Grey RAL 7035 and blue
Degree of protection: IP44 with mounted Matrioska shell
Standard: CEI EN 50250

FLUSH MOUNTING 3, 4 and 7 MODULE BOX FOR HOLLOW WALLS

The FAEG flush mounting module boxes for hollow walls are made of self-extinguishing shockproof polystyrene with metal inserts for the screws.

Material: Polystyrene
Colour: Blue
Metal insert for screws
Degree of protection: IP00 / IP20
Impact test: IK07
Glow Wire Test: 850 °C
Operating temperature range: -15°C + 60°C
Standard: CEI EN 60670-1

Messeneuheit

IP40 FLUSH MOUNTING CONSUMER UNITS Modular capacity from 4 to 54 modules DIN EN50022

FAEG IP40 consumer unit enclosures are made of self-extinguishing shockproof polystyrene (box) and ABS, and feature a polycarbonate transparent door. Made of UV-resistant material they maintain color over time.

Enclosure: Polystirene/ABS
Door: PC (polycarbonate)
UV protection
Enclosure colour: White /orange
Door colour: transparent smocked
Degree of protection: IP40
Impact test: IK07
Glow Wire Test: 650 °C
Ball Pressure Test: 75°C
Operating temperature range: -5°C + 60°C
Nominal operating voltage: 400V
Standard: CEI EN 60670-1 / CEI EN 60670-24

Messeneuheit

IP65 SURFACE MOUNTING CONSUMER UNITS Modular capacity from 4 to 54 modules DIN EN50022

FAEG IP65 consumer unit enclosures are made of self-extinguishing shockproof ABS, and feature a polycarbonate transparent door. Made of UV-resistant material, they are suitable for both indoor and outdoor use.

Enclosure: ABS
Door: PC (polycarbonate)
UV protection
Enclosure colour: RAL 7035
Door colour: transparent
Degree of protection: IP65
Impact test: IK08
Glow Wire Test: 650 °C
Ball Pressure Test: 75°C
Operating temperature range: -15°C + 60°C
Nominal operating voltage: 400V
Max operating voltage: 1000V AC / 1500V DC (CEI EN 62208) • Insulation: Class II
Standard: CEI EN 60670-1 / CEI EN 60670-24

Messeneuheit

MATRIOSKA the transformer shell!

Matrioska is a very robust and ergonomic shell, which mounted on the FG23207 FAEG adapter, can accommodate many types of plugs 2P+E or schuko, transforming it into an industrial IP44 CEE plug 250V 6h 2P+E. The assembling and disassembling system is safe and very quick and also allow to frequent reuse, guaranteeing IP44 watertight thanks to its special co-molded gasket. The P40 / CEE 2P + E code FG23207 IP20 adapter complies with the CEI EN 50250 standard and is normally available in the catalog for standard use. The MATRIOSKA shell code FG23208 is to be used exclusively on this adapter. The MATRIOSKA shell is supplied with the adapter in the kit code FG23209. There are many applications, among them the possibility of using electric tools with civil plug in industrial CEE sockets without replacing the plug. It allows the use of the adapter FG23207, in indoor and outdoor environments where the degree of protection IP44 is necessary, such as on construction sites, on campsites and industrial areas in general. Patent Pending

Material: self-extinguishing technopolymers
Colour: Grey RAL 7035 and blue
Degree of protection: IP44 with mounted Matrioska shell
Standard: CEI EN 50250

Suche

Light + Building 2024 Contactor – Aussteller, Produkte, Kontakte

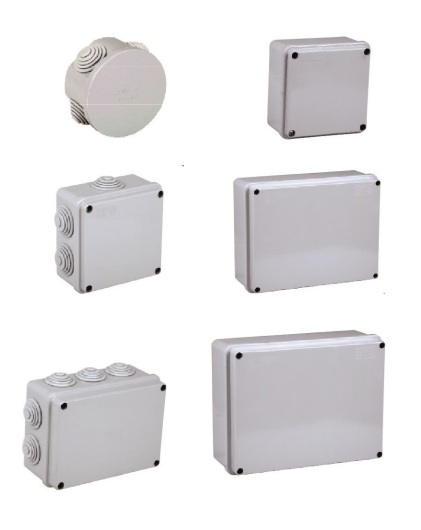

WATERTIGHT SURFACE MOUNTING JUNCTION BOXES
