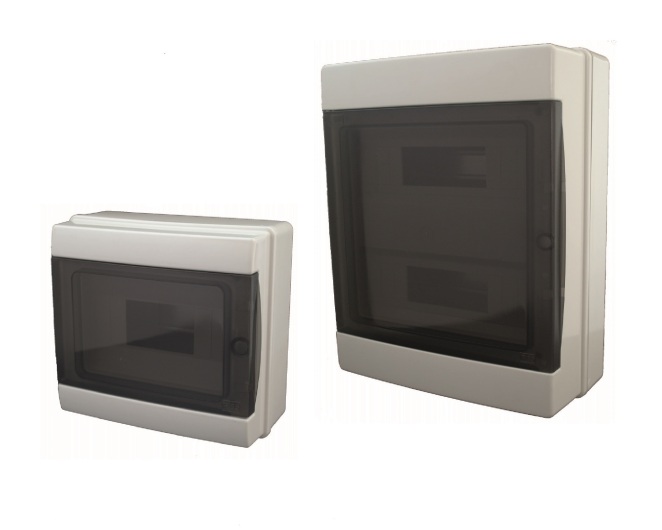

FAEG IP40 consumer unit enclosures are made of self-extinguishing shockproof polystyrene (box) and ABS, and feature a polycarbonate transparent door. Made of UV-resistant material they maintain color over time.

• Enclosure: Polystirene/ABS
• Door: PC (polycarbonate)
• UV protection
• Enclosure colour: White /orange
• Door colour: transparent smocked
• Degree of protection: IP40
• Impact test: IK07
• Glow Wire Test: 650 °C
• Ball Pressure Test: 75°C
• Operating temperature range: -5°C + 60°C
• Nominal operating voltage: 400V
• Standard: CEI EN 60670-1 / CEI EN 60670-24

The FAEG range of surface mounting watertight junction boxes includes an IP44 series with snap-on cover and walls with cable glands, an IP55 series with screwed cover and walls with cable glands, another IP 56 series with screwed cover and smooth walls.

• Material: ABS
• Colour: Grey RAL 7035
• Degree of protection: IP44 / IP55/ IP56
• Impact test: IK07
• Glow Wire Test: 650 °C
• Operating temperature range: -15°C + 60°C
• Standard: CEI EN 60670-1
• Standard: CEI EN 60670-1 / CEI EN 60670-22

Matrioska is a very robust and ergonomic shell, which mounted on the FG23207 FAEG adapter, can accommodate many types of plugs 2P+E or schuko, transforming it into an industrial IP44 CEE plug 250V 6h 2P+E. The assembling and disassembling system is safe and very quick and also allow to frequent reuse, guaranteeing IP44 watertight thanks to its special co-molded gasket. The P40 / CEE 2P + E code FG23207 IP20 adapter complies with the CEI EN 50250 standard and is normally available in the catalog for standard use. The MATRIOSKA shell code FG23208 is to be used exclusively on this adapter. The MATRIOSKA shell is supplied with the adapter in the kit code FG23209. There are many applications, among them the possibility of using electric tools with civil plug in industrial CEE sockets without replacing the plug. It allows the use of the adapter FG23207, in indoor and outdoor environments where the degree of protection IP44 is necessary, such as on construction sites, on campsites and industrial areas in general. Patent Pending

• Material: self-extinguishing technopolymers
• Colour: Grey RAL 7035 and blue
• Degree of protection: IP44 with mounted Matrioska shell
• Standard: CEI EN 50250

The FAEG flush mounting module boxes for hollow walls are made of self-extinguishing shockproof polystyrene with metal inserts for the screws.

• Material: Polystyrene
• Colour: Blue
• Metal insert for screws
• Degree of protection: IP00 / IP20
• Impact test: IK07
• Glow Wire Test: 850 °C
• Operating temperature range: -15°C + 60°C
• Standard: CEI EN 60670-1

FAEG IP40 consumer unit enclosures are made of self-extinguishing shockproof polystyrene (box) and ABS, and feature a polycarbonate transparent door. Made of UV-resistant material they maintain color over time.

• Enclosure: Polystirene/ABS
• Door: PC (polycarbonate)
• UV protection
• Enclosure colour: White /orange
• Door colour: transparent smocked
• Degree of protection: IP40
• Impact test: IK07
• Glow Wire Test: 650 °C
• Ball Pressure Test: 75°C
• Operating temperature range: -5°C + 60°C
• Nominal operating voltage: 400V
• Standard: CEI EN 60670-1 / CEI EN 60670-24

The FAEG range of surface mounting watertight junction boxes includes an IP44 series with snap-on cover and walls with cable glands, an IP55 series with screwed cover and walls with cable glands, another IP 56 series with screwed cover and smooth walls.

• Material: ABS
• Colour: Grey RAL 7035
• Degree of protection: IP44 / IP55/ IP56
• Impact test: IK07
• Glow Wire Test: 650 °C
• Operating temperature range: -15°C + 60°C
• Standard: CEI EN 60670-1
• Standard: CEI EN 60670-1 / CEI EN 60670-22

Matrioska is a very robust and ergonomic shell, which mounted on the FG23207 FAEG adapter, can accommodate many types of plugs 2P+E or schuko, transforming it into an industrial IP44 CEE plug 250V 6h 2P+E. The assembling and disassembling system is safe and very quick and also allow to frequent reuse, guaranteeing IP44 watertight thanks to its special co-molded gasket. The P40 / CEE 2P + E code FG23207 IP20 adapter complies with the CEI EN 50250 standard and is normally available in the catalog for standard use. The MATRIOSKA shell code FG23208 is to be used exclusively on this adapter. The MATRIOSKA shell is supplied with the adapter in the kit code FG23209. There are many applications, among them the possibility of using electric tools with civil plug in industrial CEE sockets without replacing the plug. It allows the use of the adapter FG23207, in indoor and outdoor environments where the degree of protection IP44 is necessary, such as on construction sites, on campsites and industrial areas in general. Patent Pending

• Material: self-extinguishing technopolymers
• Colour: Grey RAL 7035 and blue
• Degree of protection: IP44 with mounted Matrioska shell
• Standard: CEI EN 50250
