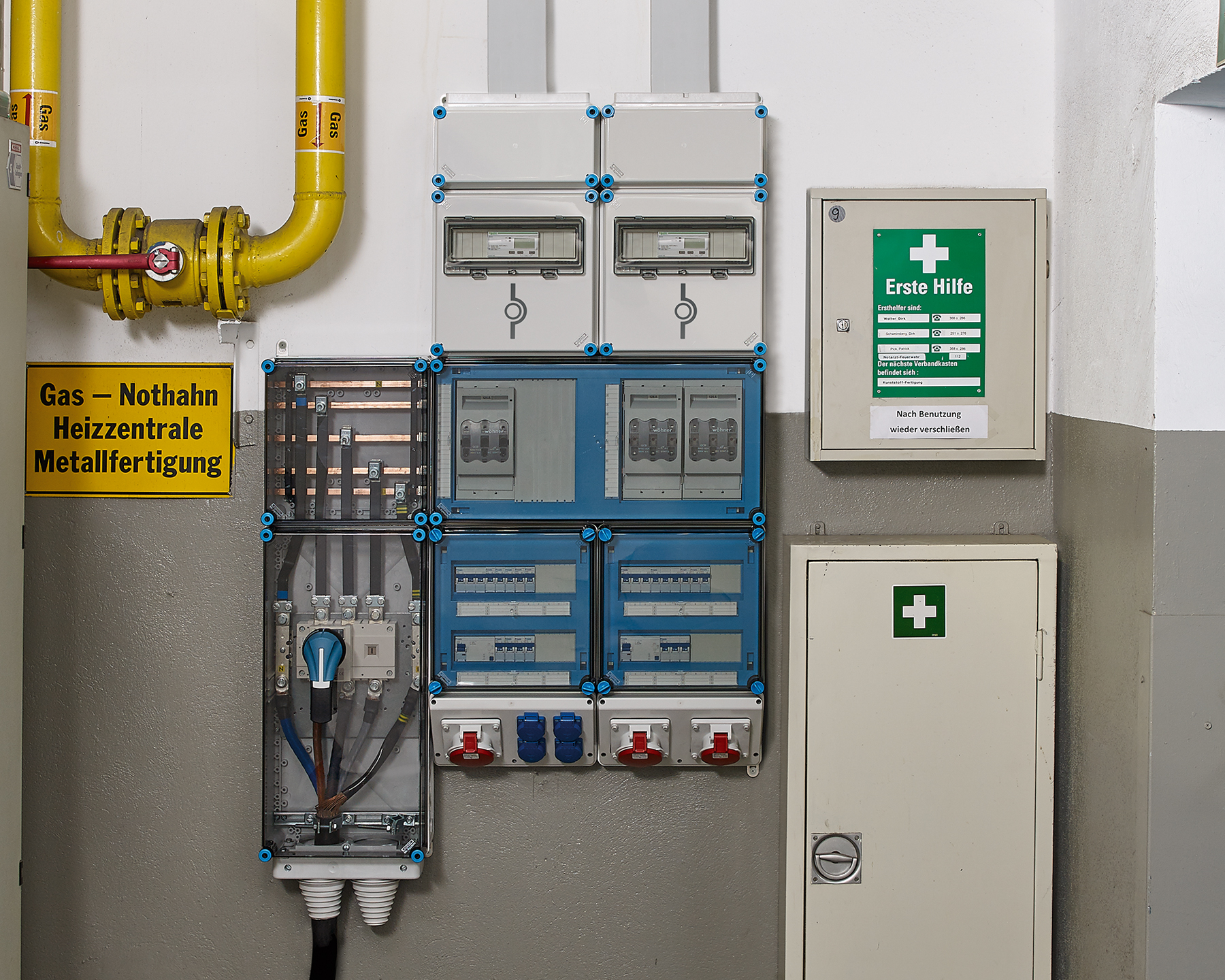

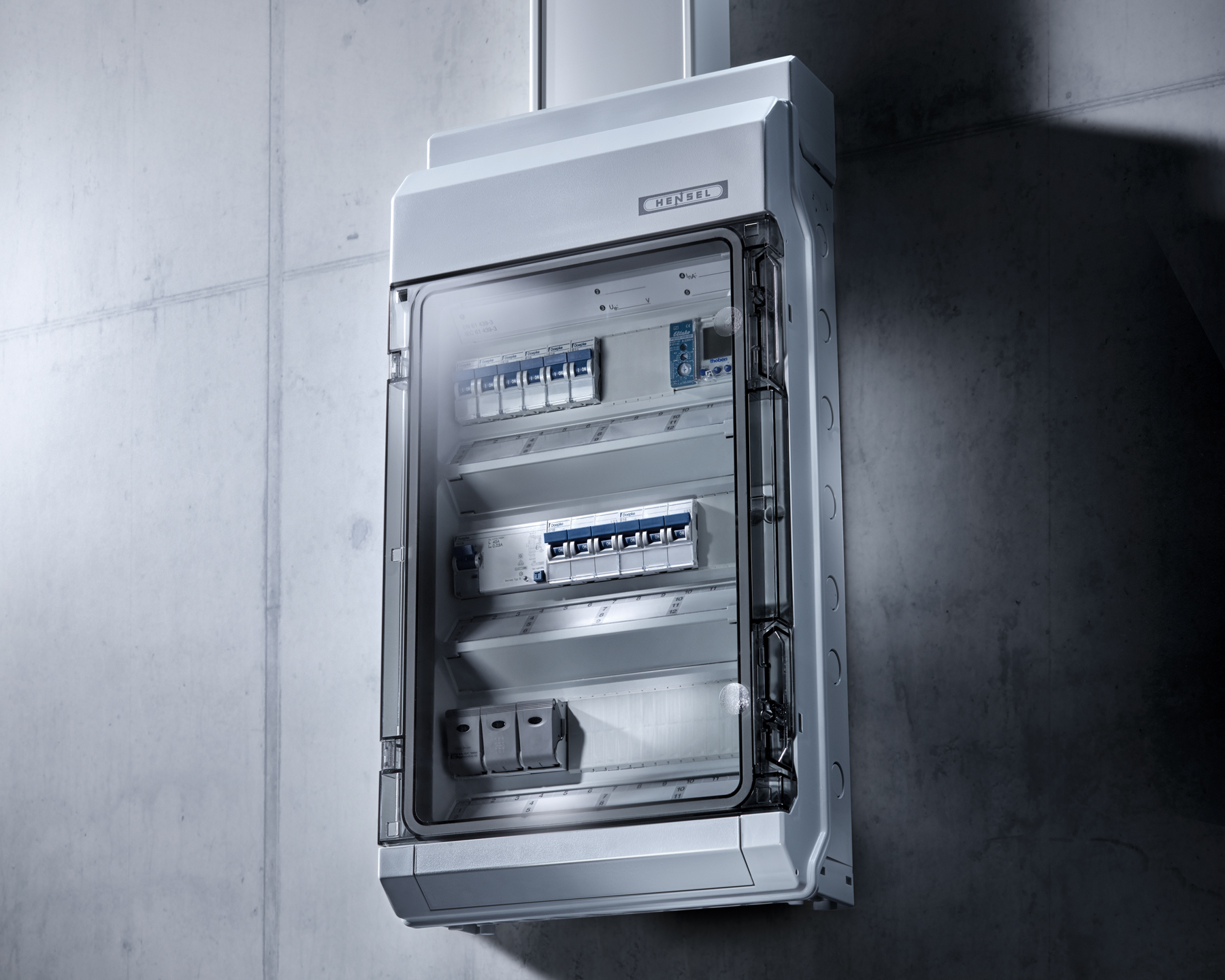

Combinable enclosure system for self-assembly of power switchgear and controlgear assemblies (PSC) according to IEC 61439-2
Application: Suitable for indoor and/or outdoor installation protected against weather influences in industrial and commercial buildings

• Pre-assembled enclosures with electrical functions
• Enclosures can be used as single boxes or combined to assembies
• For free: Planning tool ENYGUIDE and  guide for design and assembly for project engineering
• Degree of protection IP 65
• Single enclosures without any flanges and components mounted in the lid have degree of protection IP 66
• Dust-proof and protected against ingress of water with harmful effects
• Protection class II, total insulated
• Insulation-enclosed
• Material: PC polycarbonate
• Climatic influences and effects on the equipment are to be considered
• UV resistant according to IEC 61439-1, Section 10.2.4: The material is examined for UV resistance
• Burning behaviour: glow wire test in accordance with IEC 60695-2-11: 960 °C, flame-retardant, self-extinguishing
• Colour: grey RAL 7035
