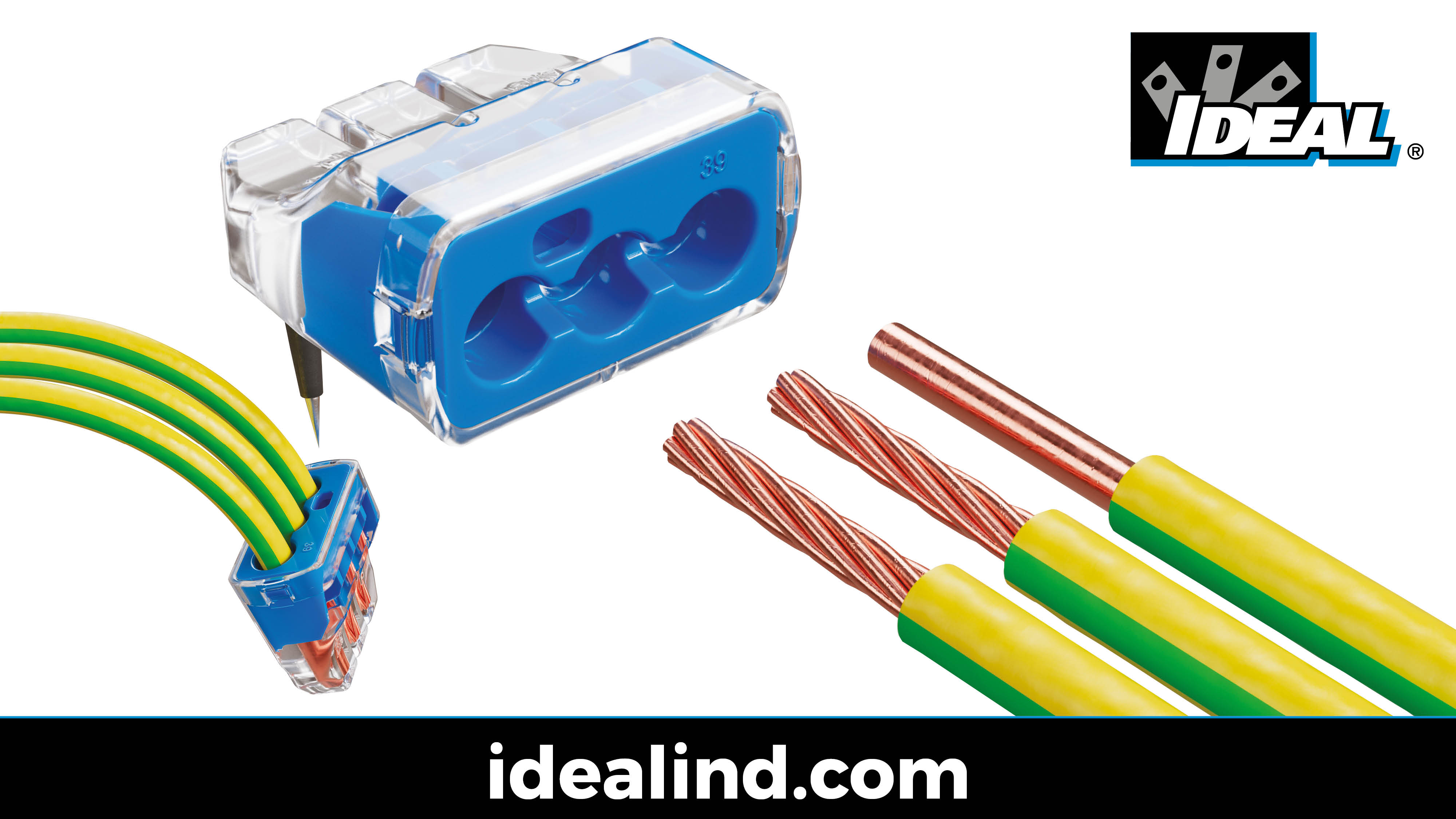

Ideal for a quick, simple and safe wire termination installation with a high level of power consumption up to 32A, they provide a versatile solution suitable for joining solid, stranded or flexible conductors and are available in two-, three and five port models.

Offering a faster, easier and more cost-effective alternative to terminal blocks, the Gen II Lever Wire Connector Range secures cables in place in seconds, with no need for a screwdriver or crimping, just a simple strip, push, connect action.

• All models can be used with solid or rigid stranded cables of between 0.2mm2 and 4.0mm2 flexible cable from 0.14mm2 to 4.00mm2
• Features a built-in wire strip guide to enable installers to check the correct stripping length
• Once the wire has been stripped:
  • For solid and stranded cables: simply push in with no need to lift the lever
  • For flexible wires, lift the lever before inserting the conductor and clamping it into place
• Levers have been designed to open in the opposite direction to the insertion port, locking the cables into position to prevent any accidental loosening or pull-out, ensuring a safe and secure connection throughout the lifecycle of the installation.
• The window at the bottom of the connector enables easy inspection and there is a check port for testing, enabling full safety and consistency verification at the point of installation.

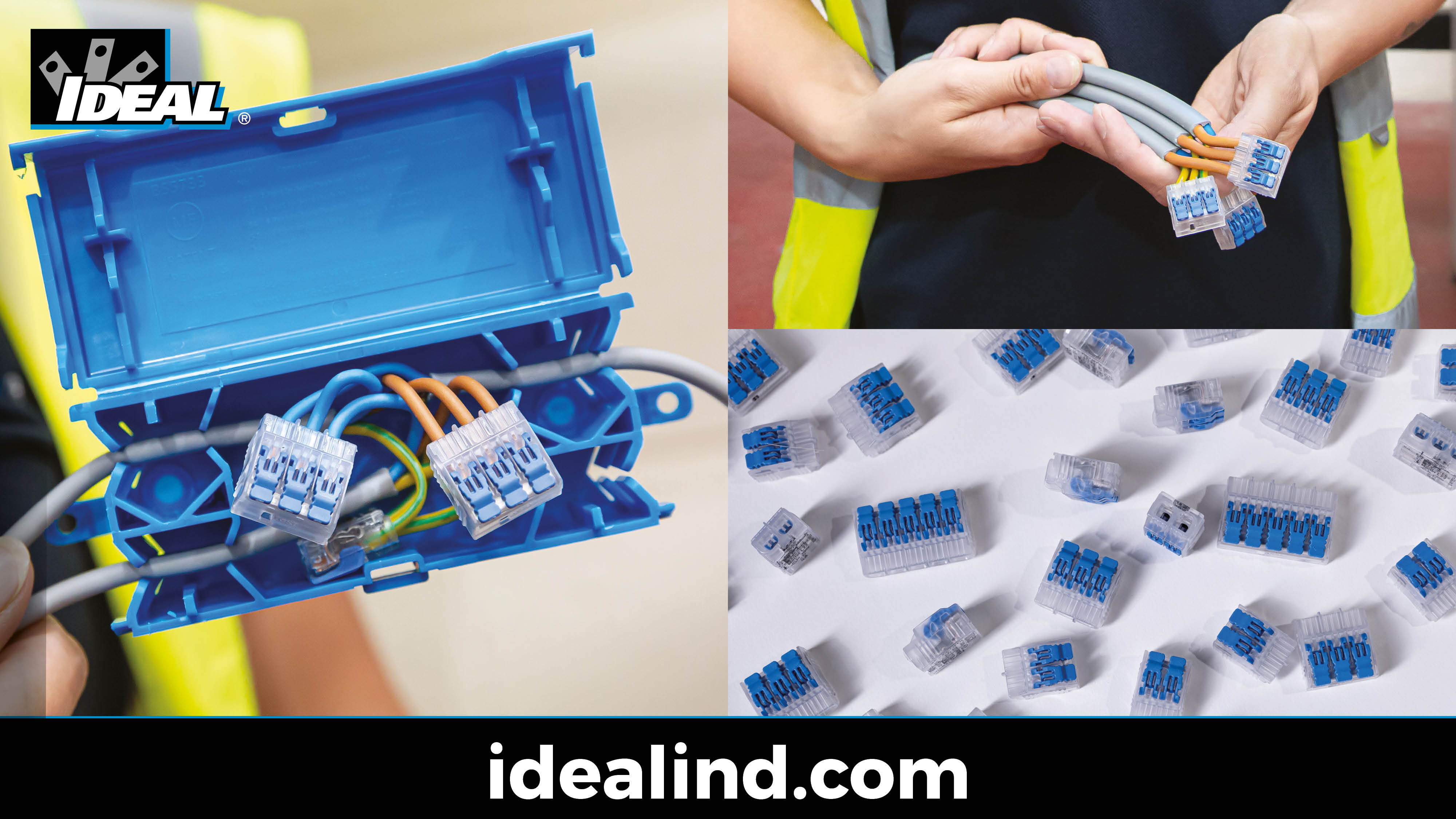

The compact design enables easier fitting in junction boxes and enclosures, where space is often limited. This can be particularly useful in lighting and access control installations, where multiple conductors often need to come together in a tight space, however, the innovative product has been designed for any application up to 32amp, including radial and final ring circuits.
