interpanel offers healthy room comfort with modular ceiling elements, which provide workplace-compliant lighting, good room acoustics, room heating and cooling. The cooling based on thermal radiation provides silent and generally draught-free room cooling and heating, which is particularly hygienic and efficient. The system increases productivity and at the same time significantly reduces the room air pollution caused by dust and germs. Thanks to the unique technology, falling below the dew point - as is common with conventional surface cooling systems - is no longer a challenge. This enables the use of natural ventilation and high humidity.

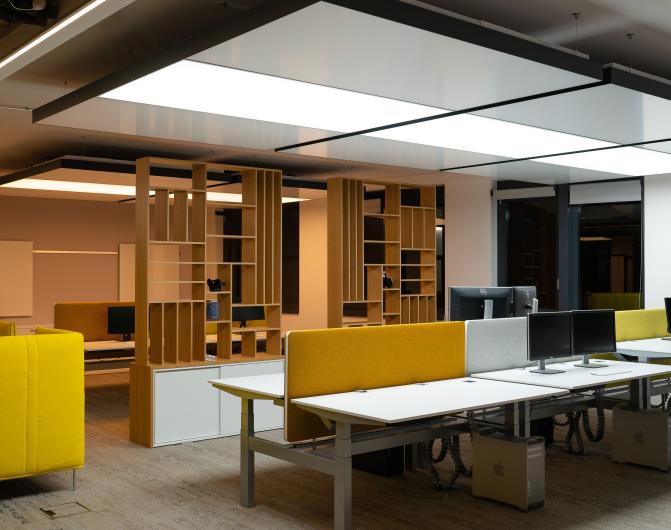

By falling below the previous limit of conventional cooling surfaces, outputs of more than 120 W/m², or >200 W/m² with lighting, are achieved. A locally limited and zonal cooling for individual workplaces is also possible. The thermally coupled and thus actively cooled LEDs have a long service life and high quality. The interpanel elements are delivered to the construction site ready for installation and have a surface area of approx. 2,3m². They are suspended as ceiling sails and connected to a heating and cooling water circuit.

This ensures an optimal indoor climate with minimum energy consumption and high comfort requirements for modern workplaces in new and existing buildings.

Dimensions

2159 x 1064 x 94 mm

Building material class

DIN EN 13501-1:2010-01 B-s2, d0

Acoustics

aw 0,85

Illumination

CRI > 90 Light temperature: 3000 K – 6500 K
DALI, switch, EnOcean, dimmable approved for workstations*

Cooling capacity

DIN EN 14240 45/m² (Δθ: 8K)* 119 W/m² (Δθ: 20 K)*

Heating capacity

DIN EN 14037-5:2016 58 W/m² (ΔT: 15 K) 38 W/m² (ΔT: 10 K)

Inlet temperatures

6 °C - (14 °C) - max. 55 °C

No dew-point control

Sensors upon request

Pressure

max. 3 bar, 10 bar test pressure

Piping

Corrosion resistant

Connection

flexible plug-in coupling
