High-power modular lighting for professional sports facilities and large areas

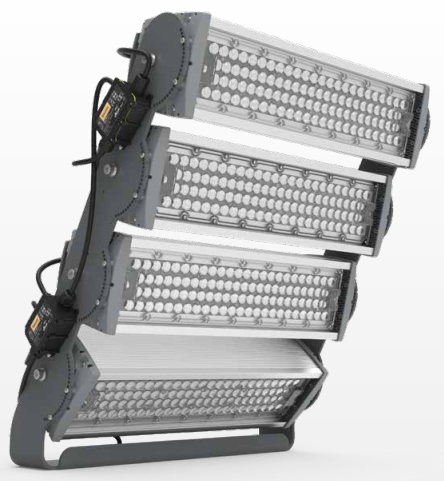

Flex Floodlights are high performance luminaires with large luminous power, composed of independent modules, with the possibility of varying their format from 1 to 4 modules according to the lighting needs, reaching up to 1200W. They have the ability to direct the luminous flux at a specific angle with great precision, exposing only the area of interest to the illumination provided.
Flex floodlights are specially designed to illuminate large sports facilities, perfectly satisfying the lighting requirements needed for sports practice, even for top-level competitions. They are also perfect for special installations such as logistics ports, marinas or airports, where lighting requirements and reliability are critical to ensure visibility and safety for users.
Flex floodlights have different configurations of power and number of LEDs, adapting perfectly to different spaces. They provide high quality lighting and great energy efficiency covering the lighting demands of users, ensuring visibility and visual comfort.
In addition, our commitment to the quality of the night sky and responsible lighting is clear. Thanks to a correct orientation of the light, we can reduce the light impact of Flex floodlights, directing light exclusively to the points of interest and avoiding unnecessary light emissions towards the upper hemisphere of the luminaire.

Moreover, there is also available a small version of the floodlight, flex mini, that reaches up to 200W in its version of 1 module.

Highlights

• Low wind load: The balance between high light output and compact size reduces the action of the wind against the floodlight, minimizing the oscillations caused at high altitudes
• Scalable configuration: its modular structure allows the variation from 1 to 4 independent modules for floodlight, on a single support, adapting perfectly to the lighting requirements of each situation
• Durability and resistance: compact extruded and anodised aluminium structure, corrosion resistant even in the most aggressive environments, successfully passing resistance tests against severe conditions of use (EN 60598-1:2015)
• Vibration resistance: robust structure tested against vibrations (EN 60068-2-6:2008)
• Ease of repair: access to the inside of the floodlight without having to remove it from the support, allowing the power supply to be replaced on site in case of failure
• Quick return on investment: the high light efficiency provides substantial energy savings of up to 80%
• Minimizes maintenance costs due to its long working life and easy component replacement
• Perfect thermal management: heat conduction and convection are favoured by the dissipation curves of the luminaire structure
• High luminous efficiency: up to 155 lm/ W
• 100% made in Televes: Technology designed and manufactured in our cutting-edge facilities, guaranteeing total control, with demanding quality monitoring, over each of the production phases

Main features

• LED multi array modules: Selection of corresponding BINs with 3-step McAdam ellipse (SDCM <3) and maximum efficiency
• Driver certificated ENEC
• Color rendering index: CRI>70, possibility of CRI>80 and CRI>90 on demand
• A wide selection of highly homogeneous colour temperatures (3>SDCM): PC Amber, 1,850, 2,200, 2,700, 3,000, 4,000, 5,000, 5,700K,...
• Ingress protection code IP66 and impact protection code IK10
• 1-10V or DALI regulation models are available, fully compatible with presence detection and lighting control solutions depending on the needs of the installation

Why choose Flex?

Modular structure on a single support.
This translates into a maximum use of the availablebstructures, without having to reduce light output or quality.

High-quality uniform illumination
The inclined structure of the Flex floodlight avoids shadows due to the overlapping of the modules.
In addition, each block is vertically adjustable, ensuring a perfect orientation of the light according to the requirements, creating a pleasant and comfortable space for the users.

Independent modules that guarantee the operation
The Flex floodlight has independent drivers for each module, ensuring the survival of the service, even in case of failure of any of the modules.
This, together with the quality of the materials and the meticulous traceability of the manufacturing process, guarantees optimum performance, minimizing the possibility of lighting interruption.

Flawless thermal management
The structure of the Flex floodlight consists of an aluminium enclosure with dissipation curves that form part of the chassis itself and favour heat conduction and convection.
In addition, each module is independent, avoiding heat transfer between them.

Design and manufacture 100% made in Televes
Our cutting-edge facilities include all the means for the creation of this luminaire, from start to finish.
An in-house design and manufacturing process also offers other advantages, such as quality verification at every point of development
