The LabFlicker® is the first flicker instrument to integrate seamlessly with your light measurement system, making it simpler than ever to automatically incorporate all photometric data into your reporting.

The LabFlicker connects directly to the Light Inspector software giving you a live preview of your flicker signal. The smart signal processing algorithm frames and calculates your flicker data in real-time. The LabFlicker can be used as a stand-alone device but gets more powerful when used together with any Viso product as all photometric data can be seamlessly exported into one complete report. The LabFlicker is designed to be used in a laboratory setting positioned close to the light source.

RESULTS:

• SVM, PstLM
• Flicker percentage
• Flicker index
• Flicker frequency
• JA8

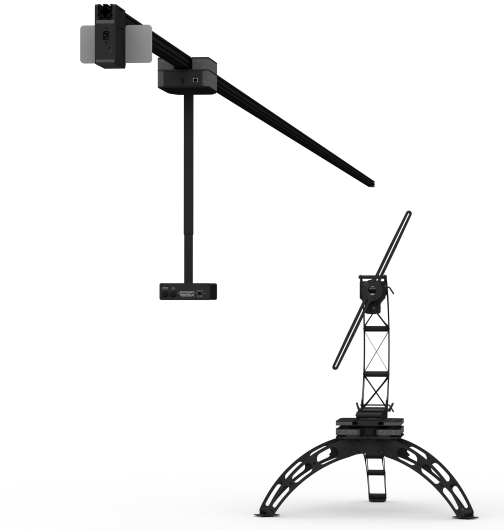

The LabSpion® is a complete light measurement solution ideal for all light sources from small lamps and LED chips to large panels and street lights. The 2-axis goniometer system measures the full 3D distribution field of any light source giving lighting professionals comprehensive LDT/IES simulation files. Using a spectrometer sensor and a built-in power analyzer, the unique Viso technology enables fast

measurements and ensures that all data is measured quickly, making other equipment such as integration spheres redundant.

Measurement method:Far field, type C horizontal Spectrometer range: 360 - 830 nm (1024 pixels) Sensor distance range: 35 cm to 1,600 cm Sensor distance setup: Manual Lamp diameter range:0 – 1,5 m at 2-axis Lamp maximum weight: 25 kg Power supply input: 90 to 260 VAC, 50/60 Hz

The portable Viso LightSpion® enables you to fully measure any light source in just 30 seconds. It measures all the photometric data and no expert knowledge is required. The LightSpion can even be used outside of a laboratory or dark room, making it a great tool for on-site inspections and empowering your sales force.

The LightSpion is the only portable system on the market that includes a spectrometer sensor and a built-in power analyzer. This lightweight and professional measurement solution makes it easy to take it with you anywhere you go.

Measurement method:Far field, type C horizontal Spectrometer range: 350 - 800 nm (1024 pixels) Sensor distance range: 66 cm (with extender 115 and 182 cm) Sensor distance setup:Manual Lamp diameter range: 0 – 80 cm (with extender 220 mm) Lamp maximum weight: 1 kg (with extender 4 kg) Power supply input 90 to 260 VAC, 50/60 Hz

The BaseSpion® is a great tool for any light measurement laboratory and allows you to measure all medium-sized lighting products. The 2-axis goniometer enables the system to measure full 3D distribution fields of any light source and gives lighting professionals comprehensive LDT and IES simulation files.

The BaseSpion is the perfect solution for any midsize laboratory that wants advanced light measurements in a compact system.

It is the best solution for LED chips, modules, panels, downlights, bulbs and spots.

Measurement method: Far field, type C horizontal Spectrometer range: 360 - 830 nm (1024 pixels) Sensor distance range: 35 cm to 450 cm Sensor distance setup:Automatic detector on rail Lamp diameter range: 0 – 54 cm Lamp maximum weight:9 kg Power supply input: 90 to 260 VAC, 50/60 Hz
