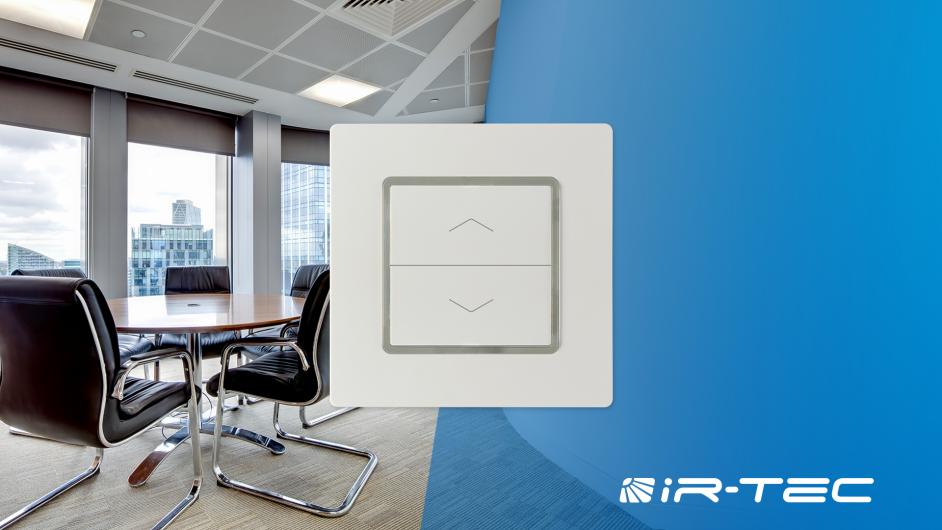

The OS-NET Button is an optional device of IR-TEC’s OS-NET wireless mesh network solution. This device is exclusively designed to replace an existing wall switch/dimmer to broadcast manual ON/OFF/DIM control commands to the grouped lights assigned, while also function as a network node. Being operated by line voltage power, this sleek, low profile OS-NET device can be mounted into a standard EURO wall box, providing wireless control to the grouped lights as required. Each OS-NET Button can be assigned to control up to 4 lighting groups via a 2-way handheld remote programmer. A short press at upper/lower position of the button will transmit a command to switch ON/OFF the lights in the groups assigned. Press and hold at upper/lower position of the button will increase/decrease the output level of controlled lights, respectively. A screwless snap-on wall plate is supplied to create a modern, high-end appearance for all spaces. By grouping the OS-NET Button with OS-NET sensors, you can effortlessly achieve an energy-efficient, code-compliant smart lighting control through a state-of-the-art wireless sensor mesh network with manual controlling capability for presentation or special event.

• 230VAC line voltage power operating
• Low profile mounting with standard EURO box
• Screwless snap-on wall plate supplied
• Dual-color LED to indicate network connection
• Can be assigned to control up to 4 lighting groups
• Wireless protocol: Modified ZigBee Light Link (ZLL)
