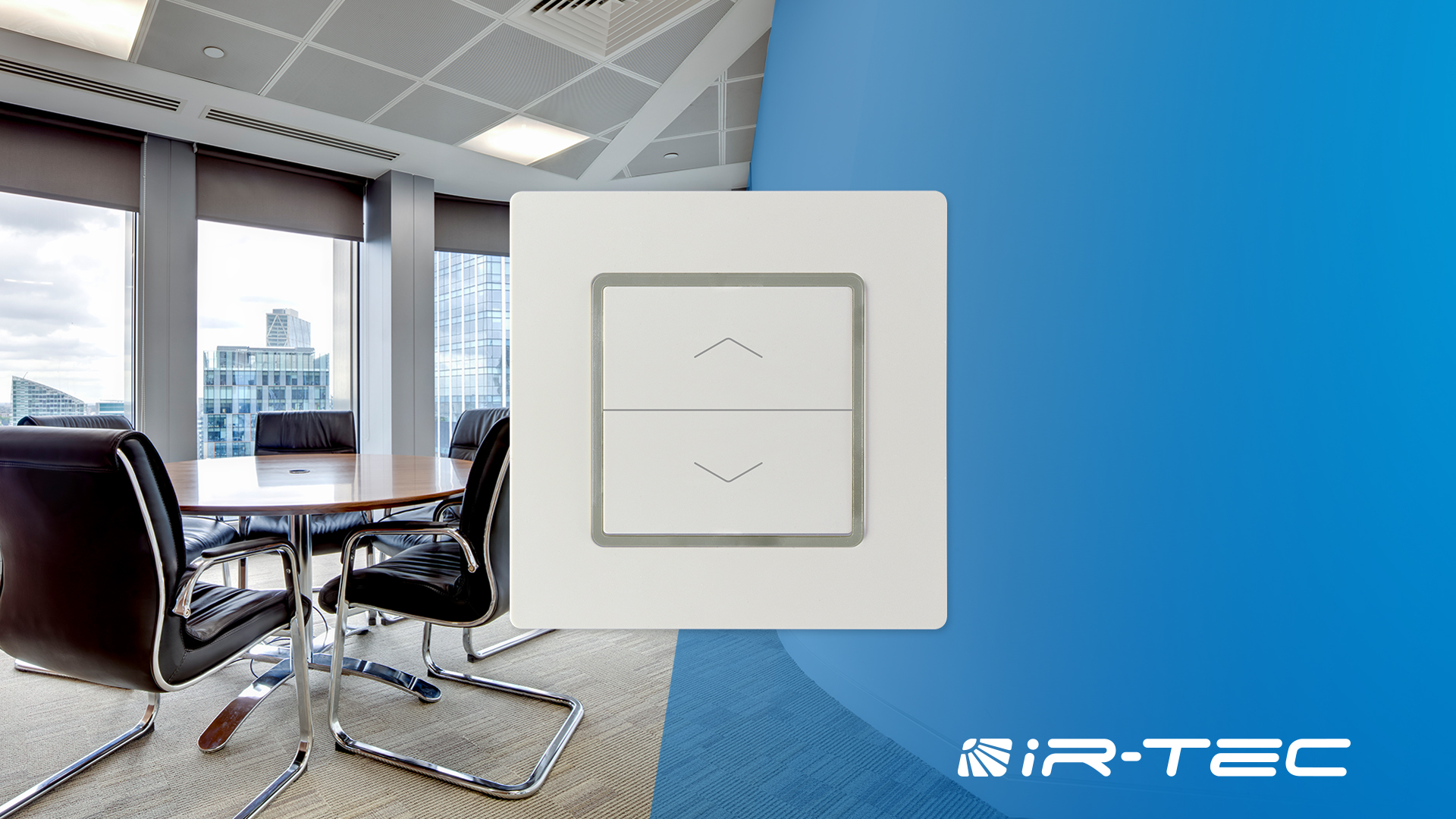

The OS-NET Button is an optional device of IR-TEC’s OS-NET wireless mesh network solution. This device is exclusively designed to replace an existing wall switch/dimmer to broadcast manual ON/OFF/DIM control commands to the grouped lights assigned, while also function as a network node. Being operated by line voltage power, this sleek, low profile OS-NET device can be mounted into a standard EURO wall box, providing wireless control to the grouped lights as required. Each OS-NET Button can be assigned to control up to 4 lighting groups via a 2-way handheld remote programmer. A short press at upper/lower position of the button will transmit a command to switch ON/OFF the lights in the groups assigned. Press and hold at upper/lower position of the button will increase/decrease the output level of controlled lights, respectively. A screwless snap-on wall plate is supplied to create a modern, high-end appearance for all spaces. By grouping the OS-NET Button with OS-NET sensors, you can effortlessly achieve an energy-efficient, code-compliant smart lighting control through a state-of-the-art wireless sensor mesh network with manual controlling capability for presentation or special event.

• 230VAC line voltage power operating
• Low profile mounting with standard EURO box
• Screwless snap-on wall plate supplied
• Dual-color LED to indicate network connection
• Can be assigned to control up to 4 lighting groups
• Wireless protocol: Modified ZigBee Light Link (ZLL)

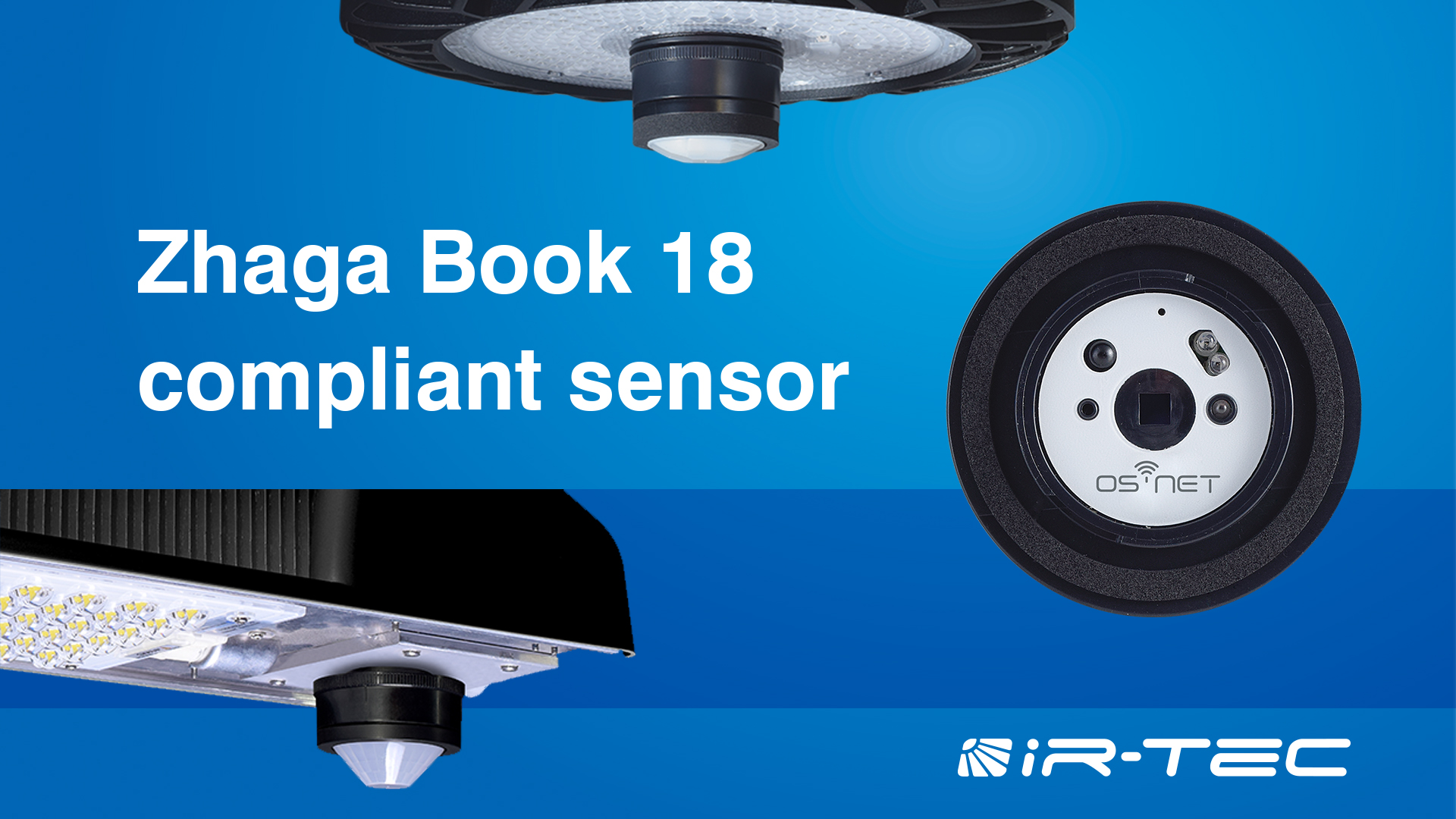

The Zhaga Book 18 compliant multi-sensor is designed to work with DALI or D4i certified drivers. Through simple twist-to-lock connection and intuitive remote programmer setting, the Zhaga sensor can easily enable OEM luminaires with occupancy and daylight sensing control functionalities in standalone or wireless network basis.

Each Zhaga sensor is packed with multiple sensing and control functionalities for achieving the highest energy savings performance and state-of-the-art wireless mesh networking capability to enable smart lighting control with unequalled simplicity.

• Support 4-pin Zhaga Book 18 Edition 2 receptacle
• Designed to be mounted on bottom of luminaire
• IP66 and IK08 protections for harsh environment
• Omni-directional quad element digital PIR sensor
• Serve for standalone or wireless networked control
• Direct control DALI driver with AUX or bus power
• Multiple sensing control schemes programmable
• Multi-level high/low StepDIM or SmartDIM control
• Multiple lens options for different detection ranges
• Sensor setting via 2-way IR handheld programmer

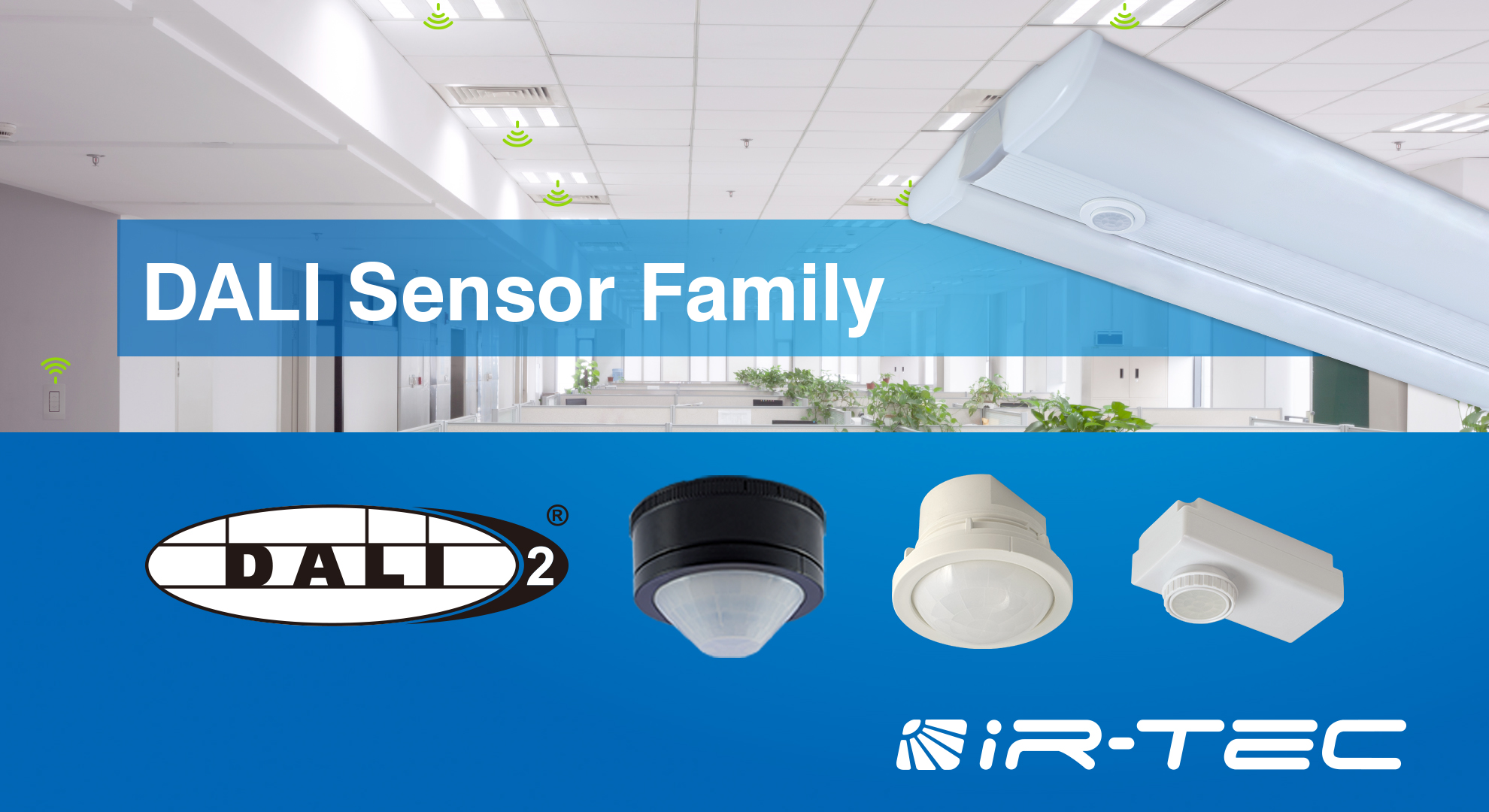

․ Stand-alone / Wireless Networked Control

․ AC mains / DALI Bus / Aux. Powered

․ Luminaire integrated / External attached / Ceiling mount

․ DALI(Broadcast) / DALI-2(Addressable)

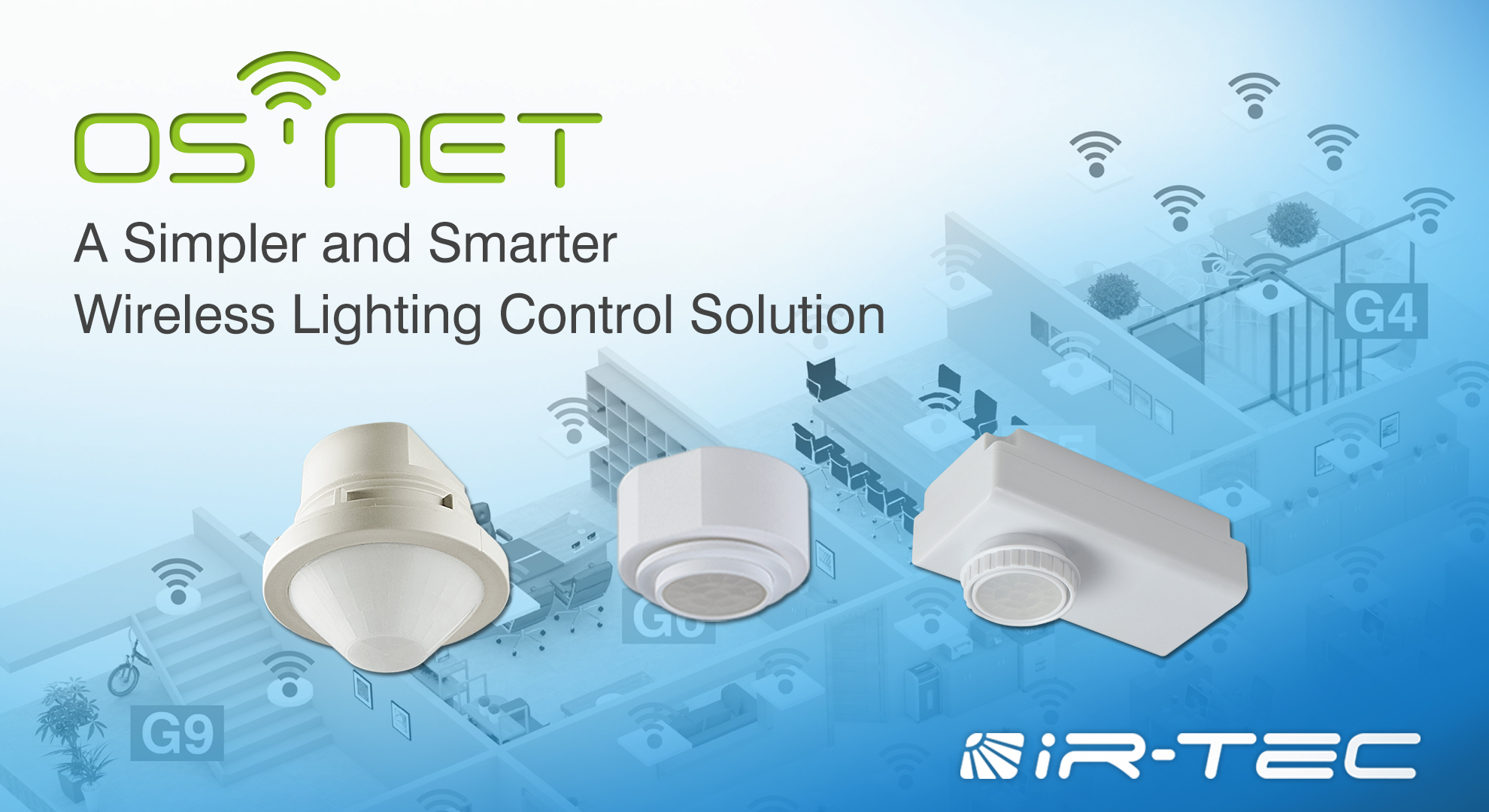

The OS-NET sensor is a standard device of IR-TEC’s OS-NET wireless mesh network solution packed with multiple functionalities including occupancy/vacancy sensing, daylight harvesting, bi-level StepDIM or continuous SmartDIM, and wireless network communication for top-notch intelligent lighting control. The sensor not only controls the connected light(s) in the programmed mode independently, but also acts as a network node to broadcast OS-NET commands for group control wirelessly. Each sensor can be assigned to be a member of maximum 4 groups for coordinated control. All sensor settings, including sensitivity, delay time, ambient light level, sensing control mode, grouping/regrouping, can be configured in individual or group basis via a 2-way handheld remote programmer from the floor. Numerous design innovations allow the sensor to be flexibly integrated with an OEM luminaire, or mounted on the ceiling in a variety of options. Interchangeable lenses allow the sensor to be mounted at various heights with different detection patterns for all applications. With OS-NET sensor, you can effortlessly achieve an energy efficient, code-compliant smart lighting control through a state-of-the-art wireless sensor mesh network established by installing OS-NET enabled lighting.

• Omni-directional digital quad element PIR sensor
• Digital data control ambient light sensor built-in
• Line voltage or DALI-Bus operation with wireless connectivity
• Wireless protocol: Modified ZigBee Light Link (ZLL)
• All functionalities in one and one for all controls
• 2-way IR remote programmable sensor/group setup
• One sensor can be a member of multiple groups
• SmartDIM or High/Low multi-level StepDIM control
• Exceptionally long range of remote programming
• Flexible fixture integration or ceiling mount options
• Interchangeable lens options with different detection patterns for all applications
