Control 12

Beschreibung

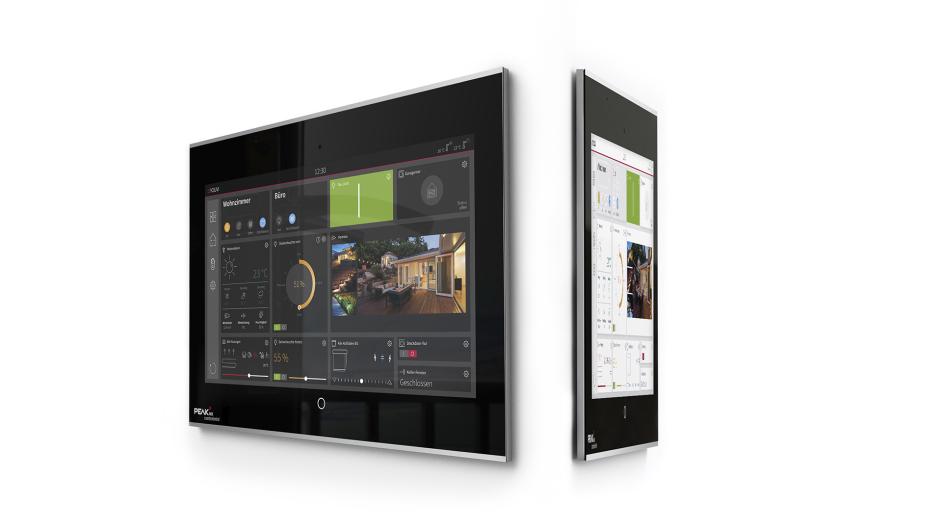

Reliable KNX multi-touch panel
The Control 12 is a reliable 11.6 inch multi-touch panel with high-quality design, powerful performance and certified industrial components. The fully-fledged computer from tested industrial components works under Windows 10 IoT Enterprise LTSC and has direct ports to KNX bus, USB and Ethernet. The touch panel does not require mechanically prone fan cooling - instead, a special aluminum frame construction dissipates evolving heat.

The clever all-in-one solution for your Smart Home
You can either use common visualization software or deploy the supplied software package YOUVI Basic to control your KNX Smart Home. YOUVI covers all the basic functions of a smart home, without installing an external server or IP-router. This contains, in addition to a visually appealing visualization, also a bus monitor and an IP router software. The clear menu navigation ensures intuitive operation. YOUVI gets more functionality through its add-ons; the Alexa Voice Module and the Camera Module. With our Alexa Voice Module, you can operate shutters, blinds and more conveniently by voice commands from the couch. The Camera Module makes it possible to integrate IP cameras - for example the streams of your surveillance cameras - directly into the visualization.

Powerful performance, individual design
With the high-resolution Full HD display (1920 × 1080 pixels) with LED LCD backlighting, the Control 12 can be used for home and room control, as a status and information display or as an intercom system at doors. Thanks to its size, the touchscreen is readable from all directions. In addition, there is a surface-mounted version of the panel. With glass and surface-mounted frame, the depth is only 24 millimeters and has a correspondingly elegant appearance. With a matching PEAKnx adapter the Control 12 is also compatible with flush-mounted boxes of other manufacturers (e.g. Gira Control 9, InfoTerminal Touch, Merten Touchpanel 7 or Busch-SmartTouch 7). Thanks to replaceable front glasses with a freely selectable design, the Controlmini adapts to each interior individually. The PEAKnx panel designer offers the opportunity to create an individual design according to your own wishes and preferences.

Specifications

Features

  • Intel Dual-Core, 11th generation
  • 4 GB RAM
  • SSD hard disk with 128 GB
  • 6 inch Full-HD LED LCD with multi-touch
  • 5-megapixel webcam
  • Integrated stereo speakers and microphone
  • Automatic brightness adjustment
  • Automatic screen activation via proximity sensor
  • WLAN, 2.4 GHz, 5 GHz and Bluetooth 5.2
  • Fanless cooling by convection

Ports

  • 1   x KNX
  • 2 x USB A 0 front connection
  • 1 x USB C 3.2
  • 1 Gigabit Ethernet

Software

  • Operating system: Windows 10 IoT Enterprise LTSC
  • YOUVI software package basic

Dimensions

  • Dimensions Control 12 (W x H x D): 297 mm x 210 mm x 22,5 mm
  • Dimensions flush-mounted box (W x H x D): 251 mm x 193 mm x 50 mm
  • Dimensions glass cover (W x H x D): 297 mm x 210 mm x 0.7 mm

Suply

  • Mains voltage: 24 V DC 2,4 A
  • Operation (idle): 6 W
  • Operation (full-load): 30 W
  • Server operation without LCD: 4 W
