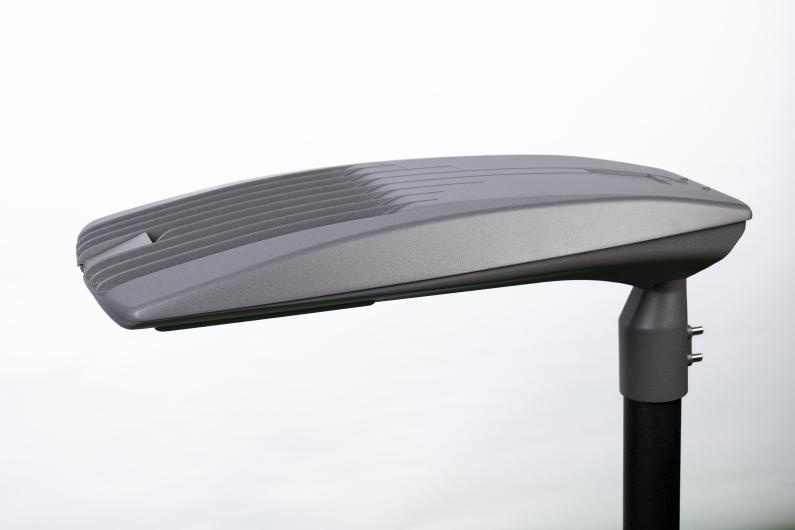

TRIANON is the newest solution for LED street lighting. TRIANON is the most performing on the market. With a modern and refined design, it is suitable to be used in urban and LED street lighting. It has been designed to obtain maximum energy and economic savings. Available in 7 basic powers, it can be customized to customer requirements upon request. With more than 20 optics available they allow a wide choice and lighting adaptability.

CONSTRUCTIONS FEATURES

• Body: made of die-cast aluminum with low copper content;
• Painting: epoxy powders resistant to UV rays and weathering;
• Mounting: for pole, outreach or polehead, with possibility of tilt adjustment with goniometric scale with step of 5°, for poles with a diameter (on the top) of max 62mm;
• Optic: PMMA/(PC) impact resistant (IK08) with IP67 seals;
• Optical group: SME, SIA, TF, ROTO ASM, AS, LIOX, PZ, ROTO 120;
• Opening: from above, with a quick-release safety hook without the use of tools;
• Maintenance: maintenance operations in operator safety thanks to automatic disconnection of the opening line of the device;
• Silicone: silicone around the optical to ensure the optimal watertight;
• Screws and small parts: stainless steel external, internal galvanized iron;
• Degree of protection: IP66
• Insulation class: I, II;
• exposed to the wind: Lateral: 0,045 mq Plant: 0,190 mq;
• Certification: ENEC14 LICENCE REF NO. SE-ENEC-2101552;
• Colors availabe: black, grey, grey anthracite;
• Weight and dimensions: D: 643mm x W: 341mm x H:126mm – 7.40kg/8.80kg ;

ELECTRICAL AND OPTICAL FEATURES

• Power supply: 110-270Vac, 92% efficiency, PFC> 0,98, IP66, Surge Protection > 6kV MTBF>80.000 h;
• Isolation class: I or II+T;
• Color temperature: 5000K (choice: 4000, 3000K) (color deviation maintained: 5-STEP MAC ADAM);
• CRI (color rendering): 80; chromaticity scheme: 3-STEP MAC ADAM;
• LED Life: L80B10 > 100.000h; L70 > 140.000h (TM-21) to 25°C;
• LED efficiency: 185-202lm/W;
• Photobiological risk: compliant with IEC/TR 62778:2014 Risk Group 1 (RG =1) compliant with CEI EN 62471:2009 Gruppo 0 (RG=0).

AVAILABLE OPTIONS

OpDARF1: self dimmering withouth possibility of setting (virtual midnight)

OpDAR2: self dimmering with setting of the activation time

OpINLUX: provision for flow regulator and/or remote control PITECO

OpRAYBOX: additional surge arrester 20kA mounted in the device

OpDALI: digital dimming interface DALI

OpNEMA: socket 7 pi (ANSI C136.41)

OpZAGHA: socket 4 pin (ZHAGA Book 18)
