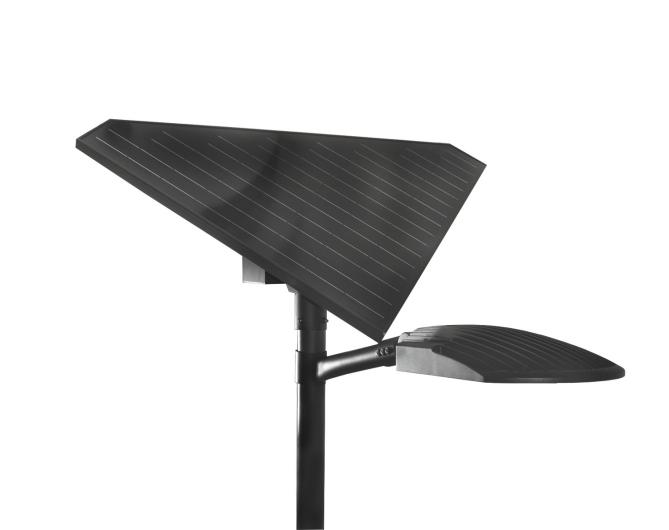

TRIANON is the newest solution for LED street lighting. TRIANON is the most performing on the market. With a modern and refined design, it is suitable to be used in urban and LED street lighting. It has been designed to obtain maximum energy and economic savings. Available in 7 basic powers, it can be customized to customer requirements upon request. With more than 20 optics available they allow a wide choice and lighting adaptability.

CONSTRUCTIONS FEATURES

• Body: made of die-cast aluminum with low copper content;
• Painting: epoxy powders resistant to UV rays and weathering;
• Mounting: for pole, outreach or polehead, with possibility of tilt adjustment with goniometric scale with step of 5°, for poles with a diameter (on the top) of max 62mm;
• Optic: PMMA/(PC) impact resistant (IK08) with IP67 seals;
• Optical group: SME, SIA, TF, ROTO ASM, AS, LIOX, PZ, ROTO 120;
• Opening: from above, with a quick-release safety hook without the use of tools;
• Maintenance: maintenance operations in operator safety thanks to automatic disconnection of the opening line of the device;
• Silicone: silicone around the optical to ensure the optimal watertight;
• Screws and small parts: stainless steel external, internal galvanized iron;
• Degree of protection: IP66
• Insulation class: I, II;
• exposed to the wind: Lateral: 0,045 mq Plant: 0,190 mq;
• Certification: ENEC14 LICENCE REF NO. SE-ENEC-2101552;
• Colors availabe: black, grey, grey anthracite;
• Weight and dimensions: D: 643mm x W: 341mm x H:126mm – 7.40kg/8.80kg ;

ELECTRICAL AND OPTICAL FEATURES

• Power supply: 110-270Vac, 92% efficiency, PFC> 0,98, IP66, Surge Protection > 6kV MTBF>80.000 h;
• Isolation class: I or II+T;
• Color temperature: 5000K (choice: 4000, 3000K) (color deviation maintained: 5-STEP MAC ADAM);
• CRI (color rendering): 80; chromaticity scheme: 3-STEP MAC ADAM;
• LED Life: L80B10 > 100.000h; L70 > 140.000h (TM-21) to 25°C;
• LED efficiency: 185-202lm/W;
• Photobiological risk: compliant with IEC/TR 62778:2014 Risk Group 1 (RG =1) compliant with CEI EN 62471:2009 Gruppo 0 (RG=0).

AVAILABLE OPTIONS

OpDARF1: self dimmering withouth possibility of setting (virtual midnight)

OpDAR2: self dimmering with setting of the activation time

OpINLUX: provision for flow regulator and/or remote control PITECO

OpRAYBOX: additional surge arrester 20kA mounted in the device

OpDALI: digital dimming interface DALI

OpNEMA: socket 7 pi (ANSI C136.41)

OpZAGHA: socket 4 pin (ZHAGA Book 18)

PARK is the opportunity to renew urban lighting with new technologies, to have a better quality of light, saving energy but reconciling the desire not to lose the timeless charm of old streetlights, which we find in the historical images of every place, in personal memories, and which are part of the very face of a city.

CONSTRUCTIONS FEATURES

• Body: made of press-folded aluminum sheet;
• Painting: in epoxy poweder resistant to UV rays and weathering;
• Mounting: screw connection equipped with a 3/4 gas-male fittin. On request, suspended for arms from Ø 48 to Ø 100 mm;
• Optical group: SME, SIA, PZ, ROTO 120, TF, ROTO ASM;
• Optic: PMMA/PC with IP67 gaskets, resistant to shocks (IK08) and thermal shocks;
• Opening: from the bottom with screw stainless steel locking system with fall;
• Seals: silicone around the optical to ensure the optimal watertight;
• Screws and small parts: stainless steel external, internal galvanized iron;
• Diameter: diameter = 58 cm; H= 40 cm
• Certifications: contains Built-in led module for Luminaires for road and street lighting, ENEC certified: ENEC LICENCE REF NO. SE-ENEC-2101465;
• Weight: 3,60kg – 5,20kg

ELECTRICAL AND OPTICAL FEATURES

• Powe supply: 110-270Vac, 92% efficiency, PFC> 0,98, IP66, I or II+T; Surge Protection > 6kV MTBF>80.000h;
• Isolation class: I, II;
• Color temperature: 5000K (choice: 4000, 3000K) (color deviation maintained: 5-STEP MAC ADAM)
• CRI (color rendering): 80; chromaticity scheme: 3-STEP MAC ADAM
• Efficiency LED: 185-202lm/W
• Photometric: asymmetric road; compliant with UNI 11248-EN13201 -No light intensity above 90°-
• LED Life: L80B10 > 100.000h; L70 > 140.000h (TM-21) to 25°C
• Photobiological risk: compliant with IEC/TR 62778:2014 Risk Group 1 (RG =1) compliant with CEI EN 62471:2009 Gruppo 0 (RG=0)

AVAILABLE OPTIONS

OpDARF1: self dimmering withouth possibility of setting (virtual midnight)

OpDAR2: self dimmering with setting of the activation time

OpINLUX: provision for flow regulator and/or remote control PITECO

OpRAYBOX: additional surge arrester 20kA mounted in the device

OpDALI: digital dimming interface DALI

OpNEMA: socket 7 pi (ANSI C136.41)

OpZAGHA: socket 4 pin (ZHAGA Book 18)

The Lantern LIGRA-PLUS is a new LED lantern serie for street furniture. Designed to have high performances by integrating an optical system of road type microlens of high quality in order to delete the dispersion of light upwards, the main cause of light pollution. The lantern Ligra gives to the environment a unique and classic, almost romantic atmosphere, which makes this product a veritable art installation. It's color is dark grey with an elegant design in die-cast aluminum, comply with current regulations, ideal for heights of 4 to 6 meters.

CONSTRUCTIONS FEATURES

• Body: made of die-cast aluminum with low copper content;
• Painting: in epoxy poweder resistant to UV rays and weathering;
• Mounting: Prepared for 3/4 GAS MALE stub or pole head for poles with a diameter at the top of 60mm;
• Optical group: SME, SIA, PZ, ROTO 120, TF, ROTO ASM;
• Led screen: PMMA/PC with IP67 gaskets, resistant to shocks (IK08) and thermal shocks;
• Opening: from the bottom with screw stainless steel locking system with fall;
• Seals: silicone around the optical to ensure the optimal watertight;
• Screws and small parts: stainless steel external, internal galvanized iron;
• Diameter: diameter = 58 cm; H= 40 cm
• Certifications: contains Built-in led module for Luminaires for road and street lighting, ENEC certified: ENEC LICENCE REF NO. SE-ENEC-2101465;

ELECTRICAL AND OPTICAL FEATURES

• Power supply: 110-270Vac, 92% efficiency, PFC> 0,98, IP66, Surge Protection > 6kV, MTBF>80.000 h;
• Isolation class: I or II+T;
• Color temperature: 5000K (choice: 4000, 3000K) (color deviation maintained: 5-STEP MAC ADAM);
• CRI (color rendering): 80; chromaticity scheme: 3-STEP MAC ADAM;
• Photometric: asymmetric road; compliant with UNI 11248-EN13201 -No light intensity above 90°-
• LED Life: L80B10 > 100.000h; L70 > 140.000h (TM-21) to 25°C;
• LED efficiency: 185-202lm/W;
• Photobiological risk: compliant with IEC/TR 62778:2014 Risk Group 1 (RG =1), compliant with CEI EN 62471:2009 Gruppo 0 (RG=0).

AVAILABLE OPTIONS

OpDARF1: self dimmering withouth possibility of setting (virtual midnight)

OpDAR2: self dimmering with setting of the activation time

OpINLUX: provision for flow regulator and/or remote control PITECO

OpRAYBOX: additional surge arrester 20kA mounted in the device

OpDALI: digital dimming interface DALI

OpNEMA: socket 7 pi (ANSI C136.41)

OpZAGHA: socket 4 pin (ZHAGA Book 18)

DRACO_EVO is the latest generation of led floodlight from EuLux. With it, EuLux has put a combined effort on both mechanics and electronics in order to have maximum performance with the lowest impact to the wind (an important detail on lighthouse tower or in complexes sports venues). In particular with DRACO_EVO it’s possible to replace traditional headlights with the same surface area and same brightness but with a savings of about 78%.

CONSTRUCTIONS FEATURES

• Body: totally in aluminum with low copper content. The Draco-Evo is structured for an ideal dissipation of the LED modules and ideal dissipation of the power and control electronics;
• Painting: with epoxy powders resistant to UV rays and atmospheric agents;
• Mounting: the projector is equipped with an elegant and effective bracket mounting system that allows continuous adjustment of vertical aiming over a 360° angle;
• Optical group: ROTO, TF, AS;
• Optic: PMMA/(PC), impact resistant IK08 with IP67 seals;
• Mounting bracket: galvanized steel or iron; for wall, ceiling, pole and Torrefaro mounting;
• Screws and small parts: stainless steel, silicone seals;
• Operating temperature: -40°C ~ +55°C;
• Applications: GALERIES, LIGHT TOWERS, EXTERNAL LIGHTING and areas where IP66 protection degree is required;
• Colors availabe: light grey;
• Certification: ENEC14 LICENCE REF NO. SE/18013-2;

ELECTRICAL AND OPTICAL FEATURES

• LED efficiency: 185-202lm/W;
• Isolation class: I, II;
• Power supply: 170~265VAC, 47 ~ 63 Hz;
• Driver LED: MTBF > 80.000 h; efficiency 91%, PFC>0,98; IP67; Surge Protection > 6kV, PROTECTIONS: SCP / OVP/OTP; TDH < 18%;
• Color temperature: 5000K (choice: 4000K, 3000K) (color deviation maintained: 5-STEP MAC ADAM);
• CRI (color rendering): 80; chromaticity scheme: 3-STEP MAC ADAM;
• LED Life: L80B10 > 100.000h; L70 > 140.000h (TM-21) to 25°C
• Photobiological Risk: compliant with CEI EN 62471: 2009 Group 0 (RG = 0) Compliant with IEC / TR 62778: 2014 Risk Group 1 (RG = 1).

AVAILABLE OPTIONS

OpLUCO: electronic control system for self-adjustment of led lighting

OpCE1: Emergency Lighting Power kit

OpGRID: protection grid for DRACO lights

OpINLUX: provision for flow regulator and/or remote control PITECO

OpRAYBOX: additional surge arrester 20kA mounted in the device
