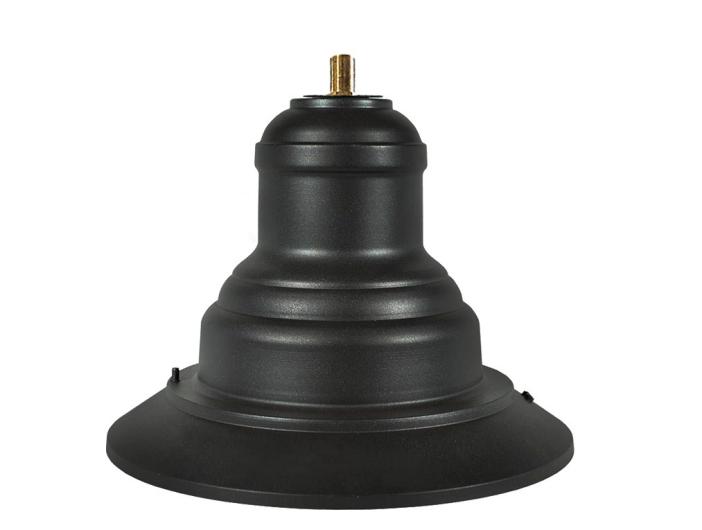

PARK is the opportunity to renew urban lighting with new technologies, to have a better quality of light, saving energy but reconciling the desire not to lose the timeless charm of old streetlights, which we find in the historical images of every place, in personal memories, and which are part of the very face of a city.

CONSTRUCTIONS FEATURES

• Body: made of press-folded aluminum sheet;
• Painting: in epoxy poweder resistant to UV rays and weathering;
• Mounting: screw connection equipped with a 3/4 gas-male fittin. On request, suspended for arms from Ø 48 to Ø 100 mm;
• Optical group: SME, SIA, PZ, ROTO 120, TF, ROTO ASM;
• Optic: PMMA/PC with IP67 gaskets, resistant to shocks (IK08) and thermal shocks;
• Opening: from the bottom with screw stainless steel locking system with fall;
• Seals: silicone around the optical to ensure the optimal watertight;
• Screws and small parts: stainless steel external, internal galvanized iron;
• Diameter: diameter = 58 cm; H= 40 cm
• Certifications: contains Built-in led module for Luminaires for road and street lighting, ENEC certified: ENEC LICENCE REF NO. SE-ENEC-2101465;
• Weight: 3,60kg – 5,20kg

ELECTRICAL AND OPTICAL FEATURES

• Powe supply: 110-270Vac, 92% efficiency, PFC> 0,98, IP66, I or II+T; Surge Protection > 6kV MTBF>80.000h;
• Isolation class: I, II;
• Color temperature: 5000K (choice: 4000, 3000K) (color deviation maintained: 5-STEP MAC ADAM)
• CRI (color rendering): 80; chromaticity scheme: 3-STEP MAC ADAM
• Efficiency LED: 185-202lm/W
• Photometric: asymmetric road; compliant with UNI 11248-EN13201 -No light intensity above 90°-
• LED Life: L80B10 > 100.000h; L70 > 140.000h (TM-21) to 25°C
• Photobiological risk: compliant with IEC/TR 62778:2014 Risk Group 1 (RG =1) compliant with CEI EN 62471:2009 Gruppo 0 (RG=0)

AVAILABLE OPTIONS

OpDARF1: self dimmering withouth possibility of setting (virtual midnight)

OpDAR2: self dimmering with setting of the activation time

OpINLUX: provision for flow regulator and/or remote control PITECO

OpRAYBOX: additional surge arrester 20kA mounted in the device

OpDALI: digital dimming interface DALI

OpNEMA: socket 7 pi (ANSI C136.41)

OpZAGHA: socket 4 pin (ZHAGA Book 18)
