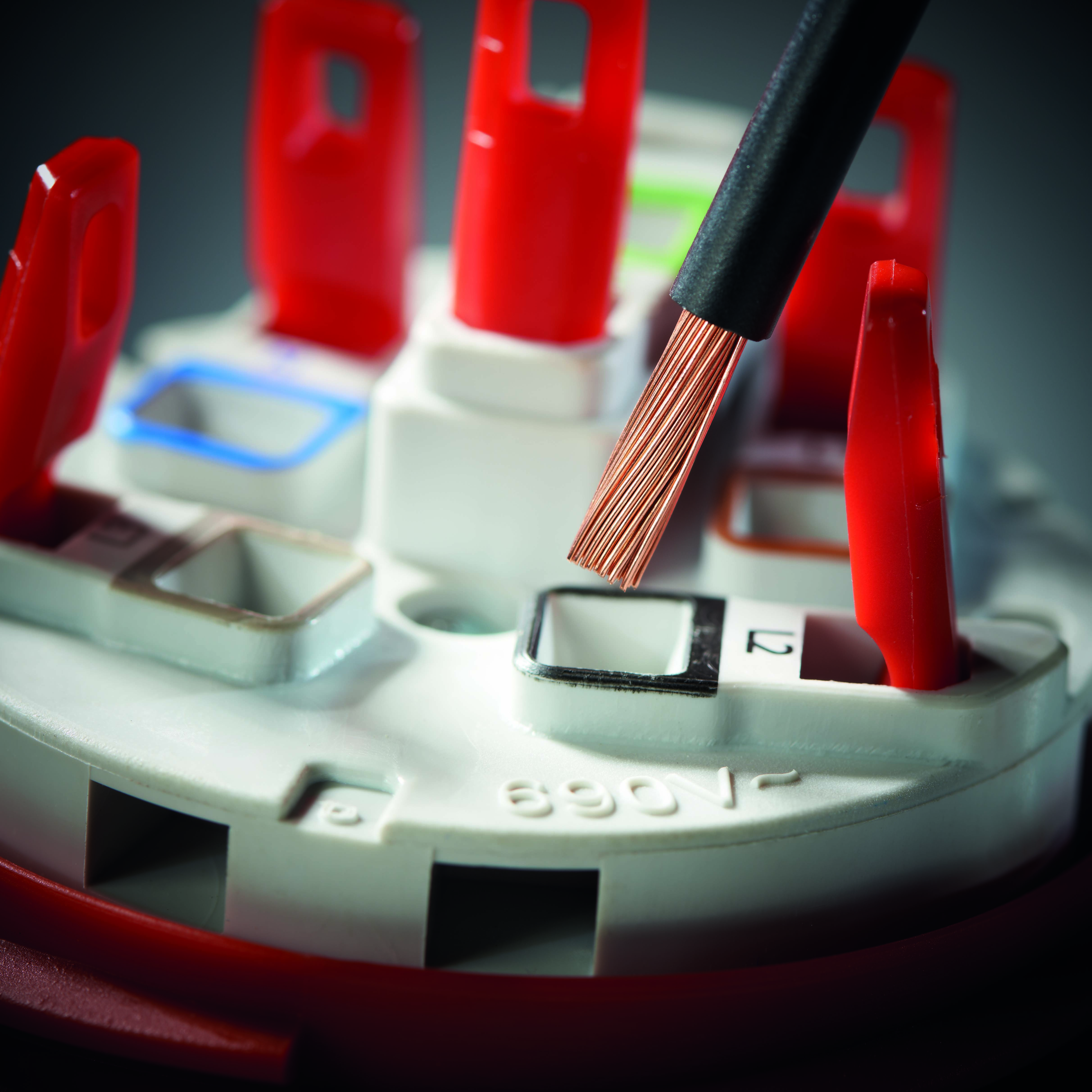

QUICK-CONNECT the advantages

• Faster, more reliable and, above all, more controlled conductor connection
• The terminal accepts all types of copper conductors, rigid or flexible, with or without wire end ferrule as well as conductors of all quality grades irrespective of the conductor diameter or conductor insulation
• No wire end ferrules needed
• On delivery, the terminals are open and the contact pressure of the springs is optimally set
• Pressing the contact slide or locking lever with a finger visibly, audibly, reliably and permanently closes the terminal after the stripped conductor has been inserted
• Rewiring is no problem. Pressing the locking lever or contact slide again releases the conductor; unlike insulation displacement connector technology, the conductor can then be used again without needing further processing steps
• The damage-free conductor clamping guarantees an optimum connection over the entire service life
• QUICK-CONNECT is maintenance-free, insensitive to shocks, vibrations and temperature fluctuations

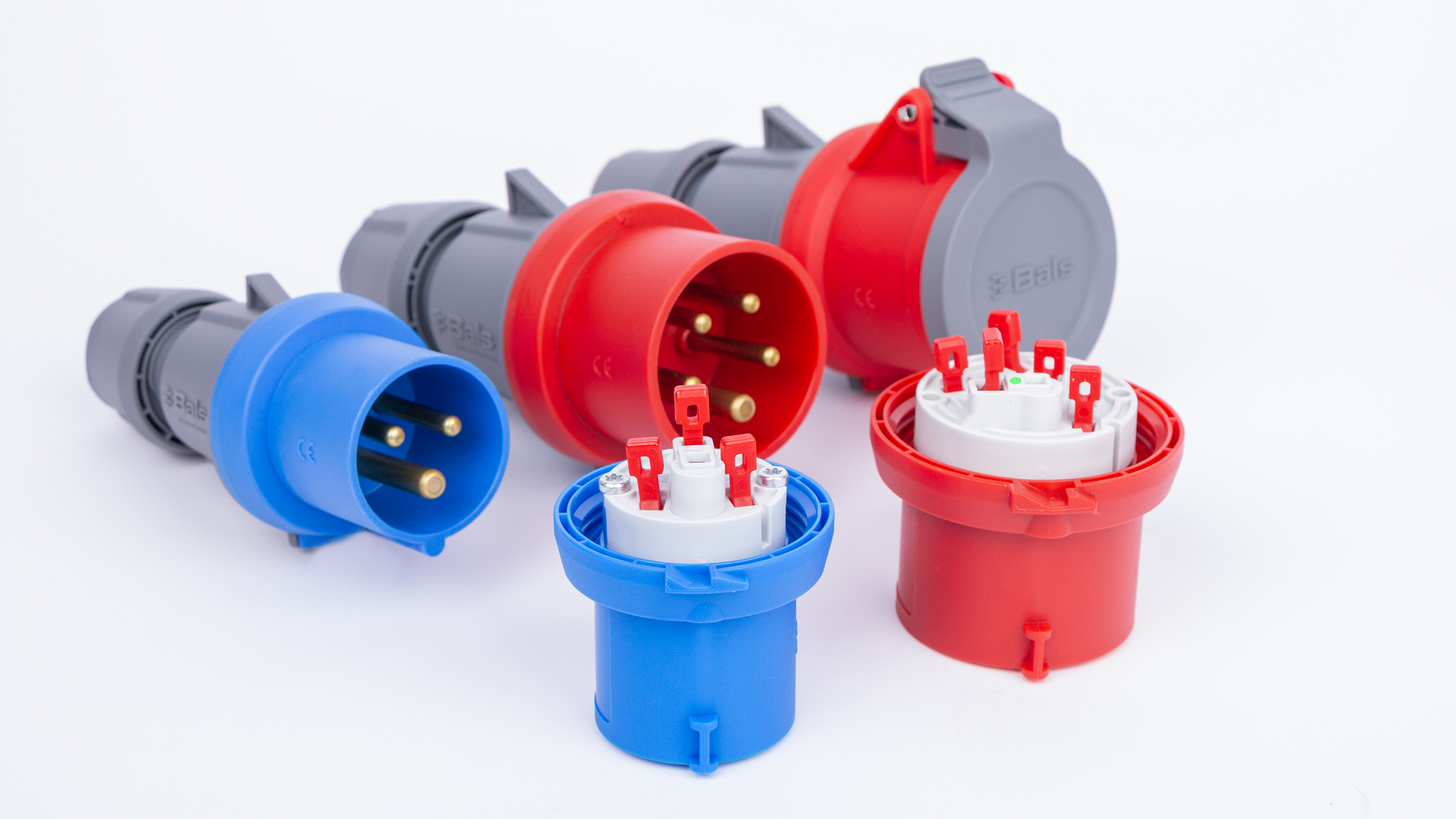

INNOLINQ – the new, pioneering industrial plug and socket from Bals.

Bals presents the new generation of plugs and sockets: INNOLINQ. It combines the highest standards for innovative technology with sustainably convincing arguments for the future. Users feel that in every detail: in the new design, improved ergonomics, maximum stability, larger contact areas as well as reduced plugging and pulling forces.INNOLINQ contains no lead and is produced using only recyclable materials, thereby making it especially environmentally friendly. It thus satisfies the strict REACH & RoHS directives of the EU and is a symbol for the sustainable direction that Bals, as a company, are going in. With the CEE specialist, resource-conserving production, recyclable materials, the highest environmental standards and continuous improvement in ecological efficiency have become a top priority – for the highest quality “Made in Germany”.

Improved ergonomics for perfect handling
Bals redeveloped the INNOLINQ industrial plugs and sockets from the ground up – and thereby noticeably improved ergonomics in many details. This makes handling easier and provides the user with a perfect grip at all times.

Innovative technologies for optimum connections
That the new INNOLINQ series is the result of intensive research and development can be seen in the convincing technologies contained within. The KONTEX-ULTRA connection technology is completely new – with contacts that are not only lighter than before, but also significantly reduce resource consumption – while maintaining stability and conductivity. In addition, two proven Bals technologies that set new standards on the market were further optimised – the patented QUICK-CONNECT connection technology and the MULTI-GRIP cable gland system.

INNOLINQ – the advantages at a glance

Resource-saving
INNOLINQ contains no lead and is produced using only recyclable materials

Secure connection
In combination with the QUICK-CONNECT spring-connection technology, INNOLINQ guarantees a secure termination ensuring confidence in the product and installation.

Extremely robust
INNOLINQ is manufactured from extremely durable materials.

Improved ergonomics
Improved housing contours ensure simple handling, perfect grip and modern design.

Screwless installation
The QUICK-CONNECT connection technology can be installed quickly and easily – in just a few steps, without tools.

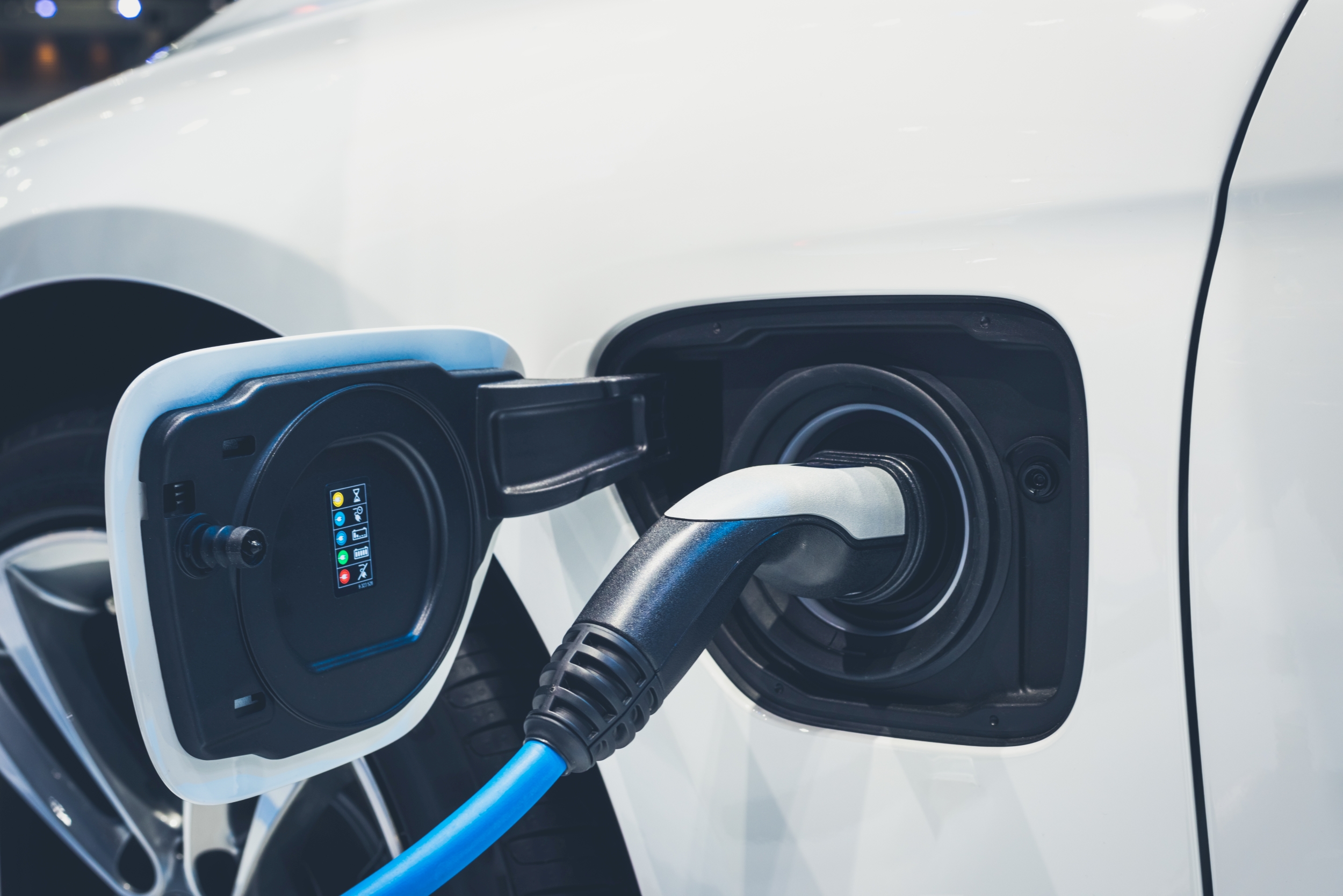

Think ahead and drive ahead: e-Mobile by Bals

The future will run on electricity - all automobile experts agree. Whether a pure electric vehicle or a hybrid model with a combination of an electric engine and a combustion engine, alternative drive models are clearly on the advance. Global demand is increasing. In order for electric vehicles to establish themselves across the board for end consumers, a powerful infrastructure is required. Bals is one of the pioneers here: As a specialist in connection technology, we have been offering a comprehensive range of system components for years, thereby getting eMobility rolling.

Plugs and sockets type 1, type 2 and type GB

The application area of Bals ac charging product are for IEC/EN (Europe), UL (Americas and Japan) and GB/T (China) applications. Offering as standard, highly engineered features like silver plated contacts and multiple Easy-Contact lamella sleeves ensuring highest parameters of global interoperability and performance. This is being proofed during test above regular standard requirements like thermo- mechanical cycling tests or increased mechanical robustness tests. E-Mobile by Bals products beside the varied range of off-the-shell solution are available in multiple specific customization options like.

The VARIABOX is becoming even more variable

The Bals VARIABOX distributor system – tried, tested and loved for many years – is becoming even more versatile and flexible.

Now with data socket

As an adaptive further development, the new network data sockets as well as the switched interlocked CEE sockets are now available for the VARIABOX product line. This means the distributors can now be fitted with RJ45, HDMI or USB ports – Whichever is necessary.

The data connections fit into the existing system in a visually seamless manner, thus making VARIABOX even more powerful and variable. The distributors are available in different protection degrees, thus rendering them ideally suited for particularly challenging usage conditions.

The coded flange plate with separate switch increases the mechanically locked panel mounting socket from 16 A 3-pole to 32 A 5-pole in IP44 or IP67, even though the overall visual look of the distributor stays exactly the same. A key selling point of the VARIABOX is that it is maintenance-free: All panel mounting sockets are fitted with the screwless QUICK-CONNECT connection technology. Also unique is the operating window with OTC mechanism (one touch close).

Thus, the VARIABOX once again lives up to its reputation as a true all-rounder among the distributor systems. With the S, M, L, XL and XXL versions as wall-mounted or mobile combination, the user will always find the right distributor for his needs – flexibly and individually configurable.
