Dongmyung Lighting Co., Ltd.

ZOOM LENS SPOT LIGHT (MODEL NO. DDC-65280.16)

Zum Produkt

Halle3.0F59

Zum Plan

Adresse

Dongmyung Lighting Co., Ltd. 14, Wonhyo-ro 97-gil, Yongsan-gu
Seoul 04313
Korea, Republik (Süd)

Telefon+82 2-711-8855

Fax+82 2-719-4818

Kontakt

Entdecken Sie mehr von uns

Unsere Website

Über uns

Our company, RAAT-Dongmyung Lighting, is a professional LED lighting manufacturer specialized in indoor LED lighting.

Founded in 1972, with 50 years development, RAAT have many lighting series including Down light, Accent light, Pendant which can meet your indoor project lighting demand.

As the best lighting equipment manufacturer, we are continuously investing in research and
development for new product development and quality improvement.

Furthermore, we offer design, development, production, and inspection services in a comfortable environment with the latest facilities.

Please come visit our booth to enjoy our everything.

Thank you.

Unsere Produktgruppen

Keywords

LED
LIGHTING FIXTURE
DOWNLIGHT
COMMERCIAL INDOOR LIGHTING
DC 48V TRACK LIGHT

Unsere Produkte

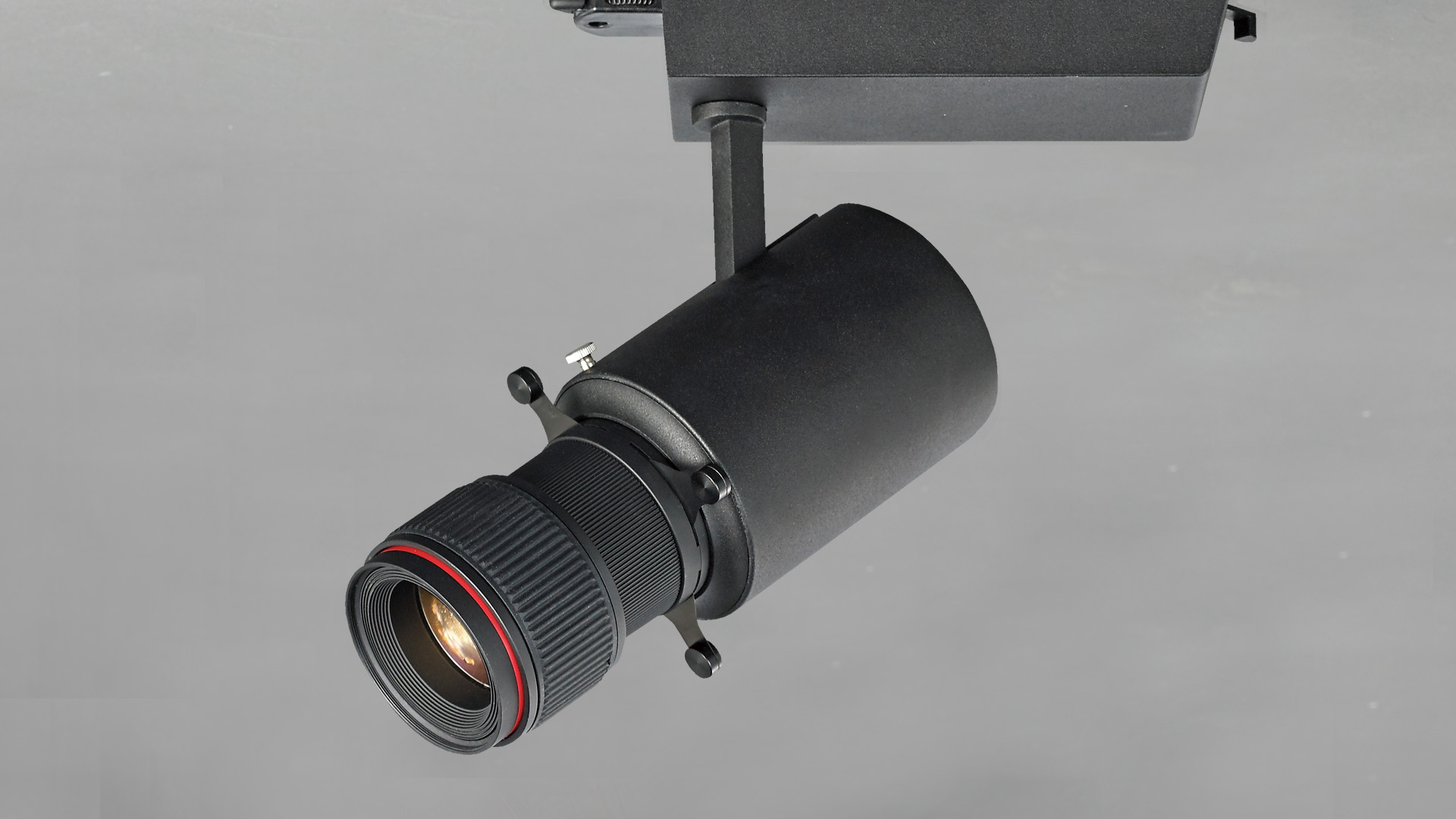

ZOOM LENS SPOT LIGHT (MODEL NO. DDC-65280.16)

DDC-65280.16

- Color : White, Black

- LED HOUSING : AL. Extrude & Die-Casting, Electrostatic Powder Coating, Adjustable Angle (Tilt ∠ 90˚)

- GEAR BOX : AL. Die-Casting, Electrostatic Powder Coating

- ACCESSORY : LENS

- INSTALLATION : On 1 or 3 Circuit Track (PC)

- TYPE OF LED : COB

- BEAM ANGLE : 17.6 ~ 32.8˚

- INPUT VOLTAGE : 220-240 Vac, 50/60 Hz

- INPUT POWER : 34W

- OUTPUT POWER : 28W

- OUTPUT VOLTAGE : 35Vdc

- OUTPUT CURRENT : 800mA

- OPERATING TEMPERATURE RANGE : -20 to + 40℃

- MAINTENANCE OF LUMEN - L80 : 50,000 hours at 25℃

- COLOR RENDERING INDEX : 80 / 90

- COLOR TEMPERATURE : 2700 ~ 6500K

48V DC TRACK LIGHT (MODEL NO. DDC-65020.05)

DDC-65020.05

- Color : White, Black

- LED HOUSING : AL. Extrude, Electrostatic Powder Coating

- MOUNTING RING : ABS (Chrome)_Non Glare Reflector

- REFLECTOR : LENS

- INSTALLATION : DC 48V Track (Track : Only DR-501.01)

- TYPE OF LED : Power LED

- INPUT VOLTAGE : 220-240Vac, 50/60Hz (Option : 110-277Vac, 50/60Hz)

- INPUT POWER : 4W

- LUMINOUS FLUX : 110lm (14.6˚) / 81lm (21.1˚) / 114lm (32.1˚) / 134lm (41.0˚)

- OPERATING TEMPERATURE RANGE : -20 to +40℃

- MAINTENANCE OF LUMEN - L80 : 50,000 hours at 25℃

- COLOR RENDERING INDEX : 80 / 90

- COLOR TEMPERATURE : 5000K / 4000K / 3000K

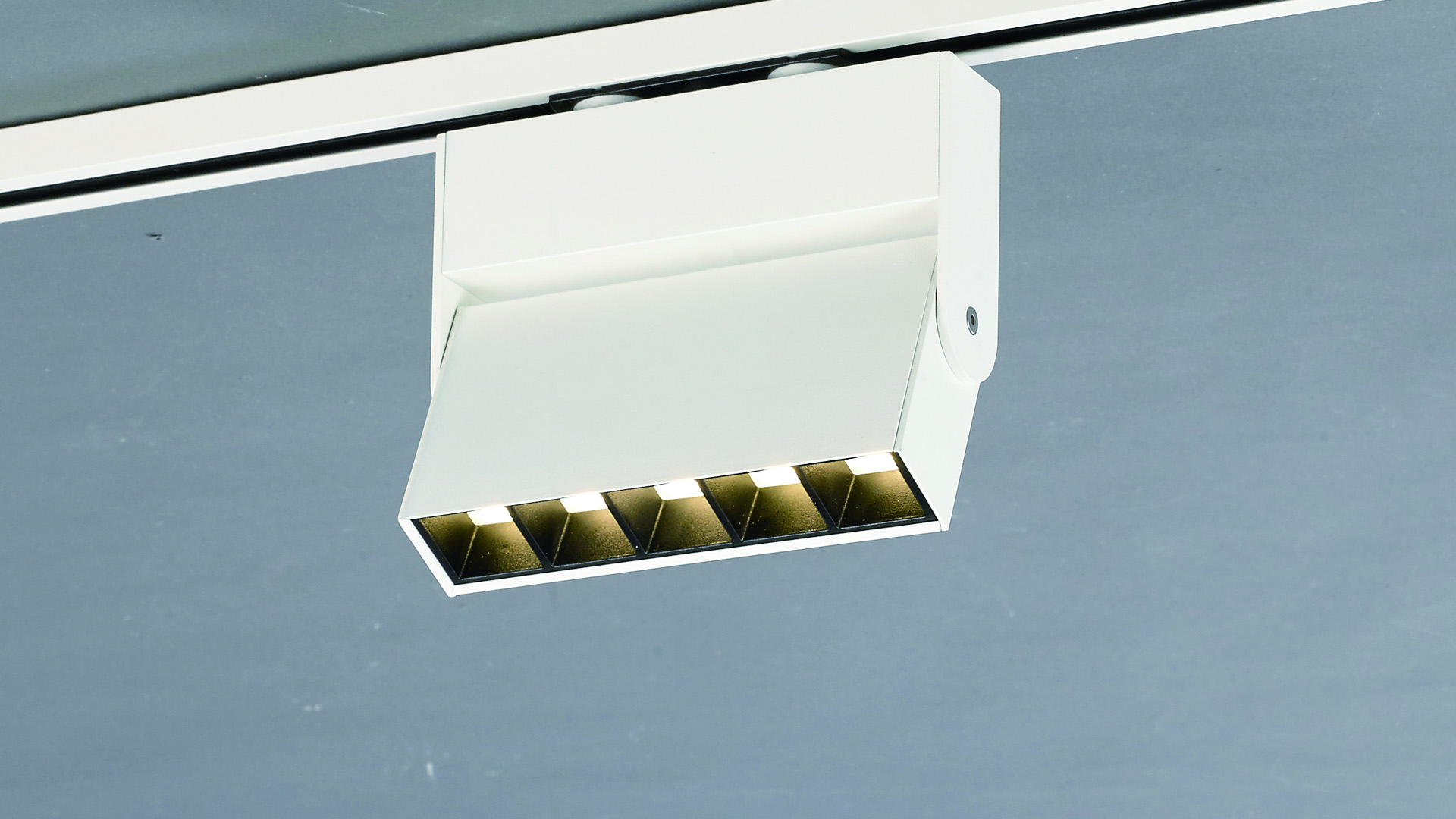

MULTI SPOT LIGHT - LINEAR TYPE (MODEL NO. DDC-65490.02)

DDC-65490.02

- Color : White, Gray, Black

- TRIM : AL. Die-Casting & AL. Extrude, Electrostatic Powder Coating

- ACCESSORY : Beam Angle LENS, Louver – PC

- TYPE OF LED : Power LED

- INPUT VOLTAGE : 220-240 Vac, 50/60 Hz (Option : 110-277 Vac , 50/60 Hz)

- INPUT POWER : 14W

- OUTPUT POWER : 11W

- LUMINOUS FLUX [3 000 K] : 781lm (42.1˚)

- OUTPUT VOLTAGE : 15Vdc

- OUTPUT CURRENT : 700mA

- OPERATING TEMPERATURE RANGE : -20 to + 40℃

- MAINTENANCE OF LUMEN - L70 : 50,000 hours at 25℃

- COLOR RENDERING INDEX : 80 / 90

- COLOR TEMPERATURE : 5000K / 4000K / 3000K

MULTI DOWNLIGHTS (MODEL NO. DD-30450.02)

DD-30450.02

- Color : White, Gray, Black

- TRIM : AL. Die-Casting, Electrostatic Powder Coating

- HEAT SINK : AL. Die-Casting, Electrostatic Powder Coating

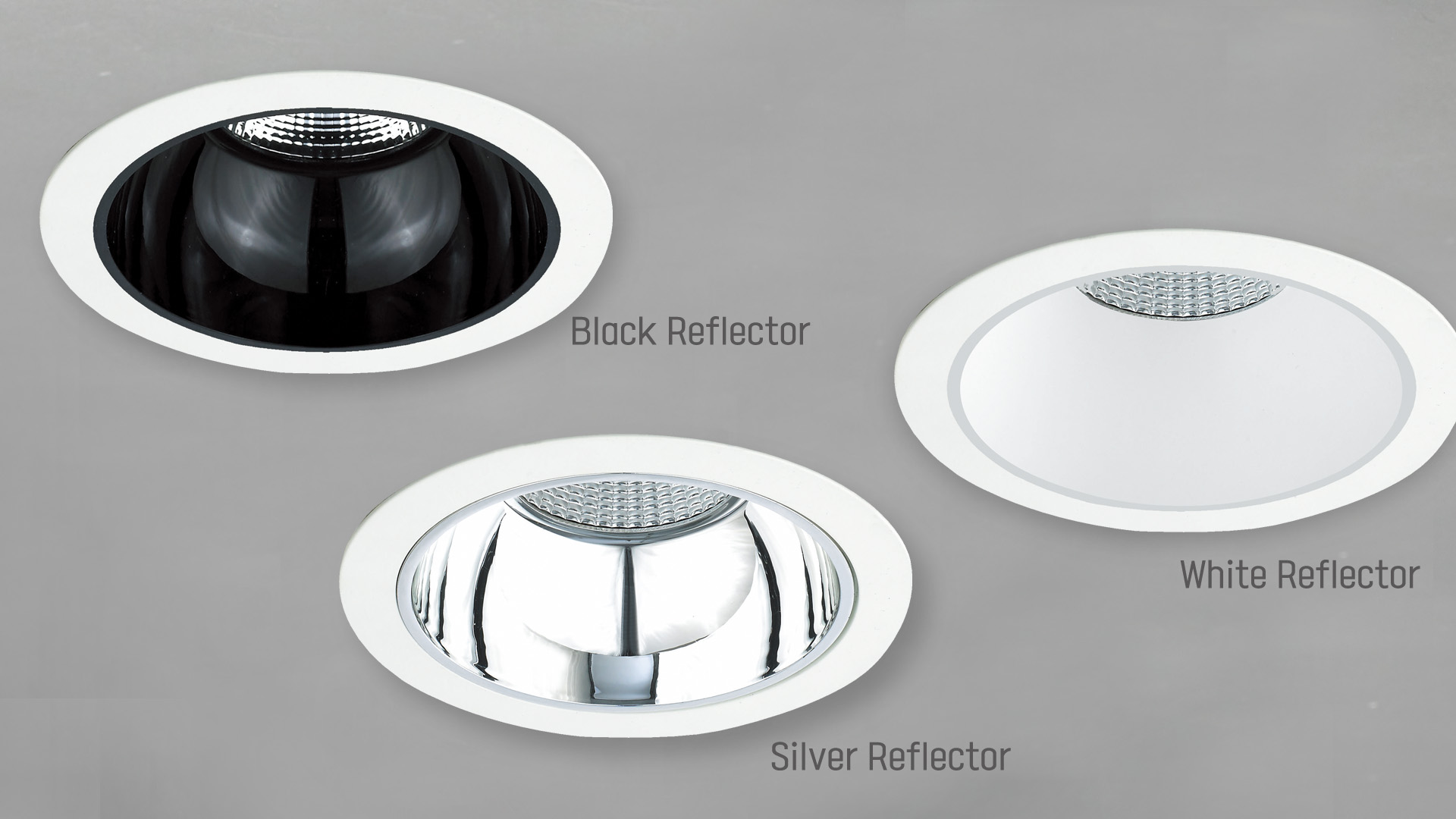

- ACCESSORY : Reflector (White, Black, Silver)

- TYPE OF LED : COB

- INPUT VOLTAGE : 220-240 Vac, 50/60 Hz (Option : 110-277 Vac, 50/60 Hz)

- INPUT POWER : 14W

- OUTPUT POWER : 12W

- LUMINOUS FLUX [3 000 K] : 1,242lm (22.4˚) / 1,229lm (27.8˚) / 1,207lm (50.8˚)

- OUTPUT VOLTAGE : 35Vdc

- OUTPUT CURRENT : 350mA

- OPERATING TEMPERATURE RANGE : -20 to + 40℃

- MAINTENANCE OF LUMEN - L80 : 50,000 hours at 25℃

- COLOR RENDERING INDEX : 80 / 90

- COLOR TEMPERATURE : 4000K / 3000K

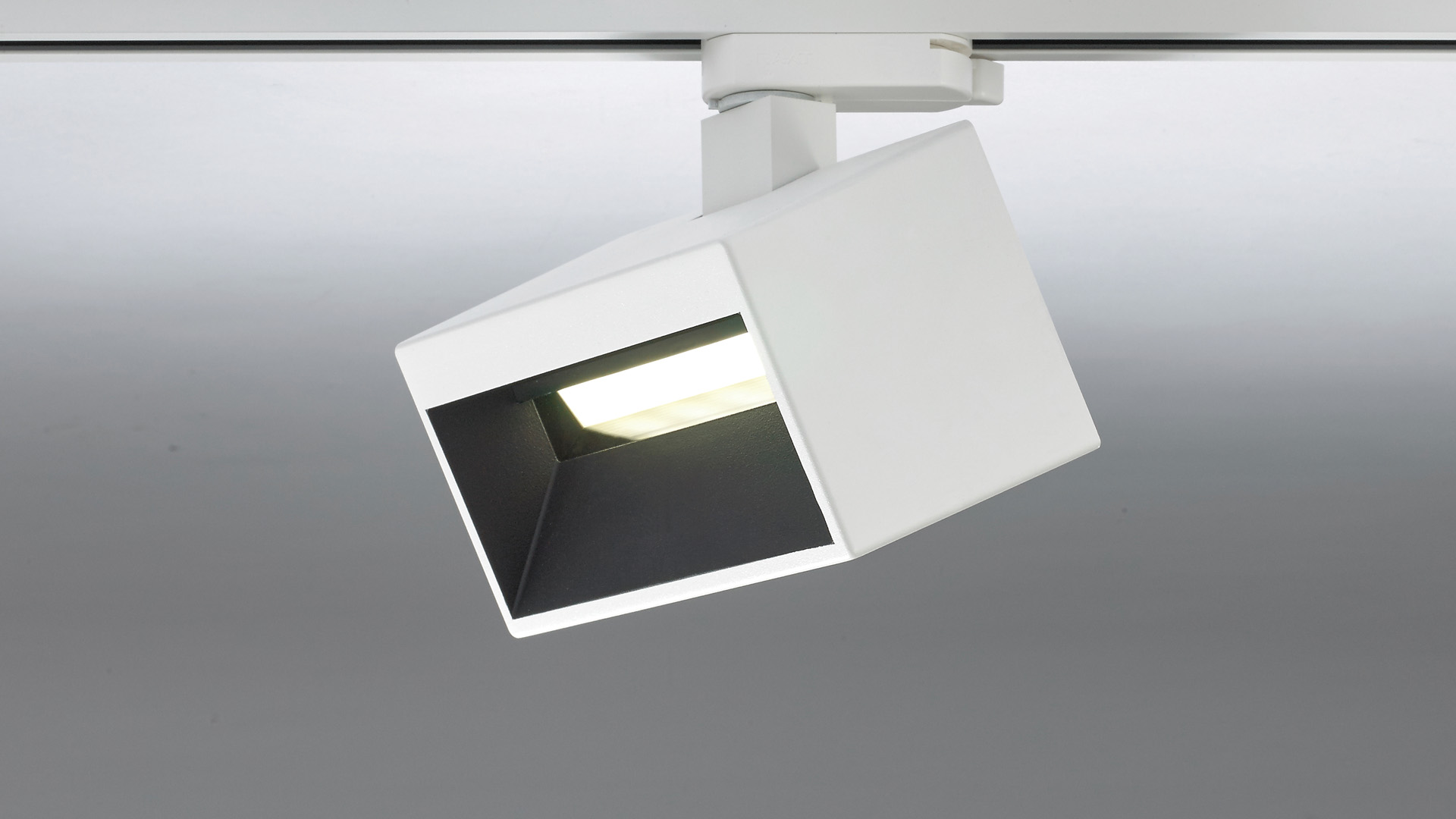

SPOT LIGHT (MODEL NO. DDC-65390)

DDC-65390

- Color : White, Black

- LED HOUSING : AL. Die-Casting, Electrostatic Powder Coating, Adjustable Angle (Tilt ∠90˚)

- ACCESSORY : Cover - PC

- INSTALLATION : On 1 or 3 Circuit Track (PC)

- TYPE OF LED : SMD (60 LED)

- INPUT VOLTAGE : 220-240 Vac, 50/60 Hz (Option : 110-277 Vac , 50/60 Hz)

- INPUT POWER : 20W

- OUTPUT POWER : 18W

- LUMINOUS FLUX : 1,079lm (3000K)

- OUTPUT VOLTAGE : 28Vdc

- OUTPUT CURRENT : 650mA

- OPERATING TEMPERATURE RANGE : -20 to +40℃

- MAINTENANCE OF LUMEN - L80 : 50,000 hours at 25℃

- COLOR RENDERING INDEX : 80 / 90

- COLOR TEMPERATURE : 5000K / 4000K / 3000K
