Standard test instrument set for testing the electrical safety of devices, in particular for the fulfillment of DGUV regulation 3 and German medical device directive MPBetreibV, including IZYTRONIQ data processing software

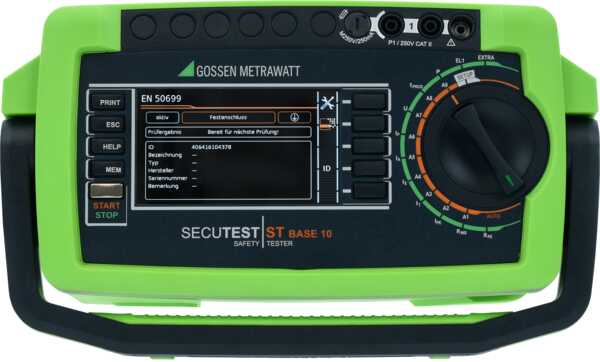

Test instrument set with SECUTEST ST BASE10 including DB+ and Database Comfort for testing electric medical devices and welding equipment with predefined as well as programmable test sequences which are required in accordance with test standards DIN EN 50678 (VDE 0701) DIN EN 50699 (VDE 0702), IEC/EN 62353 (VDE 0751) and IEC/EN 60974-4 (VDE 0544-4).

The set is especially well suited for testing tasks within the context of DGUV regulation 3 and German medical device directive MPBetreibV, which permit professional logging of test objects and documentation of the test.

Product Highlights

• HTML report generation to USB memory
• 10 A test current for R-PE measurement
• Convenient database functions for managing test objects

Applications

For example, testing in industrial plants, public facilities, public authorities, operations which make use of electric power tools and/or 3-phase devices, hospitals, universities, service providers in accordance with DGUV A3 and German medical device directive MPBetreibV etc.

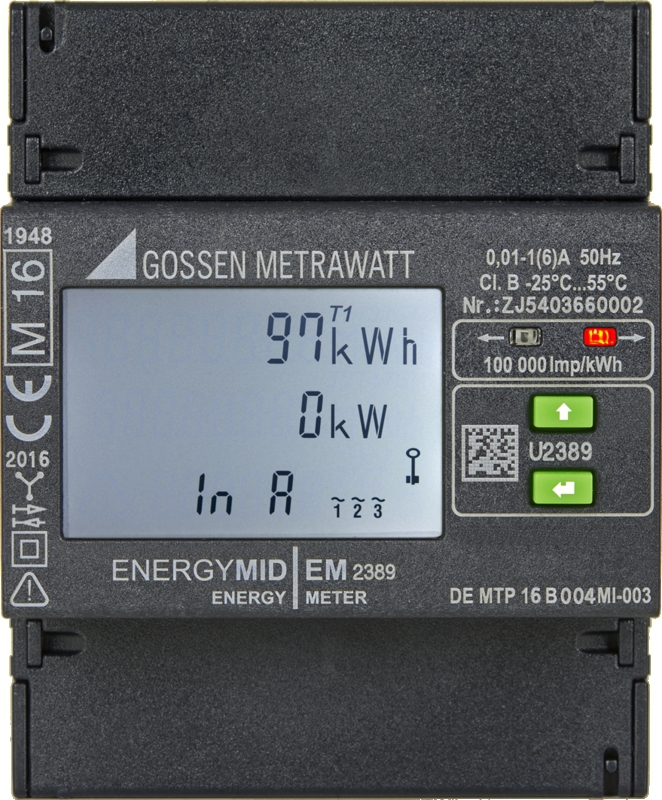

ENERGYMID – Multifunctional Energy Meter - 4-wire system and transformer connection 1 (6) A

The MID approved meters can be used to acquire and bill active energy in industrial, household, commercial and building management applications.

Thanks to a broad range of interfaces, values can be very easily transferred to data logging, billing and optimizing systems, as well as to building automation and control technology applications.

The new generation of ENERGYMID energy meters opens up entirely new levels of transparency within your electrical system. In addition to energy, up to 33 other mains parameters are acquired by the multifunctional variant. Thanks to our installation tools and integrated diagnosis of connection errors, installation is now even simpler and quicker.

Product Highlights

• 1 (6) A transformer connection
• Extremely compact housing (4 standard width units, i.e. 72 mm) with integrated interface
• Fast error detection thanks to color change at the display, e.g. direction of phase rotation, phase failure, transformers with reversed polarity or overload
• Multifunctional variant – up to 33 additional measured quantities such as reactive power, apparent power, power factor and frequency

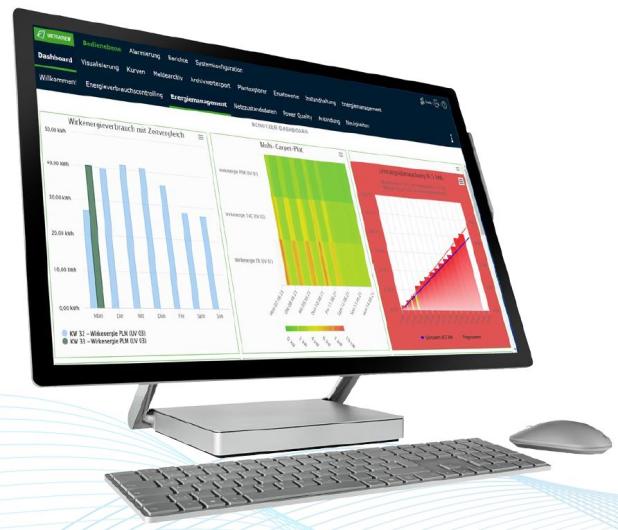

Die METRAVIEW Energy unterstützt Unternehmen bei ganzheitlichem und konsequenten Energiemanagement als ökologisch und ökonomisch immer wichtigeren Faktor. Effizientes Energiemanagement betrifft eine Vielzahl von Mitarbeitern im Unternehmen, deshalb
müssen Verbrauchsdaten und Kennzahlen immer orts- und geräteunabhängig zur Verfügung stehen. Die METRAVIEW Energy unterstützt Sie dabei – zu 100% in Webtechnologie umgesetzt, integriert sich die offene Software in jede bestehende Infrastruktur und zeichnet sich
zudem durch einfache Konfiguration und intuitive Bedienung aus und ermöglicht softwaregestütztes Energiemanagement nach ISO 50001.

Produkt-Highlights

• Unterstützung bei software-gestütztem Energiemanagement (ISO 50001 / ISO 50006 / ISO 50015) in der Einführungs- und Aktivphase
• Maßnahmenverfolgung zur Energieeffizienz auf Basis des PDCA-Zyklus
• Datenplausibilisierung und Prognosen
• Bilanzkreise zur Darstellung und Plausibilisierung von Messkonzepten
• Energiedatenerfassung
• Energieleistungskennzahlen
• Kostenstellenzuordnung
• Energie(kosten-)Berichte
• Datengrundlage für eine Optimierung der energetischen Bewertung
• Automatisierte sowie manuelle (Zähler-)Datenerfassung.
  Erfassung aller Medien wie z.B. Strom, Wärme, Gas, Wasser, Druckluft,

Measuring and Test Instrument for Testing the Effectiveness of Protective Measures at Stationary Electrical Installations After Installation, Repair or Expansion, and for Periodic Testing (DGUV regulation 3)

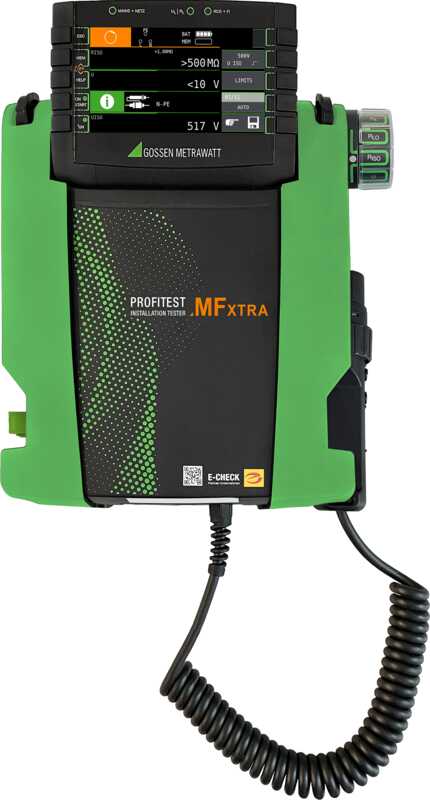

The PROFITEST MF XTRA provides all measuring and test functions for testing the effectiveness of protective measures at stationary electrical installations – with predefined, and optionally with programmable test sequences which are required in accordance with test standards IEC 60364-6 (DIN VDE 0100-600) and EN 50110-1 (DIN VDE 0105-100). Measuring category: 300 V CAT IV / 600 V CAT III.

The PROFITEST MF XTRA makes your investment decision easy because it’s the ideal test instrument for routine daily work – day after day – thanks to its scope of functions for professional electricians which is perfectly matched to your requirements. Test report generation is quick and easy thanks to optimized operation and the practical memory concept. You save time with every measurement and you’re able to complete more measurements each day. Furthermore, once a system structure has been created it can be used for all PROFITEST instruments. As a result, all employees conduct testing in exactly the same way. And with the PROFITEST service guarantee, you can be sure that your test instrument will still be up to date even 10 years down the road.

Product-Highlights

• Context-sensitive color graphic display
• Measuring and test sequence – easy setup of the system structure / measuring and storage / report generation
• Preconfigured and user programmable test sequences for testing electric systems quickly
• Storage concept for up to 50,000 data records
• Testing of all up-to-date AC/DC sensitive RCDs, RDC-DDs and RCMBs
• User safety thanks to PE detection when using finger contact
• Measuring category: 600 V CAT III / 300 V CAT IV
• 4-wire measuring method – no compensation of the measurement cables is required
• Earth loop resistance measurement RE LOOP • Selective earthing resistance RE

Your advantages

• Intuitive operation thanks to innovative user prompting
• Test sequences for efficient work
• Standards-compliant testing in accordance with ZVEH
• Legally secure documentation via interfaces
• Broad range of applications thanks to diverse measuring options
• Convenient work procedures without any bothersome replugging of the measurement cables
• Can be used all over the world thanks to language selection
• Future-proof thanks to on-site firmware updates
• Cascadable, future-proof software concept
• On-site help thanks to help function with wiring diagrams

Applications

Testing of the effectiveness of protective measures at stationary electrical installations per IEC 60364-6 (DIN VDE 0100-600), EN 50110-1 (DIN VDE 0105-100), machines per EN 60204-1 (VDE 0113-1) and other country-specific standards Testing of electric charging points per EN 61851-1 (DIN VDE 0122-1), and earth measurements

Technical charateristics

• Broad-range measuring instrument for all alternating and 3-phase electrical systems with voltages from 65 to 500 V and frequencies of 15.4 to 420 Hz
• Loop and line impedance measurement with DC bias magnetization
• Measurement of insulation resistance using nominal voltage, with variable or rising test voltage
• Low-resistance measurement with automatic polarity reversal
• Testing of residual current devices and special RCCBs (selective S, SRCDs, PRCDs, Schukomat, Sidos, types G/R, AC, A, A-EV, F, F-EV, B, B+ and B-MI)
• Testing of RCCBs in IT systems
• Testing of RDC-DDs per IEC 62955 and RCMBs per DIN EN 62752
• Testing of insulation monitoring devices (IMDs)
• Testing of residual current monitoring devices (RCMs)
• Measurement of earth resistance (mains/battery operation)
• Leakage current measurement with PRO-AB adapter
• Standards-compliant testing of charging stations per IEC 61851-1 in combination with the Metraline PRO-TYP EM test adapter
• Testing of type S and K PRCDs with the PROFITEST PRCD
• Residual voltage measurement per EN 60204-1
• Automatic test sequence function
• USB port
• USB push-print function – transmission of the measured value after measurement

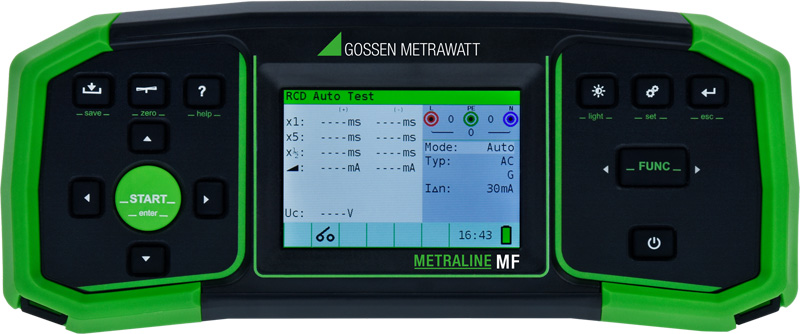

Installationstester für die normkonforme Prüfung in elektrischen Anlagen und Installationen nach IEC 60364-6 (DIN VDE 0100-600), DIN EN 50110-1 (DIN VDE 0105-100), IEC 61851-1 (DIN VDE 0122-1) sowie nach den entsprechenden Abschnitten der EN 61557 (VDE 0413).

Der METRALINE MF verfügt über ein Farbdisplay und eine intuitive Benutzerführung, die eine einfache Bedienung ermöglicht. Der moderne Funktionsumfang umfasst u. a. alle notwendigen Prüfungen für Elektroinstallationen, E-Mobilität und Erdungsmessungen. Die komfortable Steuerung wird unterstützt durch Hilfebilder und Audiosignale. Die kompakte Bauweise ermöglicht in idealer Weise den mobilen Einsatz des Gerätes. Das benutzerfreundliche Datenmanagement ermöglicht die Speicherung von bis zu 1000 Messwerten sowie die Protokollierung der Prüfergebnisse. Das Gerät ist nach IP 40 und CAT III 600 V / CAT IV 300 V zertifiziert.

Produkt-Highlights

• Grafisches Farbdisplay
• Intuitive Benutzerführung
• USB-Interface für Update und Auswertung
• großer Speicher für bis zu 1000 Messungen

Ihre Vorteile

• Moderner Funktionsumfang
• Optimiertes Preis- / Leistungsverhältnis
• einfache Handhabung durch Hilfefunktion und Audiosignale
• Von der Prüfungen zum Ergebnis mit nur wenigen Klicks

Technische Merkmale

• Schleifen- und Netzimpedanzmessung mit RCD
• Niederohm-Messung mit 200 mA, automatische Umpolung
• Erdungsmessung, 3-Pol, 4-Pol und Wenner (optional mit E-Set Basic)
• Isolationswiderstandsmessung bis 1.000 V, einstellbar
• Testen von RCD/FI für die Typen A, AC, B, B+, F und Autosequenz
• Testen von RDC-DD mit 6 mA DC für E-Ladepunkte
• Spannungsmessung (TRMS), Drehfeld und Frequenz
• Hilfebilder je Messfunktion und Audiosignal bei Messung
• Datenmanagement, Speicherung von 1000 Messwerten
• Software METRAreport zum Protokollieren
• USB Interface, IP 40, CAT III 600 V / CAT IV 300 V
