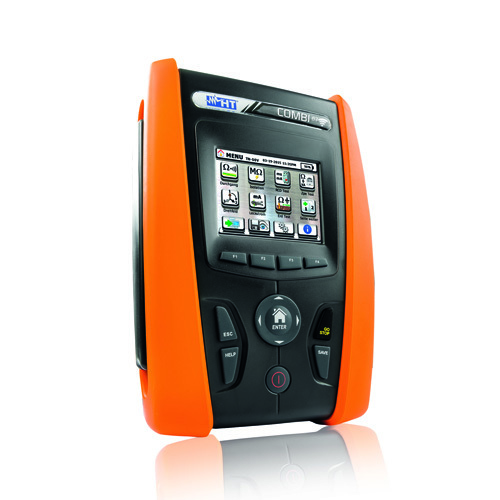

Combi G3 is a revolutionary device. Its TFT colour display with capacitive touch-screen allows using this device in a completely new manner. Combi G3 makes available on its display all possible variables to obtain a perfect measurement; your task will only be to “touch” what you really want to measure: then simply leave the rest to Combi G3’s micro-processor! The device complies with all requirements as regards the safety of electric systems: test of RCDs type A, AC also up to 1000 mA and type B; insulation, continuity, earth resistance tests (this also with the aid of the optional clamp T2100). With the appropriate programming guided by the touch-screen system, this device can test the interruption power, tripping currents, I2t relevant to magneto-thermal switches (MCB) with curves B, C, D, K and fuses type gG and aM! The device can be used with external feelers for measuring environmental parameters such as air temperature/humidity, illuminance (Lux) further to measuring leakage currents, cosphi, power and harmonics, Loop/Line impedance and calculating the assumed short-circuit current with high resolution (0.1mOhm) in TN systems with use of optional accessory IMP57. Cutting-edge management of measurement with indication, at the end of each safety test, of compliance or non-compliance with requirements with simple symbols OK o NOT OK.

Advanced multifunction device for verification of electric safety of private and industrial electric systems (IEC/EN61557-1)

• All verifications of electric safety provided for by standards IEC/EN61557-1.
• Advanced Loop Verification of magnetothermal protections, fuses and cable sizes.
• Earth resistance by voltammetric method with 2 or 3 spots in TT, TN and IT systems, overall earth resistance measurement and with clamp meter T2100 (optional). Ground resistivity.
• Measurement of electric parameters insingle-phase installations (V,A, W, VAR, VA, PF)
• Test of RCDs type A, AC, B up to 1A, also with separate clamp jaws with test current up to 10A (with optional accessory RCDX10).
• Measurement of insulation resistance.
• Measurement of continuity of protection conductors.
• Verification of phase sequence (SEQ) and leakage currents.

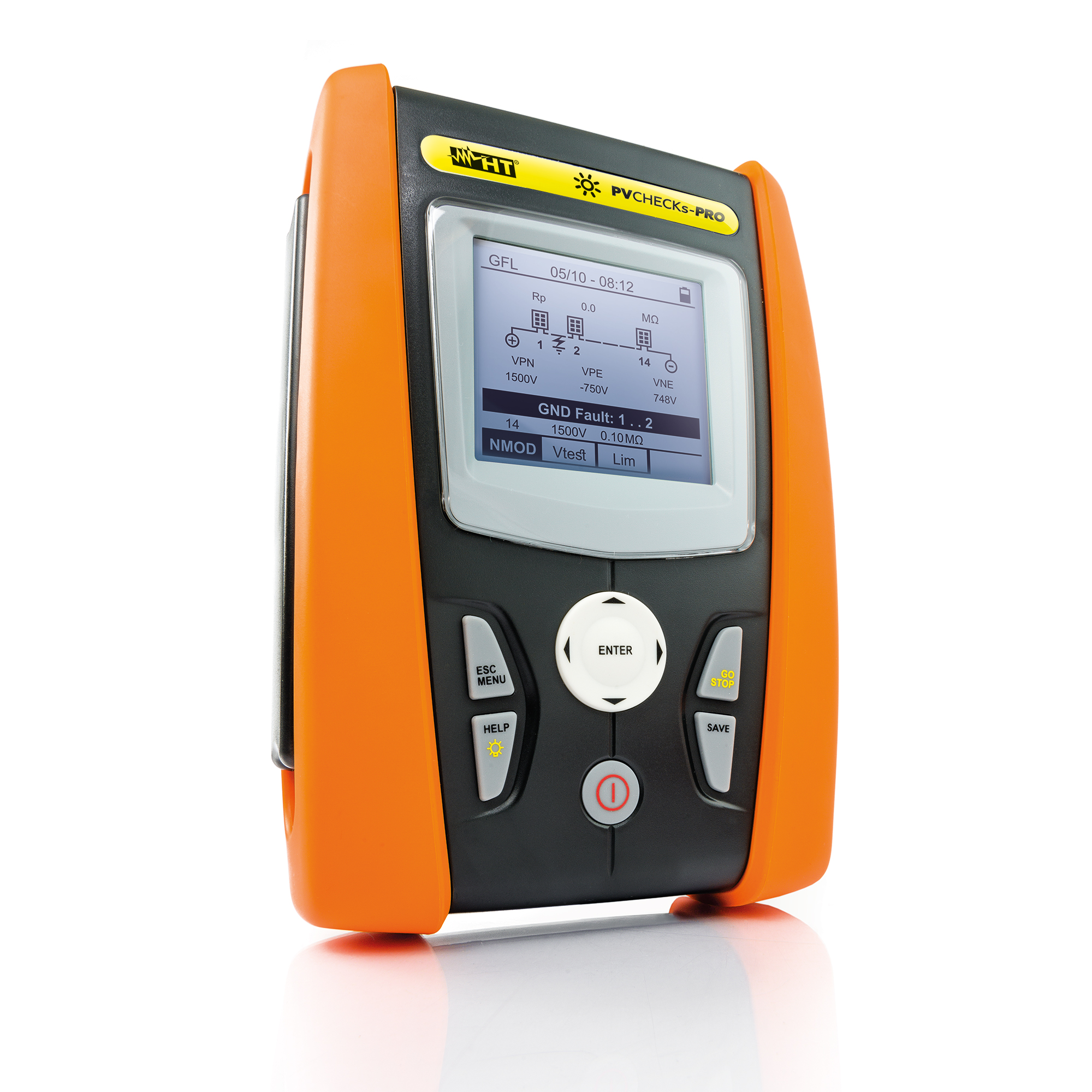

All-In-One PV Installation Tester for commissioning, troubleshooting, and recording the I-V curve of PV systems up to 1,500 V / 40 A

• A single press of the GO button is enough to perform all commissioning tests according to EN 62446 and record the I-V curve.
• The 'Seamless Mode' tests all strings in a generator junction box consecutively with just one press of a button.
• I-V curve analysis for single and bifacial modules and PV strings up to 1,500 V / 40 A.
• All installation tests (continuity, polarity, Voc, Isc, insulation) on live systems.
• GFL - Ground Fault Locator to determine the exact position of the insulation fault.
• BMS - Battery Management System, so you're never left with a dead battery.
• Color touchscreen display with a rotating screen so the device can also be hung upside down.

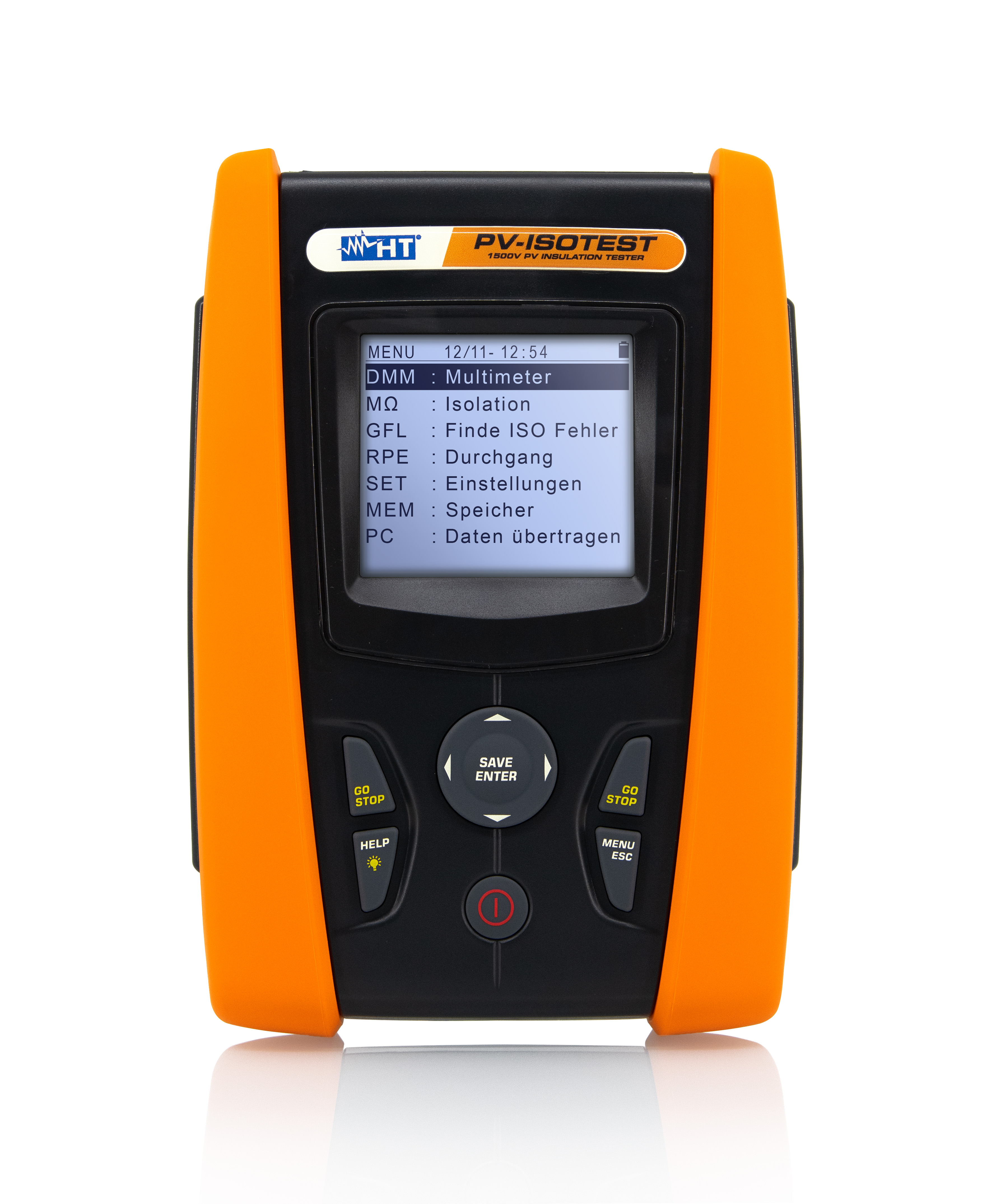

PV Measurement Device for commissioning, troubleshooting & maintenance of PV systems up to 1500V DC

The PV-ISOTEST determines the insulation resistance of a single module, a string, or even an entire PV field with a test voltage of up to 1500V DC according to EN62446 (VDE0126-23). Conventional insulation testers require a suitable adapter due to the presence of the string voltage to short-circuit the positive and negative connections of the PV string to be tested. With PV-ISOTEST, the use of an external device is not necessary. The PV-ISOTEST performs the insulation measurements in full autonomy and self-sufficiency. In addition, the PV-ISOTEST, with the help of the new GFL function (Ground Fault Locator), also shows you the exact position of an insulation fault in a string of the PV system.

• Insulation measurement up to 1,500V DC even on live systems
• Localization of the insulation fault on a PV string using the new GFL function
• Low resistance measurement (protective conductor) with a test current > 200mA
• Measurement of Polarization Index (PI) and Dielectric Absorption Ratio (DAR)
• Measurement of AC voltage components in the PV string

The PV-ISOTEST is a true innovation in our exclusive range of PV measuring devices!

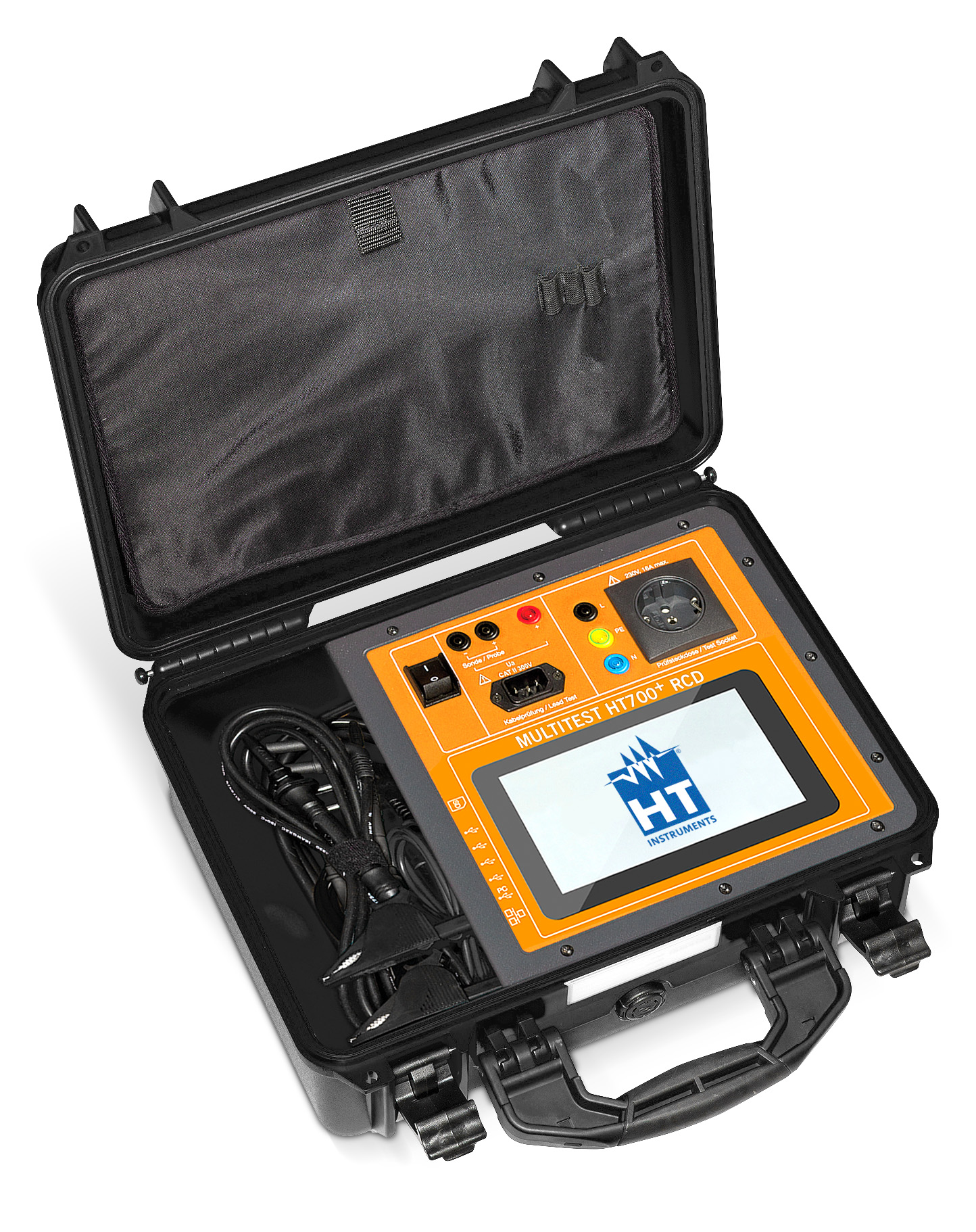

DGUV V3 Equipment Tester for the Inspection of Electrical Equipment including PRCDs

Testing within the framework of DGUV V3, BetrSichV according to:

• DIN VDE 0701-02:2008 (EN 62638) Testing of electrical equipment/tools
• DIN VDE 0751-1:2015 (EN 62353): Testing of medical electrical equipment, such as care beds, etc. Features:
• Testing of mobile residual current devices PRCD (2-/3-pole) Type S, S+, K
• Testing of Residual Current Devices (RCD) Type AC, A, F, B, B+
• Interfaces: WLAN, RJ45 (LAN), USB, SD card slot, and Bluetooth®
• Standard, extended, and custom visual inspections
• The equipment tester can be operated in IT networks
• Database management of customers & equipment with ID number
• Creation and assignment of individual test procedures and intervals
• Automatic and manual testing procedures adjustable
• Low operating costs, free updates via WLAN, LAN, USB
• Touch screen for gestures, softkey keyboard (QWERTZ), graphical control panels, “On-/Off-Slider” for activating/deactivating functions
• Unlimited data storage via SD card
• Test result with clear PASS / FAIL indication
• Complete – one equipment tester for all VDE device inspections

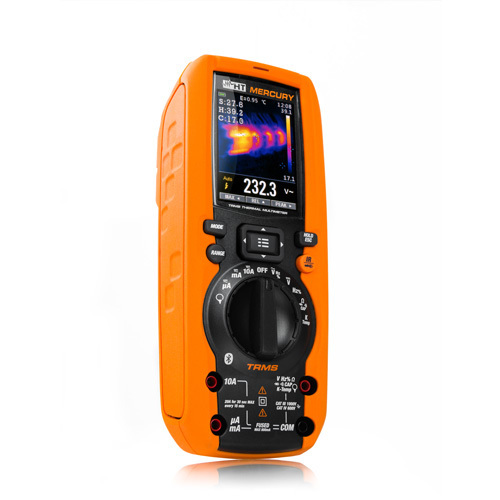

Professional multimeter with built-in infrared camera MERCURY is a TRMS digital multimeter capable of measuring AC/DC voltage up to 1000V, AC/DC current up to 10A as well as resistance, continuity test, diode test, frequency, capacitance and temperature with K-type probe. Other major functions include AC+DC mode taking into account DC components overlapping AC signals and current measurement with standard and flexible transducer clamps (provided accessory F3000U). A camera with 80x80pxl resolution is built inside to get simultaneous readings of thermal and electrical values for the item under test. MERCURY is provided with Data Logger function capable of carrying out and saving recordings of every parameter as well as displaying the values’ diagram. Snapshots can be saved into BMP format inside a micro SD card supplied as accessory and Bluetooth permits connection with mobile devices (tablet/smartphone) through HTMercury APP creating reports to share measuring results. The instrument was designed in compliance with safety standards IEC/EN61010-1 with double insulation protection according to CAT IV 600V or CAT III 1000V. MERCURY is equipped with analogue bargraph LCD and each function can be selected by rotary switch. Additional functions include HOLD to keep displayed data, MAX/MIN, PEAK and Auto Power OFF to save the internal rechargeable battery.

• 6000 Measuring counts
• DC voltage, AC TRMS, AC + DC TRMS up to 1000V
• DC current, AC TRMS, AC + DC TRMS up to 10A
• DC, AC TRMS, AC+DC TRMS current by means of external clamp transducer
• AC TRMS current by means of external flexible transducer F3000U
• “Voltsense” for AC voltage recognition
• 60MΩ Resistance
• Continuity with buzzer
• Temperature with K-type probe 1000 ° C
• Diode test
• Capacity
• Frequency
• Relative measurement
• MAX/MIN
• PEAK
• Data HOLD
• Bargraph
• Backlight
• Datalogger and Graph
• Auto Power OFF
• IR sensor resolution 80 x 80 pxl
• Thermal sensitivity <0.1 ° C @ 30 ° C
• NETD <100mK
• 8 ÷ 14μm Spectrum range
• IFOV (@1m) 4.53 mrad
• Field of view (FOV) 21 ° x 21 °
• Focus width of standard lens 7.5 mm
• 3 cursors: Central, Min, Max.
• Focusing of IR optics
• 8 standard + 10 custom colour palettes - 5 standard, not customizable
• Readings in °C, °F, °K
• Integrated white light illuminator
• Class 2 Laser pointer
• Infrared temperature measuring range -20 ÷ 260 ° C / -4 ÷ 500 ° F
• Mechanical protection IP65
• Power supply 2 x Li-ION rechargeable battery
• Size (LxWxH) 190x75x55 mm
• Weight (batteries included) 555 grams
