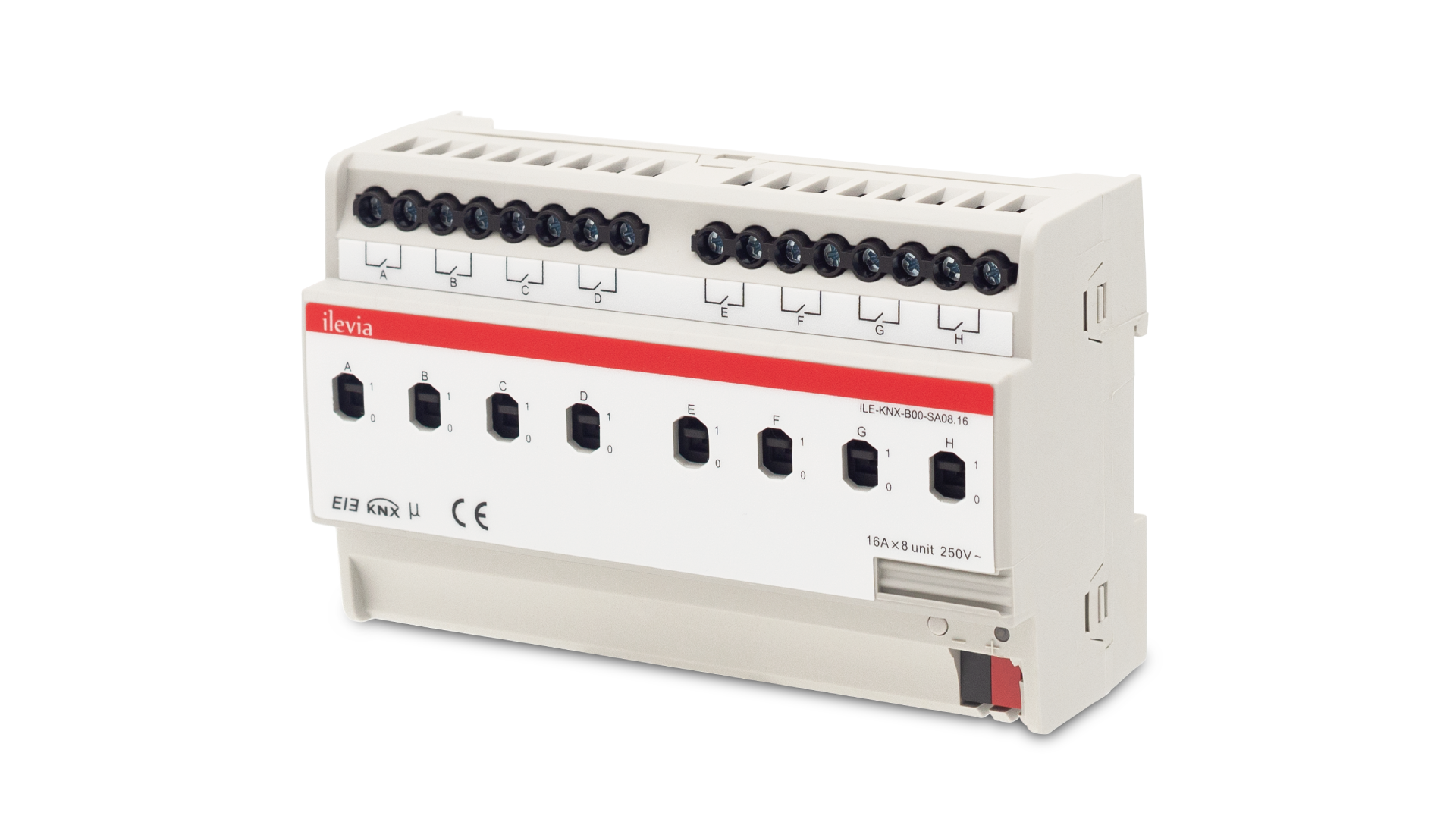

The Ilevia actuator is a KNX rail mounting modular device for independent switching of 4/8/12 groups of electrical loads; to this purpose the outputs of the device are equipped with potential-free relay contacts. The device is equipped with an integrated bus communication module and is designed for rail mounting in distribution boards and cabinets. To operate the device receives a telegram from the bus, sent by a KNX device (such as a pushbutton, a sensor or another switching or control device), that causes the opening or the closing of one or more relays. The manual operation of an output channel is possible also using the corresponding lever on the front side. The position of the lever simultaneously indicates the switching status of the relay. The bistable relays ensure the maintenance of the status also in case of failure of the bus voltage. The device is powered by the KNX bus line with SELV voltage 30 Vdc and does not require any auxiliary power supply.

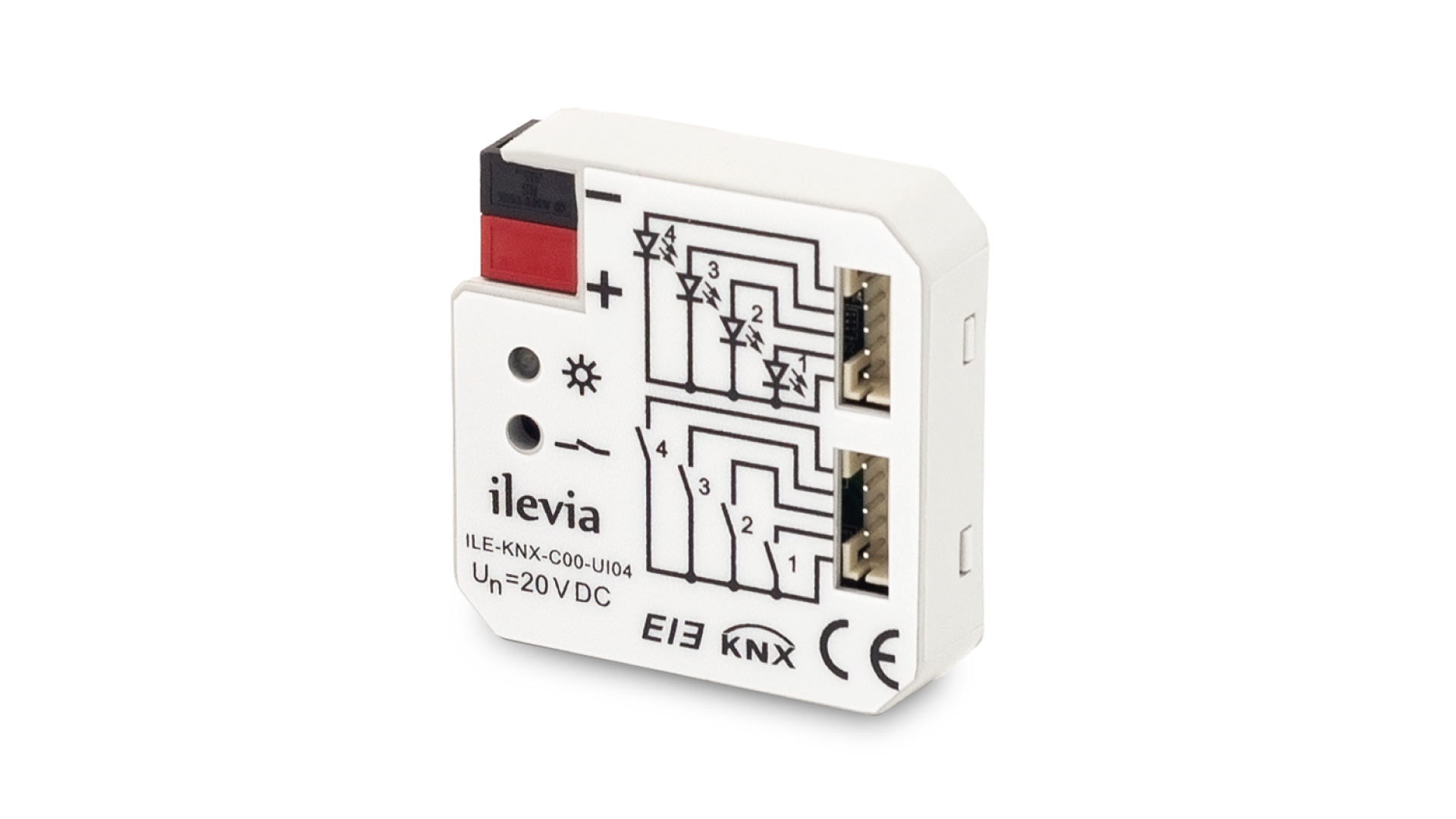

The Ilevia universal interface can be used as input or output. The device is provided with:

• inputs with free-potential contacts;
• output to control low-consumption LEDs.

The device is provided with an integrated bus communication module and is realized in a compact design for installation in flush-mounting wall boxes. The device is powered by the KNX bus line with a SELV voltage 30 Vdc and does not require auxiliary power. The scanning voltage for the input channels is produced by the device.

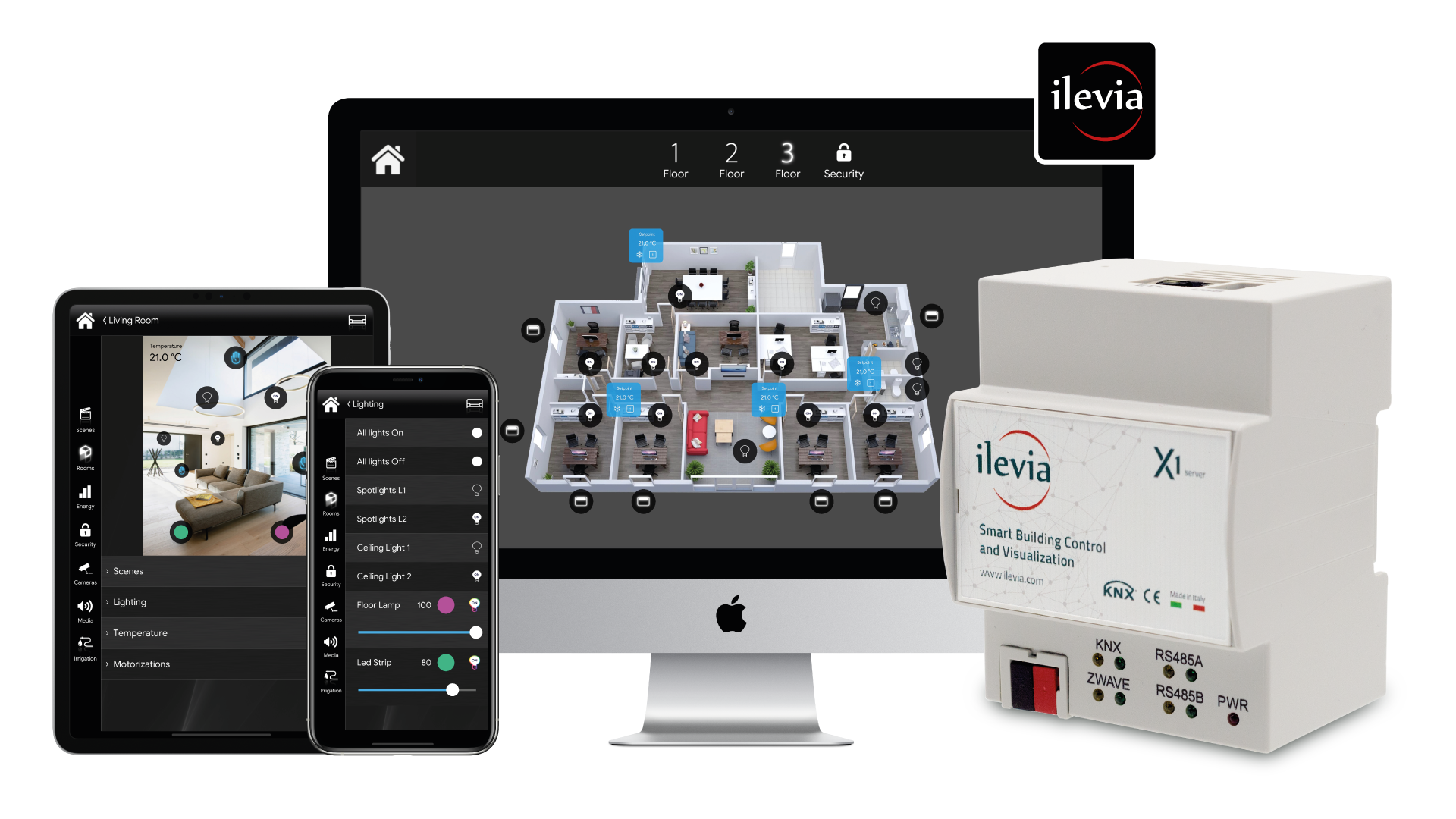

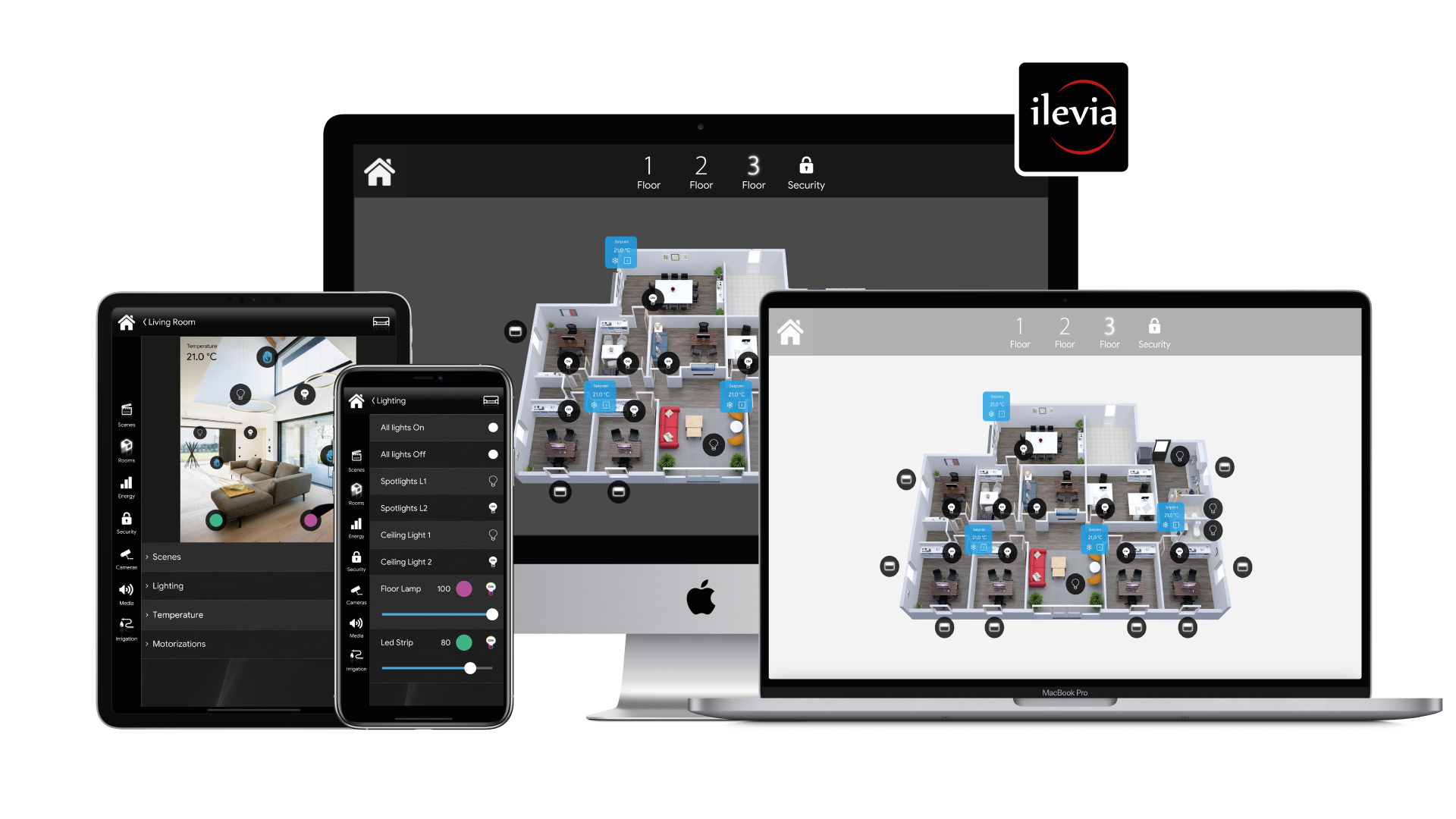

Ilevia X1 server is a compact device on which the Ilevia Supervision System is installed intended for controlling KNX based smart buildings. Through Ilevia configuration software it is possible to manage the control of lights, climate, blinds and shutters and energy of a modern KNX standard building which can be integrated with multimedia systems, video surveillance, intrusion detection and more. The visualization environment, accessible with the dedicated Ilevia app for smartphone and tablet mobile devices (iOS and Android) and for fixed devices (PC and Mac), can be fully customized according to one's taste, both in the graphic and organizational aspect of the intelligent system control interface. It is also possible to control via voice commands given to the Amazon and Google assistants.

The included Ilevia License supports: KNX, Modbus, Z-Wave, EnOcean, Vimar, BTicino/Legrand, MQTT, Google Assistant, Amazon Alexa, Telegram, Philips Hue, DMX, Intesis by HMS Networks, CoolAutomation, Daikin (cloud), IRTrans, Global Caché, Vivaldi, UPnP, Onkyo, Panasonic, Samsung, Satel, Inim Electronics, El.Mo., IESS, IP cameras, TCP/IP devices, etc. Ilevia License enables the design of custom user interface, logical operations, scenes, schedules and much more.

If you want to use your own hardware for controlling your smart buidling, you can get just the Ilevia Supervision License and install it on your own Windows Pc / Mac OSX. Ilevia License supports: KNX, Modbus, Z-Wave, EnOcean, Vimar, BTicino/Legrand, MQTT, Google Assistant, Amazon Alexa, Telegram, Philips Hue, DMX, Intesis by HMS Networks, CoolAutomation, Daikin (cloud), IRTrans, Global Caché, Vivaldi, UPnP, Onkyo, Panasonic, Samsung, Satel, Inim Electronics, El.Mo., IESS, IP cameras, TCP/IP devices, etc. Ilevia Eve Pro License enables the design of custom user interface, logical operations, scenes, schedules and much more. Control and monitor your smart building with free Ilevia app for iOS and Android devices, Windows and Mac OSX desktops.
