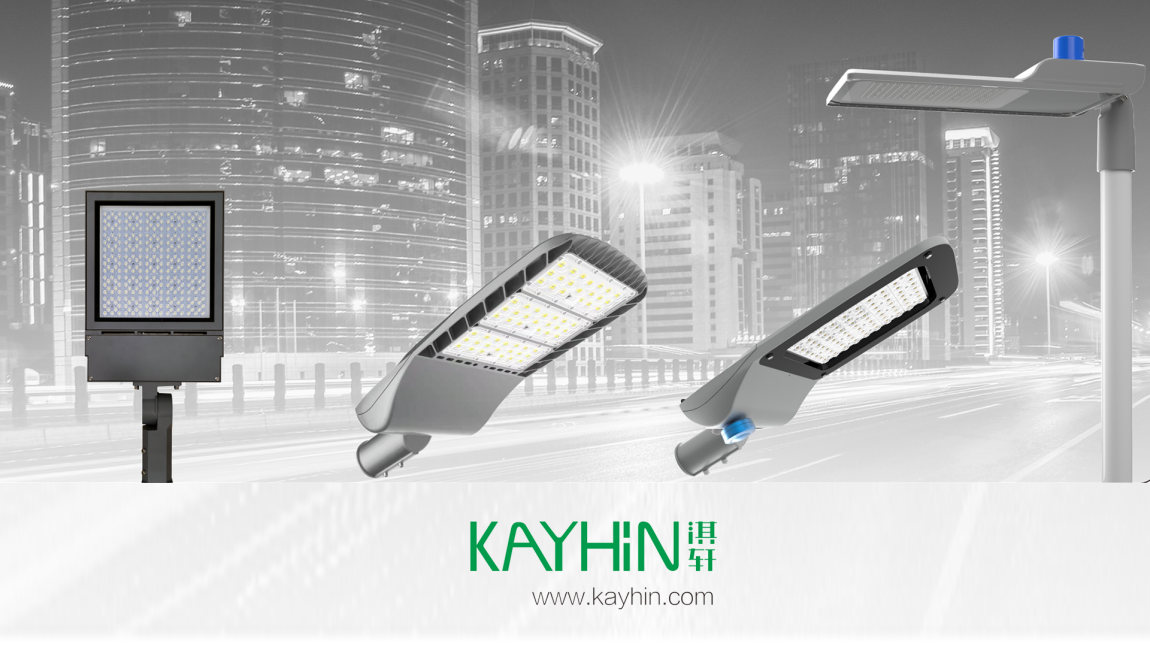

KAYHIN street light luminaires family were created to help those responsible for lighting our streets and highways succeed in their lighting design goals. Powered by the latest LED technology, and featuring innovative thermal management design,Kayhin luminairesoffers exceptional performance and value,This versatile luminaire can be tailored to the unique specifications of each project by offering multiple LED boards and wattage options.

Benefits

Compatible with a full range of lighting control systems

Up to 100,000 hour rated life

Reduces amount of wasted light

Easy to install and maintain

Improved illuminance and uniformity

Features

Versatile and expandable LED boards

Highly efficient IP66 optics

3G vibration rated

Tool-free access to electrical compartment

360 degree rotatable twist-lock photocell receptacle

Driver High power factor of 90% minimum. Electronic driver, operating range 50/60 Hz. Auto adjusting universal voltage input from 120 to 277 VAC for both application line to line or line to neutral, Class I, THD of 20% max. Driver comes with dimming compatible 0 -10 volts. The current supplying the LEDs will be reduced by the driver if the driver experiences internal overheating as a protection to the LEDs and the electrical components. Output is protected from short circuits, voltage overload and current overload. Automatic recovery after correction. Standard built in driver surge protection of 2.5kV (min)

Surge Protector Surge protector tested in accordance with ANSI/IEEE C62.45 per ANSI/IEEE C62.41.2 Scenario I Category C High Exposure 10kV/10kA waveforms for Line Ground, Line Neutral and Neutral Ground, and in accordance with U.S. DOE (Department of Energy) MSSLC (Municipal Solid State Street Lighting Consortium) model specification for LED roadway luminaires electrical immunity requirements for High Test Level 10kV / 10kA

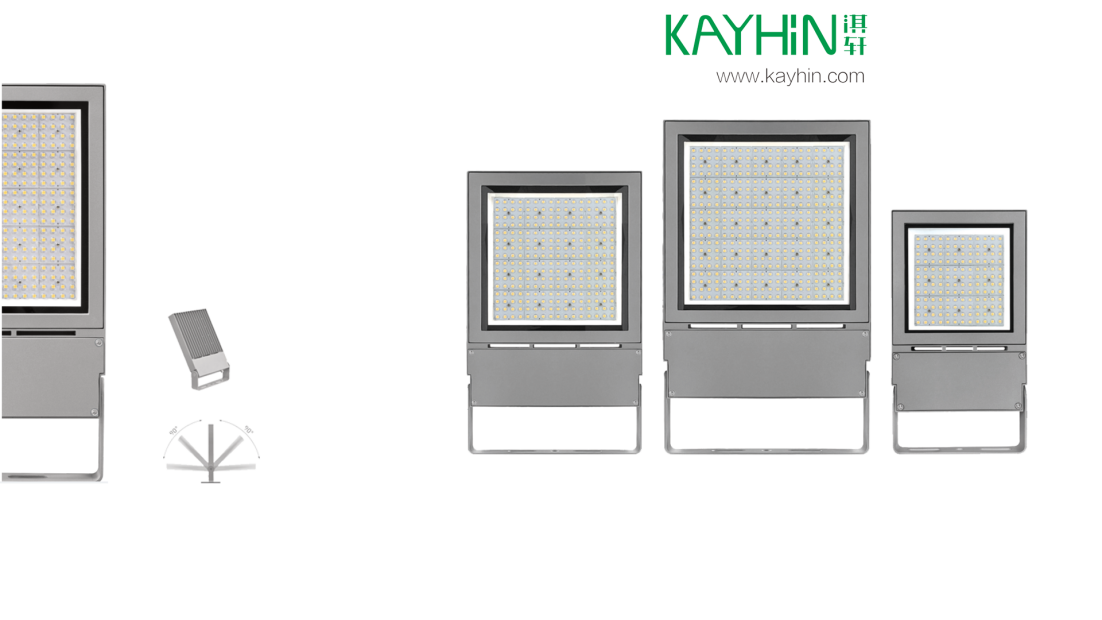

KAYHIN FL-061 series, Modular LED Floodlights ,a remarkable line of floodlights that combines innovation, performance, and aesthetic appeal.

Key features:

European Design Patent:

The KAYHIN FL-061 series floodlights are not only a symbol of cutting-edge technology but also an embodiment of style. With a European design patent, these floodlights stand out in terms of aesthetics.

Modular Free Splicing:

One of the most remarkable features of this series is its modular free splicing capability. The minimum splicing unit powers range from 50W, 100W, 200W, to 300W. Customers have the freedom to tailor the power output according to their specific needs. Options include 100W, 200W, 300W, 400W, 600W, 800W, and 900W. This flexibility allows for precise and efficient lighting solutions.

Linear and Driver Versions:

The FL-061 series offers both linear and driver versions, ensuring that you have the right product to suit your lighting requirements.

Warranty and Efficiency:

KAYHIN takes pride in the reliability of its products. With a 5 to 10-year warranty, you can trust in the durability and longevity of these floodlights. Moreover, their outstanding luminous efficiency at 150LM/W ensures that you get the most out of your energy consumption.

Versatile Driver Selection:

Choose from a range of high-quality driver brands, including MEANWELL, PHILIPS, INVENTRONICS, SOSEN, MOSOLIFUD, and OSRAM. This allows you to select the driver that best suits your project's specifications.

Dimming Options:

The FL-061 series is designed to provide even greater control over your lighting environment. It's compatible with DALI dimming, ensuring you can adjust the light output to meet changing needs.

ZAGA Compatibility:

For seamless integration into your lighting setup, these floodlights can be connected to the ZAGA system.

In summary, the KAYHIN FL-061 series modular LED floodlights offer a perfect blend of style, performance, and adaptability. With a European design patent, modular free splicing, and a range of power and driver options, these floodlights are an ideal choice for a wide range of lighting projects. Their efficiency, warranty, and compatibility features make them a top-notch lighting solution. Trust KAYHIN to illuminate your world with brilliance.

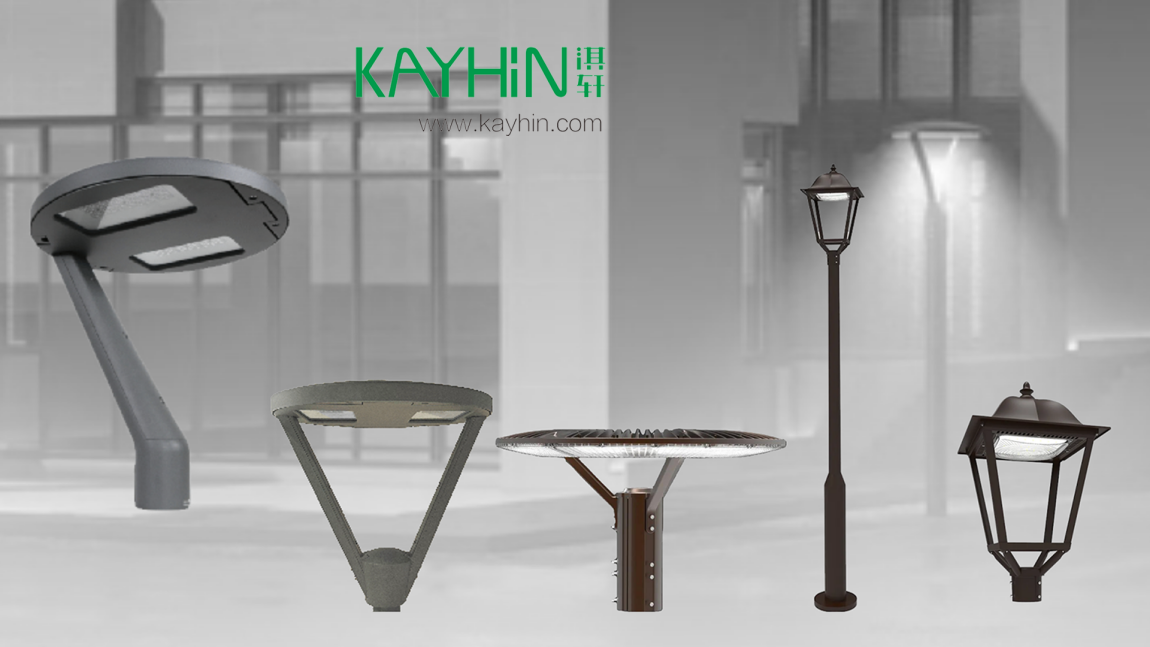

KAYHIN LED post top is compact and comfortable, with a sleek low profile design suitable for 10'-16' mounting heights. Features include low glare comfort optics, field adjustable output, twist lock receptacle with shorting cap, and an LED driver suitable for 120 volt through to 265 volt operation. The comfortable, low glare optics make this an ideal choice for pedestrian scale applications such as condominiums, hotel parking lots, parks and walkways.

Specifications

Housing

Corrosion resistant heavy duty-cast aluminum construction.

IP Rating

Luminaire rating IP65.

Vibration Resistance

1.5G Vibration rating that conforms to standards set forth by ANSI C136.31. Testing includes vibration to 1.5G acceleration in all three axes.

Electrical

Available in 120-265v. RoHS compliant. Surge protector standard. 4KV per ANSI/IEEE C62.41.2.

Each luminaire includes a 3-pin twist lock receptacle and shorting cap.

Field Adjustable Output

4-position switch allows field adjustable output to desired wattage and lumens (refer to chart).

LED Board and Array

Color temperature 3000K +/- 175, 4000K +/- 275. Minimum CRI of 70. Metal core substrate.

Optical System

Type 3 & 5 distributions available.

LED Thermal Management

The housing design allows the Luminaire to provide excellent thermal management critical to

long LED system life.

Mounting

Suitable to install over 2 3/8" O.D. - 3" O.D. x 3" tall vertical pipe tenon. Held securely in place with 8 set screws

Energy Saving Benefits

System efficacy up to 129 lms/W with significant energy savings over HID luminaires.

Listings

UL/cUL listed to the UL 1598 standard, suitable for Wet Locations. Suitable for use in ambient

from -40° to 40°C (-40° to 104°F).

Finish

Superior powder coat finish to withstand the toughest weather, textured black finish standard.

Limited Warranty

Luminaires, LED arrays, and drivers are all covered by a 5-year limited warranty.

See www.kayhin.com for details.

Dimming Control Options

Field Adjustable Wattage Selector (FAWS): Luminaire equipped with the ability to manually

adjust the wattage in the field to reduce total luminaire lumen output and light levels. Comes

pre-set to the highest position at the lumen output selected. Use chart below to estimate

reduction in lumen output desired.

Light Source:LED Light

Power: 50W 80W 100W 150W 200W 250W

Power factor/PF: 0.9

SPD:6KV 10KV 20KV

Waterproof IP Rating：IP66

Lamp Body Material: Aluminum

Power Supply: AC85-265V

LED chip brand: Philips Sanan Osram

Driver brand:MEANWELL PHILIPS INVENTRONICS SOSEN MOSOLIFUD OSRAM

Optional control:dimmer switch sensor photocell

Beam angle:15 30 60 90 120 150 90*90 150*150 142*52 150*75 °

Samples: available

Lead time:30 days

This product offers a multitude of power options, including 50W, 80W, 100W, 150W, 200W,

and 250W,.

Ensuring you have the perfect lighting solution for every application.With customizable

symmetrical and asymmetrical light distribution,

 a wide range of beam angles, exceptional heat dissipation, and a lifespan

 of 5-10 years, our LED Floodlights are engineered to exceed your expectations.

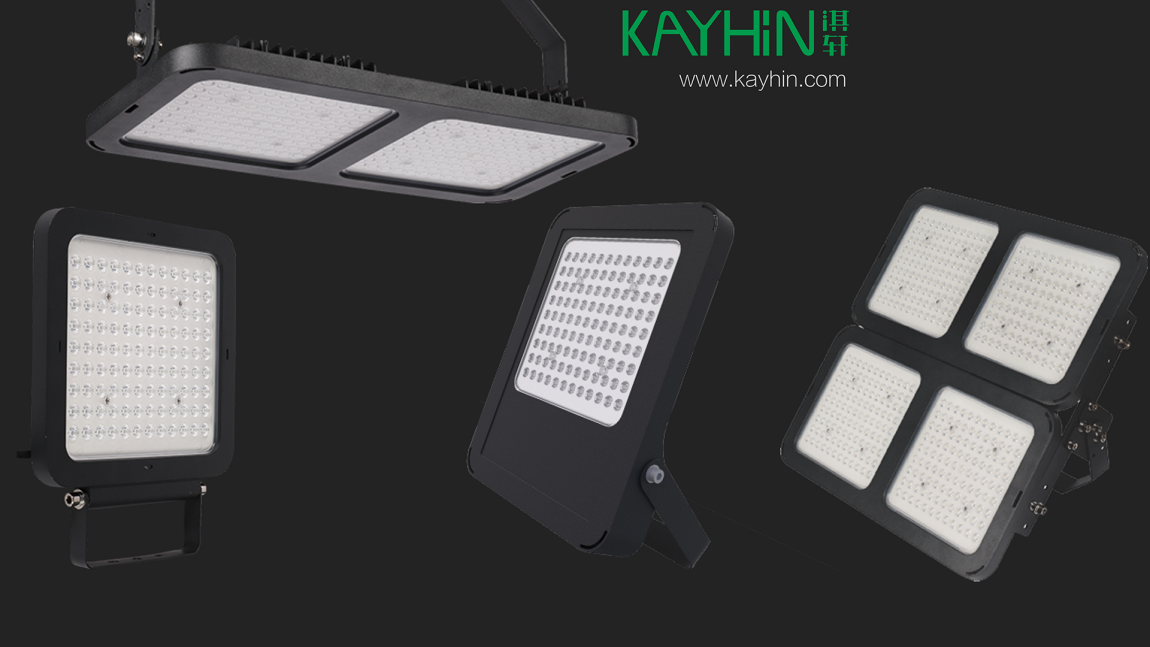

This product offers a multitude of power options, including 50W, 80W, 100W, 150W, 200W, and 250W, ensuring you have the perfect lighting solution for every application. With customizable symmetrical and asymmetrical light distribution, a wide range of beam angles, exceptional heat dissipation, and a lifespan of 5-10 years, our LED Floodlights are engineered to exceed your expectations.

Key Features:

1. Multiple Power Options: Choose from 50W, 80W, 100W, 150W, 200W, and 250W models to meet your specific lighting requirements.

2. Adjustable Light Distribution: These floodlights provide both symmetrical and asymmetrical lighting options, allowing you to tailor the beam angle to your needs.

3. Versatile Beam Angles: With a variety of beam angle options, you can direct light precisely where it's needed, ensuring optimal illumination for various applications.

4. Excellent Heat Dissipation: Our LED Floodlights are designed with advanced heat dissipation technology, ensuring long-lasting performance and efficiency.

5. Long Lifespan: With a lifespan of 5-10 years, our LED Floodlights provide reliable and maintenance-free lighting for an extended period.

6. Certified Quality: This product boasts European design patents and is certified by TUV with CE, LVD, EMC certificates, and comprehensive testing reports, assuring top-notch quality and safety standards.

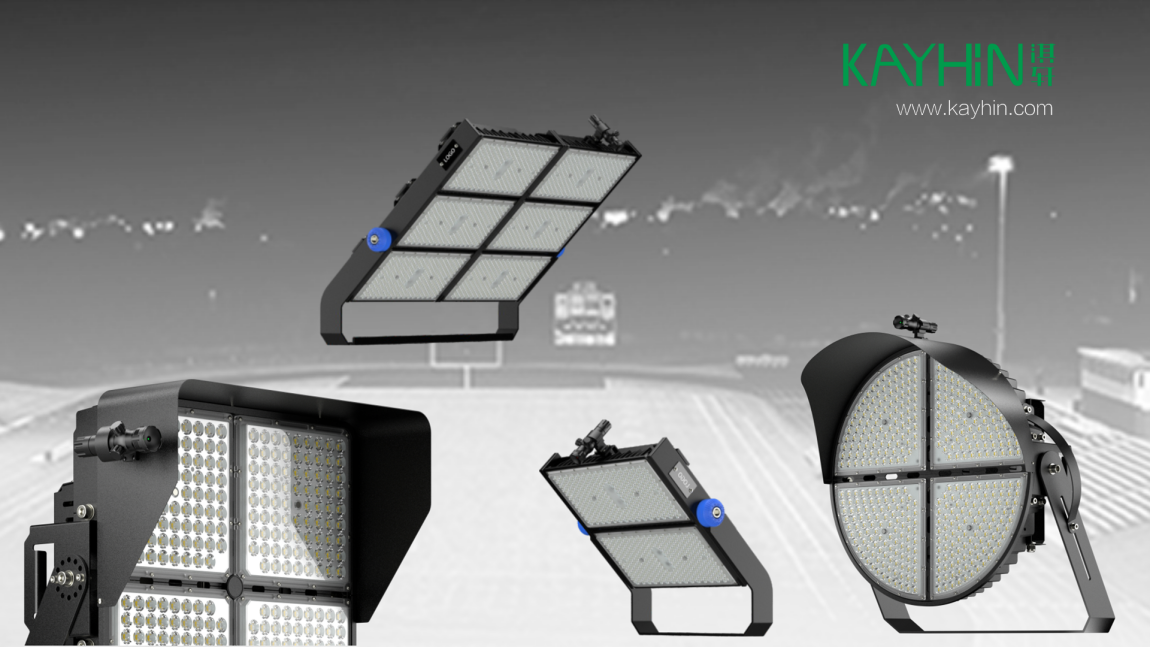

KAHIN offers high-quality and high-performance LED Stadium lights with the following selling points and features:

-High lumen efficient reach to 150lm/w.

-MeanWell driver provide superior performance,separate driver box design, better for heat dissipation and maintenance.

-Various beam angle 15°/30°/45°/60° are available for optional, more uniform light distribution. Lamp cap available, to avoid the light glare.

-IP67 rating is applicable to outdoor environment.

-Working environment in -35ºC to 55ºC.

-CE/RoHS/LM80/LM79/IES file are available.

-More than 50,000 hours lifespan with 5 years warranty.

.Power option: 500W, 1000W, 1600W,2000W

.With MW XLG driver, AC85-265V

.With PHILIPS LUMILEDS 3030 chips

.High lumens: 150lm/w

. Warranty: 3 years or 5 years

.Certification/Approval: TUV CE CB SAA LVD EMC ETL ROHS certified.

.Protection class I or II

.IP66&IK08

.Tool-less opening design

.Die-casting housing and Tempered glass

.Wide choice of optics for different applications

.Smart Control: 1-10V dimming, DALI control, Photocell, Motion sensor
