Intended for installation in environments that require IP 66 protection. Integrated knockouts for mounting on base. Intended for direct installation on the surface without having to support with insulating pad. Perfect sealing of cables and pipes, 8x knockouts with Ø20-32 mm. The stainless screws for lid installation and caps for the heads of the mounting screws are included in the package. Option to install special terminal plate. Integrated O-ring to install cable glands. Protected by Utility model trademark.

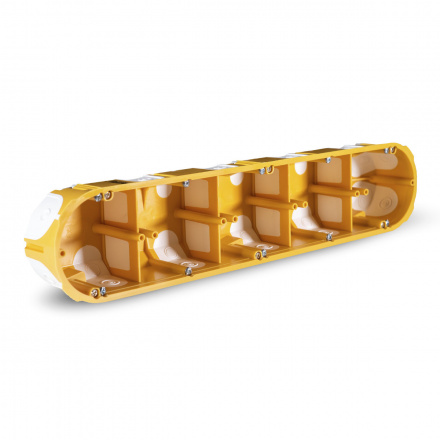

For modern installations in combined frames. Highly rigid design makes the device installation simpler. Inlet openings made of flexible material. Air proofed even with inserted cable or pipe. Prevents airflow through the installation. Suitable for low energy and passive houses. Five tips on the external side indicate the drilling points. Mounting bolts feature double-threaded design for quick installation. Installation box in the hole is made by tightening mounting screws. Cable installation is done by removing (breaking) pre-pressed membrane inlet and followed by inserting the cable possibly pipe. Protected by European industrial design trademark. The IP30 protection a box fitted with an instrument with protection a higher or equal IP30 protection. When mounting, it is not necessary to countersink the plasterboard edge.

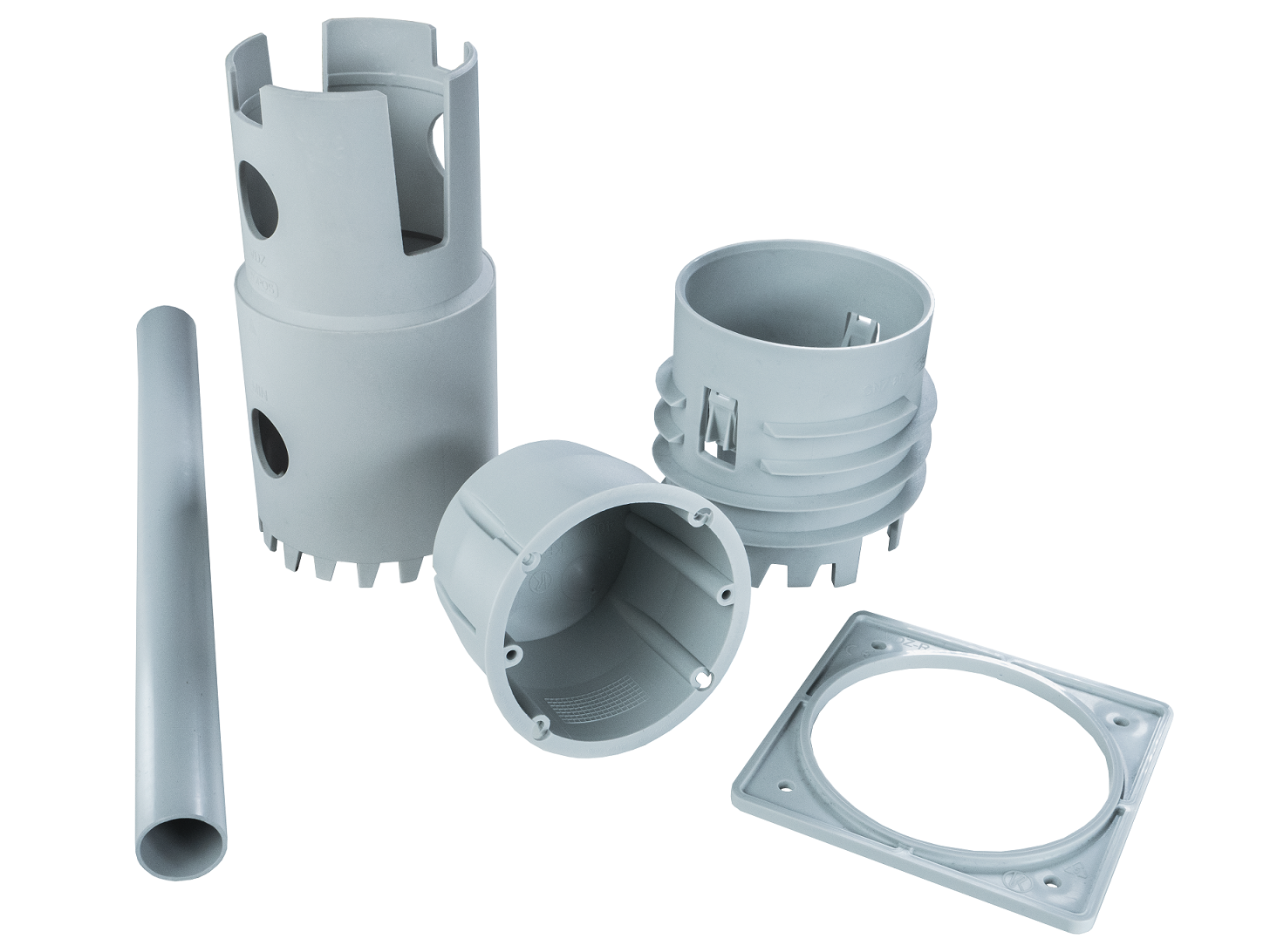

For the installation of devices in insulated facades of buildings from an insulation layer thickness of 80 mm. The box is suitable for facade polystyrenes and mineral wool. The box can also be mounted in finally made insulated facades. The package includes a manual drilling, box carrier, wiring box, assembly instructions and appropriate screws. To install more boxes, it is possible to order one KEFZ 80/VDZ set and hereinafter just KEFZ 80. Robust construction.

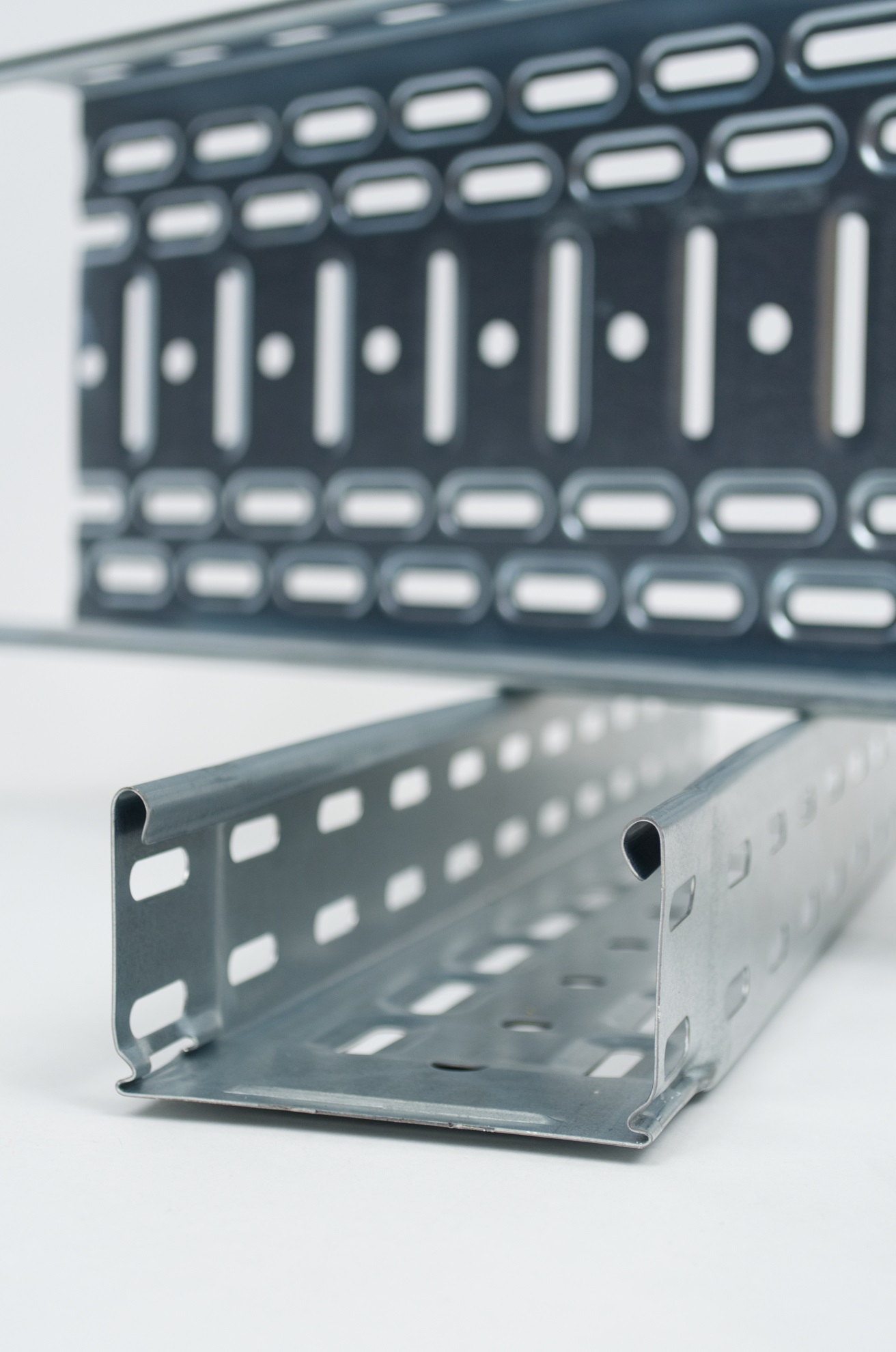

Cable trays with integrated coupling

integrated coupling

many accessories

side height 35, 50, 60, 85, 100, 110 mm

width 50 – 600 mm

sheet thickness 0,75 – 1,5 mm

Designed for installation of standard and modular devices 45 x 45 or 45 x 22,5 mm. KOPOS recommends installing QUADRO instruments, tailor-made for KOPOS products. The installation devices from other manufacturers is possible e.g.  with maximal depth of 52 mm. It is necessary to use the device box KP 80 PK or KP PK for the assembly of classic devices. The closed box KP 80 PK is snapped into the body of the channel and the lid is attached to the box. The open device box KP PK is snapped into the bottom of the channel and the lid must be drilled with a VPT 64 drill. Maximum number of modular instruments placed next to each other is 3 pcs. When installing multiple instruments next to each, it is necessary to put about 5 cm wide piece of lid after 3 pieces to fasten them. There is no need to use any covers for the final installation of modular device. The lid is cut to the desired length and inserted next to the instrument.
