The 360° detection area under the sensor ensures immediate detection of road users within a radius of 10 meters. The sensor is suitable for use in traffic areas where relatively slow speeds are to be expected. For example, parking lots, footpaths, parks or cycle paths. It can also be used in intersections, where a compressed detection area is an advantage.

With the “solo-line”, we also offer the option of integrating our sensors into D4i-compatible light management systems and thus want to make demand-dependent lighting possible for all interested parties.

lix.one SLC is our compact plug-and-play system and offers radar-based motion detection of pedestrians, bikes and vehicles with integrated dimming control and wireless networking from esave. Simple attachment at the downward-facing Zhaga base directly on the luminaire makes dynamic lighting control in public areas particularly easy.

All advantages at a glance:

• Two radar sensors for detecting moving objects
• Reliable long range detection, even at high and low temperatures
• esave integrated: easy configuration via app & USB dongle
• Optional cloud-based web interface for configuration, monitoring and statistics
• LED driver control via DALI
• Minimal installation effort (plug according to Zhaga book 18 ed. 2)
• Reduction of energy consumption, CO2 emissions and light pollution
• Standard-compliant light whenever needed
• Increased lifetime of LED modules and drivers

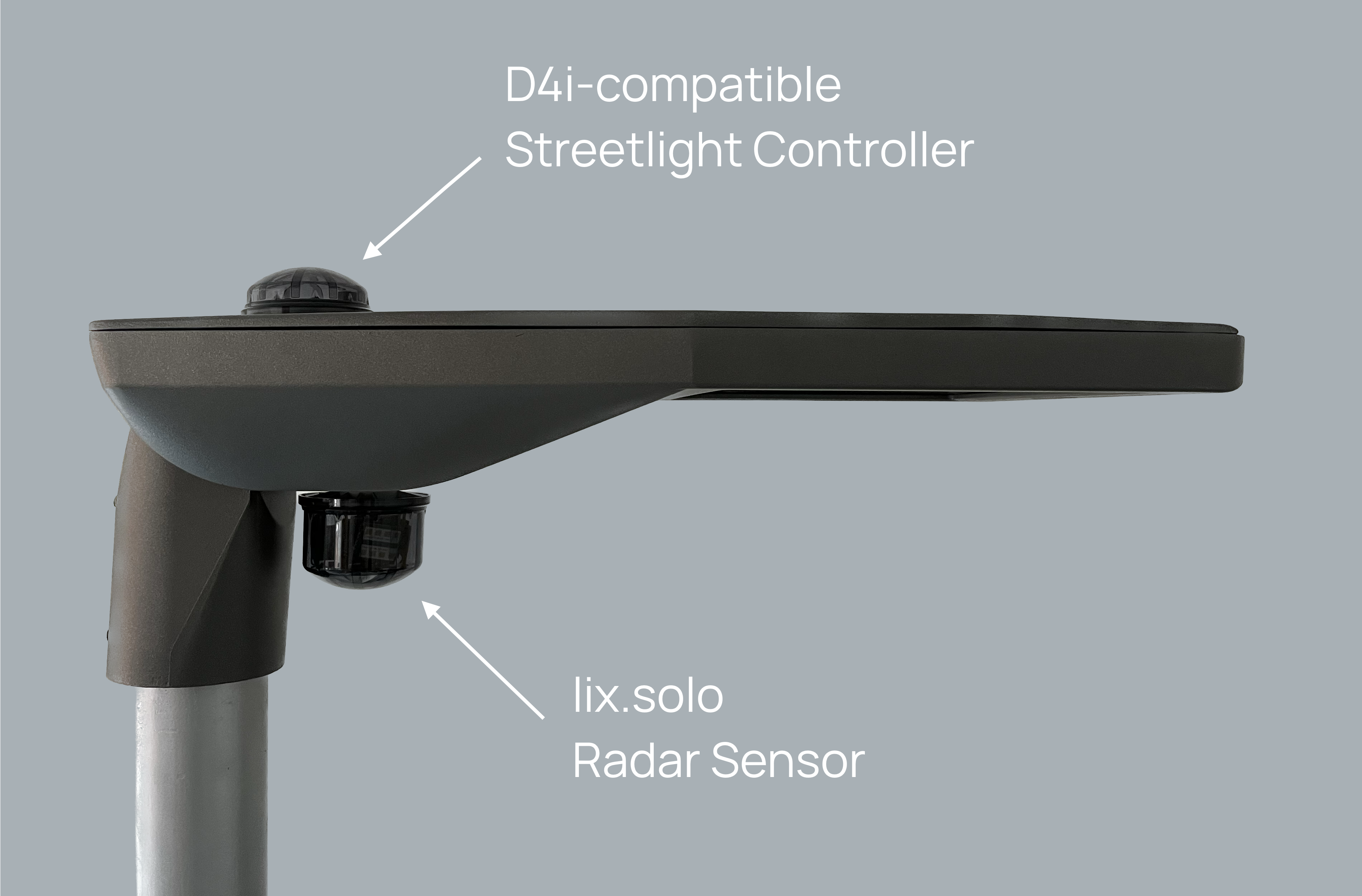

lix.solo as a D4i-compatible radar sensor can be used in any light management system to detect movement of objects. Mounting is simple via the downward-facing Zhaga base directly on the luminaire.

As a Type B device according to DALI Part 351, the use of a lighting management system is a prerequisite for the use of lix.solo. Detected movements are transmitted to the luminaire controller via the DALI protocol, where the luminaire is processed and controlled.

The focus of lix.plus is on the qualitative detection of road users. The detection area of the traffic is directed diagonally forwards and covers the width of two lanes. The reason for this is the function for distinguishing objects. In a further step, it is possible to count these objects. This makes it possible to adapt the lighting to the traffic volume and the road users. It is also possible to evaluate the data, which represents the first step towards traffic management.

You also need a light management system to control the luminaire intelligently and to adequately network the luminaires with each other. With the “SLC-Line”, Lixtec offers the option of full integration into the proven esave solution.

With the “solo-line”, we also offer the option of integrating our sensors into D4i-compatible light management systems and thus want to make demand-dependent lighting possible for all interested parties.

The 360° detection area under the sensor ensures immediate detection of road users within a radius of 10 meters. The sensor is suitable for use in traffic areas where relatively slow speeds are to be expected. For example, parking lots, footpaths, parks or cycle paths. It can also be used in intersections, where a compressed detection area is an advantage.

You also need a light management system to control the luminaire intelligently and to adequately network the luminaires with each other. With the “SLC-Line”, Lixtec offers the option of full integration into the proven esave solution.
