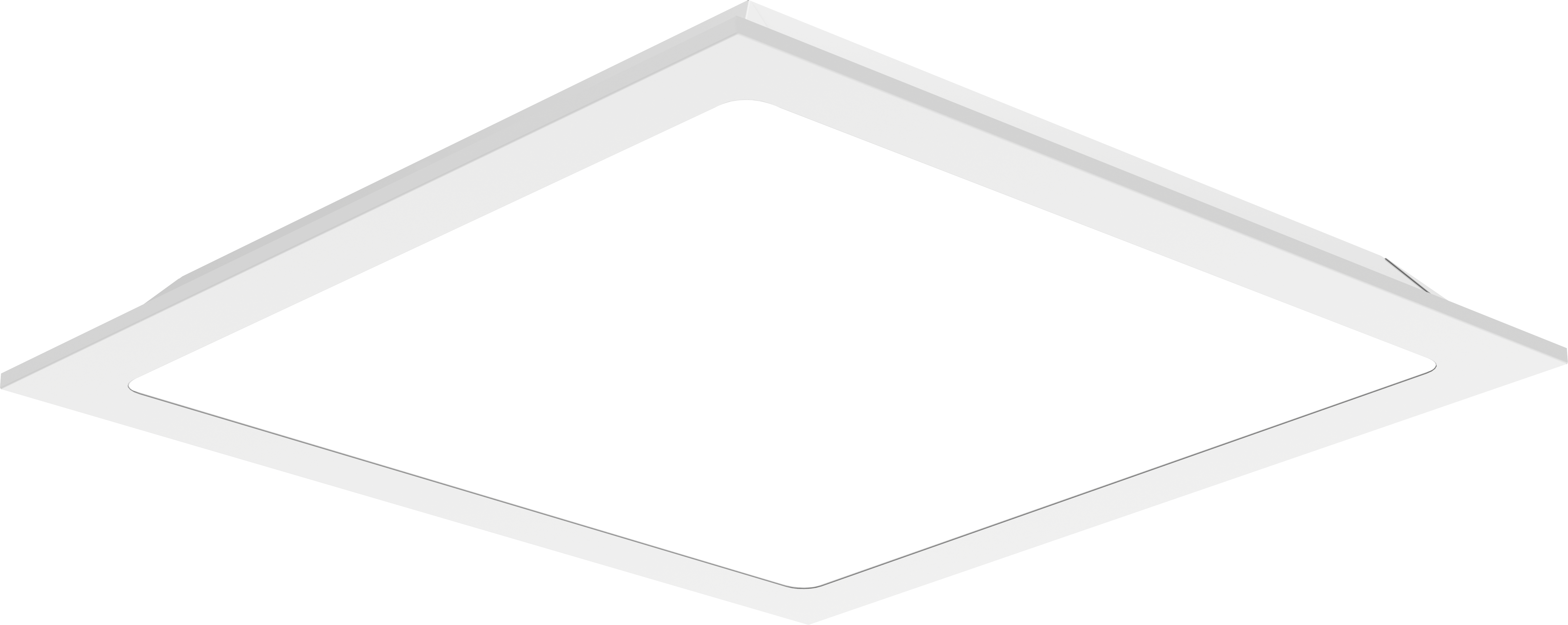

ESTEE-FAVOR LED Panel Lighting Luminaire

Optional dimensions : 30x30, 30x60, 30x120, 60x60, 60x120

198-264V / 50-60 Hz energy input.

DKP 0,5mm sheet body

Long life and durability with high quality raw material combined.

Impact resistance of housing IK02

2 KV protection standard.

IP40 protection against dust and moisture.

Suitable for use of 2-4 meters height recessed.

Optical 105° angle design.

High Efficient UGR: <19 Opal Diffuser

L70> 50.000 Hours Life Mid Power LED

Up to 120 lm/W at 35W.

According to demands optional Ral codes.

Optional 0-10V, DALI, Phase-cut can be made.

Compliant Standards: IEC EN60598-1, IEC EN60598-2-1, IEC EN60598-2-2, IEC EN62031, IEC EN 62778

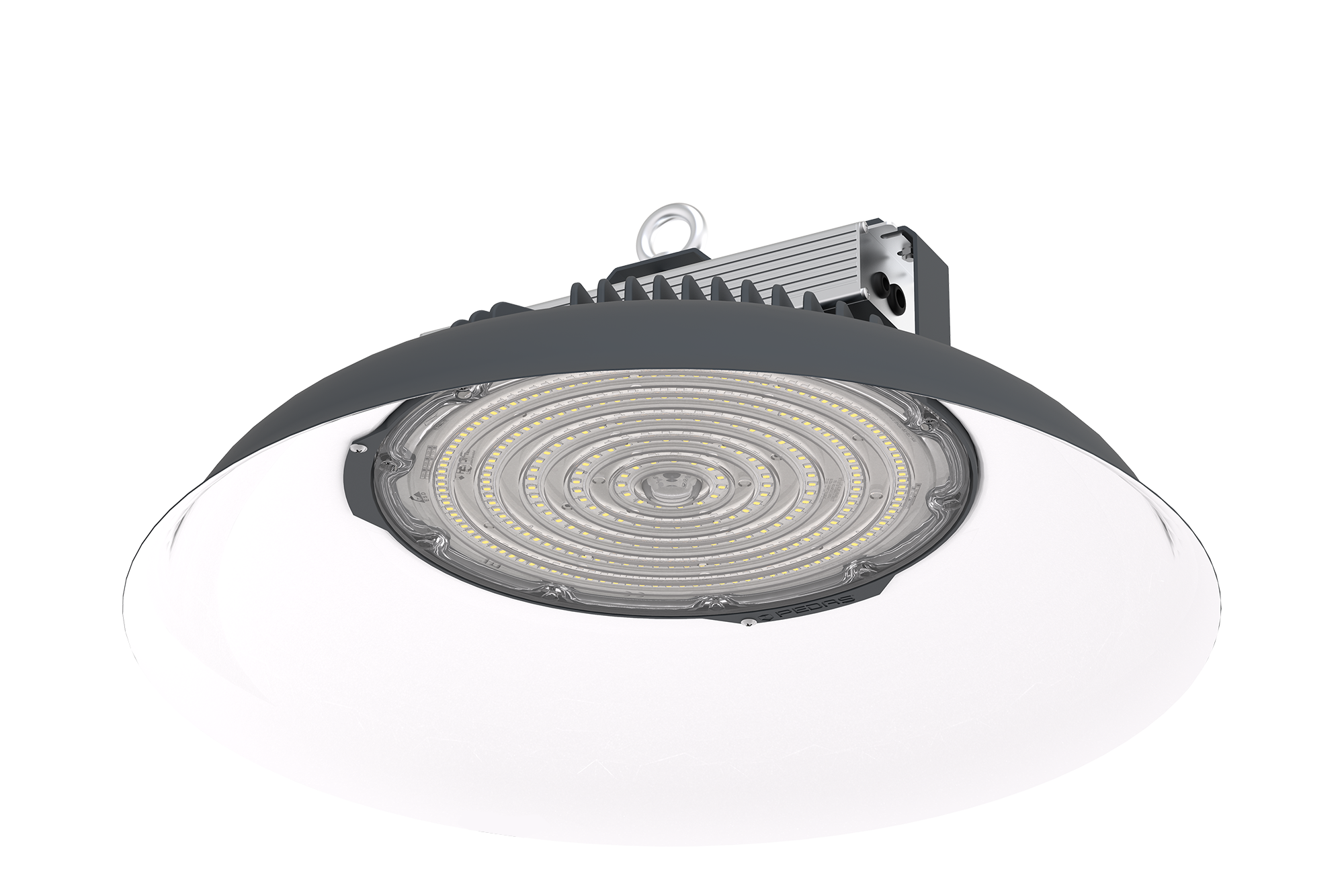

RONDA High & Lowbay  Lighting Luminaire

High & Low Bay industrial lighting luminaire.

198-264VAC / 50-60 Hz energy input.

Aluminium Injection body.

Long life and durability with high quality raw material.

Impact resistance of housing IK10, of PC glass IK08

6 KV protection. Optional 10KV surge protector

can be integrated.

IP66 protection against dust and moisture.

Suitable for use of 8-12 and 12-16 meters height.

Optional 30,60 and 90 ° optical design.

Up to 140 lm/W at 80W.

According to demands optional Ral codes.

Optional 1-10V, DALI can be made.

Compliant Standards: IEC EN60598-1, IEC EN60598-2-1, IEC EN62031, IEC EN 62778

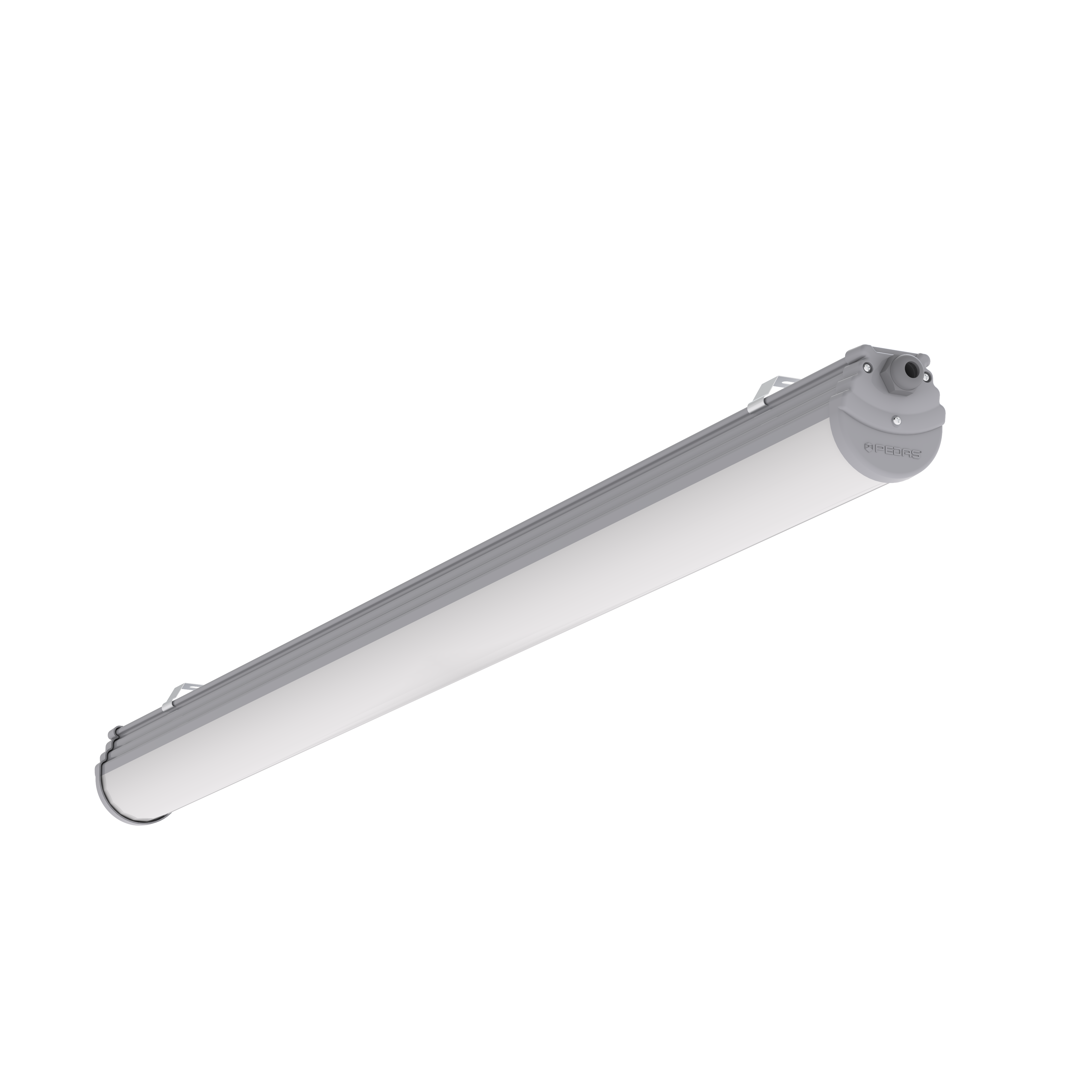

HOBBY Polycarbonate Waterproof Lighting Luminaire.

Waterproof industrial lighting luminaire.

198-264VAC / 50-60 Hz energy input.

Polycarbonate Extrusion body.

Long life and durability with high quality raw material.

Impact resistance of housing IK10

2-4 KV protection standard. Optional 10KV surge protector

can be integrated.

IP65 protection against dust and moisture.

Suitable for use of 2-4 meters height.

Optical design suitable for large area lighting.

Up to 115 lm/W at 30W.

According to demands optional Ral codes.

Optionalt 1-10V, DALI, Phase-cut can be made.

Compliant Standards: IEC EN60598-1, IEC EN60598-2-1, IEC EN62031, IEC EN 62778

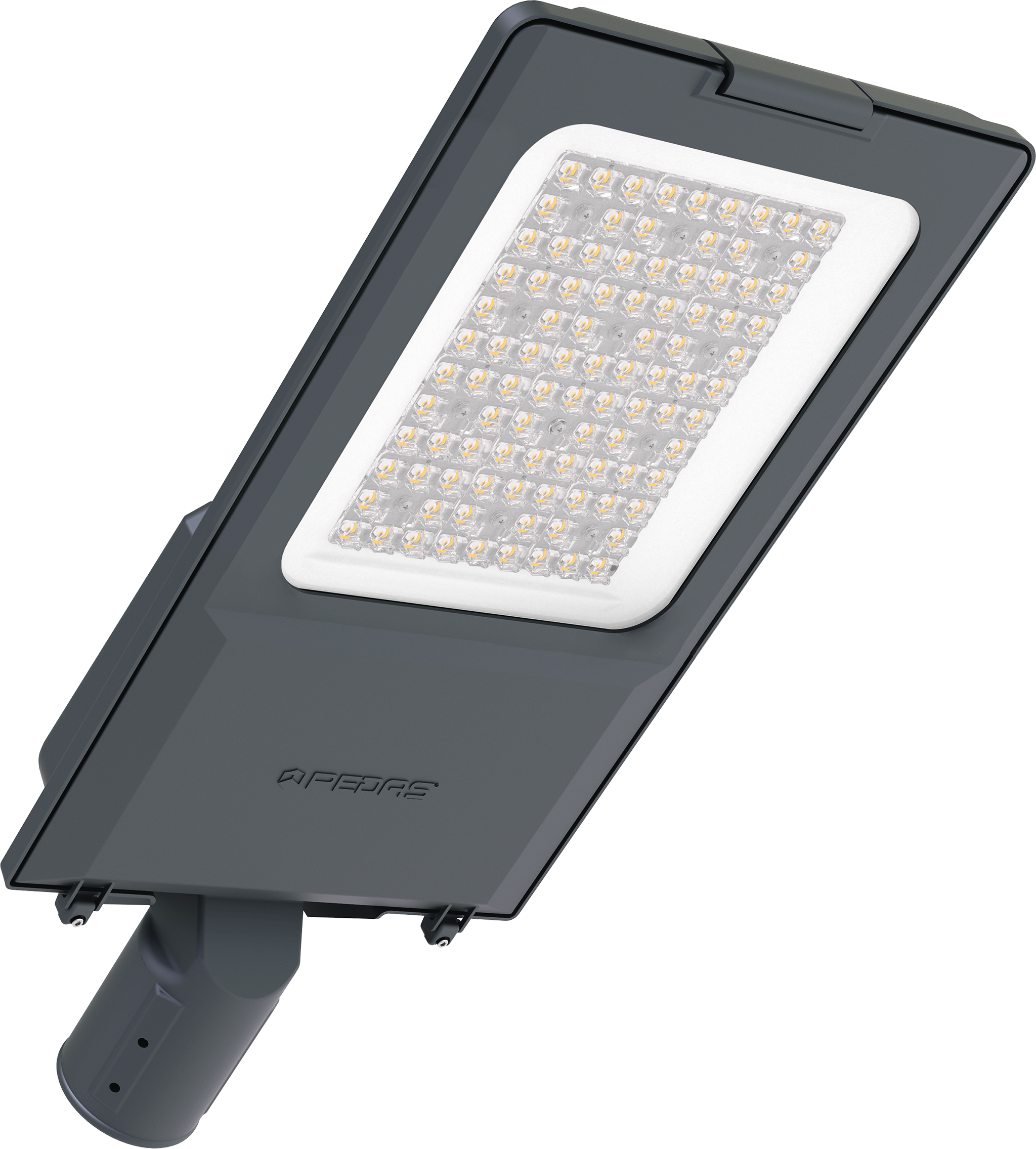

Santiago XL Street & Road Lighting Luminaire

Santiago S Model : 30 - 70W

Santiago M Model : 80 - 110W

Santiago L Model : 120 - 150W

Santiago XL Model : 160 - 220W

Street & road lighting luminaire

198-264VAC / 50-60 Hz energy input.

Aluminum injection body.

Long life and durability with high quality raw material.

Impact resistance of housing IK10, of glass IK08

6 KV protection. Optional 10KV surge protector can be integrated.

IP66 protection against dust and moisture.

Suitable for use of 8-15 meters height poles.

Optical design in accordance with M1-M5 standard.

Up to 150 lm/W 80W

According to demands optional Ral codes.

Optional 1-10V, DALI, AstroDIM can be made.

Compliant Standards: IEC EN60598-1, IEC EN60598-2-3, IEC EN62031, IEC EN 62778

CASUAL  Flood Lighting Luminaire

CASUAL S: 20-80W

CASUAL M: 90-150W

CASUAL L: 160-300W

Flood light luminaire.

198-264V / 50-60 Hz energy input.

Aluminum injection body.

Long life and durability with high quality raw material combined.

Impact resistance of housing IK10, of PC glass IK08

6 KV protection standard. Optional 10KV surge protector

can be integrated.

IP66 protection against dust and moisture.

Suitable for use of 10-20 meters height masts.

Optional 30,60 and 90° optical design.

Up to 140 lm/ W at 160W.

According to demands optional Ral codes.

Optional 1-10V, DALI can be made.

Compliant Standards: IEC EN60598-1, IEC EN60598-2-5, IEC EN62031, IEC EN 62778
