City lighting is the focus of the outdoor lighting field in recent years, it is one of the important symbols reflecting the quality of a city's economic, cultural, social and living environment, the city landmark building façade and landscape lighting together to construct a gorgeous city night landscape, making people's life better.

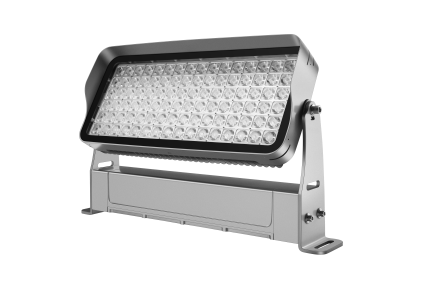

SL1135O is a high light intensity, high power full color gamut LED flood light, designed for building facade and long distance light casting, it is the redefinition of LED flood light in optics and color science by Coretronic. Characterized by precise light distribution and full color gamut, with newly developed Superhigh optical architecture and TIR optical lens, it solves optical problems with matrix thinking from the basic principle of light. For the first time, the TIR solution is used to achieve a beam angle of 1.5 degrees, K value of up to 500LX or more, and large-scale mass production. Changed the previous way to achieve accurate beam by multiple sets of convex lenses to shade or cut the light, in the ultra-high-rise buildings and long-distance light casting to meet the demand comfortably, without wasting light. Every advancement in light control brings improvement in electro-optical conversion efficiency, and the highest energy saving in project application is more than 50%, practicing the dual-carbon goal together with customers.
SL1135O is equipped with CoreTech's self-developed RGBWCLA 7in1 LED chip, with up to 240% REC709 color gamut coverage, presenting colors close to the maximum range perceivable by the human eye. Supporting 1.5 degrees to 120 degrees accurate light distribution, dozens of lens interchangeable, without changing the product structure, can meet the low, medium and high-rise buildings or ultra-long-distance light projection needs. It also supports Dali, 0-10V, phase dimming and DMX512 control, which can provide personalized and diversified light color system for cities on demand.
Through long-term research on outdoor lighting, CoreTech's design team has designed a simple teardrop shaped body for SL1135O, with wind resistance as low as 0.18. The internal and external structure of one-piece die-casting + phase-change liquid-cooling, and the liquid-cooled heat pipe's thermal conductivity of more than 5000 gives it excellent heat dissipation capability, which can keep the temperature difference of the LEDs within 0.2 degrees, to ensure excellent white light quality and color output. It also indirectly extends the service life of the product and reduces the difficulty of subsequent cleaning and maintenance.
Lighting is people-oriented, SL1135O adopts an integrated outer anti-glare cover and built-in round hole grille, which can achieve good glare control and also makes the product shape more simple and compact, thus maintaining the visual integrity and blending with the environment.
