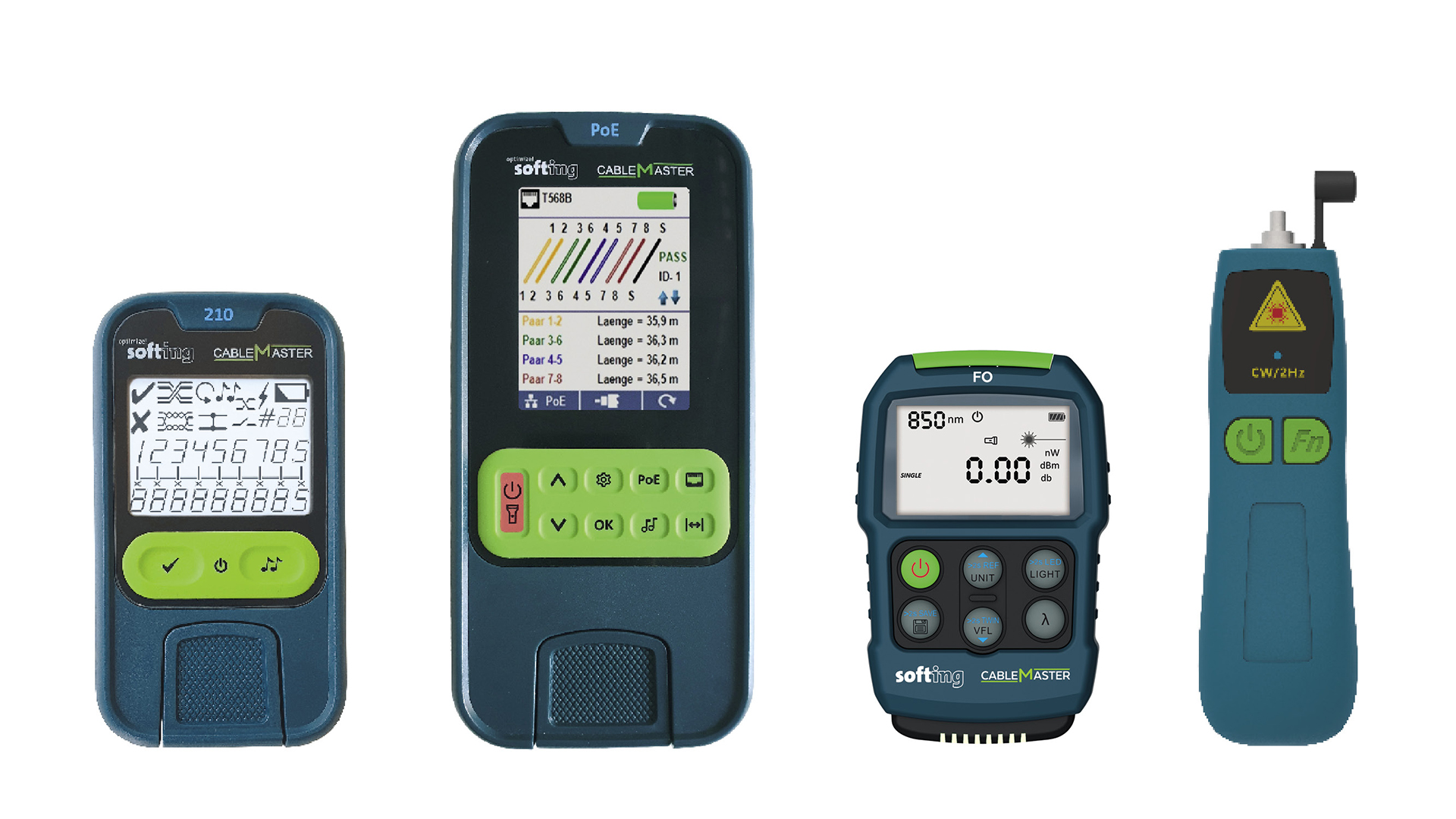

The CableMaster series offers various solutions to problems that can occur with copper cabling or network connections. Despite recent developments in fiber optic cabling technology, copper is still the most common medium that network installers and system administrators deal with on a daily basis. The CableMaster series is designed to be as simple and user-friendly as possible to help technicians identify complicated copper cabling faults and verify necessary network requirements. From simple cable mapping to comprehensive troubleshooting, the CableMaster Series offers solutions for every budget.

More information here: https://itnetworks.softing.com/cm-serie

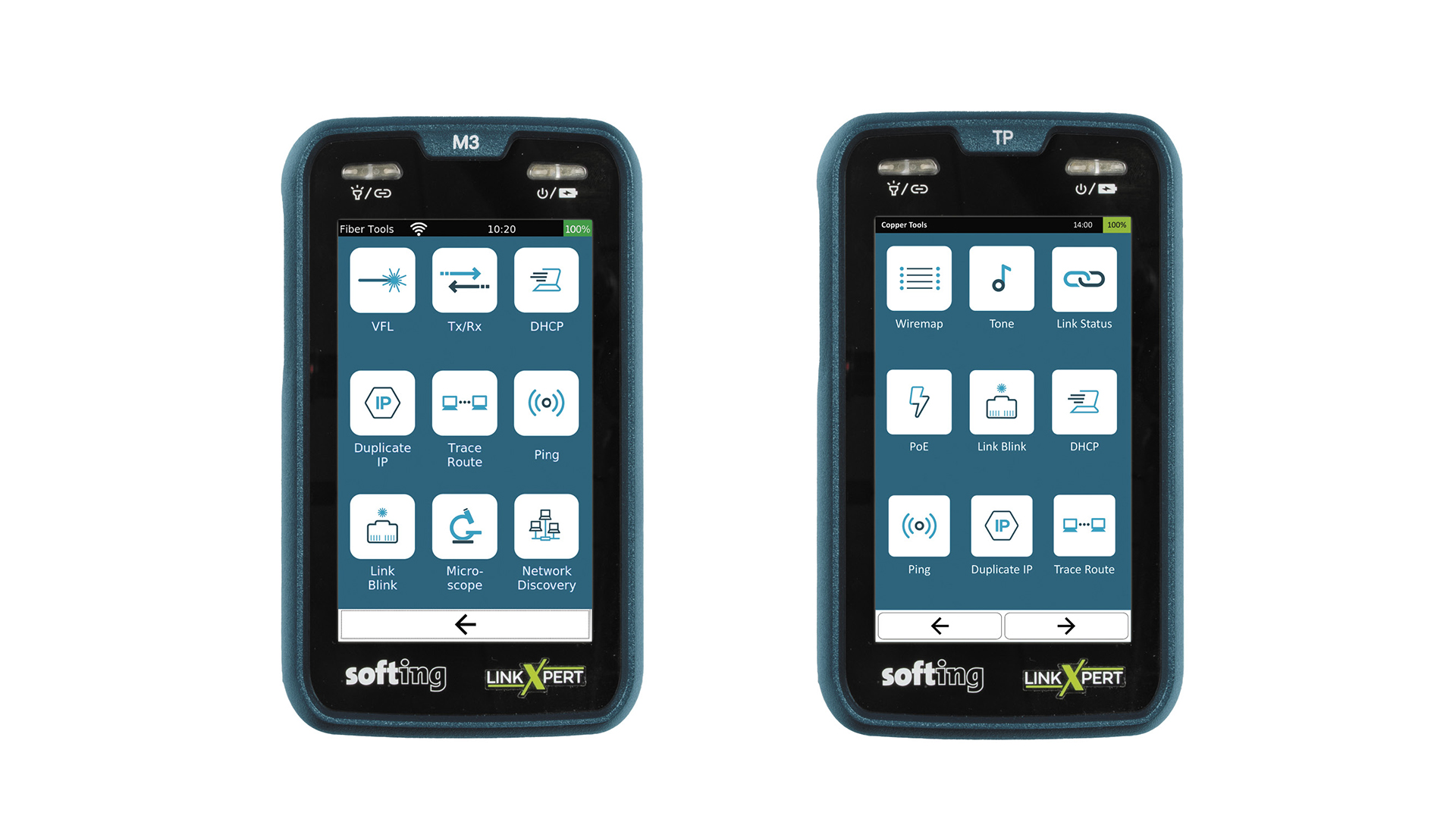

LinkXpert TP - cabling tester with color display for network, telephone and coaxial cables with additional simple active test functions and PoE++ load test and documentation on PCs. The LinkXpert TP is a professional cabling tester for testing the correct wiring including length determination via TDR and split-pair detection. The results can be stored and processed for documentation using PC software. In addition, the LinkXpert TP offers extensive troubleshooting functions such as cable tracing, link detection up to 1Gbits/s, PoE++ tests and outlet assignment via mapper remote terminations. The LinkXpert TP is the ideal cable tester for professional installers and network operators who need to test RJ45 and coaxial cabling and document correct wiring and cable lengths in measurement reports.

LinkXpert M3 - cabling and network tester up to 10 Gbit/s for copper, fiber and WLAN networks with extended active and PoE++ test functions with documentation on PCs. The LinkXpert M3 is a professional tester for copper, fiber and WLAN networks. On copper it determines the wiring diagram and via TDR the cable lengths with distance to the fault. On copper, fiber and WLAN it connects to networks and provides network diagnostic functions. The results can be stored and processed for documentation using PC software. Network diagnostics include troubleshooting functions such as link detection up to 10 Gbit/s, ping, network discovery, PoE++ testing and more. The LinkXpert M3 is the ideal tool for professional installers and network operators who need to perform tests on all 3 media - copper, fiber and WLAN.

The WireXpert series - Four models to choose from

The WireXpert series is a product family of extremely versatile measuring instruments that makes it possible to certify cabling systems with the highest demands. The modular concept and the unique licensing system make it possible to adapt the WireXpert exactly to the requirements and the budget. A cost-effective start with the WireXpert 500 and later upgrades is just as possible as a direct start with the premium model WireXpert 4500. The devices of the WireXpert series are versatile and suitable for use in office environments, industrial environments, laboratories and data centers.

WireXpert 500: The affordable entry-level model into the WireXpert measurement world, upgradeable for fiber or copper measurements (up to Cat 8).

WireXpert 500-PLUS: The combination model of the WireXpert series. For copper measurements (Cat 6A) and fiber optic measurements.
Upgradeable up to Cat 8

WireXpert 500 - Industrial Kit: The perfect measurement solution for Industrial Ethernet cabling including RJ45 and M12 measurement cables.

WireXpert 4500: The flagship of the WireXpert series:For fiber and copper measurements up to Cat 8.

WireXpert 4500-PRO: The WireXpert with measurement adapter for optional DCRU measurement.

Application areas:

Tertiary cabling:

• Cat 5 - 7A, Class D to Class FA
• Copper patch cable tests
• Coaxial cable test

Backbone

• Singlemode
• Multimode

Data Center

• Cat 8 - Class I & II 1 - 2000 MHz

Industrial Ethernet cabling

• M12 D- and X-coded

Laboratory

• Examinations of cables and components with Vector Network Analyzer (VNA) adapter.

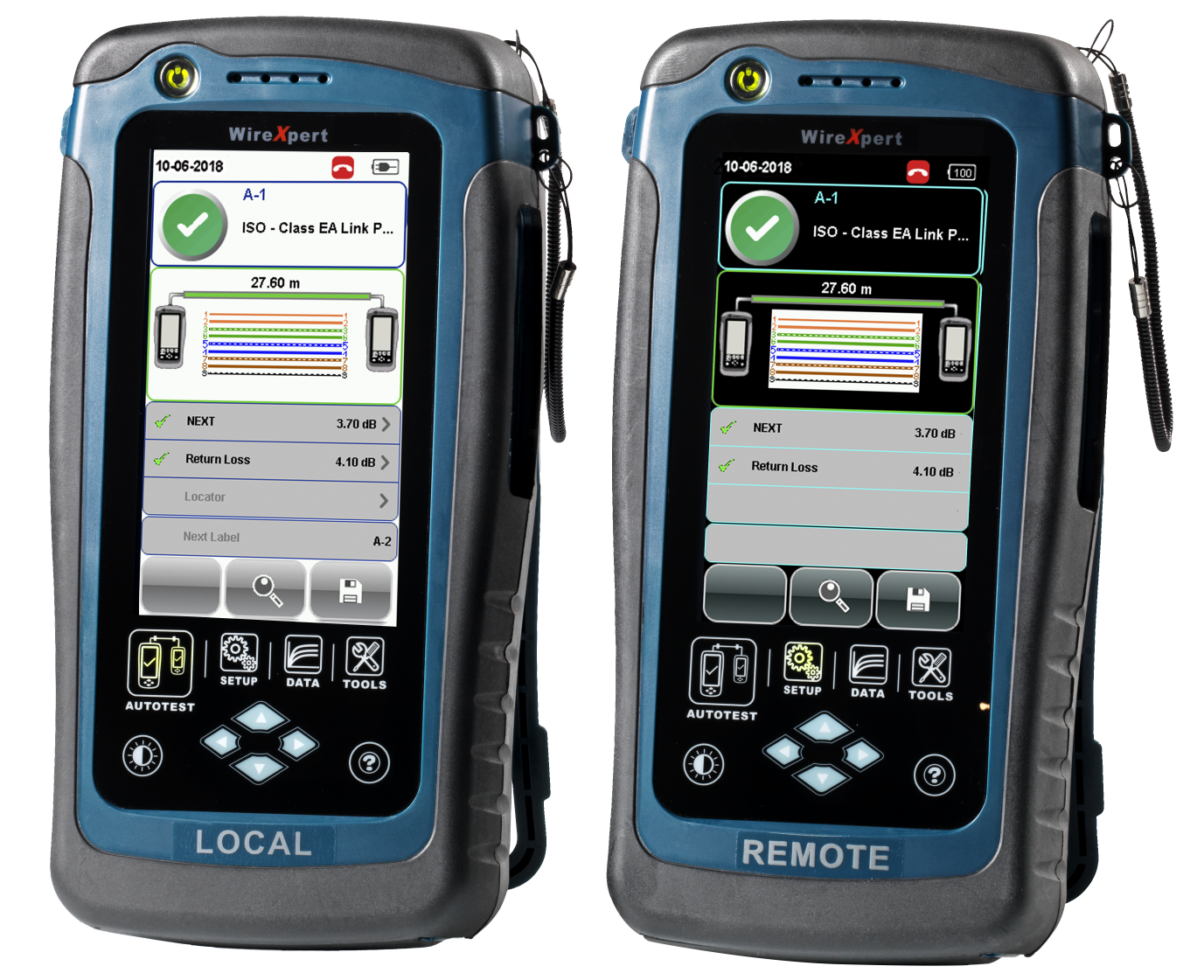

Dual Control System (DCS™) - Convenient and all in view:

All devices of the WireXpert series feature the unique Dual Control System, meaning that both the local and the remote device are equipped with a large color LCD screen. On the one hand, this makes measurement series more efficient, whether alone or in a team, and considerably shortens travel times. On the other hand, the Dual Control System facilitates troubleshooting on the remote unit.

Project management and more

• eXport Cloud Enterprise: the cloud on your own network for secure exchange of measurement data
• List-based testing: for uniform designation of cable routes
• eXport Software: the central management of measurement results including report generation and complete documentation

Versatile measurement device series for certifications up to 2500 MHz

• For all standards: Class D /E / EA / F / FA, Cat 5 / 5e / 6 / 6A and the new standards Cat 8 (TIA) and Class I & II (ISO)
• Recommended by cable manufacturers worldwide
• All major measurement modules available: Patchcord, Industrial Ethernet, Coax, Fiber Optic
• Support of extended certification for optical fibers at 850/1300 nm (multimode) and 1310/1550 nm (singlemode)
• PC software eXport for easy creation of comprehensive reports and documentation

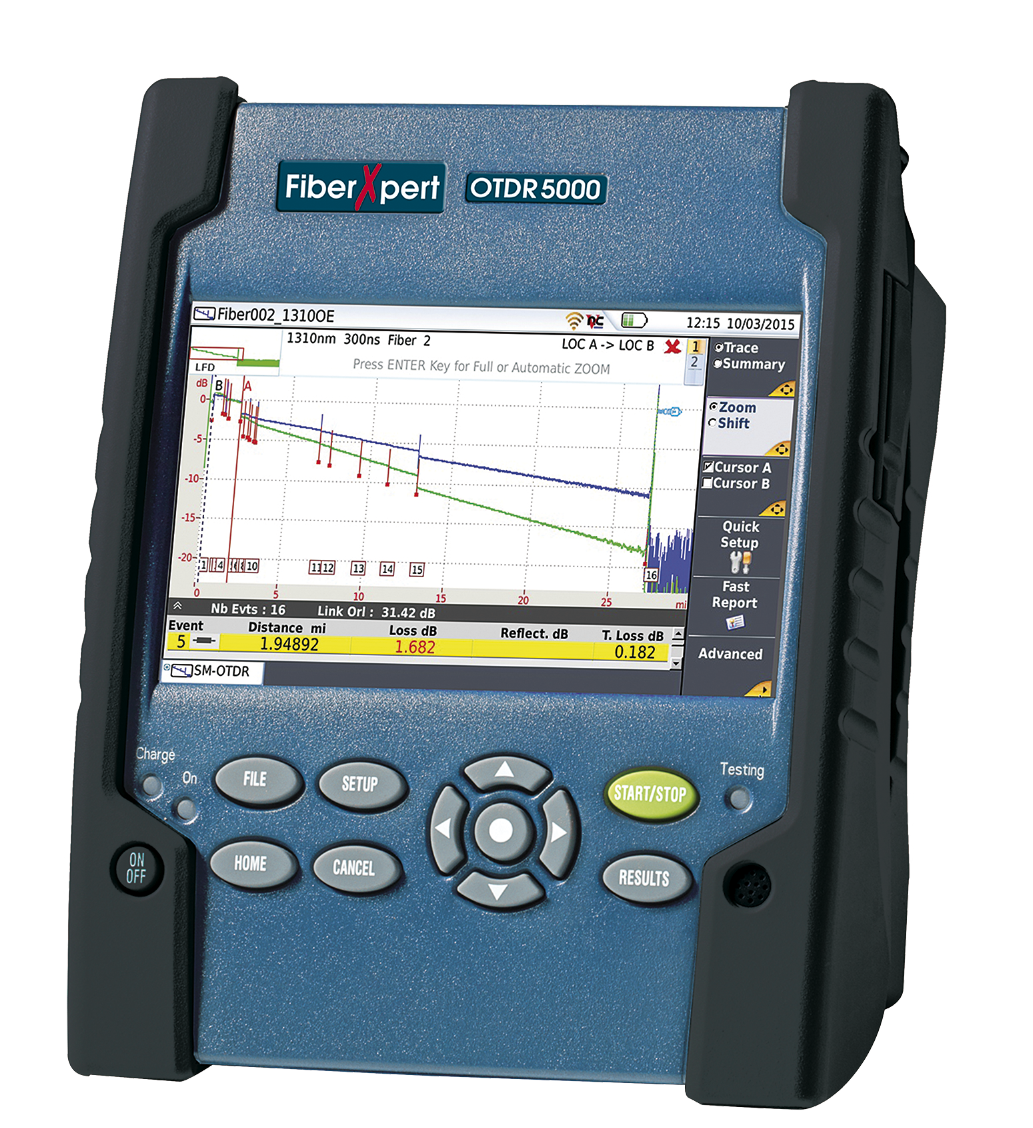

FiberXpert OTDR 5000 has been specially developed for installers and operators of enterprise networks and is optimized for surveying and documenting fiber optic networks and for troubleshooting. For both multimode and singlemode fibers, FiberXpert OTDR 5000 offers very high resolution with one of the smallest dead zones, enabling standard-compliant surveying even of short transmission distances. Automatic analysis functions simplify handling and make you an expert in fiber optics. With an event dead zone of less than 80 cm, the FiberXpert is able to resolve and measure with high accuracy even short consecutive connectors. A short measurement time with high resolution makes the measurement of fiber optic links very efficient. This saves costs and resources.

Easy operation and analysis
The instrument can be operated hands-free thanks to the special shoulder bag. This facilitates handling when the user wants to measure fiber optic links at different locations without having to set up and dismantle the measuring tool. The results are displayed graphically on the 5" touch screen and can be easily analyzed and saved accordingly. Automatic event detection is available, where all events of the fiber link are automatically displayed and evaluated for good/bad.

Smart Link Mapper
With the help of the symbol-based result display, a quick and easy assessment of the measured optical fiber is possible. The individual events on the link are marked with simple, logical symbols and can be selected individually to display detailed measurement values for each event. It is possible to switch between trace and SLM views at any time. Both SLM and trace display are included with each instrument.

Advanced measurement functions
Additional measurement functions, such as attenuation measurement and optical power level meters, allow accurate determination of path attenuation and measurement of output power from active components such as switches. The optional fiber optic microscope also allows you to document the quality of the connector surface after installation. This is particularly useful in the event of a warranty or fault.

• Optical reflectometer (OTDR) for multimode 850/1,300 nm or combined multimode 850/1,300 nm and singlemode 1,310/1,550 nm
• Standard-compliant Tier 2 measurement of fiber optic cabling
• Automatic pass/fail analysis of measurement results according to TIA/IEC limits
• Graphical display of the reflection curve for a length-dependent evaluation of all events for reflection and attenuation
• Tabular listing of all link events and their evaluation
• Automatic macrobender detection
• Built-in attenuation meter
• Optional fiber optic microscope
• Large color touch display
• Professional measurement reports with the central evaluation software eXport

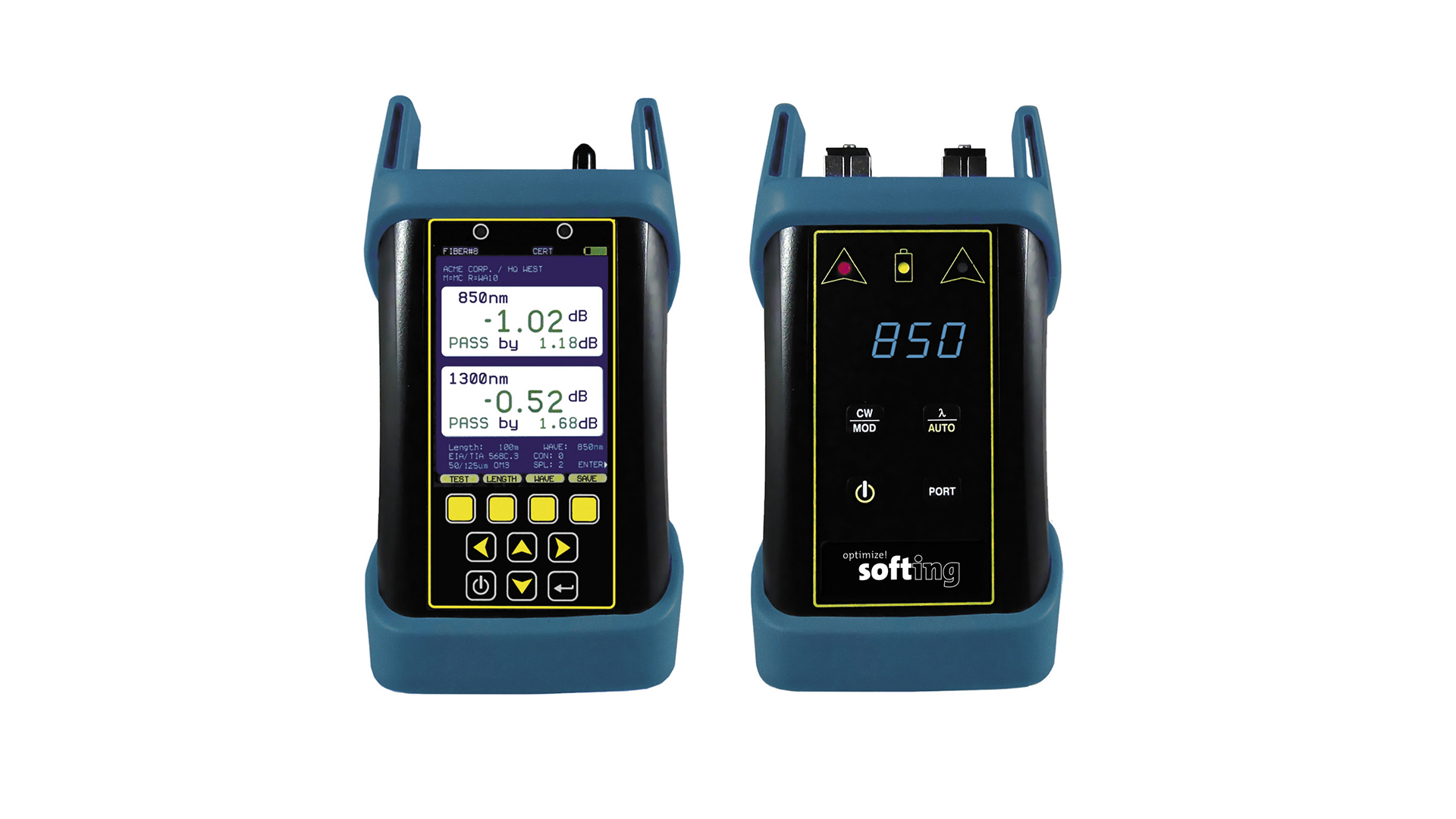

FiberXpert 700 - Quad Attenuation Measurement Kit for Multimode & Singlemode: Intuitive, flexible, fast measurement of fiber links. With the calibrated FiberXpert 700 measurement kit, standardized link certifications for multimode and singlemode fiber links can be performed and the official test reports can be printed directly from the PC software supplied on USB stick. For testing, the user has a variety of configurations for different scenarios. Automatic wavelength detection and data storage allow testing to be completed in the shortest possible time while eliminating the risk of operator error. Measurement results can be stored directly in the internal memory (up to 10 000 results).
