The high-grade materials and sophisticated design of the thanos EVO make it an outstanding room unit for high-end residential or commerical buildings. With its 4.8" touchscreen and up to 4 integrated sensors (temperature, relative humidity, CO2 and VOC), users can individually adjust multiple HVAC and lighting/blinds features. 2D room graphics make operations even more intuitive. External sensors and inputs enhance the multi-functionality of the thanos EVO.

Appealing design, intuitive operation and flexible enough to adapt to most diverse requirements: The fancoil/room controller JOY by Thermokon makes up for an efficient and comfortable climate control in room applications. The visual experience is already convincing – a flat housing, precious touch interface made of scratch-proof glass, a power button framed in an exclusive stainless steel ring as well as the large and clear backlit display provide for a unique user experience. The LCD screen shows current HVAC values and settings e.g. temperature, fan stage as well as date and time for a time-controlled operation of functions.
The new JOY comes in three different versions: a heating/cooling model, a heating/fancoil model as well as a communicating model on Modbus. Due to the different models, flexible and individual building infrastuctures are covered in order to fulfill customer’s requirements and integrate into existing BMS.

At both ends, human interaction and integration into BMS, the JOY is destined to ease the configuration and control operations, making it a JOYful experience for users as well as integrators to work with. Further energy-efficiency functions are included already. One contributing factor is the ECO-function, which intelligently adapts HVAC functions (e.g. set temperature and fan stage) to current demands and thereby saves resources whilst allowing for individual user profiles still.

Also additional functions/sensors e.g. dew-point sensors, window contacts or key-card switches can be logically connected by using the digital inputs or the wireless EnOcean interface of the JOY thermostat. Change-over applications can be realized either with an external temperature sensor or digital relay input.

• Elegant flat design combined with premium materials and large LCD screen
• Flexibility and options through three different models
• Types with EasySens® (EnOcean) available
• Demand-controlled operation using individual user profiles
• Integration into BMS possible
• Integrated ECO-Function for an increased energy-efficiency
• Change-Over applications via external temperature sensor or relay input
• Optional integration of window contacts, dew-point sensors of key card switches
• Simple and quick configuration via touch buttons or BUS
• 7 days 4 periods programmable function: one week is divided into 7 days with four periods in each day, each temperature can be set separately to meet the user´s different room temperature need in different time periods

MCS – Automate efficiently

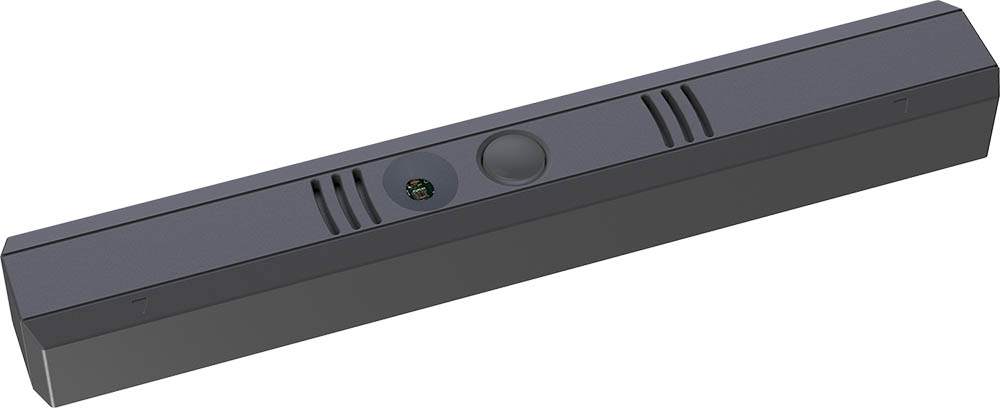

New MCS Multi Compact Sensor with EnOcean or LoRaWAN® Interface

They are compact, versatile and feature energy-efficiency: The new MCS compact multi-sensors from Thermokon support the efficient automation of buildings. The small multi sensor can be mounted virtually everywhere and is connected through EnOcean or LoRaWAN® interface with the Building Management System (BMS).

Discreet design – wide range of applications

Barely 15 cm in length and only 1 cm high, the slim sensors are ideal for an inconspicuous mounting on ceilings, walls or work desks. The enclosure, which is identical to the wireless window contact SRW03, ensures a consistent and homogeneous design. Besides the standard colours white and anthracite, the sensors can be painted in multiple other colours to match the installation spots to be as inconspicuous as possible.

As versatile multi-talents, the MCS SR and MCS LRW sensors are available in three versions with different sensor values / detectors. In addition to a model measuring temperature and humidity, customers can choose between a version with a motion detector and a version with a motion detector and brightness sensor. This ensures maximum flexibility and contributes to noticeable energy-savings: the sensor reliably reports unoccupied rooms to the building management system and thus initiates the deactivation of air conditioning or lighting in order to save energy.

Advantages and Highlights

• Variety of applications due to different types:
  Occ – for detecting occupancy
  Lum – for measuring luminosity
  Temp/rH – for measuring temperature and humidity
• Long-lasting battery lifetime (up to 10 years)
• Flexible positioning by means of adhesive pads or screws
• Standard colours: White, anthracite
• High design flexibility: Custom painting on request

Thanks to an exclusive design, wide range of functionality, easy parameterization and efficient mounting, the new room operating units “NOVOS” by Thermokon offer a variety of benefits. The uniform premium design with various configuration options, the flattened shape of the enclosure to the wall and a slightly eroded surface emphasize that “NOVOS” fulfills highest project demands.

Depending on the required performance, different “NOVOS” models are available. The high-resolution 4.8” touch display, the precious glass surface and the intuitive operation of “NOVOS Touch” stands for a true premium solution. Besides the control of air conditioning, brightness, shadowing and individual scenes, “NOVOS Touch” convinces by a simultaneous detection of temperature, humidity, CO2, VOC and the monitoring of measured values through a traffic light system.

Most functions of NOVOS Touch are also available for "NOVOS 7", the second flagship of the new series. The room operating unit with a high-quality 3.5” TFT display convinces by an easy call and control of functions via an easy-to-use rotary-and-push-button. Furthermore, four direct access keys are available for fast call up of frequently used functions or scenes.

The room operating units "NOVOS 5" and "NOVOS 3" are complementing the new product family. "NOVOS 5" is available with an integrated RGB-LED button for visualization of status messages, a temperature set point adjuster and rotary switch for fan stage selection. The smaller enclosure "NOVOS 3" is equipped with a set point adjuster and RGB-LED button as well.

Certainly, the standard room sensors without operating elements are also suitable for the detection of CO2, VOC, temperature and humidity. The transmission of the output signals is made in accordance with individual requirements, i.e. passive (sensing element), active (output 0..10 V or 4..20 mA) or RS485-Modbus interface.

Quick and safe mounting

The new enclosures provide new-to-the-market features. They combine easy and quick mounting by tool-free wiring and removable terminals. The separation of cover and bottom enables the mounting of the upper part with the electronic components after completion of all construction works. The smart housing design with integrated sensor channels ensures precise measurement results. The configuration of NOVOS is very simple: several parameters can be adapted to the individual room conditions via BUS interface or NOVOSapp via Bluetooth.

Long Range Wide Area Network – short LoRaWAN®* – is a radio technology that is capable of transmitting data over a long distance and even from remote and hard-to-reach locations in an energy-efficient, cost-effective and secure manner. Due to the low energy consumption, the batteries of the sensors are extremely durable and can last for several years.

LoRaWAN® uses the so-called ISM frequency band around 868 MHz in Europe, for which no licence fees and no cellular costs are incurred. LoRaWAN® is heavily involved in the development of so-called „smart cities“. In Germany for example, cities and municipalities in particular are building a sustainable and process-optimised infrastructure for building security and monitoring or controlling street lighting.

In Switzerland, France and the Netherlands, telecommunications providers operate a nationwide network of gateways. In addition to the public networks, companies can also set up their own networks (private networks).
