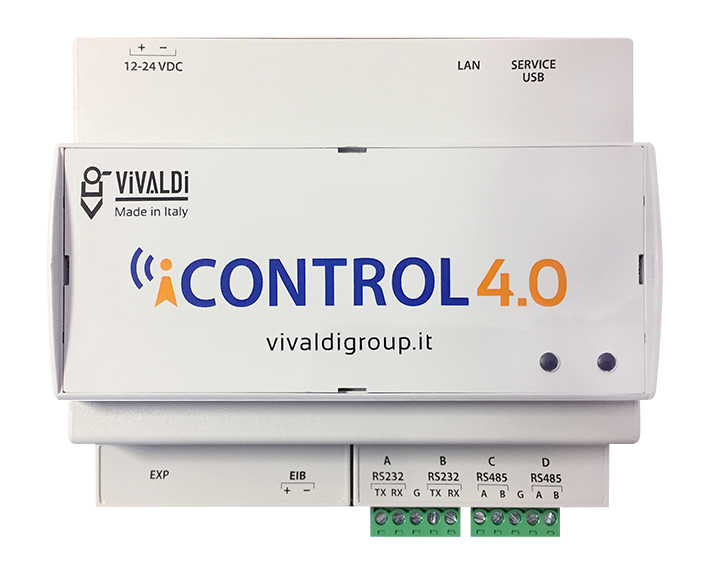

Multiprotocol server and controller device for the management of the major home automation protocols ( iCONTROL4.0+).

MULTI-PROTOCOL Connect and control different devices at the same time. The range of supported devices is continuously growing, making iCONTROL4.0+ the best all-inclusive platform for smart building supervision/control. iCONTROL4.0+ manages communication between the several systems within a smart building installation, creating an environment in which all the information is shared to simplify both the user experience and the installation. WHY CHOOSE iCONTROL4.0+

• Complete management of smart buildings.
• Bridge between Vivaldi and KNX devices (integrate Vivaldi audio devices in a KNX system).
• Simultaneous multi-protocol communication (cinema rooms, meeting rooms, conference rooms).
• Cost effective, reliable and easy to program solution.

VOICE ASSISTANT LIGHTING BLINDS SECURITY MULTIMEDIA ENERGY HVAC SMART DEVICES & IoT SYSTEMS TECHNOLOGIES

Smart building devices controller. With supervision and management app for Smartphone and Tablet (iOS & Android). LAN (RJ45) EIB (KNX) 2xRS232 2XRS485 KNX, Z-Wave, ModBus, Enocean, VimarByMe, BTicino, HTTP, TCP/IP, Vivaldi, UDP, Pioneer (Home Theatres), iBeacon Google Assistant and Amazon Alexa enabled Unlimited users Web page integration: control any web page-based device, or link websites Vivaldi main units control (CA20/CA21/CA28) HDMI video matrices control Customizable user interface Scene creator Logical operations and system analysis (JS supported) Built-in UPS system Free Control App (iOS/Android and Win/Mac) Free configuration software (PC/Mac) 105x62x110 mm (LxHxD) DIN rail installation 12-24 Vdc, External power adapter included (115-230)

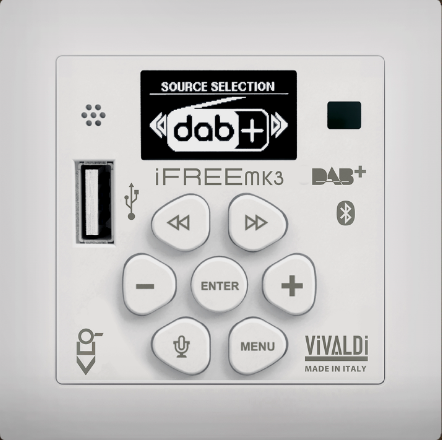

IN-WALL STAND ALONE AMPLIFIER FOR MULTIROOM AUDIO APPLICATIONS

Multiple sources: Bluetooth5.0, DAB+ and FM radio, USB player, 2xAUX-IN, in-built microphone

HOW TO INSTALL iFREE fits a standard 60mm round or square in-wall electrical box (UK/European switch standard), and can be used as stand-alone without any special wiring or in a multi-room interconnection with a main unit. SMART INTEGRATION With iCONTROL series products you can integrate with your smart building at different levels. Send display popup messages with chime to any device. Activate room thermostat functionality and view local weather information. PROFESSIONAL AUDIO QUALITY 25+25W class D amp, DSP with 7-band EQ, independent pre-out settings, volume limit, auto ON/OFF mode; energy save amp, balance adjustment, mono/stereo settings. BLUETOOTH 5.0 Customize the device name. HFP (Hands Free Profile): use your iFREE for phone calls or music playback, talk through the in-built microphone. INTERCOM / PAGING FUNCTIONALITY One-to-one or one-to-all intercom call. Connect an external microphone base and activate the internal chime to turn iFREE into a professional paging system.

• New DAB/DAB+ Digital Radio source
• Internal chime can be activated in 3 modes: incoming call, outgoing call, or both
• Possibility to mix an external source through MIC input to all sources
• Firmware update via USB
• 2x AUX Input for local sources (eg TV, CD, PC) or audio matrices
• Clock and alarm with programmable timer function for automatic switch on/off
• 3x Digital I/O with assignable functionalities (OC1,OC2,IL)
• Master / Slave / Hybrid mode setting (OC1) for microphone calls
• Possibility to deactivate the in-built amplifier
• Adjustable maximum volume limit
• Remote control (included)

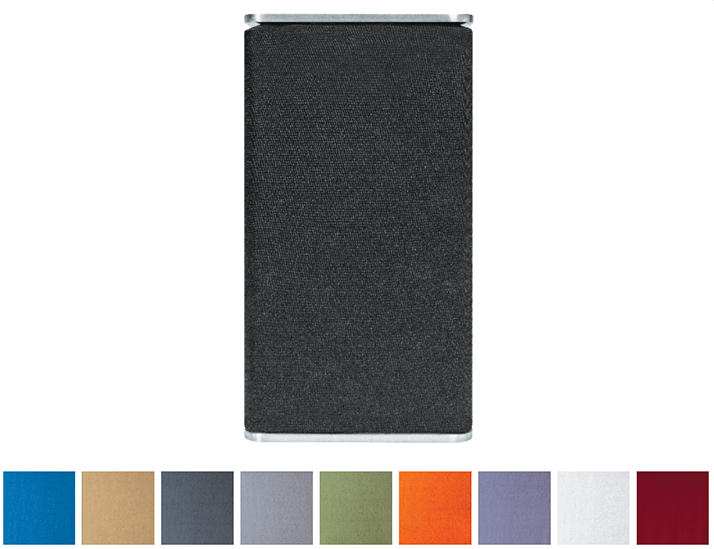

Active WiFi stereo speaker with, integrated DSP and multi-source Vivaldi WIFI KEYSOL. Compatible with Spotify, Tidal, Napster and the main streaming services. Premium design, customizable, countertop coating. Audio parameters control from webpage. Controllable via APP, free, available for iOS & Android. Can be integrated with home automation systems and Vivaldi Domotica iCONTROL4.1L, Vivaldi Domotica iCONTROL4.0 + via LAN.

RMS power 30 + 30W at 8 Ω. Woofer 9 cm. 2.5 cm dome tweeter. Frequency response 85-20000Hz + -5dB. 1 x AUX IN * stereo bil. analog. 1 x IN COAX for Digital TV. 1 x IN TOSLINK. 1 x RJ45 network port. 1 x AUX OUT * mono for active subwoofers. 1 x SPEAKER OUT 30W right channel output via Vivaldi Design KEOPE.S40 at 8 Ohm. Integrated devices: 1 x Vivaldi WIFI Keysol multimedia multi-source. 1 x DSP 1 x 30 + 30W amplifier 1 x USB type A on front for MP3 / WMA / AAC / AAC + / ALAC / FLAC / APE / WAV audio file playback. 1 x Equalizer / DSP. Power supply, 24Vdc 2A, AL0 supplied. Dimensions 110x235x130 mm (LxHxP). Weight 3,5Kg. Wooden cabinet.

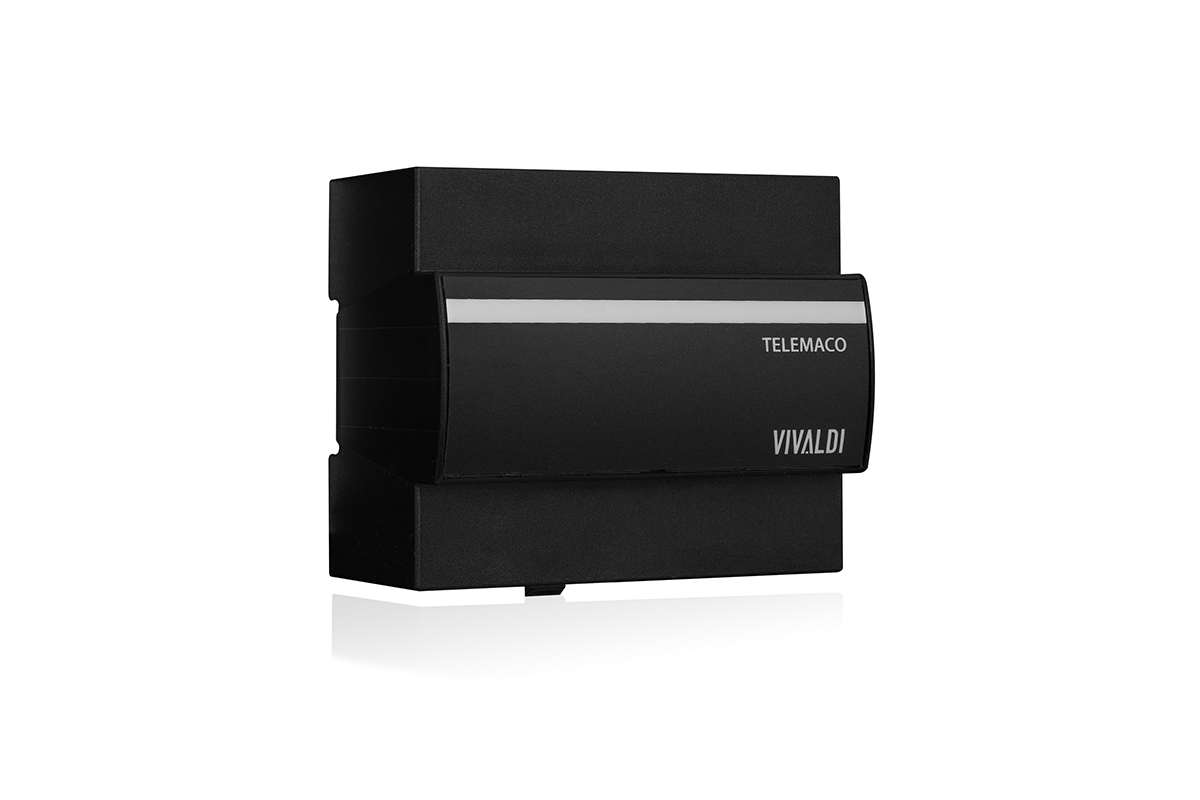

 Telemaco the brand new integrated multiroom with 6 zones
expandable up to 12. Perfect for all homes. Compact, 6 DIN modules,
implements 4 multi-source players (YouTube, Webradio, Spotify,
NAS... ) and 6 audio amplifiers to connect low impedance 8 Ohm
speakers (imp. min. 4Ω). Equipped with 3 stereo inputs for external
sources (PC, turntable, TV, CD, Playstation, ...) and preamplified
outputs for connecting power expansions, active speakers or active
subwoofers. Home automation integration is possible with KNX
connectivity or via MQTT and REST API protocols. Combining 2
TELEMACO it is possible to realize a 12-zone audio distribution
system, with 6 independent multi-source player (YouTube, Webradio,
Spotify,NAS... ) and 6 inputs for external sources. From now on,
everyone’s favorite music, in any room and at any time, with a simple
touch. Telemaco, the advanced system for music, any music, from
world webradios to the most modern streaming services. Designed to
play quality audio with ease, thanks to a intelligent system of HiFi audio
components. Managed by an innovative APP, easy to use, free,
downloadable from Apple and Google stores, or from PC using
software downloadable from our website.

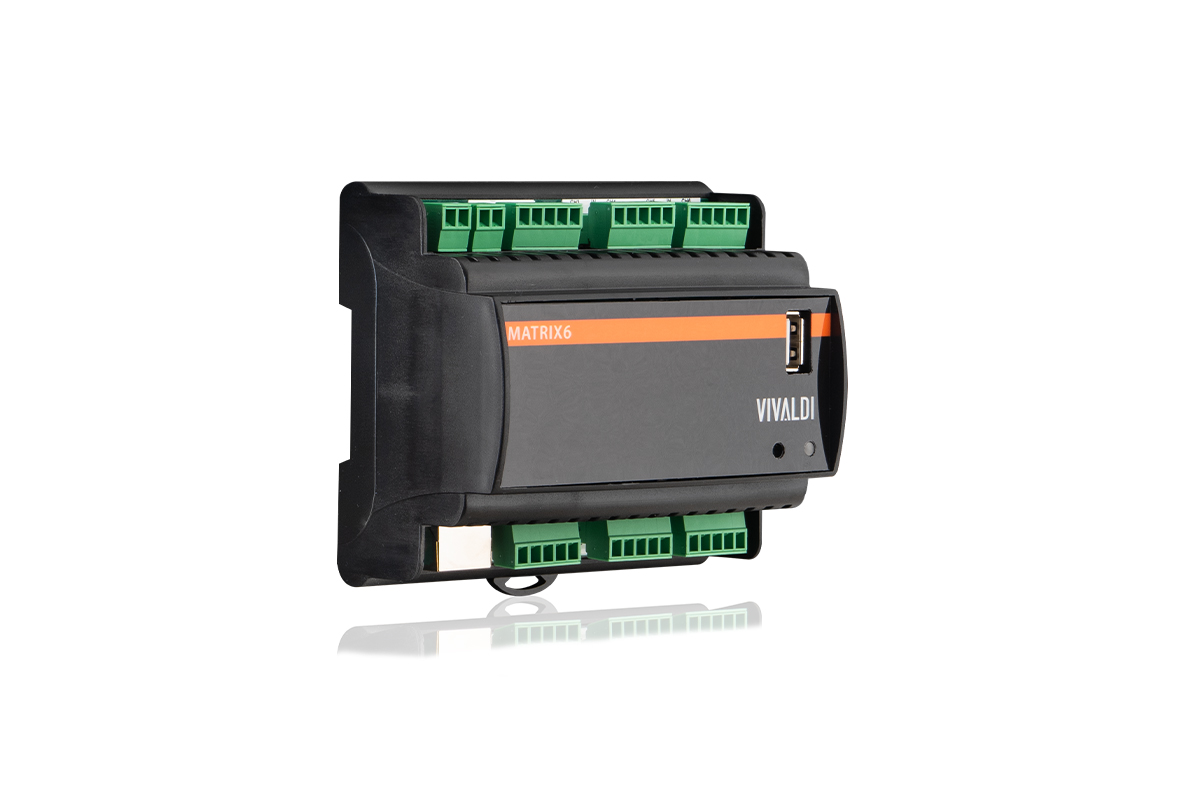

Multimedia stereo device with built-in DSP and Keysol WiFi player.

6x7 matrix, 7 mono inputs (3+1 stereo).

Supervision and control VIVALDI APP (downloadable from iOS & Android).

6x SELECTABLE MIC/LINE INPUTS with activable Phantom (24Vdc), assignable priority (can be activated with contact).

USB Type-A on the front for MP3/WMA/AAC/AAC+/ALAC/FLAC/APE/WAV audio file playback.

3-band equalizer.

Outputs for power expansions E30S, E80S or power finals Vivaldi Ulisse Line at 8Ω or 100V.

1x RJ45 per LAN.

Audio parameter control with volume/settings/... from webpage.

Can be integrated with iCONTROL4.1L, iCONTROL4.0+ home automation systems via LAN.

Power supply 24Vdc via AL2B.

DIN standard (6 modules).

Dimensions 105x65x90 mm (WxHxD)

Weight 0.2 Kg.
