The new SNAP IN connection technology will take your wiring processes to a whole new level.

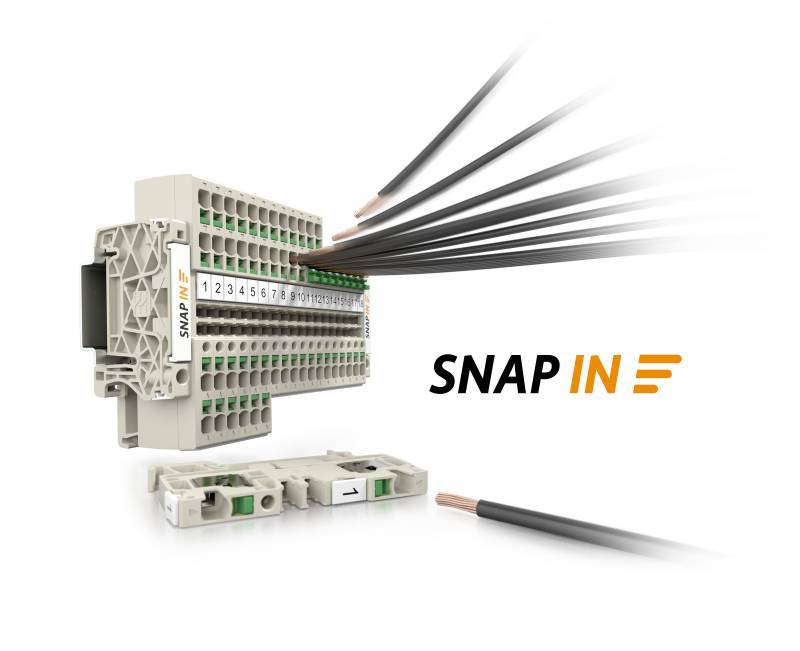

The new Klippon® Connect terminal blocks with Weidmueller's revolutionary SNAP IN technology meet all these requirements - and are extremely easy to use: stripped fine-stranded conductors just need to be inserted into the connection point, and the connection point snaps shut with a clearly audible click. The conductor is permanently and reliably contacted. To release the connection, press the green pusher. It couldn't be faster or easier.

QUICK!

The new SNAP IN connection technology will take your wiring processes to a whole new level.

SIMPLE!

Direct and tool-free wiring without ferrules. Simply insert the stripped wire into the pre-loaded connection point.

SAFE!

Pre-loaded SNAP IN spring connection guarantees a safe and gas-tight connection of the conductor.

Easy, fast, and safe wiring of residential and commercial photovoltaic systems.

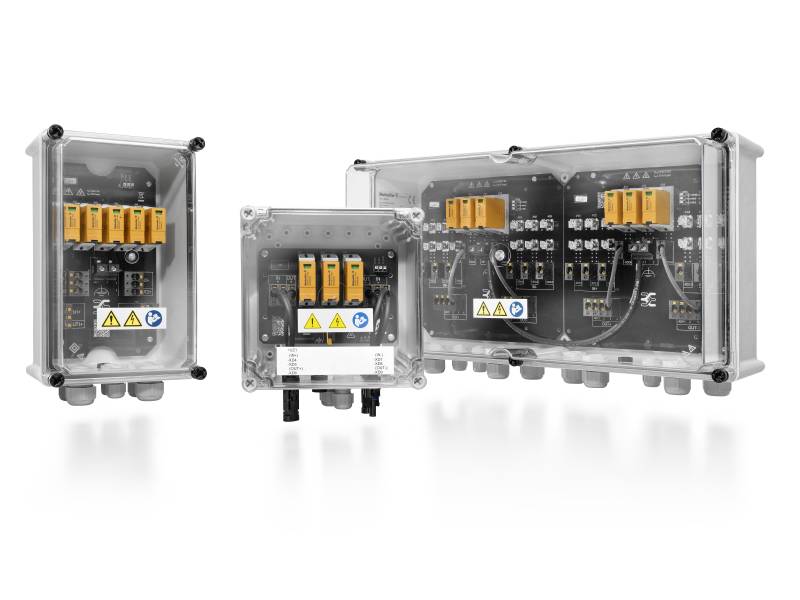

With PV Next, Weidmüller offers the world's first combiner box concept based on a standardised printed circuit board design. The advantages: simplicity, safety, time savings, and cost reduction. The innovative concept covers approximately 75 % of today's standard requirements, enabling PV installers to work faster and more cost-effectively. The integrated PUSH IN technology reduces assembly times and minimises the risk of errors and the resulting consequences.

Easy

The unique PCB design allows quick and easy integration of additional functions. For example, a switch can be integrated or a second MPPT can be connected directly to the first PCB.

Fast

With the PUSH IN connection technology, PV-Next offers the most straightforward and safest connection concept for cabling. The installation can be carried out without crimping and without special tools.

Safe

The intuitive design and PUSH IN connection technology make installation safer and quality assurance easier. The risk of screw connections with incorrect torque is eliminated, which is one of the main risks for fires.

Smart charging solutions for individual challenges.

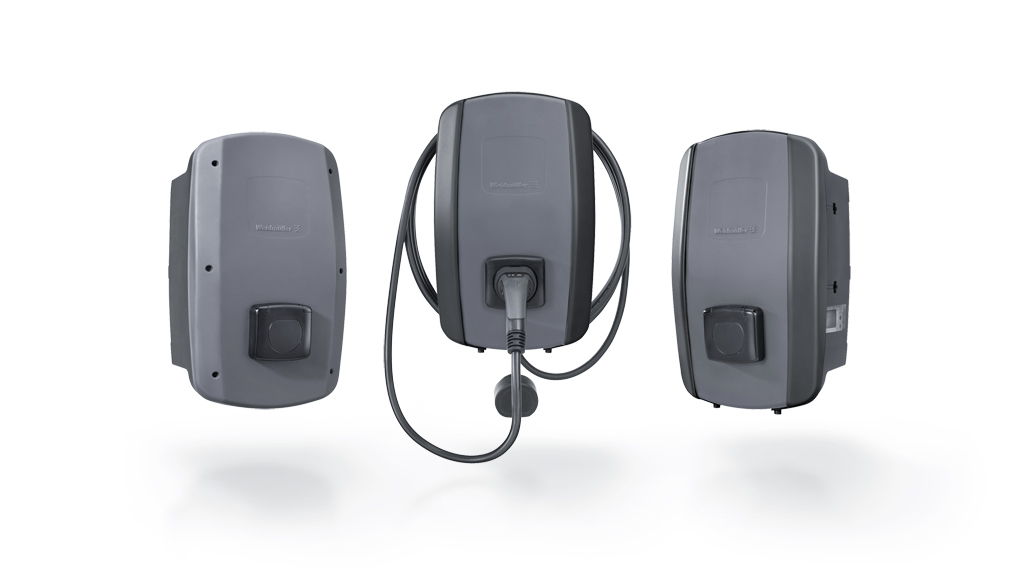

Weidmüller offers the suitable e-car charging solution for private and commercial applications: The new charging box generation AC SMART with the three product lines ECO, VALUE and ADVANCED is one of the product highlights at Light + Building this year. With its smart functions, the family sets new standards with the simplest installation. Today's and upcoming trends such as PV excess charging and energy management are among the two highlights realised by this family.

Even smaller, even more powerful!

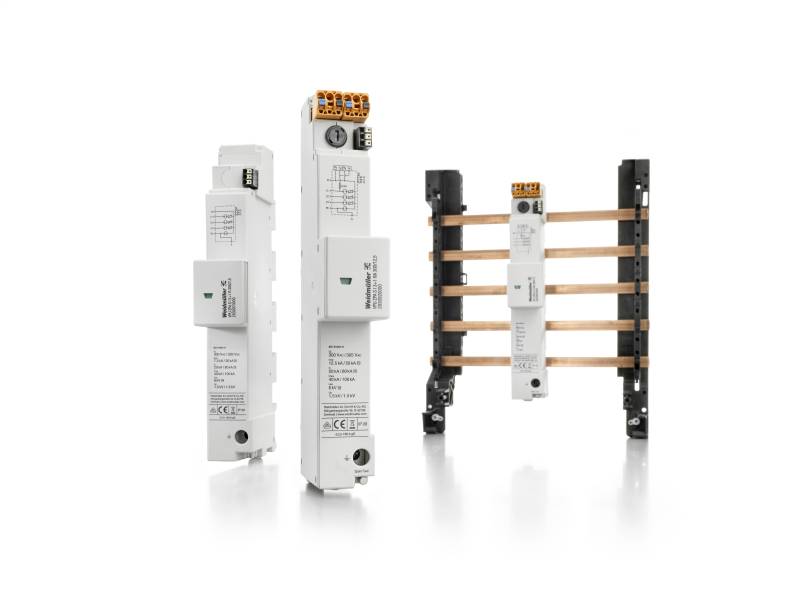

The space-saving installation on the 40mm rail system guarantees the best protection with the smallest space requirement. The VARITECTOR ZPA S provides optimum protection against lightning and surge voltage damage in a width of only 36 mm. It combines type I, II, and III arresters in one unit and can be integrated without screws on three-phase busbars with separate PE connection. This also supports installations with 2 SLS switches. Product variants with two fused voltage taps enable the accommodation of additional applications. An optional signal output reports the protection status.

Fast installation

The VPU ZPA S is snapped on easily, quickly and without tools in the pre-metering area. Tool-free installation increases safety and efficiency.

Innovative additional tap

The pluggable additional tap with PUSH IN connection allows additional applications such as a modem to be connected directly – without extending the 40 mm busbar system.

Space-saving design

Due to its overall width of only 36 mm, the ZPA S module can also be combined with 2 SLS switches and feed-in adapter. All requirements of VDE-AR-N 4100 are met.

For a structured building installation wiring.

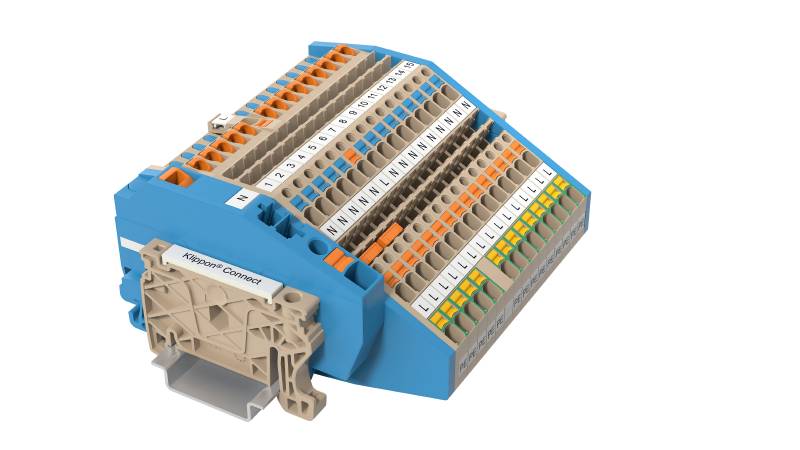

A large number of standards and regulations govern the building industry. As a result, high safety standards must be met for electrical installations. These standards also apply to a wide range of components that have to be integrated into complex control cabinets in a confined space. Our new AITB modular terminal block system was specially developed to meet the specific requirements and safety regulations for wiring in building installations. Special features of the series ensure real added value in planning, installation and operation on site.

• Clearly structured functional areas and the convenient PUSH IN connection technology ensure significant time savings
• A double cross-connection channel ensures intelligent potential multiplication within three-phase systems
• Shape and marker positioning of the terminals are optimally adapted to robot-supported assembly processes
• The digital design of terminal strips in the WMC enables the creation of consistent documentation for production
