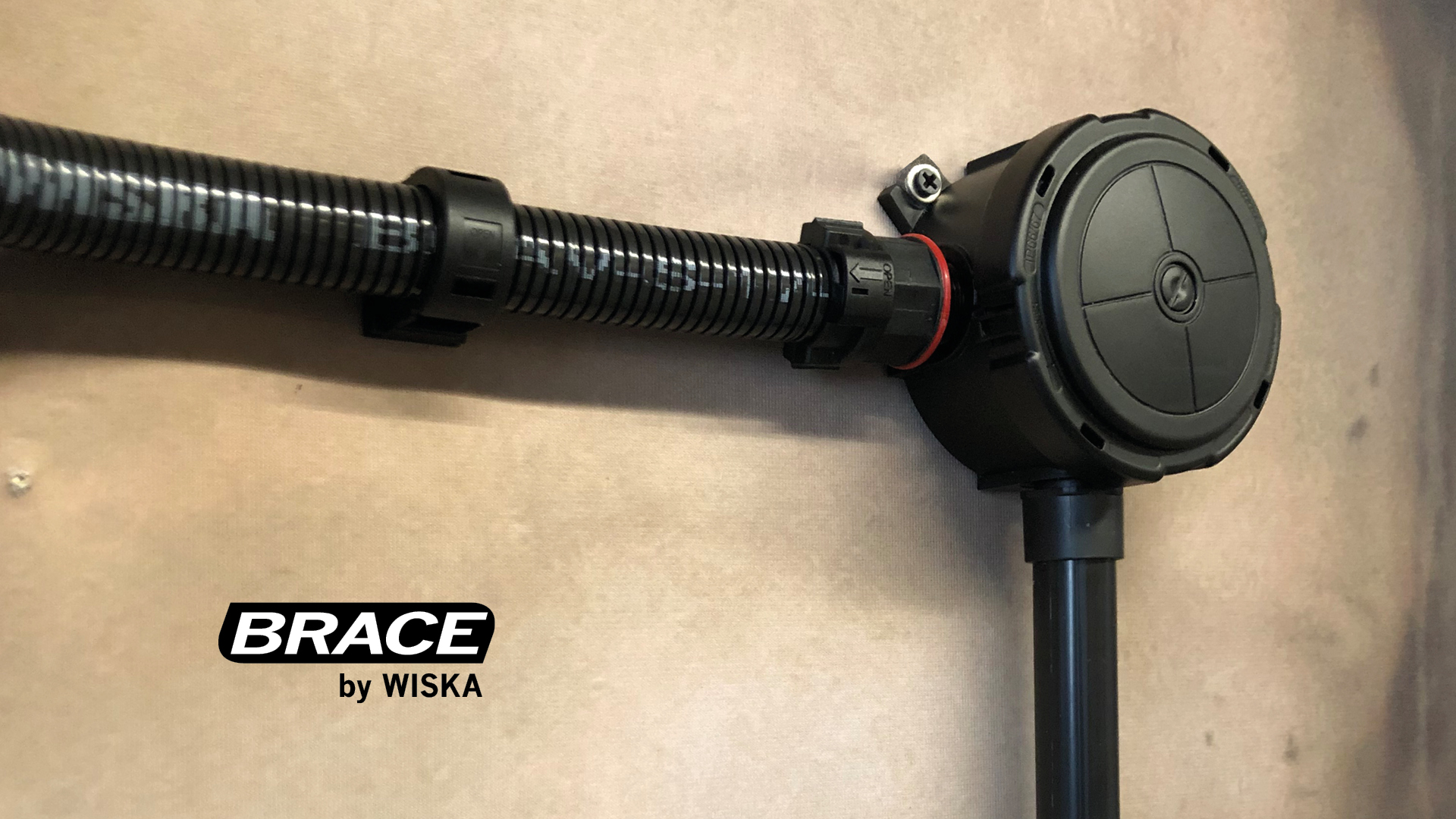

The demands placed on cable protection products are justifiably high and with the Brace® system WISKA presents the right solution. Along with protection against external conditions such as the temperature, dirt and impact, handling must remain simple and convenient. A demand that our Brace® system meets with metallic and non-metallic conduits and fitting.

• Surprisingly easy to use – thanks to the new hinged cover for lightning-fast opening and closing with one simple standard tool.
• Highest protection as standard – all variants of the non-metallic BraceFITTING with IP68 protection class.
• Tear-proof – thanks to a new closing system that directly grips in conduit.
• Twice the security – The directly injected O-ring seal ensures secure installation and perfect sealing properties.
• Time-saving maintenance – thanks to the external clearly visible O-ring seal.
• Cost-saving storage – A completely assembled product that keeps everything in one place saving on warehouse space, costs and time.

Non-metallic BraceFITTING: Things just clicked
A unique product that many engineers have been waiting for: a sophisticated closure system and IP68 as standard are only two of the advantages that the installers love.

Non-metallic BraceCONDUIT: A tough product gentle on the cable
Mechanical strains, sand and humidity turn unprotected cables into major sources of danger in industry. With non-metallic conduits from WISKA, you can save on expensive downtimes and repairs. WISKA offers you the highest level of quality, robustness and a huge variety of products – for static as well as dynamic areas of application.

Metallic BraceFITTING: So simple when it comes to the crunch
Our metallic BraceFITTING simplifies installation and reliably protects cables. With the IP67 protection as standard, it meets the highest demands placed on the application. The various colour schemes of the O-ring seals tell the user which conduit is the right one at a glance.

Metallic BraceCONDUIT: Takes the extreme out of extreme conditions
Whether mechanical forces or natural influences: There are situations when normal cable protection is not enough. Our metallic conduits are designed and engineered to handle the highest of demands under the toughest of conditions.

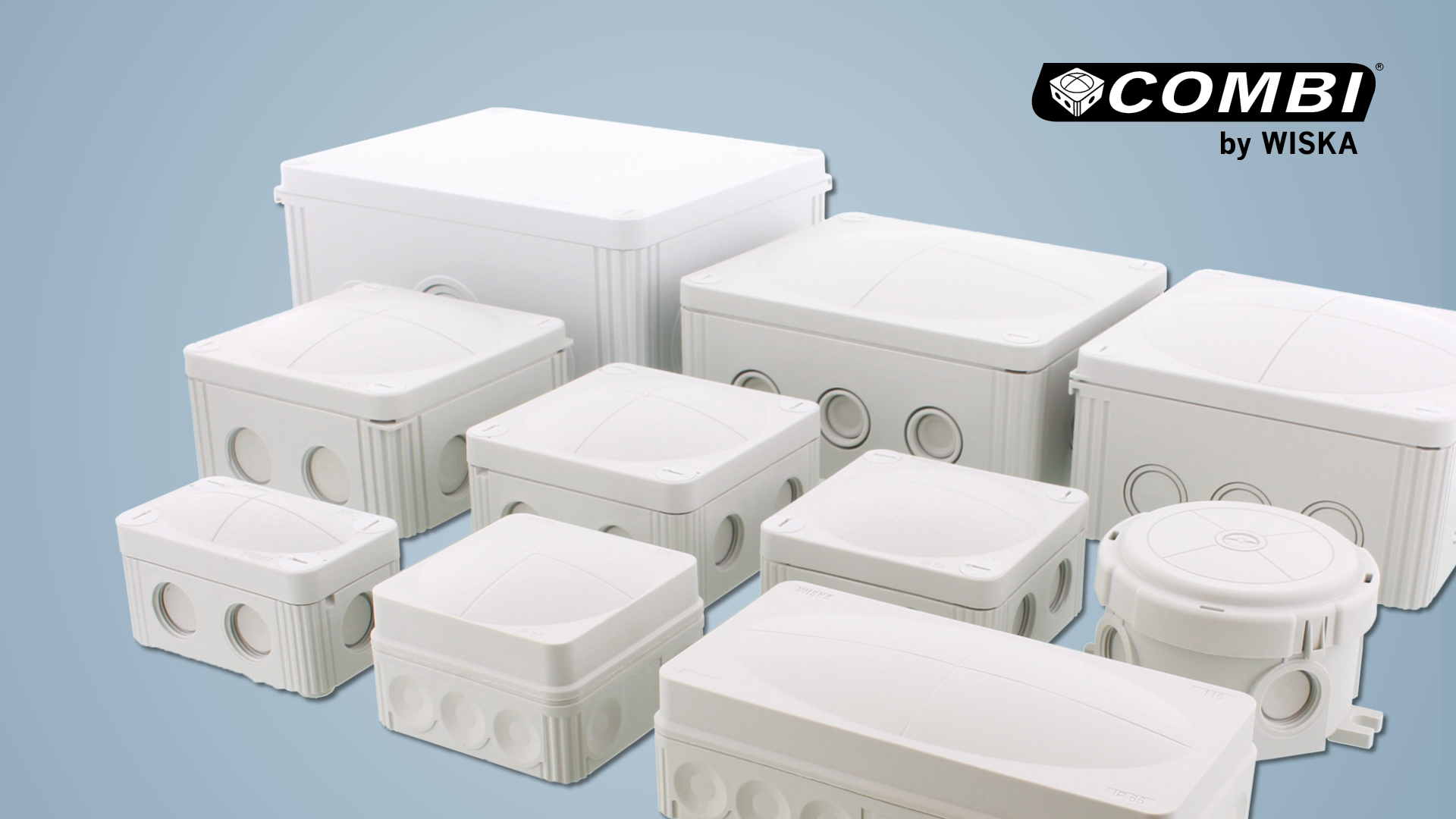

With their unique design and highest quality, they have met the most demanding installer requirements for years: The COMBI junction box series is an original in every aspect.

New COMBI 304: The first circular junction box in the series

• High-quality material of the COMBI junction boxes is UV- and Ozone resistant, therefore suitable for inside as well as outside installations
• Bellied cover allows 10% more installation space
• High protection class IP66. With cable gland even IP67
• Captive and rust-free quick-release lid screws, closing of the box with only a quarter turn (COMBI 206, 308, 407, 607, 1010, 1210, 1610)
• Self-sealing membranes on the rear enable a clean assembly for cable outputs from the wall (COMBI 108, 206, 407, 607, 1210)
• Has what it takes: flame-retardant and halogen-free, weather-proof, resistant to ultraviolet, shatter proof, impact-resistant

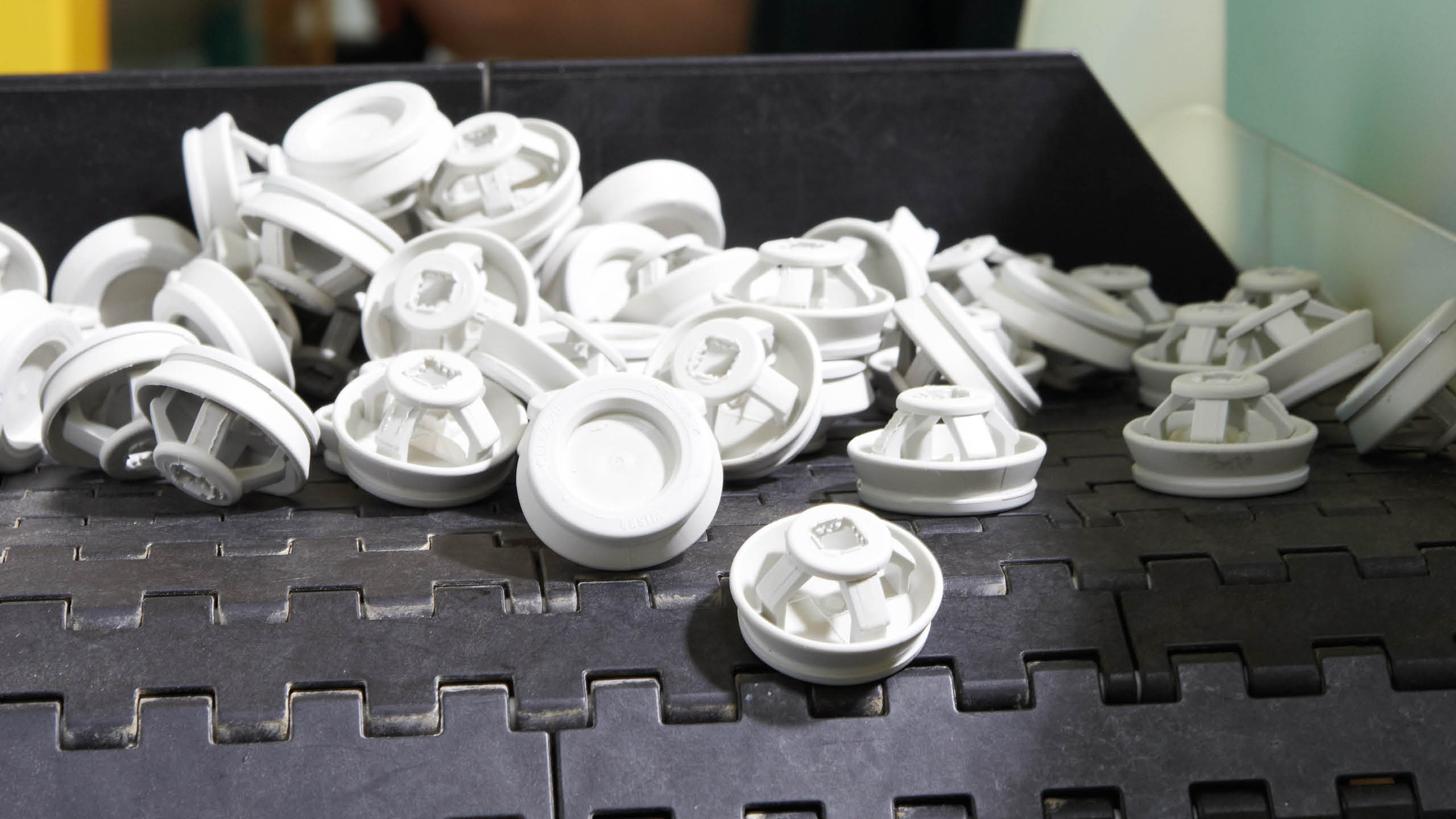

CLIXX® - The faster cable gland

CLIXX® allows easy cable entry thanks to a membrane while also providing strain relief. CLIXX® can be assembled in seconds: simply clip in the hole, insert cable and done.

Your benefits by CLIXX®:

• CLIXX® replaces your cable gland in standard installations
• Same clamping and sealing ranges, high protection degree and Strain relief to EN 62444
• 75 % assembly time savings compared to a cable gland: Only one single component to clip in – no tool, no locknut required
• Thanks to its flat construction, CLIXX® is particularly space-saving in tight installation spaces

MultiCLIXX® grommet

Our new MultiCLIXX® grommet offers fast cable installation with strain relief for up to four cables at the same time. MultiCLIXX® combines all advantages of our QUIXX® and CLIXX® grommets: Simply push into the enclosure and insert the cable. No tool or locknut are needed – thanks to our well-proven two-component moulding.

Your benefits with MultiCLIXX®

• Fast installation: Push in, insert, done – for maximum time saving
• Strain relief: According to EN 62444, Type A – for up to four cables at the same time
• Space-saving: Its flat construction makes MultiCLIXX® extremely space-saving and optically inconspicuous
• High protection class: IP 66

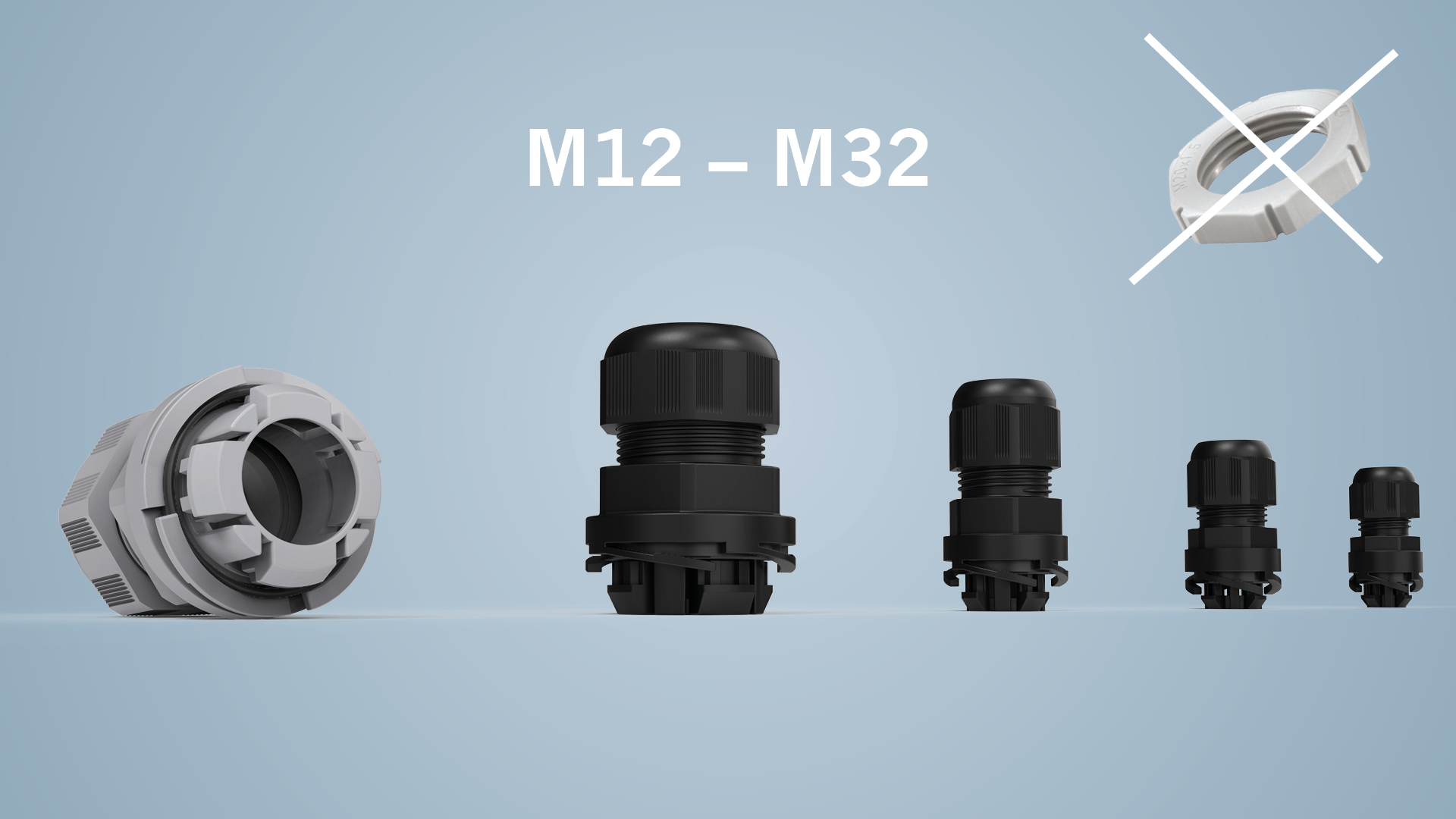

Push in, fasten from the outside, ready: No thread or need to open an enclosure. Suitable for wall thickness up to 4.0 mm and available as part of our SPRINT® system with various cap nut options as well as multiple and special sealing inserts.

• Protection class: IP68
• Material: Polyamide gland, EPDM seal, TPE connection seal
• Size: M12, M16, M20, M25, M32
• Colours: Light Grey (RAL 7035) and Black (RAL 9005)
• Clamping range: 9.0 - 17.0 mm
• Temperature range: 40 °C - 100 °C
• Glow wire test: 750 °C
• Wall thickness for installation: 0.5 - 4.0 mm

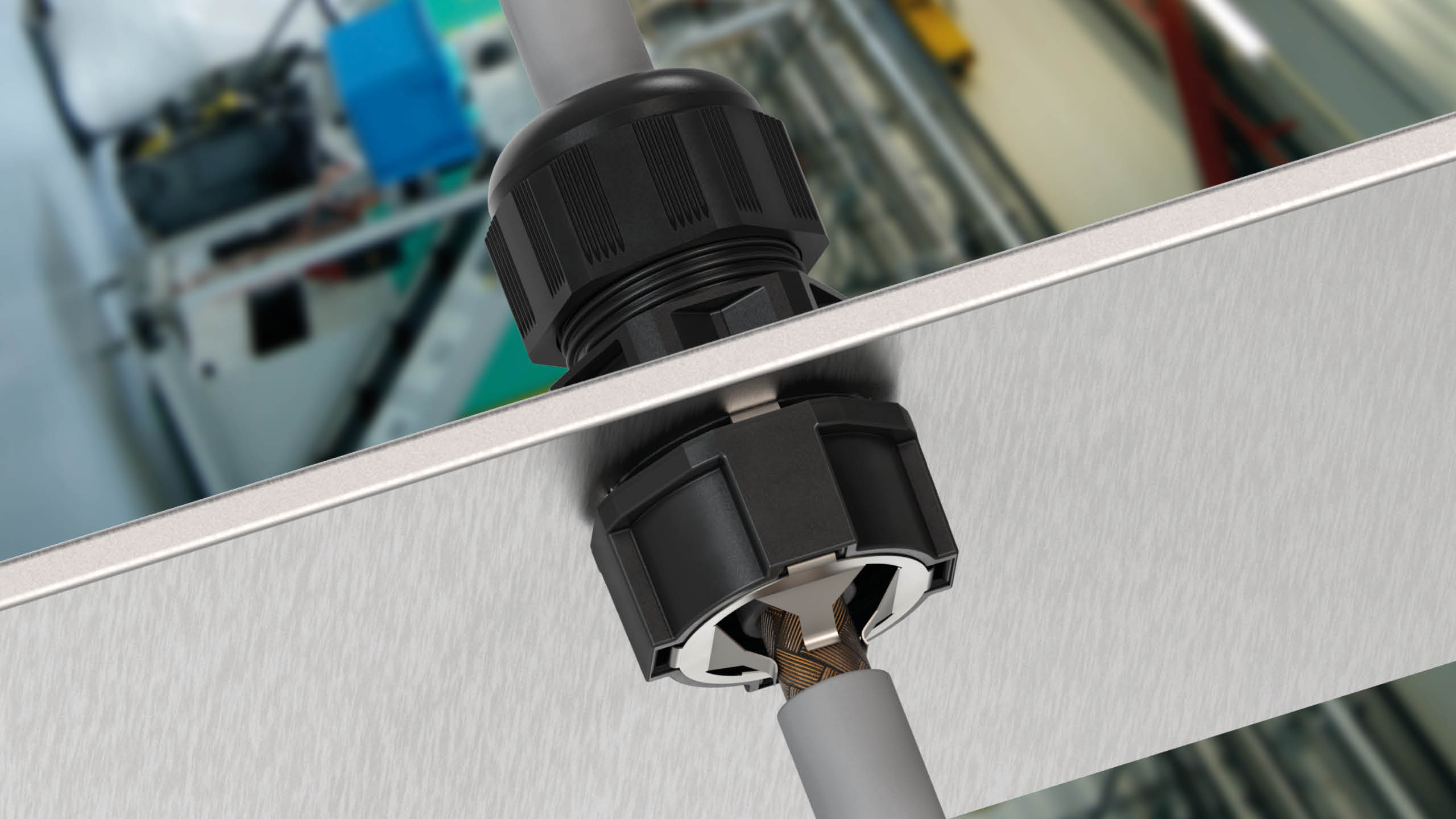

Using our cable management expertise, we have again developed a new and unique solution: The MagikNUT®!
The MagikNUT® is a polyamide locknut with a built-in stainless steel clip mechanism for EMC shield connections. The MagikNUT can be used with plastic cable glands and plastic fittings, offering users a high level of EMC protection, quick installation time and savings in material costs.

Features of the MagikNUT®

• Polyamide outer body.
• EMC shield protection through internal stainless steel clip.
• MagikNUT can be used with a wide range of WISKA cable entry products.
• Sizes: Available in M16, M20 and M25
• Weight: M16 - 4.52 g, M20 - 5.79 g, M25 - 6.98 g
• Colours: Available in black and grey.
