The new box for formwork for concrete structures is primarily used to bring together conduits
of different diameters from electrical distribution boards and cable routes. The range of accessories includes plastic screw-down cover and moisture-proof cover made from anodised aluminium. Six metal screws are supplied with both types of cover. The metal screws for the
moisture-proof cover are rust-proof.
Where insulation material is retrofitted to the underside of a ceiling slab, extension elements
can be used to bridge the distance between the concrete slab and the finished ceiling.The advantage of these frames is that they can be combined to accommodate insulation of any thickness. The plastic screw-down cover is designed for neat and secure attachment and for use in dry areas.
The moisture-proof cover is suitable for wet rooms.

• The front part can be nailed to the formwork before the conduits are installed
• Short nails means less deformation when hammered in
• The rear part can be snapped into place on the front part
• Can be combined together to make a row of units of any length
• Supplied with pre-installed nails
• Large number of pre-defined conduit entry possibilities, including one on each end for sizes up to M63

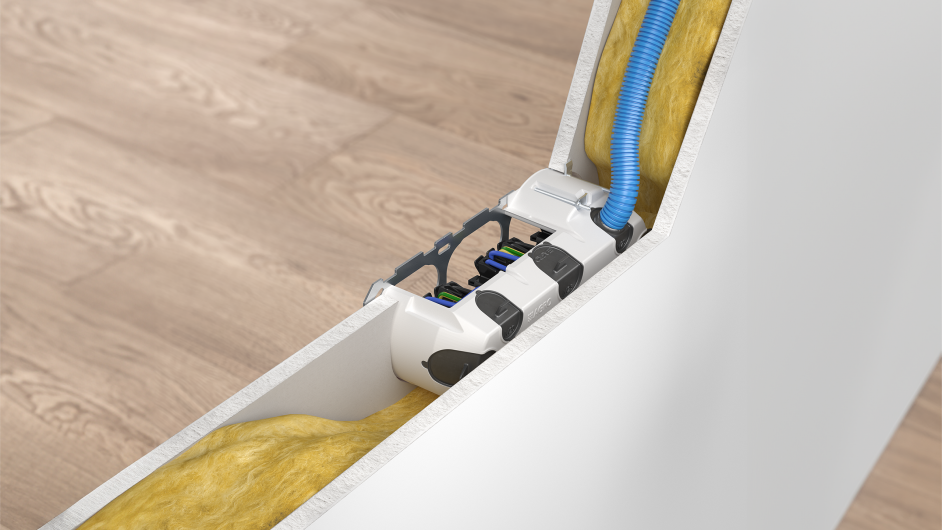

HWD 90 cavity wall boxes for EI30-EI90 fire-protection walls ensure certified and fire-protection compliant electrical installation. Intelligent AFS technology reacts immediately to fire and heat and automatically seals the installation opening. This guarantees the fire resistance class of the fire-protection wall and secures escape routes. Use in all fire-protection walls and the fire-resistance duration of up to 90 minutes ensures maximum flexibility, even when the planning is changed. At the same time, it also maintains the wall's sound insulation requirements.

• compatible with Feller SNAPFIX®
• For fire-protection walls F30-F90 or EI30-EI90
• Maintains the wall's sound insulation protection
• Retrofitting also possible
• With fire-protection cover, can be used as a junction box
• Also for directly opposing installation
• May not be used inside encapsulated walls

Our new surface-mounted junction boxes are used wherever environmental conditions can change quickly and frequently. Typical application areas in - clude wet or moisture-prone rooms of all kinds and outdoor areas, where the housings are exposed to constant changes in temperature, humidity and air pressure as well as dirt and environmental influ - ences.

• Dual entry concept
• Cable strain relief
• Box lid screwed on
• Increased operational safety and reliability
• Quick installation on cable routes

Inlet box and wall lamp connection box with Prefix® installation technology, for quick and easy installation against subsequently placed front formwork - without separate supporting element. Thanks to its spring-loaded wing brackets, this one-piece socket with two integrated front parts can be installed in such a way that its front surface will be pressed hard against the front formwork when it is subsequently placed, ensuring the socket will sit just right against the formwork and resulting in a smooth, clean finish after concreting.

• Compatible with Feller SNAPFIX®
• 54% more space
• Extended range includes 1x1, 2x1 NUP, 3x1 NUP
• Extremely robust design
• Cleaning bristle on the appliance side
• Spacer rib at the blade end
