Euroledlighting R. Nowak i Wspòlnicy Sp. J.

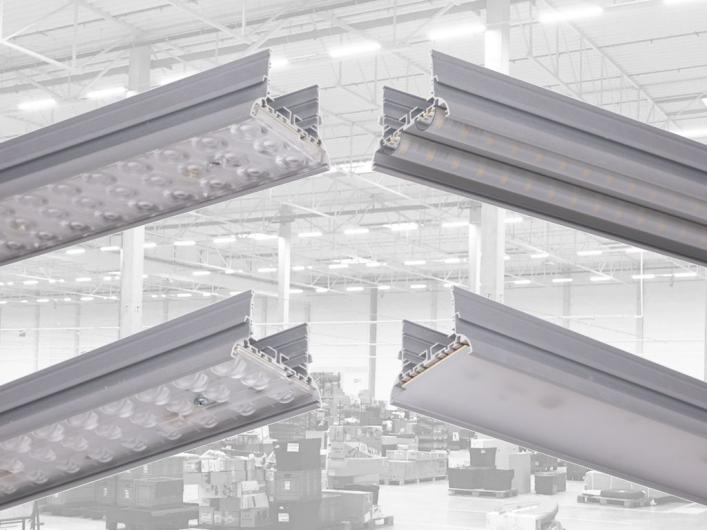

SWD Linear Luminaires

SWD Linear Luminaires

Euroledlighting R. Nowak i Wspòlnicy Sp. J.

Description

The basis of the Euroline linear system is integrated LED fixtures. SWDD luminaires are produced in several hundred variants that allow full optimization and customization of lighting installation. The housing of the luminaire is made of aluminum, available in two variants: one with a trapezoid-like shape, the other with a rectangular shape.

SWD luminaires can be mounted individually as suspended, surface-mounted, or installed into an SWE rail system. The parameters of the produced fittings are each time fully optimized for the project's purposes. This applies to luminous flux, beam angles, color temperature or color rendering index, management, assembly optimization (e.g. luminaires up to 4m long),  housing colors.

Our luminaires can be combined into continuous lighting lines. It is the solution most commonly used in commercial spaces.

Main features of SWD luminaires:

  • lighting efficiency up to 180 lm/W (net)
  • a choice from 30 different styles of optical diffusers
  • luminaries customization according to customers needs (full optimization of the
  • project)
  • IP65 protection rating (trunking system up to IP65)
  • full-spectrum of light temperature, including w special non-standard colors
  • control & management by means of ex. DALI
  • a variety of installation possibilities
  • 3 standard housing colors (silver, white, black)
  • the housing of luminaires is 100% made of aluminum
  • components from the world’s best manufacturers (OSRAM LEDs)
  • over 80% of our lighting comes with OSRAM Industrial drivers
  • min. 60 months of warranty


SWDD - The basic configuration of Euroledlighting linear luminaires is based on three-row, high-performance optical modules (lenses). The lens is responsible for light distribution (beam angles of 30, 60, and 90 degrees; and specialized: asymmetrical, double-symmetrical, or corridor, e.g. 30x90).

SWDA - In this solution, the light diffusers are two (SWDA or one (SWDA1) semi-circular diffusers in three variants: prismatic (1), opal (2), transparent (3). The beam angle of luminaires based on this solution is approx. 110st.

SWDI54, SWDI65 - Luminaries produced by Euroledlighting are also available in the version with protection class from IP54 to IP67. IP-protected lamps should be used wherever the environment or working conditions require a higher degree of tightness.

More products by Euroledlighting R. Nowak i Wspòlnicy Sp. J.

SWE Trunking System

One of the key products that are completely designed, patented, and manufactured by Euroledlighting is an integrated linear LED system called Euroline. Trunking rails and luminaires that belong to this Euroline family are entirely made of aluminum. Our system is an innovative solution on a global scale - it allows very fast and toolless installation of luminaires and other lighting components to the trunking rail. This solution competes with all known trunking systems available on the market.

Main features of trunking system and SWE trunking unit:

  • 3 different trunking rails: standard (SWE), IP protected (SWEI54), and with additional trunking (SWEK)
  • extra safety leads prevent the lamps from falling from a height
  • up to 11 wires / connections
  • installation and powering the installation elements directly from the trunking rail ex.
  • emergency light, peripherals
  • the fastest installation of the lighting system on the market
  • quick and toolless installation (click / plug and play)
  • we supply long elements, which significantly speeds up the construction (single
  • luminaries up to 4m, rails and luminaries in a modular system up to 6m)
  • assembly and powering of any system components, of any manufacturer, directly in from trunking rails, without the need of separate installations and structures e.g. emergency luminaires, sensors, cameras, speakers, etc.
  • wide selection of different suspension types
  • dozen of elements that build together limitless lighting possibilities

With our trunking system you can:
> increase the attractiveness of the space rental offer (applies to facilities for rent), both due to the highest lighting efficiency parameters available on the market, which directly affects the lowest cost of electricity consumption, but also due to the possibilities and flexibility of the system
> shorten the installation process and the date of putting the facility into service
> lower the total cost of lighting installations
> have the extraordinary flexibility of the lighting system to modify, reconstruct, change parameters without involving additional significant financial and personal resources in the event of a change, e.g. the layout of the facility or the parameters (intensity) of lighting.
> have the possibility of low-cost adaptation of the installation to control lighting circuits (e.g. DALI, motion or presence sensors)
