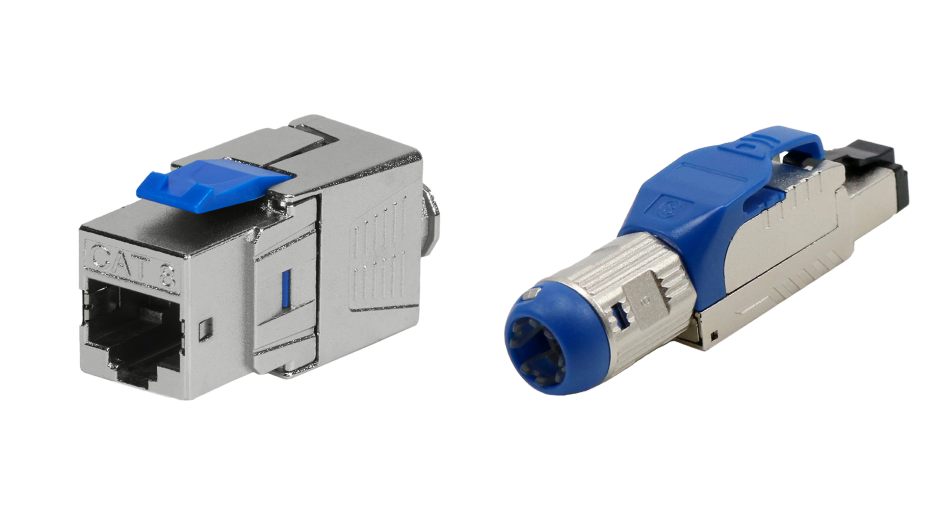

Cat8 STP Field Termination Plug

We provide a new solution for Cat.8 RJ45 plug. The EXW new released Cat. 8 Full Shielded Field Termination plug is designed to terminate with Cat8 cable, applied under 30m channel test for datacenter application. The plug provides excellent network cabling performance and also meet PoE plus (IEEE802.3at) requirement. With unique design for easy, quick and reliable installation, especially the long latch design is very easy to plug in and out even for high density application. The screw-fit boot can be fitted with cable outer diameter from 6.0 to 8.5mm which can apply for 22AWG to 26AWG cable. A dust cover will be included as a part of this plug, it provides the protection under IP20 level.

Cat8 RJ45 FTP Toolless Keystone Jack

The Cat. 8 transmission performance is in compliance with the ANSI/TIA 568-C.2-1 standard. EXW cat.8 solution is channel performance verified, meet PoE plus (IEEE802.3at) application. Our Cat. 8 keystone jack can fit with both 1U 24port & 48port keystone panel and suitable for the smallest home networks to very large data centers. So far the Cat. 8 solutions will be based on shielded cables and connectors because of alien crosstalk difficulties.
